SEC-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Push-button Ignition Switch

INFOID:0000000006226165

Push-button ignition switch detects that push-button is pressed, and then transmits the signal to BCM. BCM
changes the power supply position with the operation of push-button ignition switch. BCM maintains the power
supply position status while push-button is not operated.

Remote Keyless Entry Receiver

INFOID:0000000006226166

Remote keyless entry receiver receives each button operation signal and electronic key ID signal from Intelli-
gent Key, and then transmits the signal to BCM.

Security Indicator Lamp

INFOID:0000000006226167

Security indicator lamp is located on combination meter.
Security indicator lamp blinks when power supply position is any position other than ON to warn that INFINITI
VEHICLE IMMOBILIZER SYSTEM-NATS [IVIS (NATS)] is on board.

Starter Control Relay

INFOID:0000000006226170

Engine starting system functions by controlling both starter relay and starter control relay.
Both relays are integrated in IPDM E/R. Starter relay is controlled by BCM, and starter control relay is con-
trolled by IPDM E/R on request from BCM.
IPDM E/R transmits starter relay and starter control relay status signal to BCM via CAN communication.

Starter Relay

INFOID:0000000006226171

Engine starting system functions by controlling both starter relay and starter control relay.
Both relays are integrated in IPDM E/R. Starter relay is controlled by BCM, and starter control relay is con-
trolled by IPDM E/R on request from BCM.
IPDM E/R transmits starter relay and starter control relay status signal to BCM via CAN communication.

Steering Lock Relay

INFOID:0000000006226172

Steering lock relay is integrated in IPDM E/R, and supplies power source to steering lock unit.
When IPDM E/R receives the steering lock relay ON request signal from BCM, IPDM E/R turns ON steering
lock relay and then transmits the steering lock relay condition signal to BCM.

Steering Lock Unit

INFOID:0000000006226173

Steering lock unit performs steering lock/unlock operation on request from BCM, and power source is supplied
from steering lock relay integrated in IPDM E/R.
When push-button ignition switch is pressed while the Intelligent Key is inside the vehicle, BCM performs the
ID verification with steering lock unit. Steering lock unit releases the steering lock based on the result of the ID
verification.
Steering lock unit has 2 switches (steering lock status switch and steering unlock status switch) inside. BCM
judges the steering lock/unlock condition by comparing these switch signals and steering lock unit status sig-
nal transmitted from IPDM E/R via CAN communication.

Stop Lamp Switch

INFOID:0000000006226174

Stop lamp switch detects that brake pedal is depressed, and then transmits the signal to BCM.

Transmission Range Switch

INFOID:0000000006226175

Transmission range switch is integrated in A/T assembly, and detects the A/T shift selector position.
TCM receives the transmission range switch signal and then transmits the P/N position signal to BCM and
IPDM E/R.
BCM confirms the A/T shift selector position with the following 5 signals.
• P position signal from A/T shift selector (detention switch)
• P/N position signal from TCM
• P position signal from IPDM E/R (CAN)
• P/N position signal from IPDM E/R (CAN)
• P/N position signal from TCM (CAN)
IPDM E/R confirms the A/T shift selector position with the following 3 signals.

COMPONENT PARTS

SEC-11

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• P position signal from A/T shift selector (detention switch)
• P/N position signal from TCM
• P/N position signal from BCM (CAN)

Vehicle Information Display

INFOID:0000000006226176

Vehicle information display is integrated in combination meter.
Various information and warnings regarding to the Intelligent Key System are displayed.

SEC-12

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

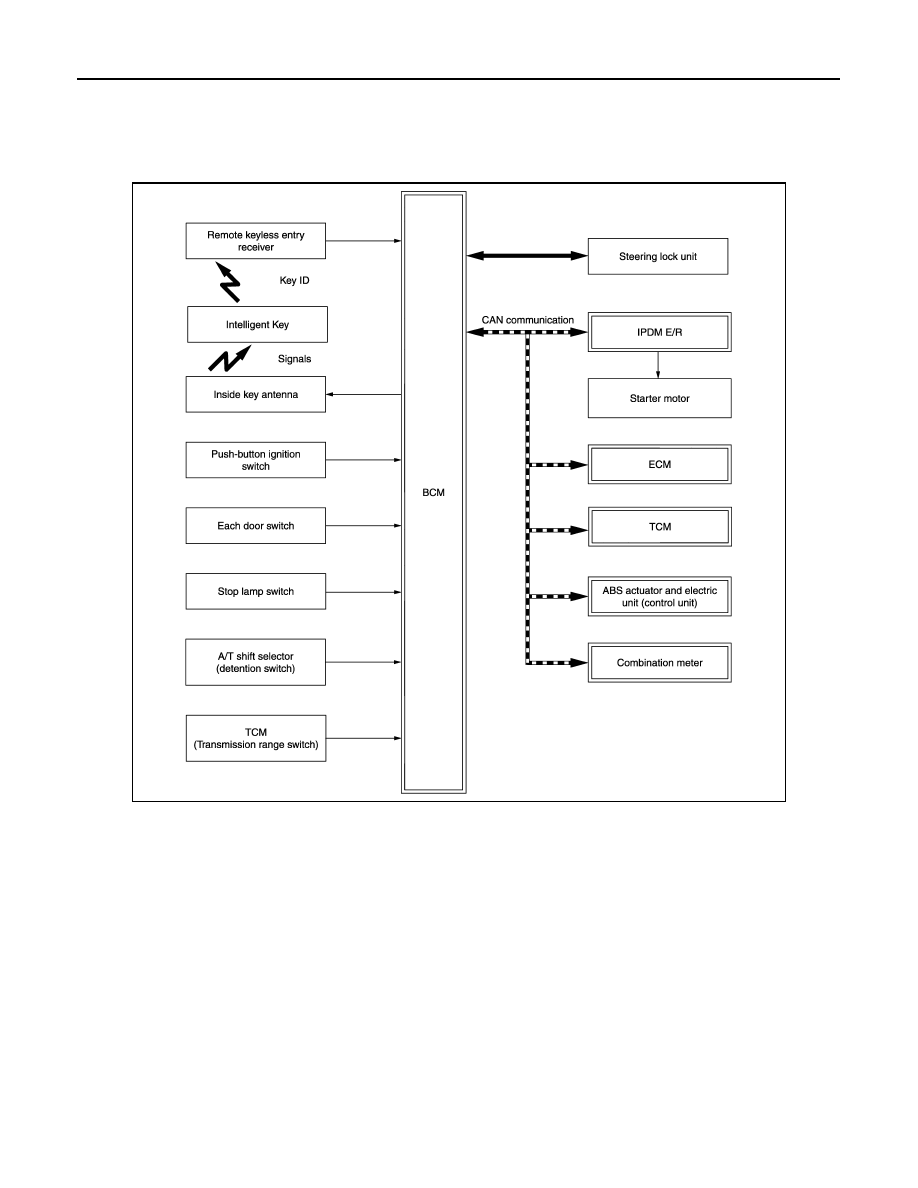

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Diagram

INFOID:0000000006226178

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Description

INFOID:0000000006226179

SYSTEM DESCRIPTION

• The engine start function of Intelligent Key system makes it possible to start and stop the engine without

using the key, based on the electronic ID verification. The electronic ID verification is performed between
BCM and Intelligent Key when the push-button ignition switch is pressed while the Intelligent Key is within
the detection area of inside key antenna.
NOTE:
The driver should carry the Intelligent Key at all times.

• Intelligent Key has 2 IDs [Intelligent Key ID and IVIS (NATS) ID]. It can perform the door lock/unlock opera-

tion and the push-button ignition switch operation when the registered Intelligent Key is carried.

• When Intelligent Key battery is discharged, engine can be started by operating push-button ignition switch

after contacting Intelligent Key backside to push-button ignition switch. At that time, the IVIS (NATS) ID veri-
fication is performed.

• If the ID is successfully verified, when push-button ignition switch is pressed, steering lock is released and

the engine can be started.

JMKIA5239GB

SYSTEM

SEC-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• Up to 4 Intelligent Keys can be registered (Including the standard Intelligent Key) upon request from the cus-

tomer.
NOTE:
Refer to

DLK-18, "INTELLIGENT KEY SYSTEM : System Description"

 for any functions other than engine

start function of Intelligent Key system.

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder [the chip for IVIS (NATS) ID verification] is integrated into the Intelligent Key. (For the
conventional models, it is integrated into the mechanical key.) Therefore, ID verification cannot be per-
formed by mechanical key only.
In that case, the IVIS (NATS) ID verification can be performed when Intelligent Key backside is con-
tacted to push-button ignition switch. If verification result is OK, engine can be started.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

1.

When the push-button ignition switch is pressed, the BCM activates the inside key antenna and transmits
the request signal to the Intelligent Key.

2.

The Intelligent Key receives the request signal and transmits the Intelligent Key ID signal to the BCM.

3.

BCM receives the Intelligent Key ID signal via remote keyless entry receiver and verifies it with the regis-
tered ID.

4.

BCM transmits the unlock signal to steering lock unit and IPDM E/R if the verification results are OK.

5.

IPDM E/R turns the steering lock relay ON and supplies power supply to the steering lock unit.

6.

The steering lock releases.

7.

BCM transmits the power supply stop signal to IPDM E/R when detecting that the steering lock is in the
unlock condition.

8.

IPDM E/R turns the steering lock relay OFF and stops power supply to the steering lock unit.

9.

BCM turns ACC relay ON and transmits the ignition power supply ON signal to IPDM E/R.

10. IPDM E/R turns the ignition relay ON and starts the ignition power supply.

11. BCM detects that the selector lever position and brake pedal operating condition.

12. BCM transmits the starter request signal to IPDM E/R and turns the starter relay in IPDM E/R ON if BCM

judges that the engine start condition* is satisfied.

13. IPDM E/R turns the starter control relay ON when receiving the starter request signal.

14. Power supply is supplied through the starter relay and the starter control relay to operate the starter motor.

CAUTION:

If a malfunction is detected in the Intelligent Key system, the “KEY” warning lamp in the combina-
tion meter illuminates. At that time, the engine cannot be started.

15. When BCM receives feedback signal from ECM indicating that the engine is started, the BCM transmits a

stop signal to IPDM E/R and stops cranking by turning OFF the starter motor relay. (If engine start is
unsuccessful, cranking stops automatically within 5 seconds.)

CAUTION:

When the Intelligent Key is carried outside of the vehicle (inside key antenna detection area) while
the power supply is in the ACC or ON position, even if the engine start condition* is satisfied, the
engine cannot be started.

*: For the engine start condition, refer to “POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON
IGNITION SWITCH OPERATION”.

OPERATION RANGE

Engine can be started when Intelligent Key is inside the vehicle. However, sometimes engine may not start
when Intelligent Key is on instrument panel or in glove box.

ENGINE START OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO PUSH-BUTTON IG-
NITION SWITCH

When Intelligent Key battery is discharged, the IVIS (NATS) ID verification between transponder in Intelligent
Key and BCM is performed when Intelligent Key backside is contacted to push-button ignition switch. If the
verification result is OK, engine can be started.

STEERING LOCK OPERATION

Steering is locked by steering lock unit when any of the following conditions are met.
