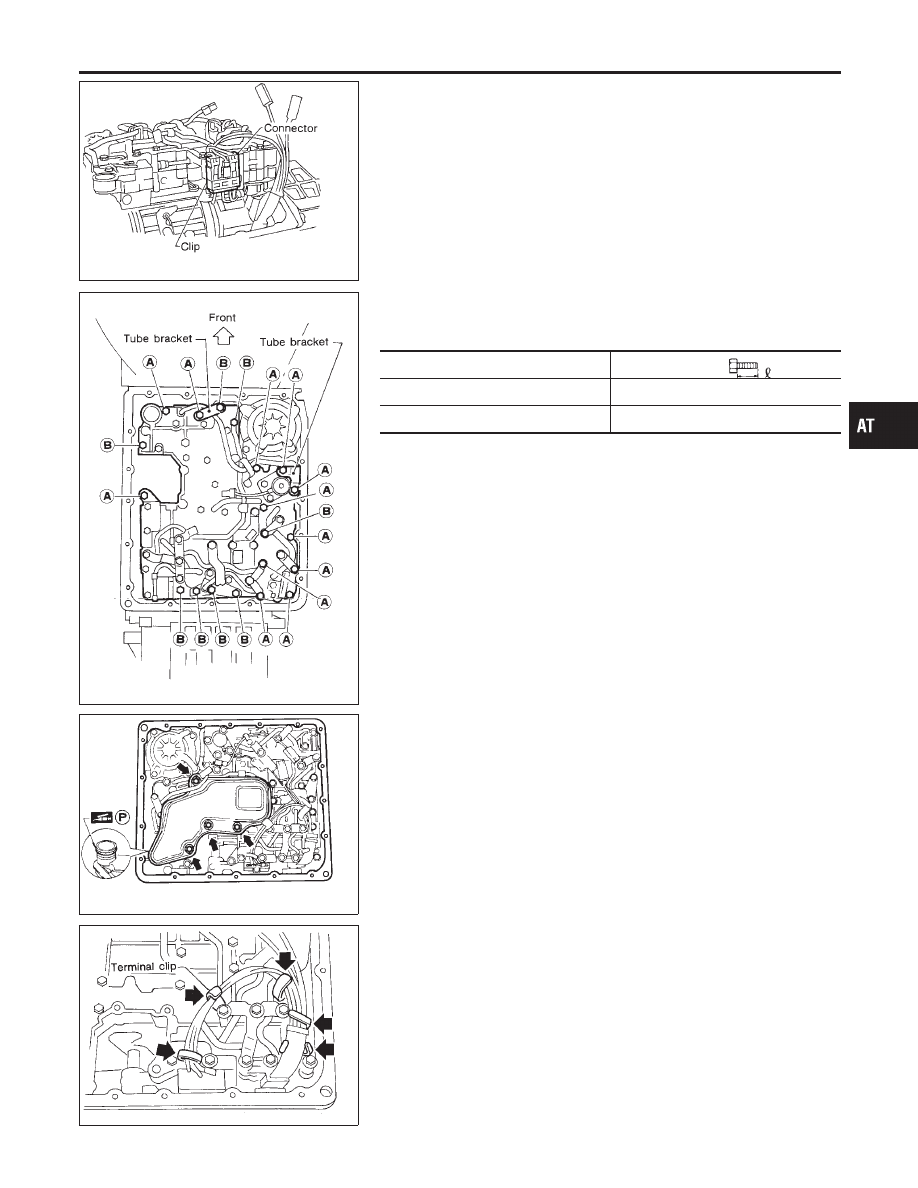

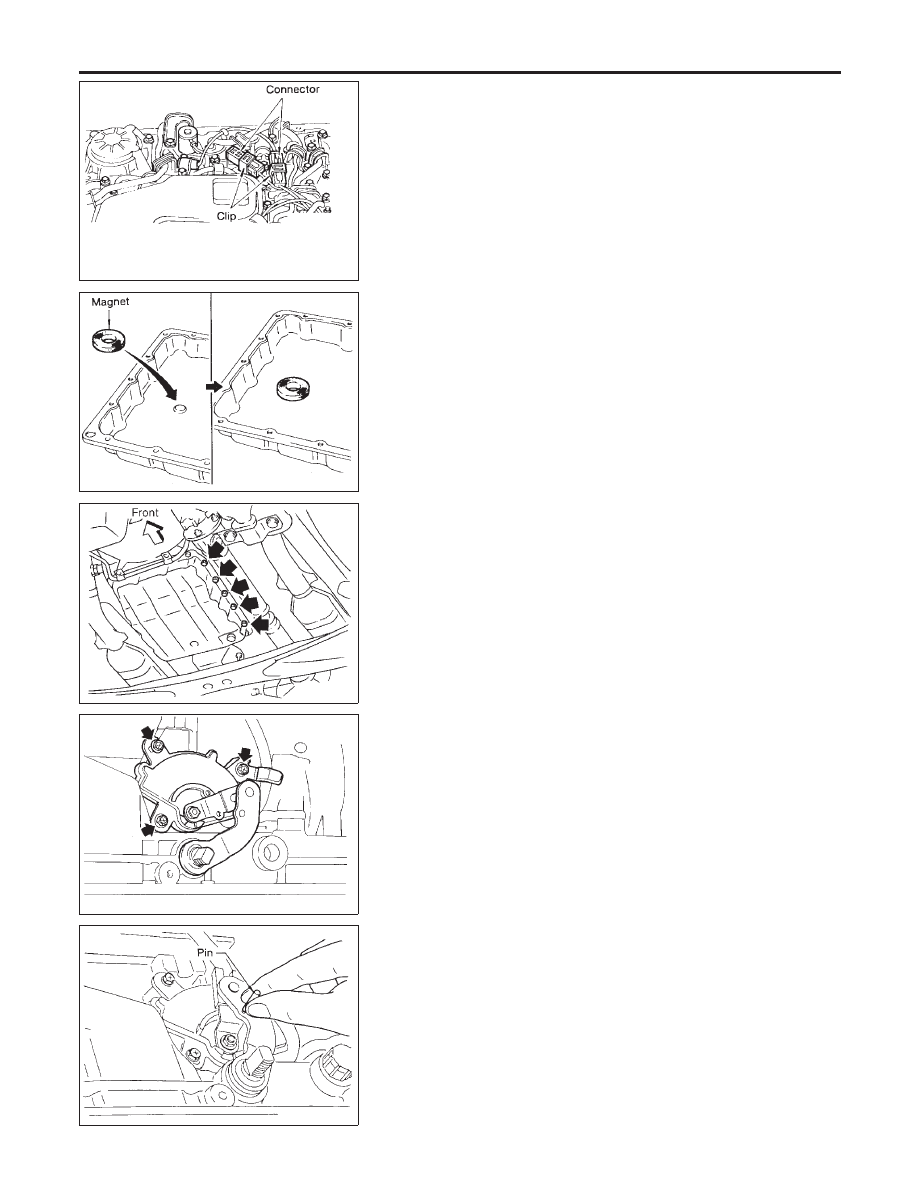

SAT006B c. Place control valve assembly on transmission case. Connect d. Install connector clip. SAT353B e. Install control valve assembly on transmission case. f. Install connector tube brackets and tighten bolts A and B. I Check that terminal assembly does not catch. Bolt symbol mm (in) A 33 (1.30) B 45 (1.77) SAT221B g. Install O-ring on oil strainer. I Apply petroleum jelly to O-ring. h. Install oil strainer on control valve. SAT009B i. Securely fasten terminal harness with clips. GI MA EM LC EC FE TF PD AX SU BR ST RS BT HA SC EL IDX ASSEMBLY Assembly (2) (Cont’d) AT-353 |
