CAN SYSTEM (TYPE 2)

LAN-65

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 4

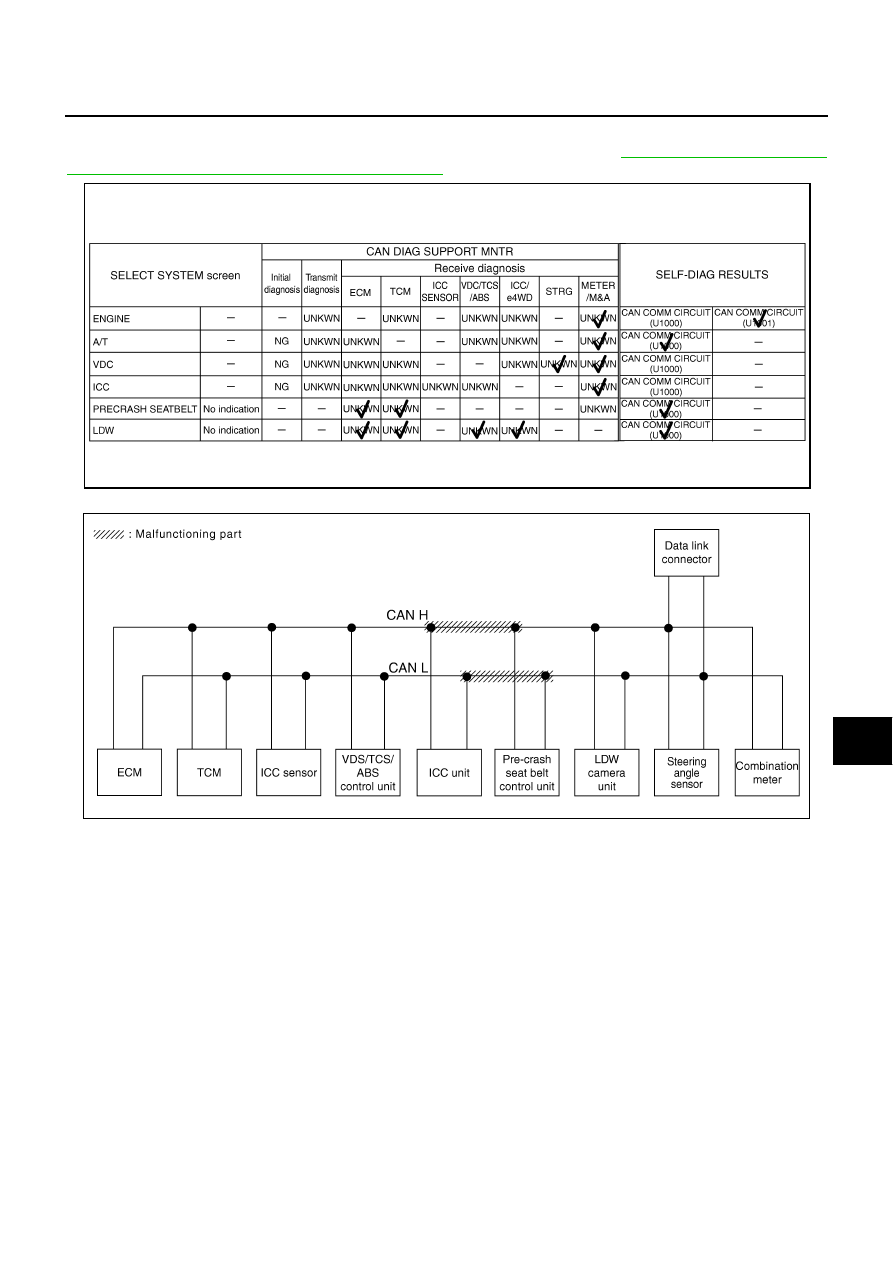

Check harness between ICC unit and pre-crash seat belt control unit. Refer to

LAN-97, "Inspection Between

ICC Unit and Pre-Crash Seat Belt Control Unit Circuit"

 .

SKIB7473E

SKIB7490E

LAN-66

[CAN]

CAN SYSTEM (TYPE 2)

Case 5

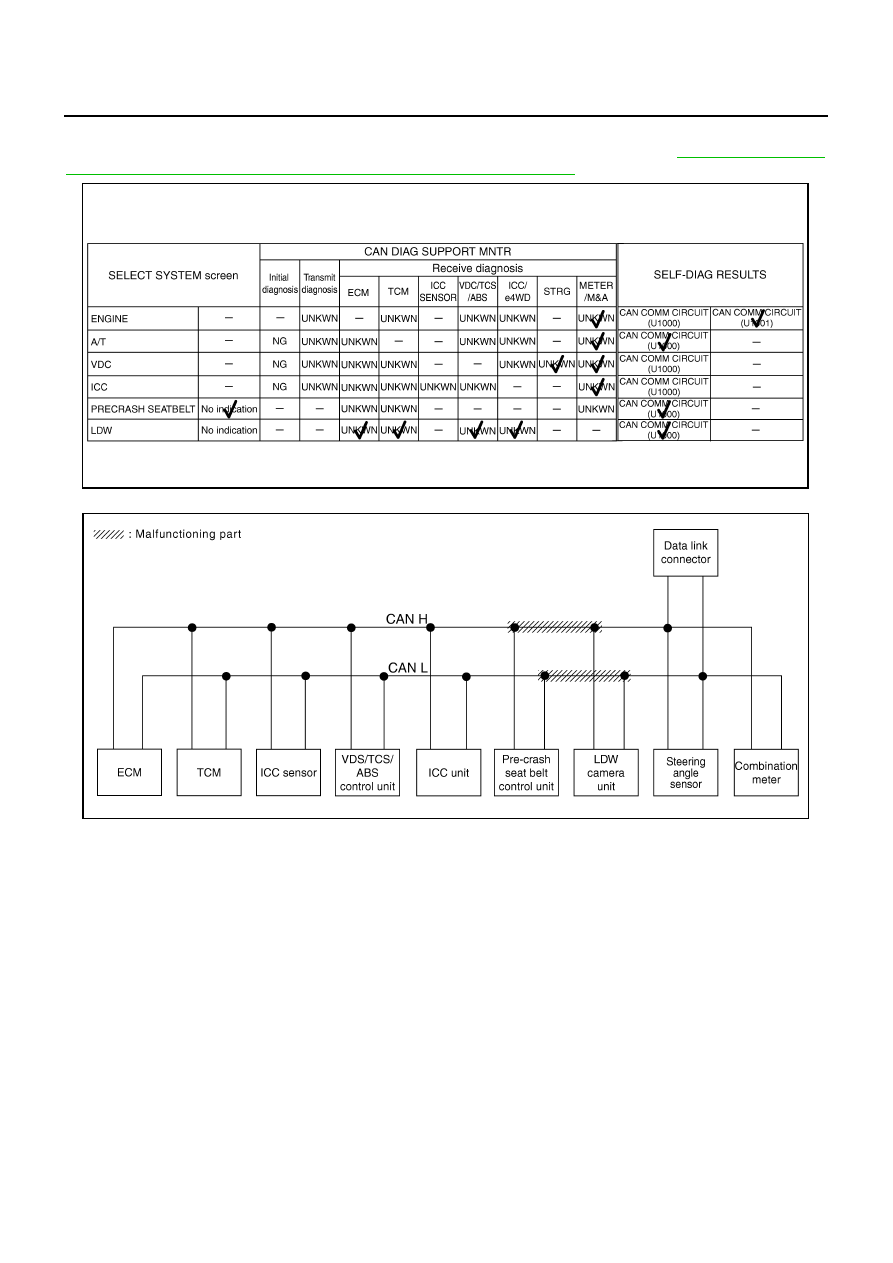

Check harness between pre-crash seat belt control unit and LDW camera unit. Refer to

LAN-100, "Inspection

Between Pre-Crash Seat Belt Control Unit and LDW Camera Unit Circuit"

 .

SKIB7474E

SKIB7491E

CAN SYSTEM (TYPE 2)

LAN-67

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

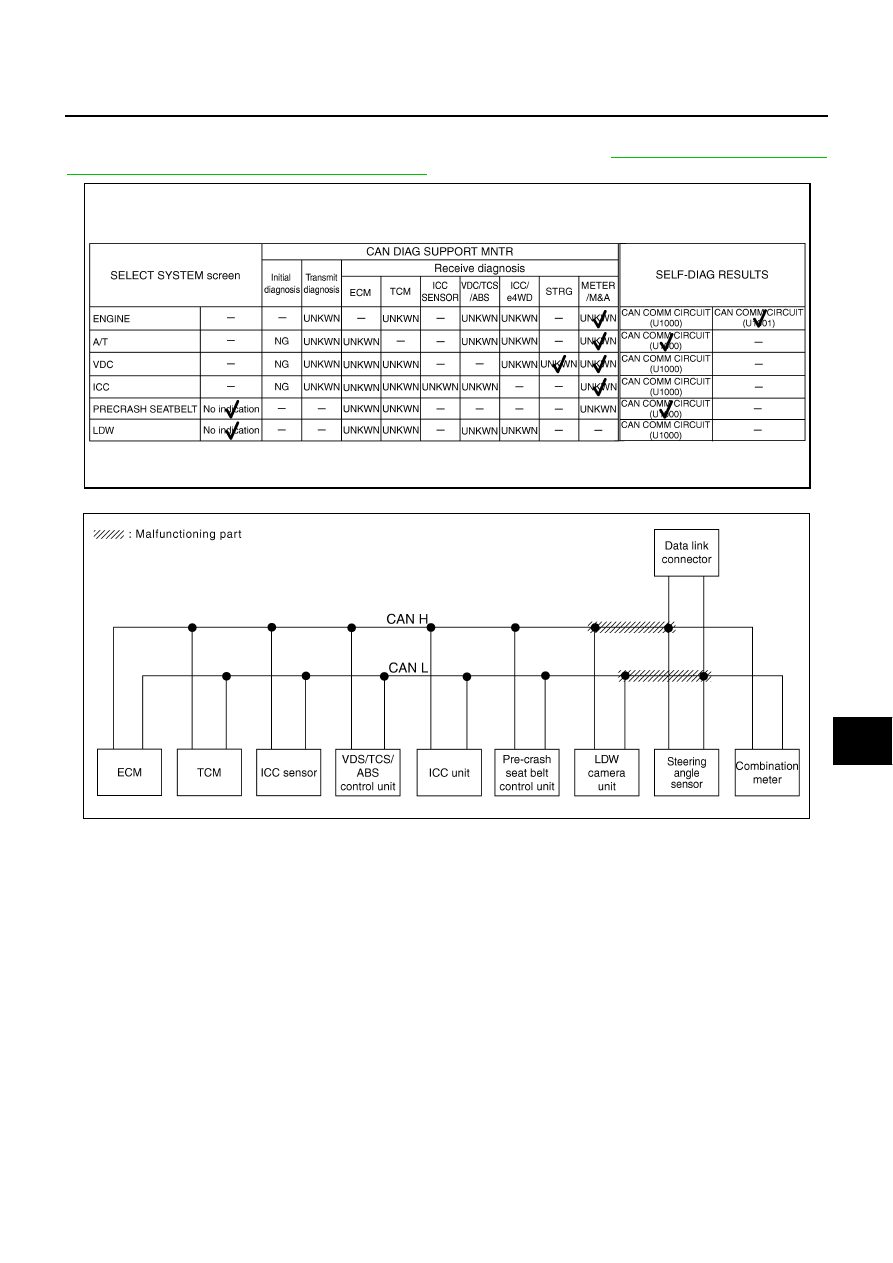

Case 6

Check harness between LDW camera unit and data link connector. Refer to

LAN-102, "Inspection Between

LDW Camera Unit and Data Link Connector Circuit"

 .

SKIB7475E

SKIB7492E

LAN-68

[CAN]

CAN SYSTEM (TYPE 2)

Case 7

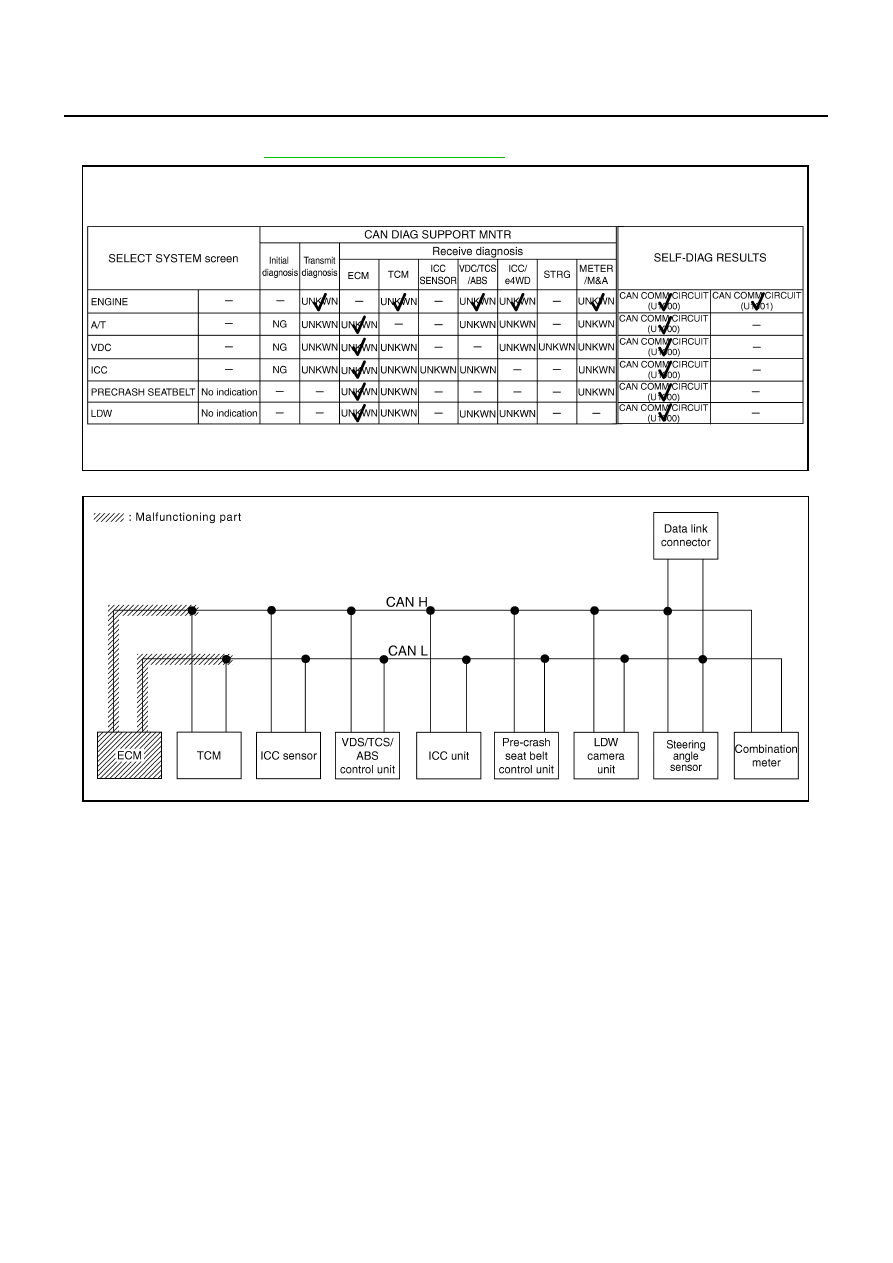

Check ECM circuit. Refer to

LAN-103, "ECM Circuit Inspection"

 .

SKIB7476E

SKIB7493E
