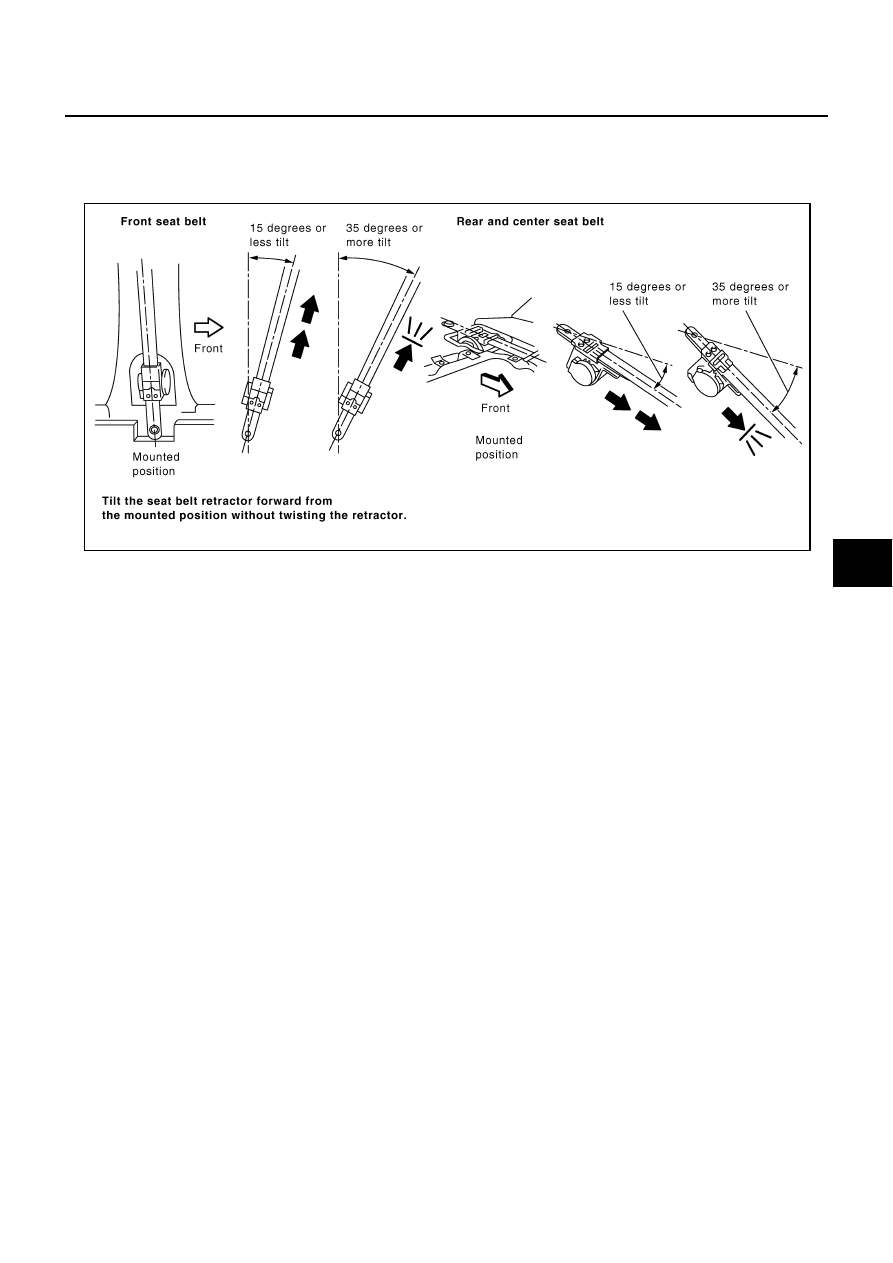

SEAT BELTS SB-7 C D E F G I J K L M A B SB Seat Belt Inspection AHS0009J AFTER A COLLISION WARNING: Inspect all seat belt assemblies including retractors and attaching hardware after any collision. ● The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and ● The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide). ● The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage ● Anchor bolts are deformed or worn out. ● The front seat belt pre-tensioner should be replaced even if the seat belts are not in use during the colli- PRELIMINARY INSPECTION 1. Check the seat belt warning lamp/chime for proper operation as follows: a. Switch ignition ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime should b. Fasten driver's seat belt. The seat belt warning lamp should go out and the chime (if sounding) should 2. If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-II, and air bag warning . 3. Make sure that the seat belt retractor, seat belt anchor and buckle bolts are securely attached. 4. Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Ensure guide swivels 5. Check retractor operation: a. Fully extend the seat belt webbing and check for twists, tears or other damage. b. Allow the seat belt to retract. Ensure that webbing returns smoothly and completely into the retractor. If c. Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the webbing Inspect the front seat belt through-anchor: 1. Pull the seat belt out to a length of 500 mm (19.69 in) or more. 2. Use a clip or other device to the fix the seat belt at the center pillar webbing opening. 3. Pass a thin wire through the through-anchor webbing opening. Hold both ends of the wire and pull taut while moving it up and down several times along the webbing opening surface to remove dirt. 4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean cloth. 5. Apply tape at the point where the webbing contacts the through-anchor webbing opening. NOTE: 6. Remove the clip fixing the seat belt and ensure that the webbing returns smoothly. |
