Infiniti M45 (Y34). Manual - part 100





TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-285

D

E

F

G

H

I

J

K

L

M

A

B

AT

10.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

11.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace damaged parts.

AT-286

TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Perform Lock-up

ACS001G2

SYMPTOM:

A/T does not perform lock-up at the specified speed.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

Execute self-diagnosis.
Do the self-diagnostic results indicate torque converter clutch solenoid valve, engine speed signal, turbine rev-
olution sensor, accelerator pedal position sensor, CAN communication line?

YES

>> Check the malfunctioning system. Refer to

AT-123, "DTC P0740 TORQUE CONVERTER

CLUTCH SOLENOID VALVE"

 ,

AT-121, "DTC P0725 ENGINE SPEED SIGNAL"

 ,

AT-160, "DTC

P1716 TURBINE REVOLUTION SENSOR"

 ,

AT-152, "DTC P1705 THROTTLE POSITION SEN-

SOR"

 ,

AT-103, "DTC U1000 CAN COMMUNICATION LINE"

 .

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

AT-14, "Checking A/T Fluid"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK LINE PRESSURE

Check line pressure at the engine stall point. Refer to

AT-53, "LINE

PRESSURE TEST"

 .

OK or NG

OK

>> GO TO 6.

NG - 1 >> Line pressure high. GO TO 4.
NG - 2 >> Line pressure low. GO TO 5.

4.

DETECT MALFUNCTIONING ITEM

1.

Check control valve assembly. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Disassemble A/T. Refer to

AT-342, "DISASSEMBLY"

 .

3.

Check the following items:

Oil pump assembly. Refer to

AT-357, "Oil Pump"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

SAT638A

SAT494G

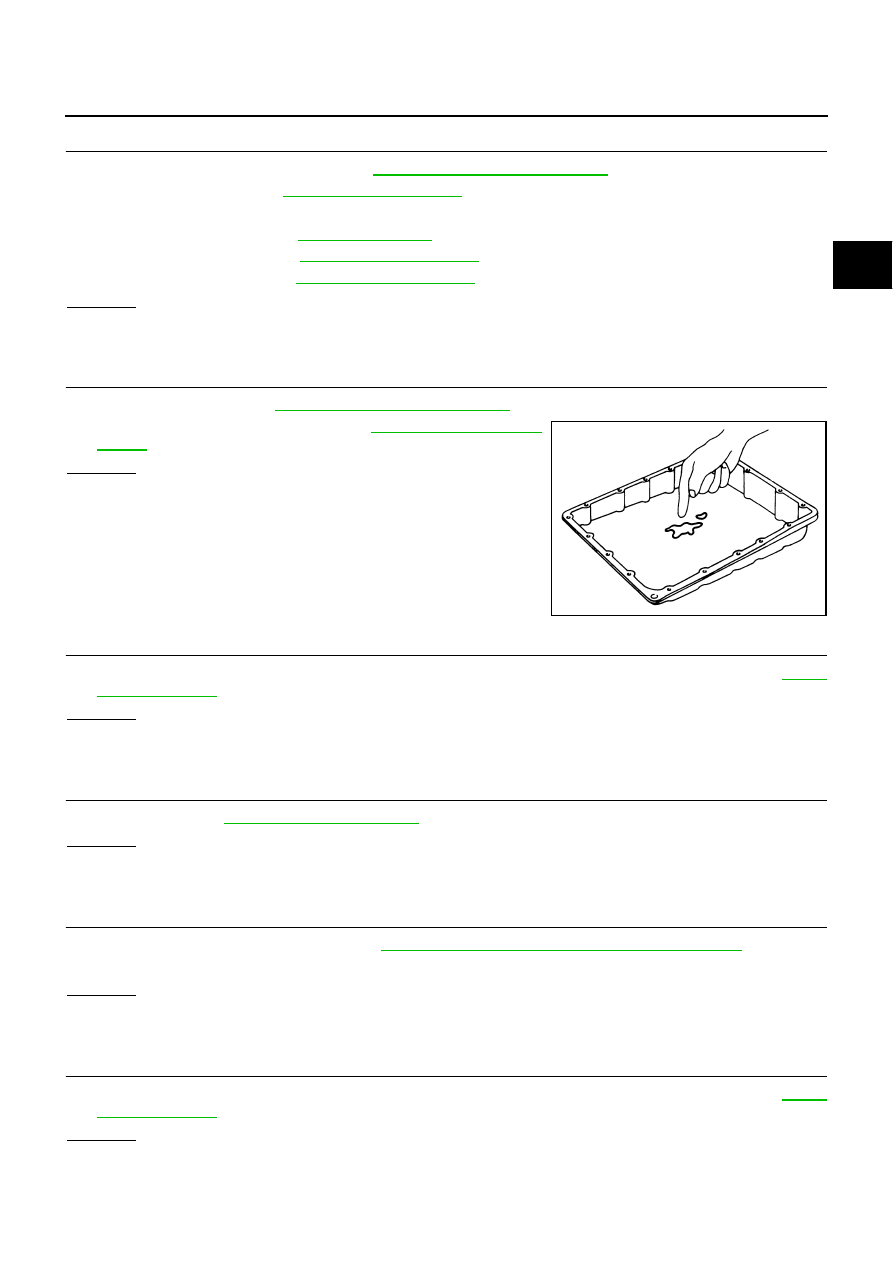

TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-287

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

DETECT MALFUNCTIONING ITEM

1.

Check control valve assembly. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Disassemble A/T. Refer to

AT-342, "DISASSEMBLY"

 .

3.

Check the following items:

Oil pump assembly. Refer to

AT-357, "Oil Pump"

 .

Power train system. Refer to

AT-342, "DISASSEMBLY"

 .

Transmission case. Refer to

AT-342, "DISASSEMBLY"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

6.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Check A/T fluid condition. Refer to

AT-52, "Fluid Condition

Check"

 .

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 10.

7.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace damaged parts.

8.

CHECK SYMPTOM

Check again. Refer to

AT-58, "Cruise Test - Part 1"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

10.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace damaged parts.

SCIA5199E

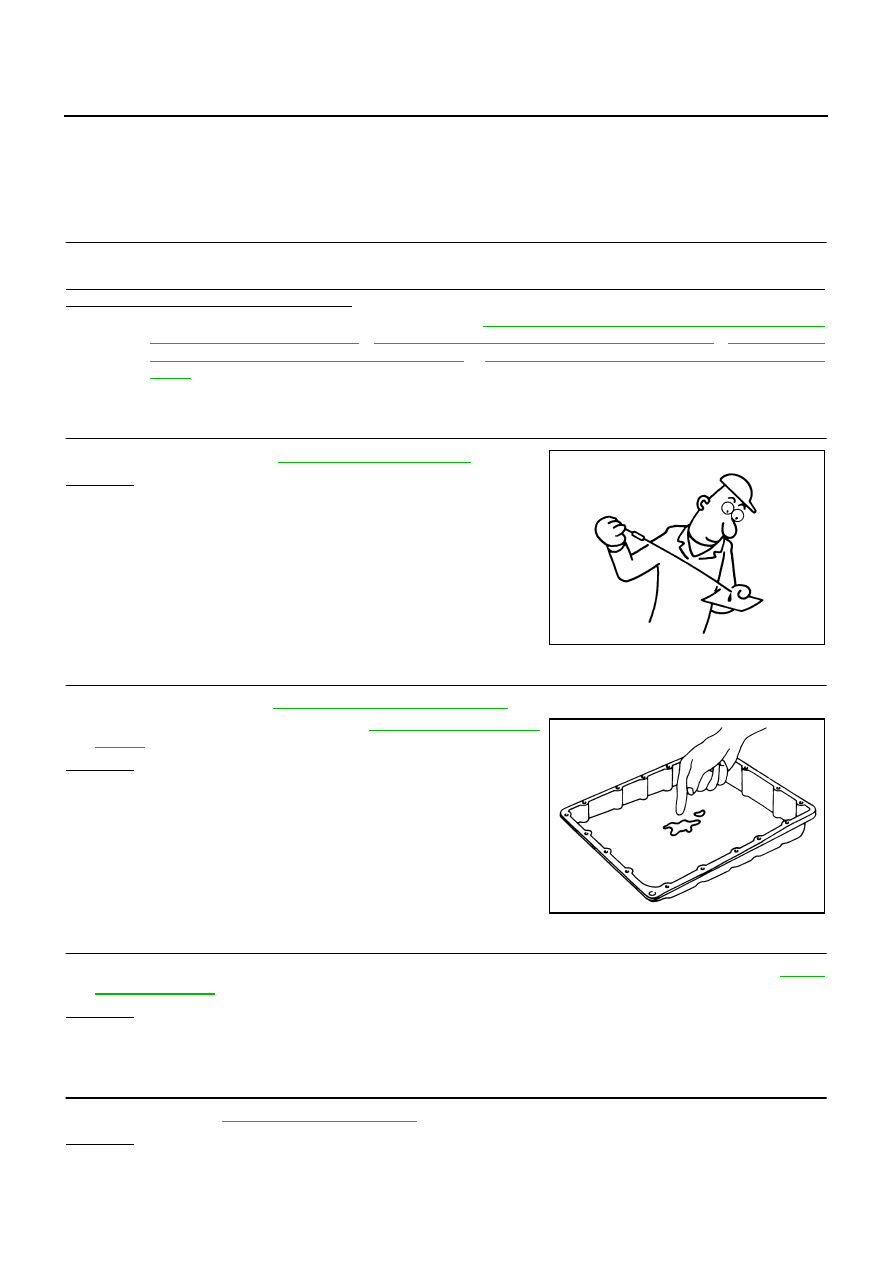

AT-288

TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Hold Lock-up Condition

ACS001G3

SYMPTOM:

The lock-up condition cannot be maintained for more than 30 seconds.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

Execute self-diagnosis.
Do the self-diagnostic results indicate torque converter clutch solenoid valve, engine speed signal, turbine rev-
olution sensor, CAN communication line?

YES

>> Check the malfunctioning system. Refer to

AT-123, "DTC P0740 TORQUE CONVERTER

CLUTCH SOLENOID VALVE"

 ,

AT-121, "DTC P0725 ENGINE SPEED SIGNAL"

 ,

AT-160, "DTC

P1716 TURBINE REVOLUTION SENSOR"

 ,

AT-103, "DTC U1000 CAN COMMUNICATION

LINE"

 .

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

AT-14, "Checking A/T Fluid"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Check A/T fluid condition. Refer to

AT-52, "Fluid Condition

Check"

 .

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 7.

4.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK SYMPTOM

Check again. Refer to

AT-58, "Cruise Test - Part 1"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

SAT638A

SCIA5199E
