DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-157

D

E

F

G

H

I

J

K

L

M

A

B

AT

2.

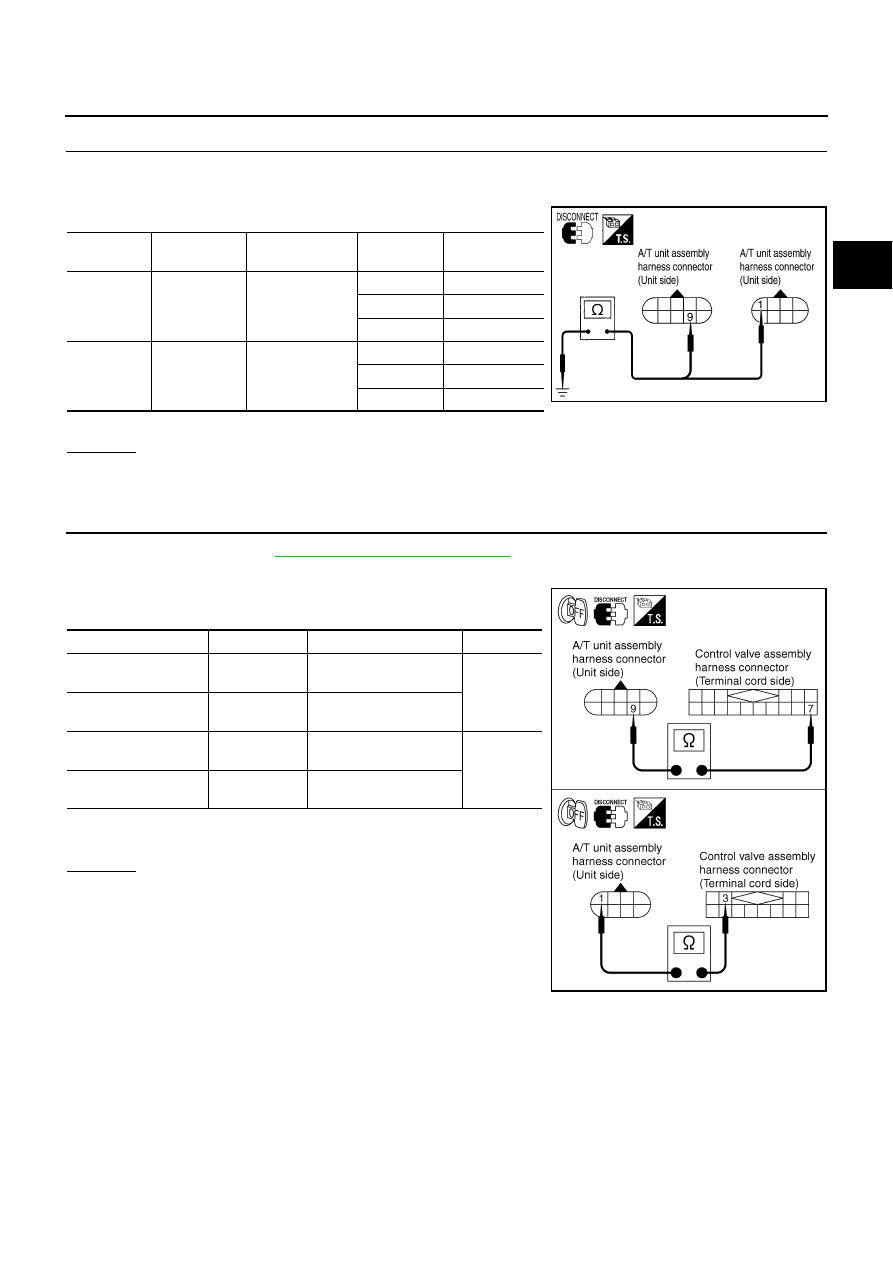

CHECK A/T FLUID TEMPERATURE SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/T unit assembly harness connector at the transmission right side.

3.

Check the resistance between terminal and ground.

4.

Reinstall any part removed.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 3.

3.

CHECK TERMINAL CORD ASSEMBLY

1.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

3.

Check continuity between A/T unit assembly harness connector
and control valve assembly harness connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

Name

Connector No.

Terminal No.

Tempera-

ture

°

C (

°

F)

Resistance

(K

Ω

) (Approx.)

A/T fluid
temperature
sensor 1

F26

9 - Ground

0 (32)

15

20 (68)

6.5

80 (176)

0.9

A/T fluid
temperature
sensor 2

F27

1 - Ground

0 (32)

10

20 (68)

4

80 (176)

0.5

SCIA1856E

Item

Connector No.

Terminal No. (Wire color)

Continuity

A/T unit assembly har-
ness connector

F26

9 (B/Y)

Yes

Control valve assem-
bly harness connector

F302

7 (B/Y)

A/T unit assembly har-
ness connector

F27

1 (P)

Yes

Control valve assem-
bly harness connector

F301

3 (P)

SCIA3068E

AT-158

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

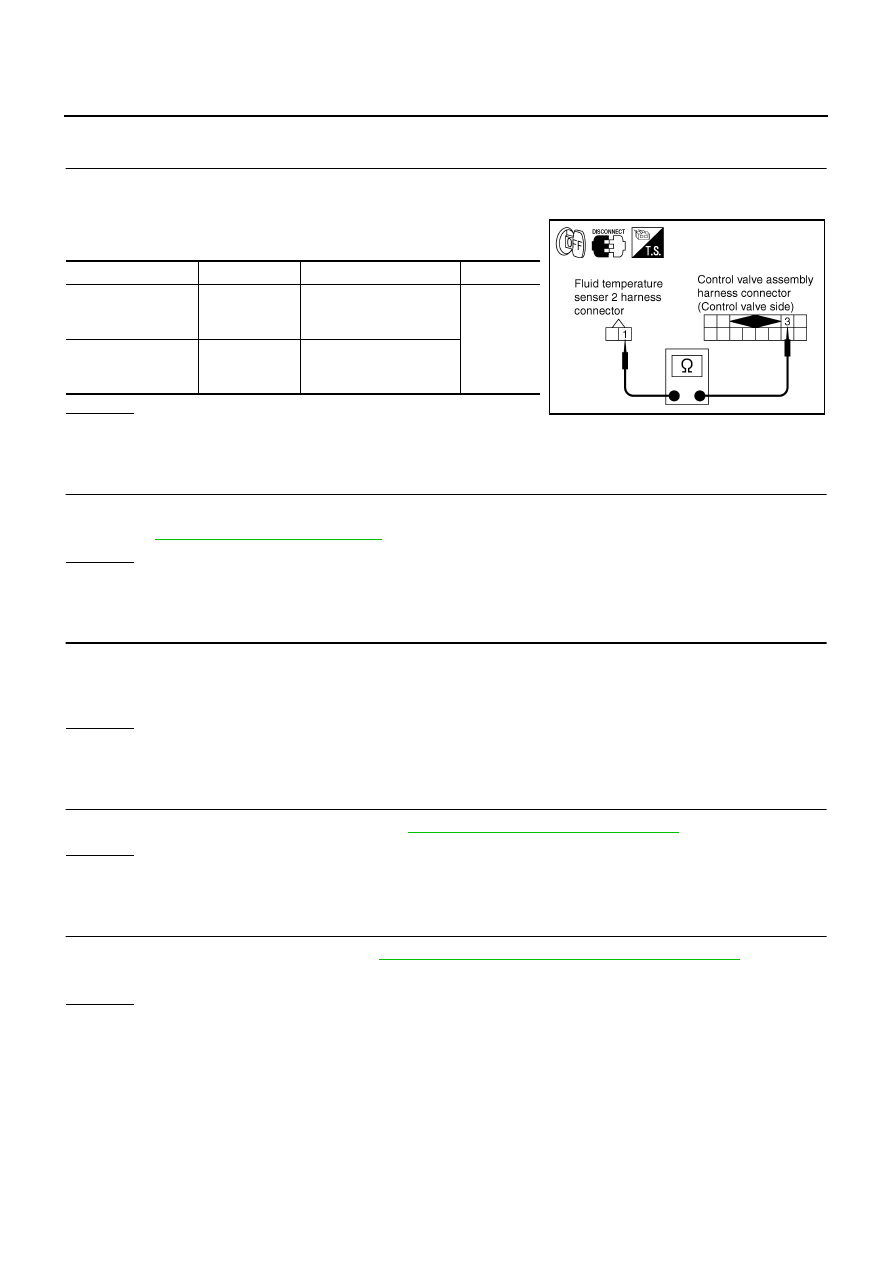

4.

CHECK HARNESS BETWEEN A/T FLUID TEMPERATURE SENSOR 2 AND CONTROL VALVE

ASSEMBLY

1.

Disconnect A/T fluid temperature sensor 2 harness connector and control valve assembly harness con-
nector.

2.

Check continuity between A/T fluid temperature sensor 2 har-
ness connector and control valve assembly harness connector.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK A/T FLUID TEMPERATURE SENSOR 2

Check A/T fluid temperature sensor 2.

●

Refer to

AT-159, "Component Inspection"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

DETECT MALFUNCTIONING ITEM

Check the following items:

●

Harness for short to ground or short to power or open between TCM and A/T unit assembly harness con-
nector.

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-154, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Item

Connector No.

Terminal No. (Wire color)

Continuity

A/T fluid tempera-
ture sensor 2 har-
ness connector

F305

1 (GY)

Yes

Control valve assem-
bly harness connec-
tor

F301

3 (GY)

SCIA3069E

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-159

D

E

F

G

H

I

J

K

L

M

A

B

AT

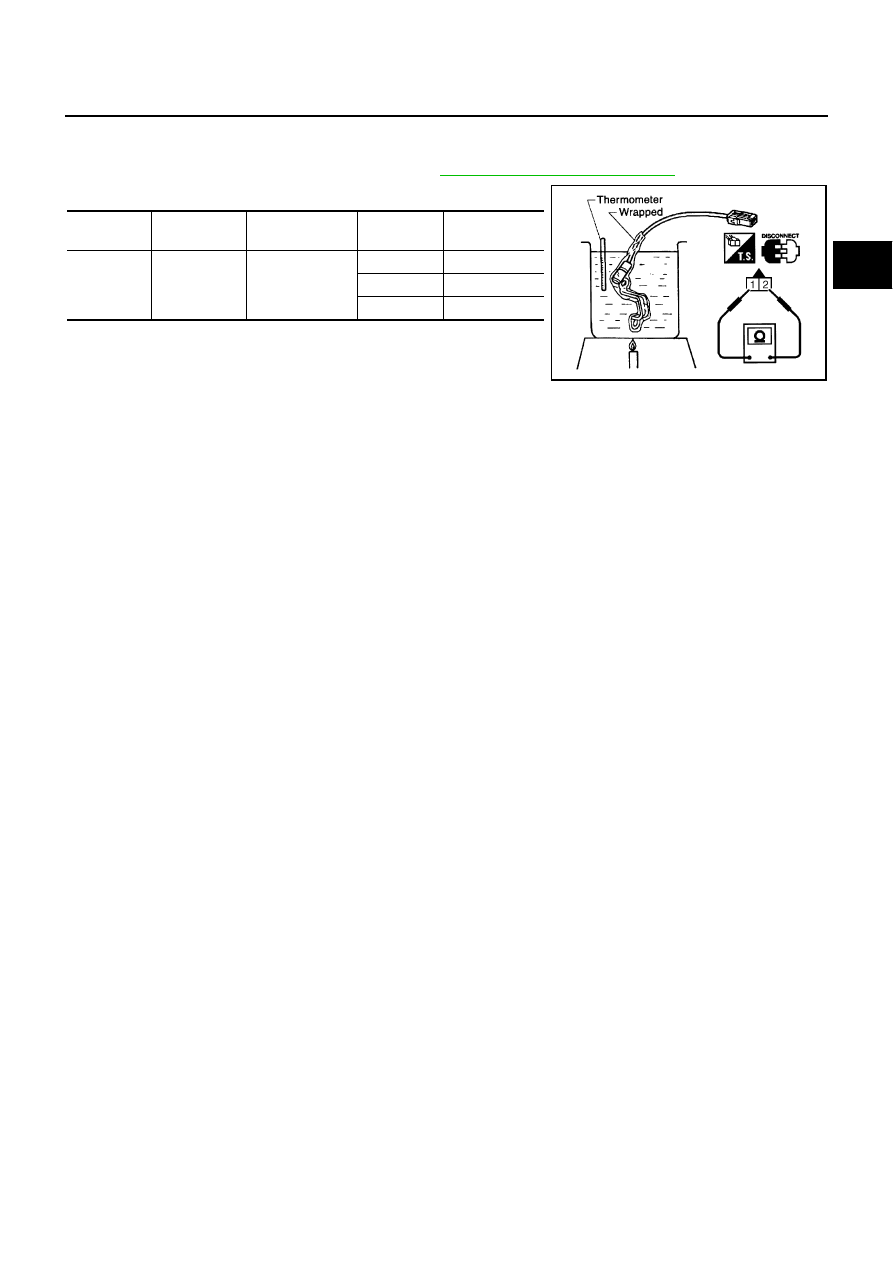

Component Inspection

ACS0048D

A/T FLUID TEMPERATURE SENSOR 2

1.

Remove A/T fluid temperature sensor 2. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Check resistance between terminal 1 and 2.

Name

Connector No.

Terminal No.

Tempera-

ture

°

C (

°

F)

Resistance

(K

Ω

) (Approx.)

A/T fluid
temperature
sensor 2

F305

1 - 2

0 (32)

10

20 (68)

4

80 (176)

0.5

SCIA3070E

AT-160

DTC P1716 TURBINE REVOLUTION SENSOR

DTC P1716 TURBINE REVOLUTION SENSOR

PFP:31935

Description

ACS0048E

The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of
the automatic transmission. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.

CONSULT-II Reference Value

ACS004PD

On Board Diagnosis Logic

ACS0048F

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “TURBINE REV S/CIRC” with CONSULT-II or P1716 without CONSULT-II is
detected under the following conditions.

–

When TCM does not receive the proper voltage signal from the sensor.

–

When TCM detects an irregularity only at position of 4th gear for turbine revolution sensor 2.

Possible Cause

ACS0048G

●

Harness or connectors
(The sensor circuit is open or shorted.)

●

Turbine revolution sensor 1, 2

DTC Confirmation Procedure

ACS0048H

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 40 km/h (25 MPH) or more
ENGINE SPEED: 1,500 rpm or more
ACCELE POS: 0.5/8 or more
Selector lever: “D” position
Gear position (Turbine revolution sensor 1): 4th or 5th posi-
tion
Gear position (Turbine revolution sensor 2): All position

4.

If DTC is detected, go to

AT-162, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

Item name

Condition

Display value

TURBINE REV

During driving (lock-up ON)

Approximately matches the engine speed.

SAT014K
