ELECTRICAL UNITS LOCATION

PG-101

C

D

E

F

G

H

I

J

L

M

A

B

PG

CKIT0819E

PG-102

ELECTRICAL UNITS LOCATION

CKIT0659E

ELECTRICAL UNITS LOCATION

PG-103

C

D

E

F

G

H

I

J

L

M

A

B

PG

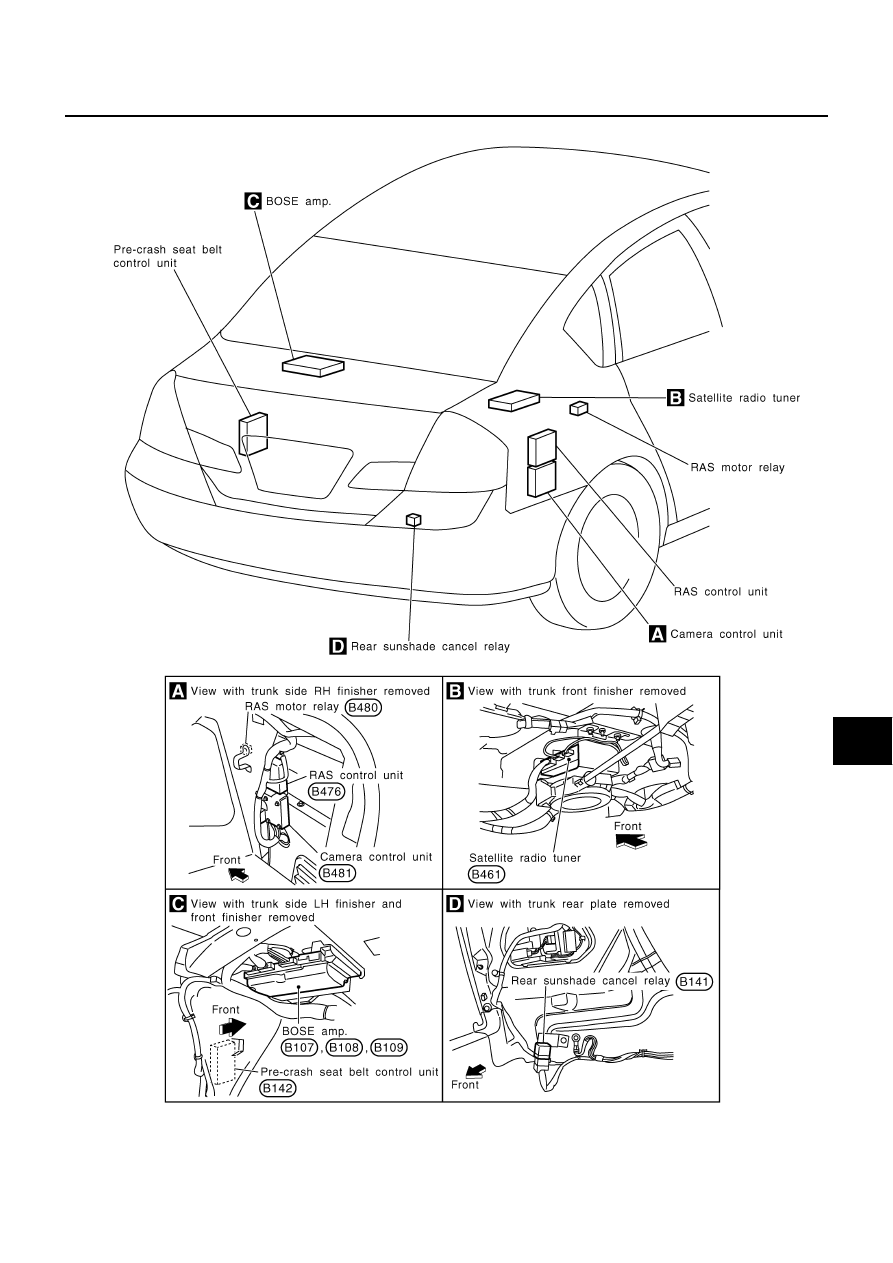

LUGGAGE COMPARTMENT

CKIT0820E

PG-104

HARNESS CONNECTOR

HARNESS CONNECTOR

PFP:00011

Description

NKS004EV

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the fig-
ure below.

CAUTION:

Never pull the harness or wires when disconnecting the connector.

[Example]

SEL769DA
