Infiniti M35/M45 Y50. Manual - part 972





PDU (POWER DISTRIBUTION UNIT)

PG-33

C

D

E

F

G

H

I

J

L

M

A

B

PG

Unless each start condition is fulfilled, the engine will not response regardless of how many times the
push-button ignition switch is pushed. At that time, illumination repeats the position in the order of LOCK

 ACC

 ON

 LOCK.

*1: When the A/T selector lever position is N position, the engine start condition is different according to the vehicle speed.

At vehicle speed of 5 km/h or less, the engine can start only when the brake pedal is depressed.

At vehicle speed of 5 km/h or more, the engine can start even if the brake pedal is not depressed. (It is the same as “Engine stall
return operation while driving”.)

*2: When the A/T selector lever position is any position other than P position and when the vehicle speed is 5 km/h or more, the engine
stop condition is different.

Press and hold the push-button ignition switch for 2 seconds or more. (When the push-button ignition switch is pressed for too short
a time, the operation may be invalid, so properly press and hold to prevent the incorrect operation.)

Press the push-button ignition switch 3 times within 1.5 seconds. (Emergency stop operation)

Power supply position

Engine start/stop condition

Push-button ignition

switch operation fre-

quency

Brake pedal operation condition

A/T selector lever position

LOCK

 ACC

Not depressed
(When A/T selector lever is in any posi-
tion other than P or N, there will be no
effect even if it is depressed.)

Any position other than P or N
(When the brake pedal is not
depressed, there will be no effect even
if the A/T selector lever is in P or N
position.)

1

LOCK

 ACC

 ON

Not depressed
(When A/T selector lever is in any posi-
tion other than P or N, there will be no
effect even if it is depressed.)

Any position other than P or N
(When the brake pedal is not
depressed, there will be no effect even
if the A/T selector lever is in P or N
position.)

2

LOCK

 ACC

 ON



 LOCK

Not depressed
(When A/T selector lever is in any posi-
tion other than P or N, there will be no
effect even if it is depressed.)

Any position other than P or N
(When the brake pedal is not
depressed, there will be no effect even
if the A/T selector lever is in P or N
position.)

3

LOCK

 START

ACC

 START

ON

 START

(Engine start)

Depressed

P or N position (*1)

1

[If the switch is

pushed once, the

engine starts from

any power supply

position (LOCK,

ACC, and ON)]

Engine start condition

 LOCK

(Engine stop)

P position

1

Engine start condition

 ACC

(Engine stop)

Any position other than P (*2)

1

Engine stall return
operation while driving

N position

1

PG-34

PDU (POWER DISTRIBUTION UNIT)

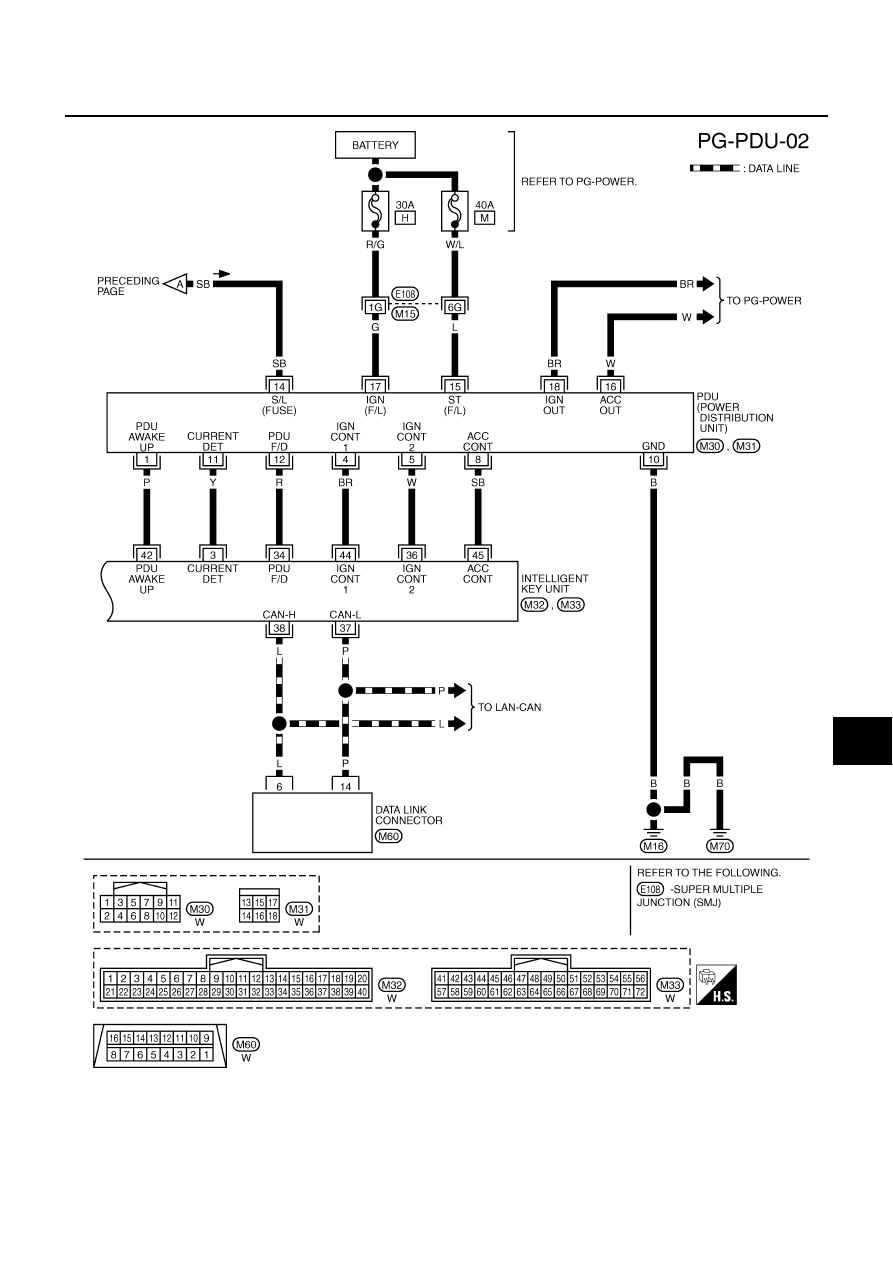

Wiring Diagram — PDU —

NKS004EF

TKWT3320E

PDU (POWER DISTRIBUTION UNIT)

PG-35

C

D

E

F

G

H

I

J

L

M

A

B

PG

TKWT3321E

PG-36

PDU (POWER DISTRIBUTION UNIT)

Terminals and Reference Value for Intelligent Key Unit

NKS004EG

Termi-

nal

Wire

Color

Item

Signal

Input/

Output

Condition

Voltage (V)

Approx.

Ignition

Switch

Position

Operation or Conditions

1

SB

Power source (Fuse)

Input

LOCK

Battery voltage

3

Y

IPDM E/R status signal

Output

Engine starting (During Cranking)

5

Other than above

2

8

W

Push-button ignition
switch
(LOCK LED)

Input

LOCK

Push-button ignition switch is in LOCK
position

0

Push-button ignition switch is in any posi-
tion
(Except LOCK position)

1.2

9

L

Push-button ignition
switch
(ACC LED)

Input

ACC

Push-button ignition switch is in ACC posi-
tion

0

Push-button ignition switch is in any posi-
tion
(Except ACC position)

1.2

10

V

Push-button ignition
switch
(ON LED)

Input

ON

Push-button ignition switch is in ON posi-
tion

0

Push-button ignition switch is in any posi-
tion
(Except ON position)

1.2

20

B

Ground

0

30

L/W

Ignition switch (ACC)

Input

ACC

Battery voltage

31

GR

Ignition switch (ON)

Input

ON

Battery voltage

34

R

PDU feedback signal

Output

LOCK

Push-button ignition switch is in LOCK
state, 30 seconds after all doors closed

1

Other than above

0

36

W

Ignition signal 2

Input

LOCK

Battery voltage

ACC

Battery voltage

ON

0

37

P

CAN-L

Input/

Output

38

L

CAN-H

Input/

Output

39

BR/W

Push switch

Input

Depress push-button ignition switch

0

Other than above

Battery voltage

40

B

Ground

0

41

Y

Power source (Fuse)

Input

LOCK

Battery voltage

42

P

PDU wake up signal

Output

LOCK

Push-button ignition switch is in LOCk
state, 30 seconds after all doors closed

Battery voltage

Other than above

0

44

BR

Ignition signal 1

Input

LOCK

Battery voltage

ACC

Battery voltage

ON

0

45

SB

ACC signal

Input

LOCK

Battery voltage

ACC

0

ON

0

56

B

Ground

0
