Infiniti M35/M45 Y50. Manual - part 880

HEADLAMP (FOR USA) - XENON TYPE -

LT-65

C

D

E

F

G

H

I

J

L

M

A

B

LT

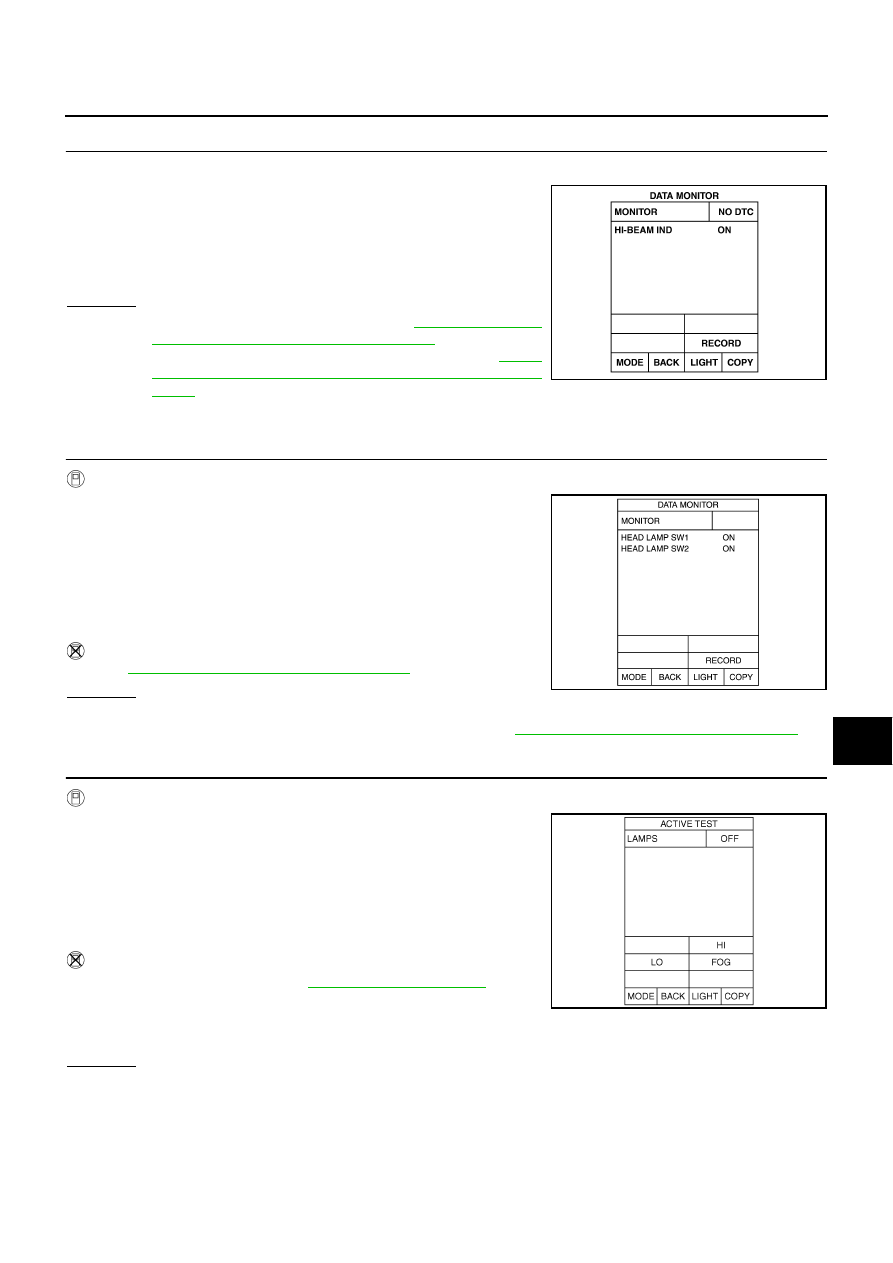

2.

CHECK COMBINATION METER INPUT SIGNAL

1.

Select “METER A/C AMP” on CONSULT-II.

2.

Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HI

−

BEAM IND” turns ON-OFF linked with oper-

ation of lighting switch.

OK or NG

OK

>> Replace combination meter. Refer to

DI-27, "Disassem-

bly and Assembly of Combination Meter"

 .

NG

>> Replace unified meter and A/C amp. Refer to

DI-38,

"Removal and Installation of Unified Meter and A/C
Amp."

 .

Headlamp Low Beam Does Not Illuminate (Both Sides)

NKS003OZ

1.

CHECK COMBINATION SWITCH INPUT SIGNAL

With CONSULT-II

1.

Select “BCM” on CONSULT-II. Select “HEAD LAMP” on
“SELECT TEST ITEM” screen.

2.

Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HEAD LAMP SW 1” and “HEAD LAMP SW 2”
turns ON-OFF linked with operation of lighting switch.

Without CONSULT-II

Refer to

LT-239, "Combination Switch Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check combination switch (lighting switch). Refer to

LT-239, "Combination Switch Inspection"

 .

2.

HEADLAMP ACTIVE TEST

With CONSULT-II

1.

Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.

2.

Select “LAMPS” on “SELECT TEST ITEM” screen.

3.

Touch “LO” screen.

4.

Make sure headlamp low beam operation.

Without CONSULT-II

1.

Start auto active test. Refer to

PG-23, "Auto Active Test"

 .

2.

Make sure headlamp low beam operation.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

When lighting switch is in
the HIGH BEAM position

: HI

−

BEAM IND ON

PKID0081E

When lighting switch is 2ND
position

: HEAD LAMP SW 1 ON
: HEAD LAMP SW 2 ON

PKIA7586E

Headlamp low beam should operate.

Headlamp low beam should operate.

SKIA5774E

LT-66

HEADLAMP (FOR USA) - XENON TYPE -

3.

CHECK IPDM E/R

1.

Select “IPDM E/R” on CONSULT-II. Select “DATA MONITOR”
on “SELECT DIAG MODE” screen.

2.

Make sure “HL LO REQ” turns ON when lighting switch is in
2ND position.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and

Installation of IPDM E/R"

 .

NG

>> Replace BCM. Refer to

BCS-15, "Removal and Installa-

tion of BCM"

 .

4.

CHECK HEADLAMP INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH and LH connector.

3.

Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.

4.

Select “LAMPS” on “SELECT TEST ITEM” screen.

5.

Touch “LO” screen.

6.

When headlamp low beam is operating, check voltage between
front combination lamp (RH and LH) harness connector and
ground.

Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH and LH connector.

3.

Start auto active test. Refer to

PG-23, "Auto Active Test"

 .

4.

When headlamp low beam is operating, check voltage between front combination lamp (RH and LH) har-
ness connector and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 6.

When lighting switch is 2ND
position

: HL LO REQ ON

PKIA7644E

Terminal

Voltage

(Approx.)

(+)

(-)

Front combination lamp

connector

terminal

RH

E47

8

Ground

Battery voltage

LH

E54

8

Terminal

Voltage

(Approx.)

(+)

(-)

Front combination lamp

connector

terminal

RH

E47

8

Ground

Battery voltage

LH

E54

8

SKIB4758E

HEADLAMP (FOR USA) - XENON TYPE -

LT-67

C

D

E

F

G

H

I

J

L

M

A

B

LT

5.

CHECK HEADLAMP GROUND

1.

Turn ignition switch OFF.

2.

Check continuity between front combination lamp (RH and LH)
harness connector and ground.

OK or NG

OK

>> Check headlamp harness and connectors, ballasts (HID

control unit), and xenon bulbs. Refer to

LT-71, "Xenon

Headlamp Trouble Diagnosis"

 .

NG

>> Repair harness or connector.

6.

CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector (A) and
front combination lamp (RH and LH) harness connector (B).

4.

Check continuity between IPDM E/R harness connector (A) and
ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

Front combination lamp

connector

Terminal

Ground

Continuity

RH

E47

4

Yes

LH

E54

4

SKIB4759E

Circuit

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E7

20

E47

8

Yes

LH

30

E54

8

A

Ground

Continuity

Connector

Terminal

RH

E7

20

No

LH

30

SKIB4760E

LT-68

HEADLAMP (FOR USA) - XENON TYPE -

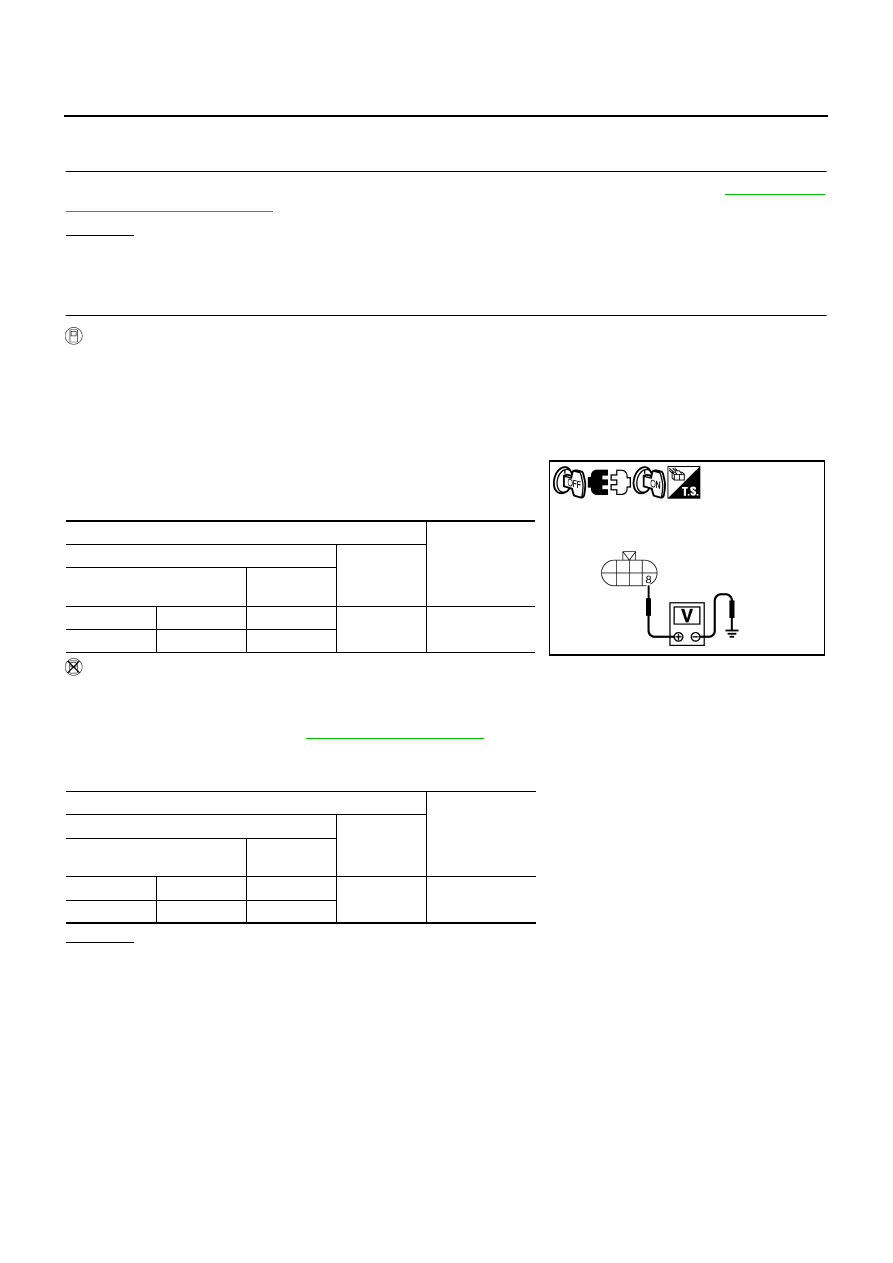

Headlamp Low Beam Does Not Illuminate (One Side)

NKS003P0

1.

CHECK BULB

Check ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to

LT-71, "Xenon

Headlamp Trouble Diagnosis"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair malfunctioning part.

2.

CHECK HEADLAMP INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH or LH connector.

3.

Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.

4.

Select “LAMPS” on “SELECT TEST ITEM” screen.

5.

Touch “LO” screen.

6.

When headlamp low beam is operating, check voltage between
front combination lamp RH or LH harness connector and
ground.

Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH or LH connector.

3.

Start auto active test. Refer to

PG-23, "Auto Active Test"

 .

4.

When headlamp low beam is operating, check voltage between front combination lamp RH or LH harness
connector and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

Terminal

Voltage

(Approx.)

(+)

(-)

 Front combination lamp

connector

terminal

RH

E47

8

Ground

Battery voltage

LH

E54

8

Terminal

Voltage

(Approx.)

(+)

(-)

Front combination lamp

connector

terminal

RH

E47

8

Ground

Battery voltage

LH

E54

8

SKIB4758E
