REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-117

C

D

E

F

G

H

J

K

L

M

A

B

GW

8.

CHECK HARNESS CONTINUITY 3

1.

Disconnect automatic drive positioner control unit connector and door mirror connector.

2.

[Door mirror LH]

–

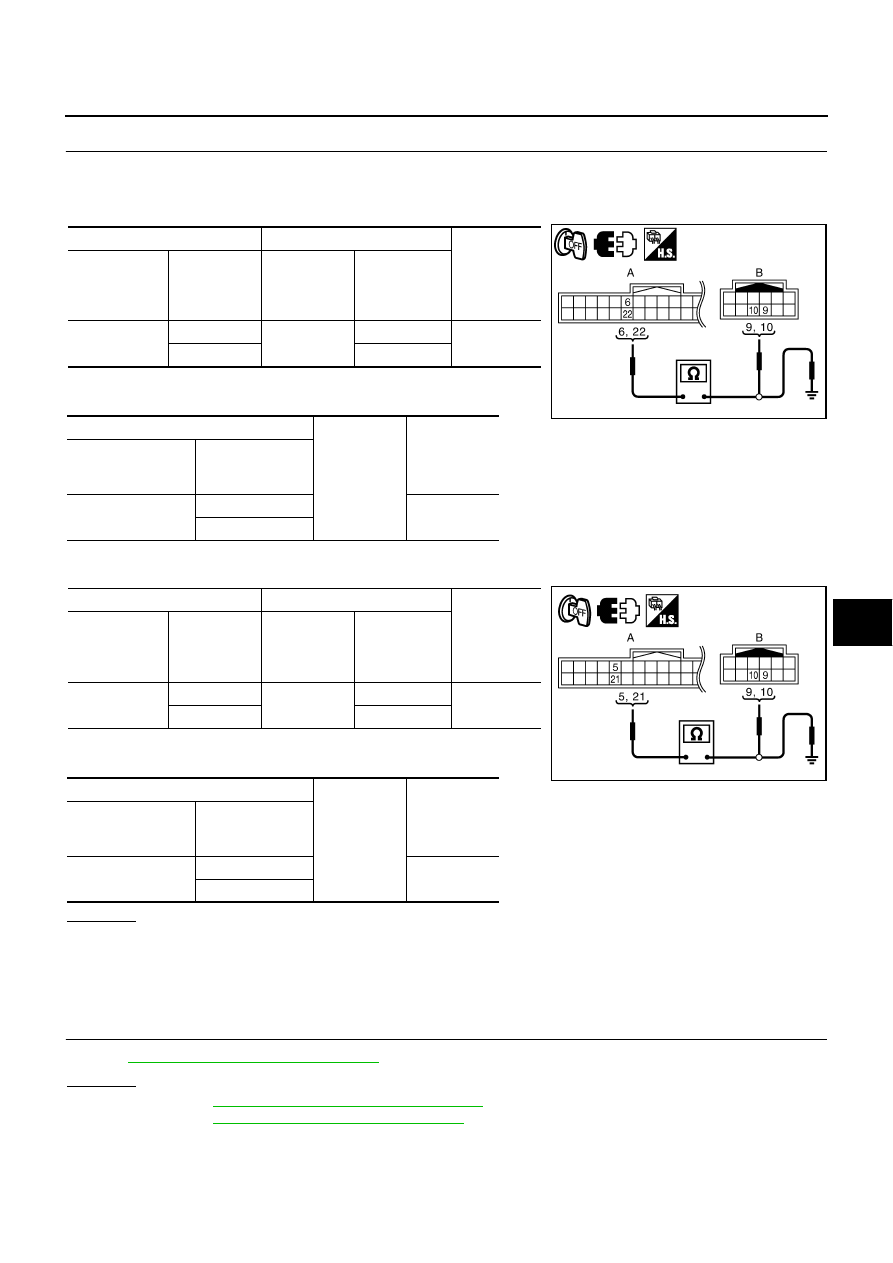

Check continuity between automatic drive positioner control unit connector and door mirror LH connector.

–

Check continuity between automatic drive positioner control unit
connector and ground.

3.

[Door mirror RH]

–

Check continuity between automatic drive positioner control unit connector and door mirror RH connector.

–

Check continuity between automatic drive positioner control unit
connector and ground.

OK or NG

OK

>> Check the condition of harness and connector.

NG

>> Repair or replace harness between automatic drive positioner control unit and door mirror con-

nector.

Check A/T Control Device R Position Circuit

NIS0023F

1.

CHECK R POSITION SIGNAL

Refer to

AT-186, "A/T INDICATOR CIRCUIT"

OK or NG

OK

>> Refer to

SE-37, "SELF-DIAGNOSIS RESULTS"

NG

>> Refer to

AT-186, "A/T INDICATOR CIRCUIT"

A

B

Continuity

Automatic

drive posi-

tioner control

unit connector

Terminal

Door mirror

LH connector

Terminal

M6

6

D2

9

Yes

22

10

A

Ground

Continuity

Automatic drive

positioner control

unit connector

Terminal

M6

6

No

22

A

B

Continuity

Automatic

drive posi-

tioner control

unit connector

Terminal

Door mirror

RH connector

Terminal

M6

5

D39

9

Yes

21

10

A

Ground

Continuity

Automatic drive

positioner control

unit connector

Terminal

M6

5

No

21

PIIB6036E

PIIB6030E

GW-118

DOOR MIRROR

DOOR MIRROR

PFP:96301

Automatic Drive Positioner Interlocking Door Mirror

NIS0023G

Automatic drive positioner interlocking door mirror. Refer to

SE-11, "AUTOMATIC DRIVE POSITIONER"

 .

Removal and Installation

NIS0023H

CAUTION:

Be careful not to damage the mirror bodies.

REMOVAL

1.

Remove the front door finisher. Refer to

EI-34, "DOOR FINISHER"

 .

2.

Remove the front door sash cover inner. Refer to

EI-36, "FRONT DOOR SASH COVER INNER"

 .

3.

Remove the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Door mirror assembly

PIIB3300J

DOOR MIRROR

GW-119

C

D

E

F

G

H

J

K

L

M

A

B

GW

Disassembly and Assembly

NIS0023I

DISASSEMBLY

1.

Place the mirror body with mirror glass facing upward.

2.

Put a strip of protective tape B on mirror body.

3.

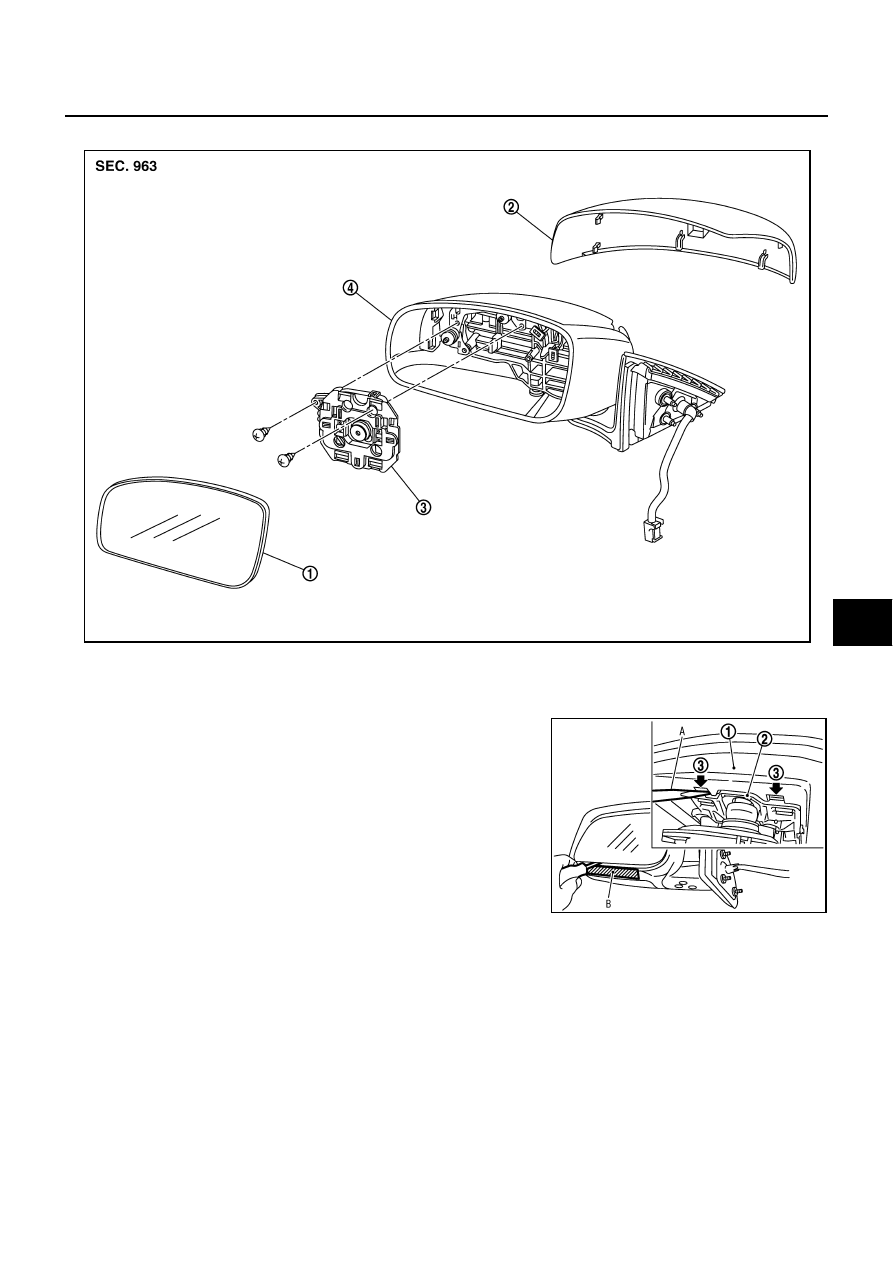

As shown in the figure, insert a small slotted screwdriver A into
the recess between mirror base (mirror holder)(1) and mirror
holder bracket (2) and push up two pawls (3) to remove mirror
holder lower half side.

NOTE:
When pushing up pawls do not attempt to use one recess only,
be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.

4.

Remove two terminals of mirror heater attachment.

5.

Lightly lift up lower side of mirror surface from mirror surface, and detach two pawls of upper side as if
pulling it out. Remove mirror surface from mirror body.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side
of mirror surface (mirror holder).

1.

Mirror housing

2.

Mirror cover

3.

Power unit

4.

Mirror (mirror holder)

PIIB5782E

PIIB8320J

GW-120

DOOR MIRROR

6.

Remove the clips and mirror cover from the housing.

7.

Remove the screws and power unit from the housing.

ASSEMBLY

1.

Install the power unit.

2.

Install the mirror cover.

3.

Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.

4.

Connect two terminals of heater installed mirror.

5.

Fit the upper two pawls on the mirror face (1) onto the mirror
holder bracket (2) first, then press the lower side of mirror face
until a click sound is heard to engage the lower pawls.

NOTE:
After installation, visually make sure lower two pawls are
securely engaged from the bottom of mirror face.

PIIB3302J

PIIB3303J

PIIB3306J
