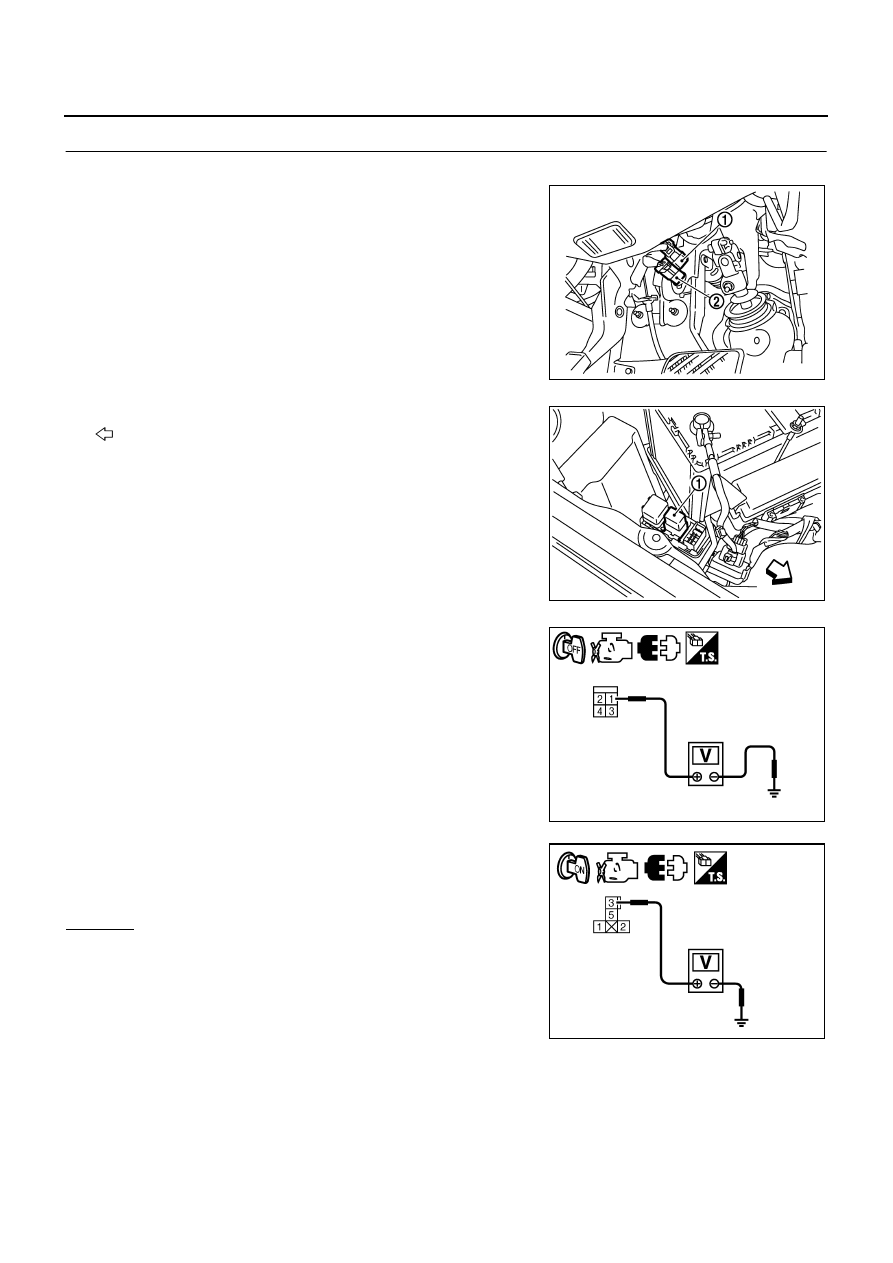

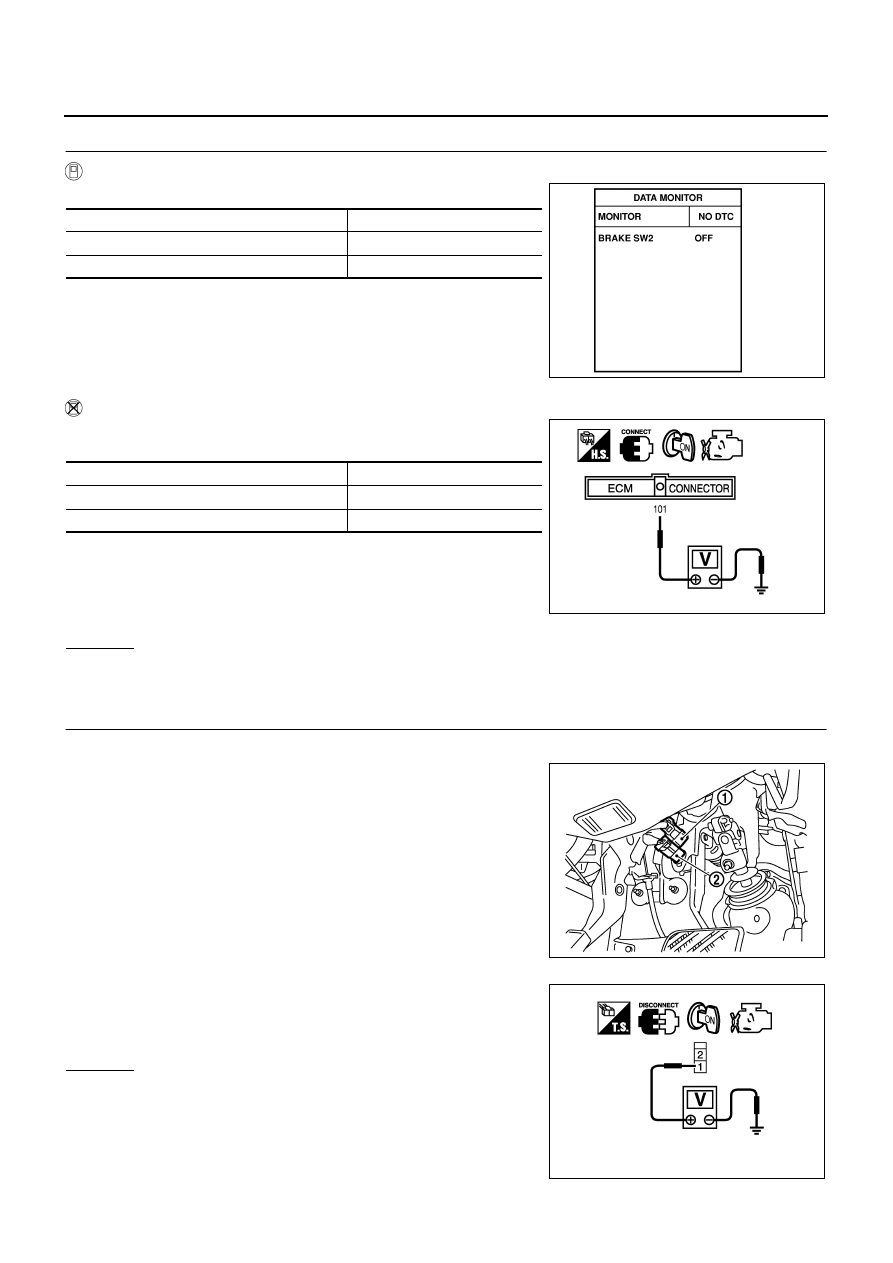

ICC BRAKE SWITCH EC-1405 [VK45DE] C D E F G H I J K L M A EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- Diagnostic Procedure NBS005QH 1. CHECK OVERALL FUNCTION-I With CONSULT-II 1. Turn ignition switch ON. 2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON- 3. Check “BRAKE SW1” indication under the following conditions. Without CONSULT-II 1. Turn ignition switch ON. 2. Check voltage between ECM terminal 108 and ground under the OK or NG OK >> GO TO 2. NG >> GO TO 3. TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 101 V/R Stop lamp switch [Ignition switch: OFF] ● Brake pedal: Fully released Approximately 0V [Ignition switch: OFF] ● Brake pedal: Slightly depressed BATTERY VOLTAGE 108 BR ICC brake switch [Ignition switch: ON] ● Brake pedal: Slightly depressed Approximately 0V [Ignition switch: ON] ● Brake pedal: Fully released BATTERY VOLTAGE CONDITION INDICATION Brake pedal: Slightly depressed OFF Brake pedal: Fully released ON SEC011D CONDITION VOLTAGE Brake pedal: Slightly depressed Approximately 0V Brake pedal: Fully released Battery voltage MBIB0061E |
