ASCD BRAKE SWITCH

EC-1377

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

ASCD BRAKE SWITCH

PFP:25320

Component Description

NBS005QJ

When the brake pedal is depressed, ASCD brake switch (2) is
turned OFF and stop lamp switch (1) is turned ON. ECM detects the
state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to

EC-738, "AUTOMATIC SPEED CONTROL DEVICE

(ASCD)"

  for the ASCD function.

CONSULT-II Reference Value in Data Monitor Mode

NBS005QK

Specification data are reference values.

PBIB2705E

MONITOR ITEM

CONDITION

SPECIFICATION

BRAKE SW1
(ASCD brake switch)

●

Ignition switch: ON

Brake pedal: Fully released

ON

Brake pedal: Slightly depressed

OFF

BRAKE SW2
(Stop lamp switch)

●

Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

EC-1378

[VK45DE]

ASCD BRAKE SWITCH

Wiring Diagram

NBS005QL

TBWT1068E

ASCD BRAKE SWITCH

EC-1379

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

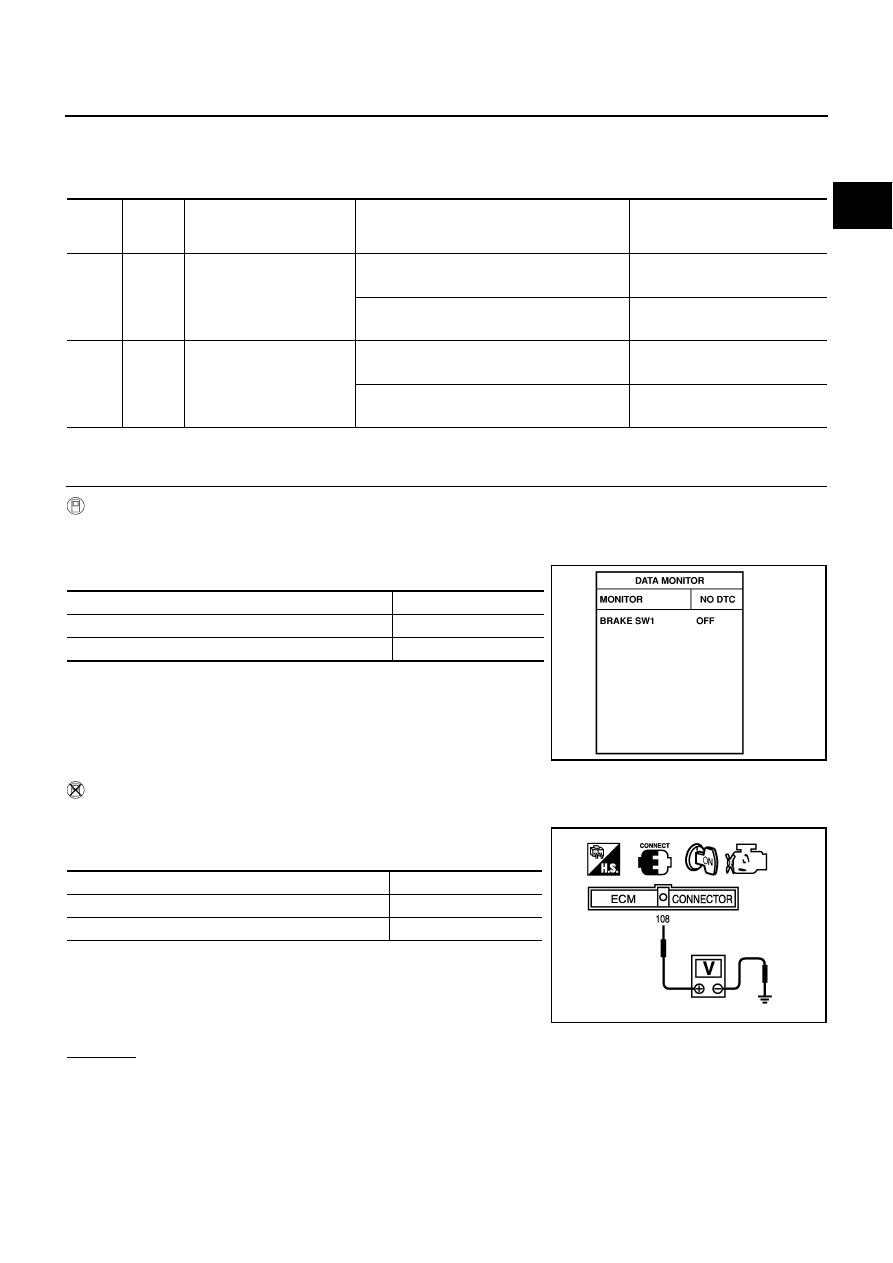

Diagnostic Procedure

NBS005QM

1.

CHECK OVERALL FUNCTION-I

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.

3.

Check “BRAKE SW1” indication under the following conditions.

 Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 108 and ground under the
following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

101

V/R

Stop lamp switch

[Ignition switch: OFF]

●

Brake pedal: Fully released

Approximately 0V

[Ignition switch: OFF]

●

Brake pedal: Slightly depressed

BATTERY VOLTAGE
(11 - 14V)

108

BR

ASCD brake switch

[Ignition switch: ON]

●

Brake pedal: Slightly depressed

Approximately 0V

[Ignition switch: ON]

●

Brake pedal: Fully released

BATTERY VOLTAGE
(11 - 14V)

CONDITION

INDICATION

Brake pedal: Slightly depressed

OFF

Brake pedal: Fully released

ON

SEC011D

CONDITION

VOLTAGE

Brake pedal: Slightly depressed

Approximately 0V

Brake pedal: Fully released

Battery voltage

MBIB0061E

EC-1380

[VK45DE]

ASCD BRAKE SWITCH

2.

CHECK OVERALL FUNCTION-II

 With CONSULT-II

Check “BRAKE SW2” indication in “DATA MONITOR” mode.

 Without CONSULT-II

Check voltage between ECM terminal 101 and ground under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

CONDITION

INDICATION

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

SEC013D

CONDITION

VOLTAGE

Brake pedal: Fully released

Approximately 0V

Brake pedal: Slightly depressed

Battery voltage

PBIB1537E
