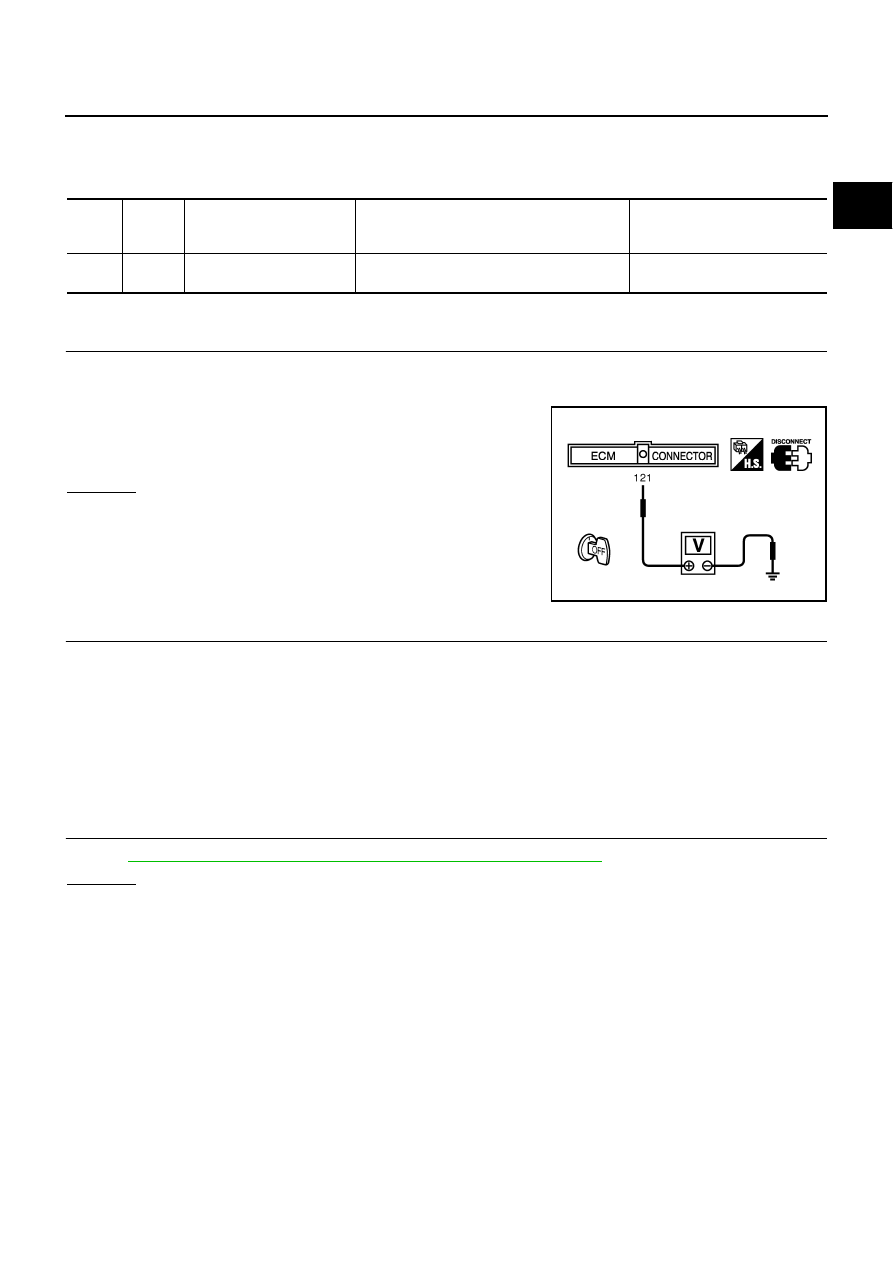

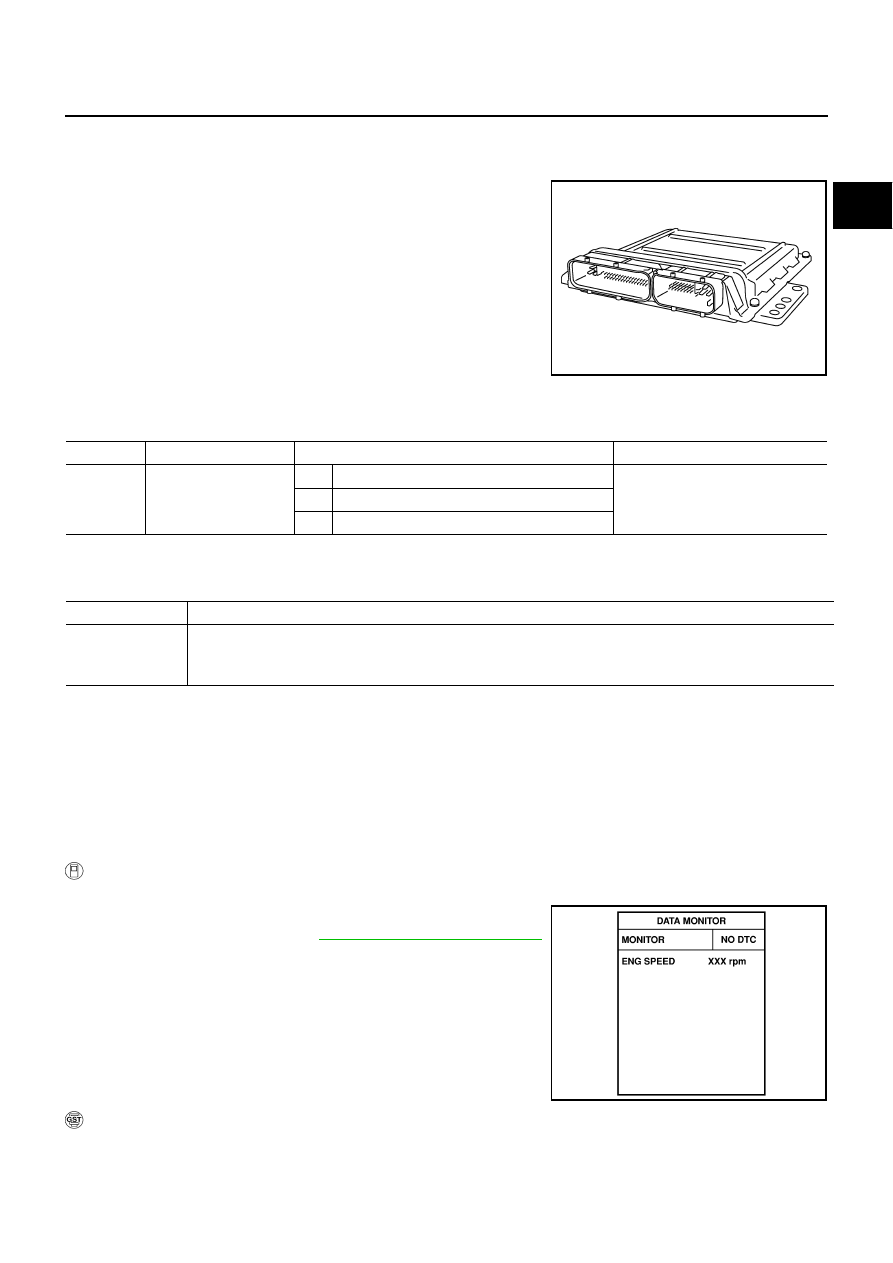

DTC P0603 ECM POWER SUPPLY EC-481 [VQ35DE] C D E F G H I J K L M A EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- Diagnostic Procedure NBS0052D 1. CHECK ECM POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check voltage between ECM terminal 121 and ground with OK or NG OK >> GO TO 3. NG >> GO TO 2. 2. DETECT MALFUNCTIONING PART Check the following. ● Harness connectors E108, M15 ● 20A fuse ● IPDM E/R harness connector E8 ● Harness for open or short between ECM and battery >> Repair or replace harness or connectors. 3. CHECK INTERMITTENT INCIDENT Refer to EC-153, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" OK or NG OK >> GO TO 4. NG >> Repair or replace harness or connectors. TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 121 L Power supply for ECM [Ignition switch: OFF] BATTERY VOLTAGE Voltage: Battery voltage MBIB0026E |
