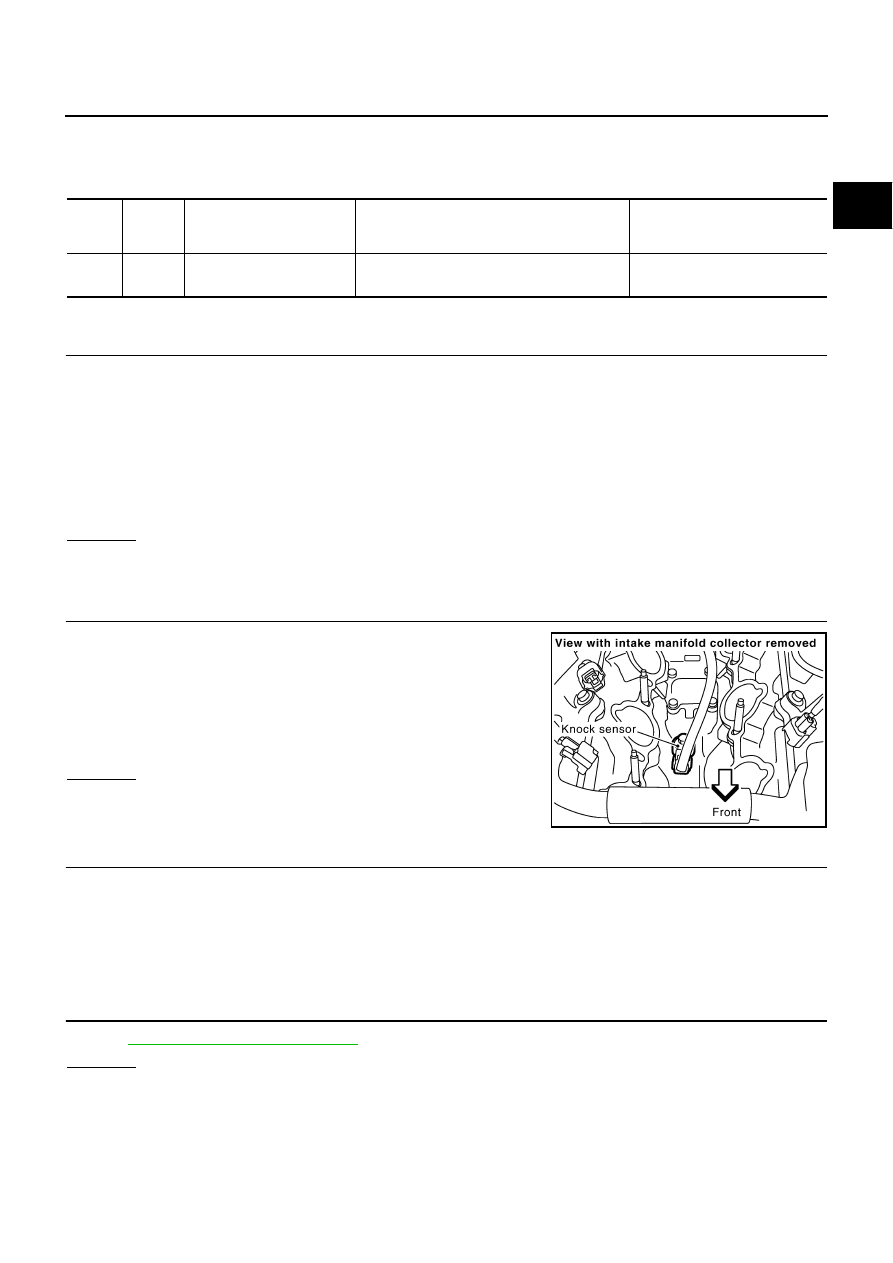

DTC P0327, P0328 KS EC-361 [VQ35DE] C D E F G H I J K L M A EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- Diagnostic Procedure NBS004YT 1. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check resistance between ECM terminal 15 and ground. Refer to Wiring Diagram. NOTE: Ω . 4. Also check harness for short to ground and short to power. OK or NG OK >> GO TO 5. NG >> GO TO 2. 2. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II 1. Disconnect knock sensor harness connector. 2. Check harness continuity between ECM terminal 15 and knock 3. Also check harness for short to ground and short to power. OK or NG OK >> GO TO 4. NG >> GO TO 3. 3. DETECT MALFUNCTIONING PART Check the following. ● Harness connectors F37, F229 ● Harness for open or short between ECM and knock sensor >> Repair open circuit or short to ground or short to power in harness or connectors. 4. CHECK KNOCK SENSOR Refer to EC-363, "Component Inspection" OK or NG OK >> GO TO 5. NG >> Replace knock sensor. TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 15 W Knock sensor [Engine is running] ● Idle speed Approximately 2.5V Resistance: Approximately 532 - 588 k Ω [at 20 ° C (68 ° F)] Continuity should exist. PBIB1564E |
