DTC P0132, P0152 A/F SENSOR 1

EC-261

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Removal and Installation

NBS004WT

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-28, "EXHAUST MANIFOLD"

 .

EC-262

[VQ35DE]

DTC P0133, P0153 A/F SENSOR 1

DTC P0133, P0153 A/F SENSOR 1

PFP:22693

Component Description

NBS004WU

The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range (0.7 <

 < air).

The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.

An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at   = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800

°

C (1,292 - 1,472

°

F).

CONSULT-II Reference Value in Data Monitor Mode

NBS004WV

Specification data are reference values.

On Board Diagnosis Logic

NBS004WW

To judge the malfunction of A/F sensor 1, this diagnosis measures response time of the A/F signal computed
by ECM from the A/F sensor 1 signal. The time is compensated by engine operating (speed and load), fuel
feedback control constant, and the A/F sensor 1 temperature index. Judgment is based on whether the com-
pensated time (the A/F signal cycling time index) is inordinately long or not.

SEF579Z

SEF580Z

MONITOR ITEM

CONDITION

SPECIFICATION

A/F SEN1 (B1)
A/F SEN1 (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000 rpm

Fluctuates around 1.5 V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0133
0133
(Bank 1)

Air fuel ratio (A/F) sensor 1
circuit slow response

●

The response of the A/F signal computed by
ECM from A/F sensor 1 signal takes more than
the specified time.

●

Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)

●

A/F sensor 1

●

A/F sensor 1 heater

●

Fuel pressure

●

Fuel injector

●

Intake air leaks

●

Exhaust gas leaks

●

PCV

●

Mass air flow sensor

P0153
0153
(Bank 2)

DTC P0133, P0153 A/F SENSOR 1

EC-263

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

NBS004WX

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

 WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1minute under no load.

4.

Let engine idle for 1 minute.

5.

Select “A/F SEN1(B1) P1278/P1279” (for DTC P0133) or “A/F SEN1(B1) P1288/P1289” (for DTC P0153)
of “A/F SEN1” in “DTC WORK SUPPORT” mode with CONSULT-II.

6.

Touch “START”.

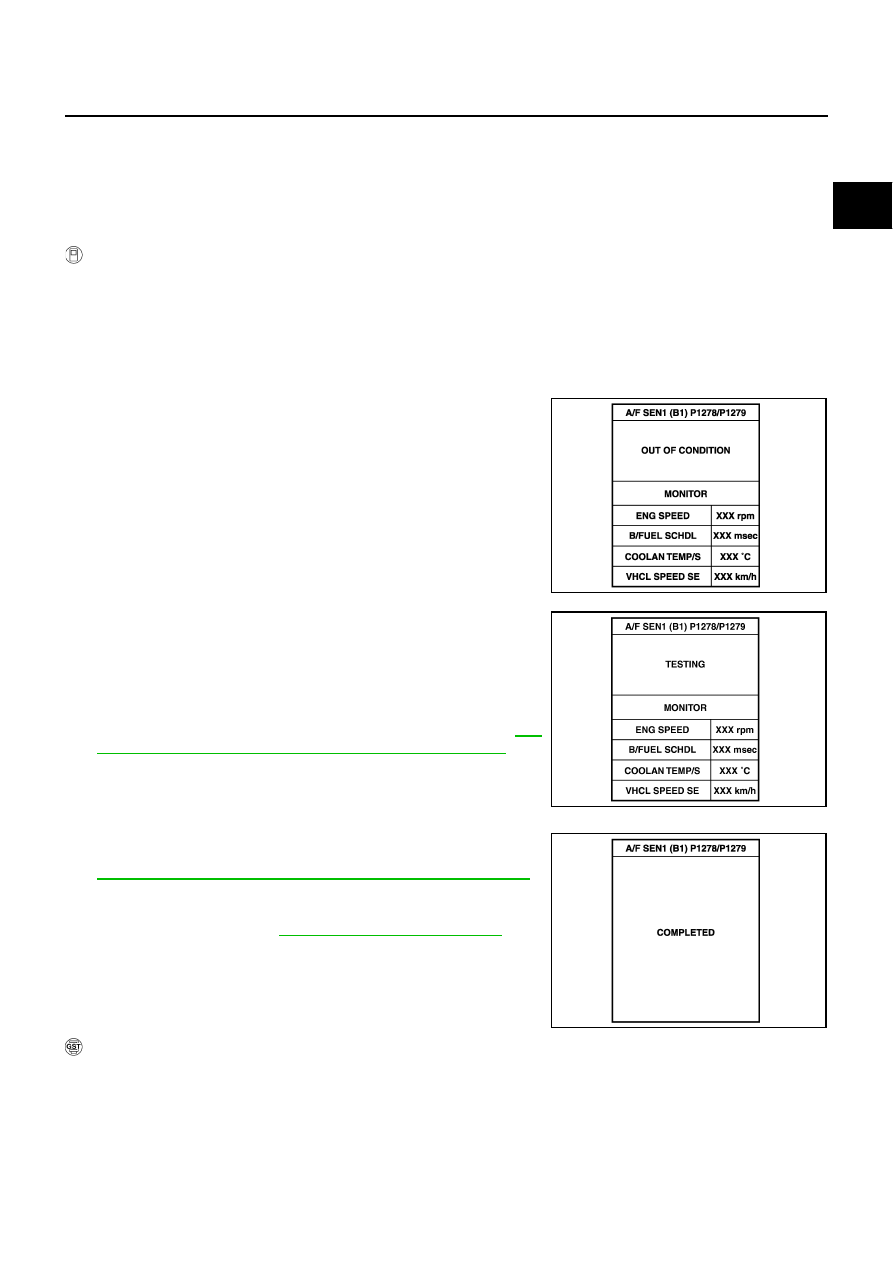

If “COMPLETED” appears on CONSULT-II screen, go to step
10.
If “COMPLETED” does not appear on CONSULT-II screen, go to
the following step.

7.

After perform the following procedure, “TESTING” will be dis-
played on the CONSULT-II screen.

a.

Increase the engine speed up to 4,000 to 5,000 rpm and keep it
for 10 seconds.

b.

Fully release accelerator pedal and then let engine idle for about
10 seconds.
If “TESTING” is not displayed after 10 seconds, refer to

EC-

143, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

8.

Wait for about 20 seconds at idle at under the condition that
“TESTING” is displayed on the CONSULT-II screen.

9.

Make sure that “TESTING” changes to “COMPLETED”.
If “TESTING” changed to “OUT OF CONDITION”, refer to

EC-143, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

10. Make sure that “OK” is displayed after touching “SELF-DIAG

RESULT”.
If “NG” is displayed, go to

EC-268, "Diagnostic Procedure"

 .

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Select Service $01 with GST.

3.

Calculate the total value of “Short term fuel trim” and “Long term fuel trim” indications.
Make sure that the total percentage should be within

±

15%.

If OK, go to the following step.
If NG, check the following.

PBIB0756E

PBIB1925E

PBIB0758E

EC-264

[VQ35DE]

DTC P0133, P0153 A/F SENSOR 1

●

Intake air leaks

●

Exhaust gas leaks

●

Incorrect fuel pressure

●

Lack of fuel

●

Fuel injector

●

Incorrect PCV hose connection

●

PCV valve

●

Mass air flow sensor

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1minute under no load.

6.

Let engine idle for 1 minute.

7.

Increase the engine speed up to 4,000 to 5,000 rpm and keep it for 10 seconds.

8.

Fully release accelerator pedal and then let engine idle for about 1 minute.

9.

Select Service $07 with GST.
If the 1st trip DTC is displayed, go to

EC-268, "Diagnostic Procedure"

 .
