Infiniti M35/M45 Y50. Manual - part 362

UNIFIED METER AND A/C AMP

DI-31

C

D

E

F

G

H

I

J

L

M

A

B

DI

CONSULT-II Function (METER A/C AMP)

NKS003UI

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II BASIC OPERATION

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

SELF-DIAG RESULTS
Operation Procedure

1.

Touch “METER A/C AMP” on “SELECT SYSTEM” screen.

2.

Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.

3.

Self-diagnosis results are displayed.

Display Item List

NOTE:
“TIME” means the following.

●

0: Means detected malfunction at present. (From malfunction detection to turning ignition switch OFF)

●

1-63: Means detected malfunction in past. (Displays number of ignition switch OFF

→

 ON after detecting

malfunction. “Self-diagnosis result” is erased when exceeding “63”.)

System

Diagnosis mode

Description

Reference

page

METER

A/C AMP

SELF-DIAG RESULTS

Unified meter and A/C amp. checks the conditions and displays memorized
error.

DI-31

CAN DIAG SUPPORT MNTR

The results of transmit/receive diagnosis of CAN communication can be
read.

LAN-44

DATA MONITOR

Displays unified meter and A/C amp. input data in real time.

DI-32

SKIA4956E

Display item [Code]

Malfunction is detected when...

Reference

page

CAN COMM CIRC
[U1000]

Malfunction is detected in CAN communication.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.

DI-35

METER COMM CIRC
[B2202]

Malfunction is detected in communication between combination meter and unified meter and
A/C amp.

DI-35

VEHICLE SPEED
CIRC
[B2205]

When an erroneous speed signal is input for 1 seconds.

CAUTION:

Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds).

DI-35

DI-32

UNIFIED METER AND A/C AMP

DATA MONITOR
Operation Procedure

1.

Touch “METER A/C AMP” on “SELECT SYSTEM” screen.

2.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Touch either “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.

4.

When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “MAIN SIG-
NALS” is selected, main items will be monitored.

5.

Touch “START”.

6.

Touch “RECORD” while monitoring, then the status of the moni-
tored item can be recorded. To stop recording, touch “STOP”.

Display Item List

X: Applicable

MAIN SIGNALS

Monitors main signals.

SELECTION FROM MENU

Selects and monitors individual signal.

SKIA4957E

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

SPEED METER [km/h] or [mph]

X

X

Displays the value of vehicle speed signal, which is input from ABS
actuator and electric unit (control unit).

SPEED OUTPUT [km/h] or [mph]

X

X

Displays the value of vehicle speed signal, which is transmitted to
each unit with CAN communication.

TACHO METER [rpm]

X

X

Displays the value of engine speed signal, which is input from ECM.

W TEMP METER [

°

C] or [

°

F]

X

X

Displays the value of engine coolant temperature signal, which is
input from ECM.

FUEL METER [lit.]

X

X

Displays the value, which processes a resistance signal from fuel
gauge.

DISTANCE [km] or [mile]

X

X

Displays the value, which is calculated by vehicle speed signal from
ABS actuator and electric unit (control unit), fuel gauge and fuel
consumption from ECM.

FUEL W/L [ON/OFF]

X

X

Displays [ON/OFF] condition of low-fuel warning lamp.

MIL [ON/OFF]

X

Displays [ON/OFF] condition of malfunction indicator lamp.

AIR PRES W/L [ON/OFF]

X

Displays [ON/OFF] condition of low tire pressure warning lamp.

SEAT BELT W/L [ON/OFF]

X

Displays [ON/OFF] condition of seat belt warning lamp.

BUZZER [ON/OFF]

X

X

Displays [ON/OFF] condition of buzzer.

DOOR W/L [ON/OFF]

X

Displays [ON/OFF] condition of door warning lamp.

HI-BEAM IND [ON/OFF]

X

Displays [ON/OFF] condition of high beam indicator.

TURN IND [ON/OFF]

X

Displays [ON/OFF] condition of turn indicator.

FR FOG IND [ON/OFF]

X

Displays [ON/OFF] condition of front fog indicator.

OIL W/L [ON/OFF]

X

Displays [ON/OFF] condition of oil pressure warning lamp.

VDC/TCS IND [ON/OFF]

X

Displays [ON/OFF] condition of VDC/TCS OFF indicator lamp.

ABS W/L [ON/OFF]

X

Displays [ON/OFF] condition of ABS warning lamp.

SLIP IND [ON/OFF]

X

Displays [ON/OFF] condition of SLIP indicator lamp.

BRAKE W/L [ON/OFF]

X

Displays [ON/OFF] condition of brake warning lamp. *

UNIFIED METER AND A/C AMP

DI-33

C

D

E

F

G

H

I

J

L

M

A

B

DI

NOTE:
Monitored item that does not match the vehicle is deleted from the display automatically.
*: Monitor keeps indicating “OFF” when brake warning lamp is on by the parking brake operation or low brake fluid level.

KEY Y/G W/L [ON/OFF]

X

Displays [ON/OFF] condition of key warning lamp.

PNP P SW [ON/OFF]

X

X

Displays [ON/OFF] condition of inhibitor switch P range.

M RANGE SW [ON/OFF]

X

X

Displays [ON/OFF] condition of manual mode range switch.

NM RANGE SW [ON/OFF]

X

X

Displays [ON/OFF] condition of except for manual mode range
switch.

AT SFT UP SW [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift-up switch.

AT SFT DWN SW [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift-down switch.

AT P MODE SW

X

Displays [ON/OFF] condition of A/T POWER mode switch.

AT S MODE SW

X

Displays [ON/OFF] condition of A/T SNOW mode switch.

BRAKE SW [ON/OFF] *

X

Displays [ON/OFF] condition of brake switch (stop lamp switch).

AT-M IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T manual mode indicator.

AT-M GEAR [5-1]

X

X

Displays [5-1] condition of A/T manual mode gear position.

P RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift P range indicator.

R RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift R range indicator.

N RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift N range indicator.

D RANGE IND [ON/OFF]

X

X

Displays [ON/OFF] condition of A/T shift D range indicator.

AT CHECK W/L [ON/OFF]

X

Displays [ON/OFF] condition of A/T indicator.

CRUISE IND [ON/OFF]

X

Displays [ON/OFF] condition of CRUISE indicator.

SET IND [ON/OFF]

X

Displays [ON/OFF] condition of SET indicator.

CRUISE W/L [ON/OFF]

X

Displays [ON/OFF] condition of CRUISE warning lamp.

4WD W/L [ON/OFF]

X

Displays [ON/OFF] condition of AWD warning lamp.

AFS OFF IND [ON/OFF]

X

Displays [ON/OFF] condition of AFS OFF indicator.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

DI-34

UNIFIED METER AND A/C AMP

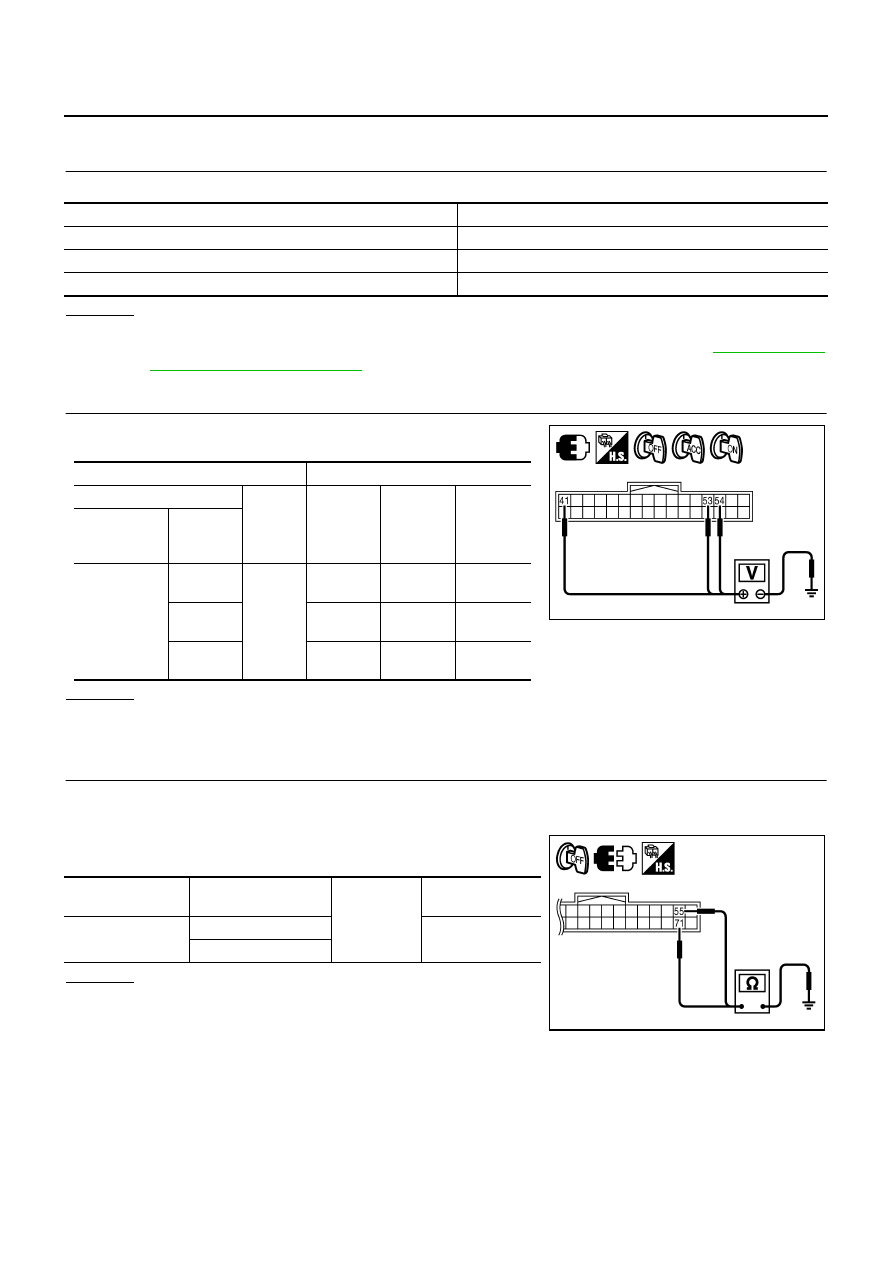

Power Supply and Ground Circuit Inspection

NKS003UJ

1.

CHECK FUSE

Check for blown fuses.

OK or NG

OK

>> GO TO 2.

NG

>> Be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-3, "POWER

SUPPLY ROUTING CIRCUIT"

 .

2.

CHECK POWER SUPPLY CIRCUIT

Check voltage between unified meter and A/C amp. harness con-
nector terminals and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness between unified meter and A/C amp. and fuse.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect unified meter and A/C amp. connector.

3.

Check continuity between unified meter and A/C amp. harness
connector and ground.

OK or NG

OK

>> INSPECTION END

NG

>> Repair harness or connector.

Power source

Fuse No.

Battery

19

Ignition switch ACC or ON

6

Ignition switch ON or START

12

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Unified meter

and A/C amp.

connector

Terminal

M65

54

Ground

Battery
voltage

Battery
voltage

Battery
voltage

41

0 V

Battery
voltage

Battery
voltage

53

0 V

0 V

Battery
voltage

PKIB7645E

Unified meter and

A/C amp. connector

Terminal

Ground

Continuity

M65

55

Yes

71

PKIB7646E
