IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-249

C

D

E

F

G

H

J

K

L

M

A

B

BL

5.

Start engine.
If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-II Operation Manual NATS-IVIS/NVIS and initialize control
unit.

BL-250

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

Schematic

NIS0020G

TIWT2030E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-251

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWT1323E

BL-252

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

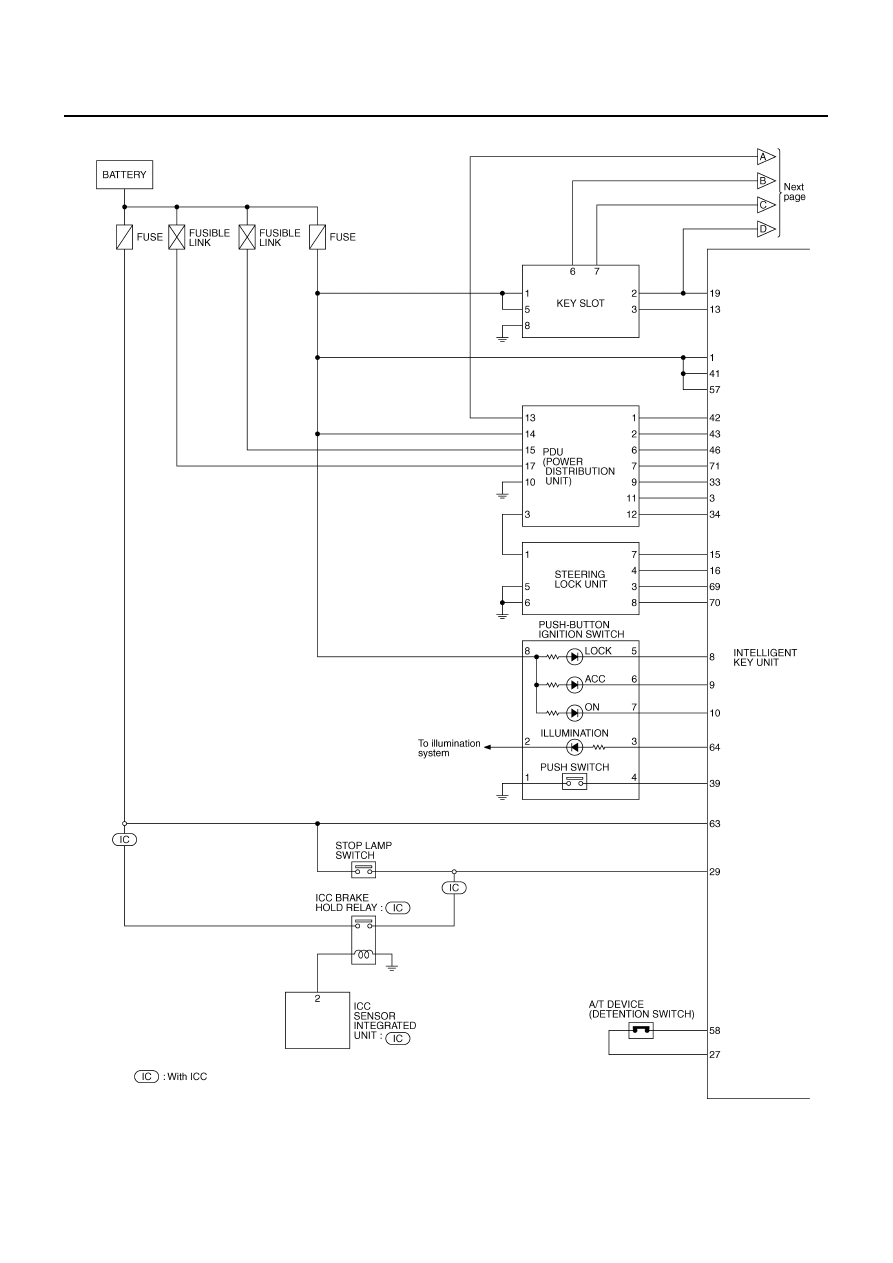

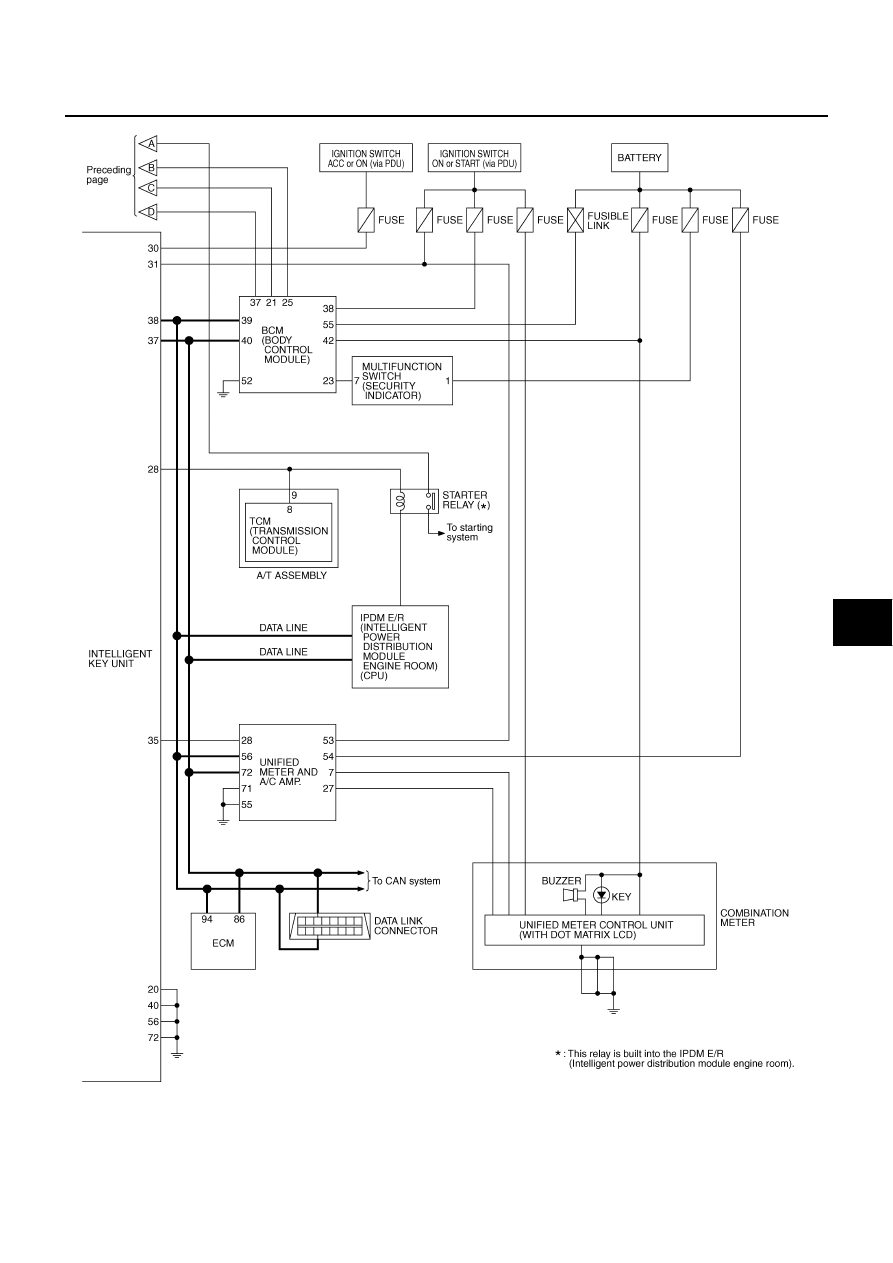

Wiring Diagram — NATS —

NIS0020H

TIWT1324E
