Accessing from inside the vehicle, loosen the mounting nuts. Open the rear door, and raise the rear door
at rear end to adjust.

STRIKER ADJUSTMENT

Adjust the striker so that it becomes parallel with the lock insertion
direction.

Removal and Installation of Front Door

NIS001ZA

CAUTION:

●

When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.

●

When removing and installing front door assembly, be sure to carry out the fitting adjustment.
Refer to

BL-188, "Fitting Adjustment"

 .

●

After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.

●

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

●

Operate with two workers, because of its heavy weight.

●

Check rear door open/close operation after installation.

REMOVAL

1.

Pull the lever and disconnect the door harness connector while
removing tabs of door harness connector.

2.

Remove the mounting bolts of the check link on the vehicle.

PIIB2804J

PIIB3884J

PIIB2865J

BL-190

DOOR

3.

Remove the door-side hinge mounting nuts, then remove the
door assembly.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Rear Door

NIS001ZB

CAUTION:

●

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

●

When removing and installing rear door assembly, be sure to carry out the fitting adjustment.
Refer to

BL-188, "Fitting Adjustment"

 .

●

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

●

After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.

●

Operate with two workers, because of its heavy weight.

●

Check rear door open/close operation after installation.

REMOVAL

1.

Pull out grommet and disconnect rear door harness connector.

2.

Remove the mounting bolts of the check link on the vehicle.

PIIB3912J

PIIB3913J

PIIB2865J

DOOR

BL-191

C

D

E

F

G

H

J

K

L

M

A

B

BL

3.

Remove the door-side hinge mounting nuts, and remove the
door assembly.

INSTALLATION

Install in the reverse order of removal.

PIIB3883J

BL-192

DOOR

Door Weatherstrip

NIS001ZC

FRONT DOOR

REMOVAL

1.

Remove the mounting bolts of the check link on the vehicle. Refer to

BL-189, "Removal and Installation of

Front Door"

  or

BL-190, "Removal and Installation of Rear Door"

 .

2.

Remove the weatherstrip clips and remove weatherstrip.

CAUTION:

After removal, do not pull strongly on the weatherstrip.

INSTALLATION

Install in the reverse order of removal.

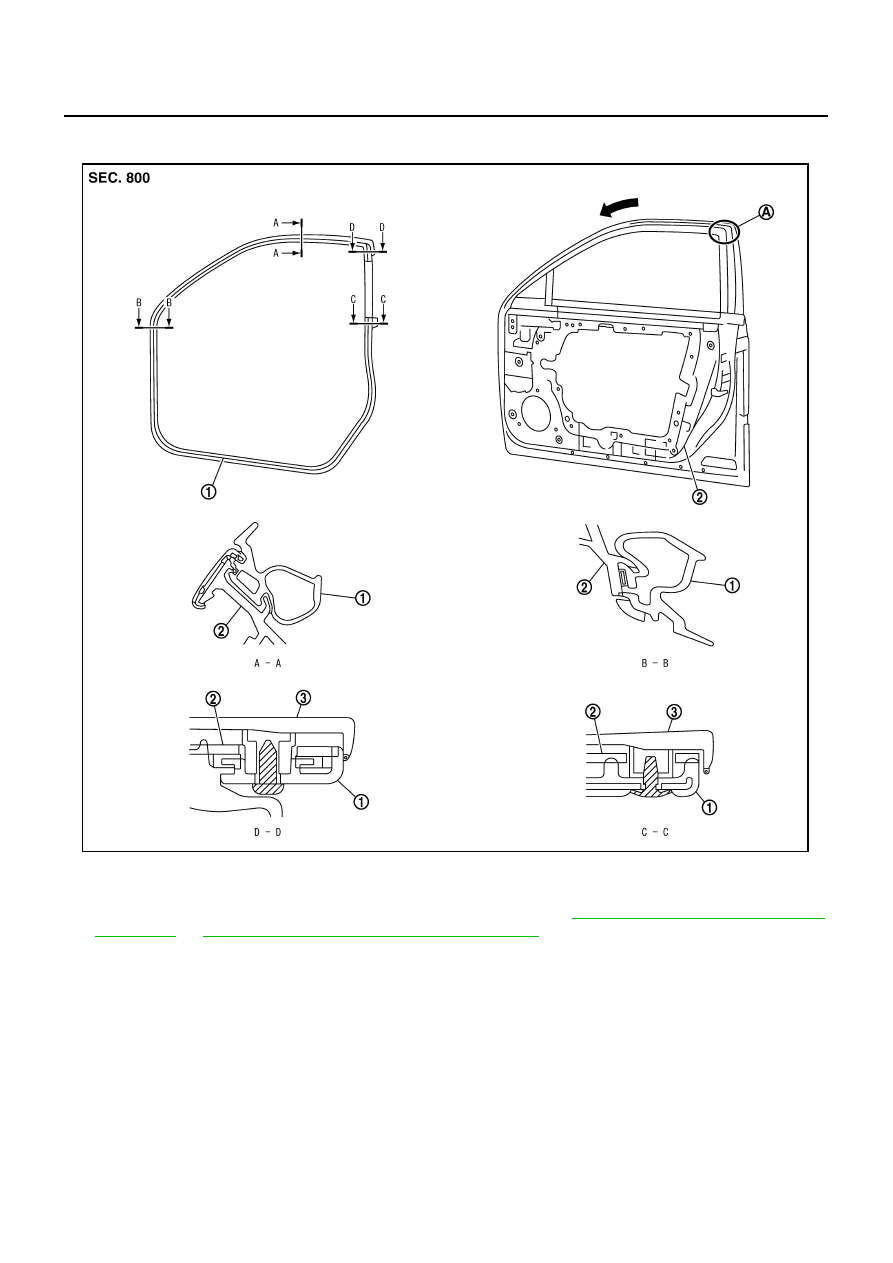

Install the door weatherstrip (A) and along the arrow direction.

1.

Door weatherstrip

2.

Front door

3.

Door sash molding

PIIB3878J
