VK45DE

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant may leak at the con-
nection.

O-Ring Part Numbers and Specifications

RJIA4011E

Connection type

Piping connection point

Part number

QTY

O-ring size

New

Low-pressure flexible hose to low-pressure pipe 1 (One-
touch joint)

92473 N8221

2

16

High-pressure pipe 1 to high-pressure pipe 2 (One-touch
joint)

92471 N8221

2

8

Condenser to high-pressure flexible hose (One-touch joint)

92472 N8221

2

12

Condenser to high-pressure pipe 1 (One-touch joint)

92471 N8221

2

8

Low-pressure pipe to low-pressure flexible hose (VK45DE)

92474 N8210

1

19

Low-pressure pipe 1 to expansion valve

92473 N8210

1

16

High-pressure pipe 2 to expansion valve

92471 N8210

1

8

Compressor to low-pressure flexible hose (VQ35DE)

92474 N8210

1

19

Compressor to low-pressure pipe (VK45DE)

Compressor to high-pressure flexible hose

92472 N8210

1

12

Liquid tank to condenser pipe

Inlet

92471 N8210

1

8

Outlet

1

Former

Refrigerant pressure sensor to liquid tank

J2476 89956

1

10

Expansion valve to evaporator

Inlet

92475 71L00

1

12

Outlet

92475 72L00

1

16

ATC-12

PRECAUTIONS

WARNING:

Make sure all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

CAUTION:

When replacing or cleaning refrigerant cycle components, observe the following.

●

When the compressor is removed, store it in the same way at it is when mounted on the car. Fail-
ure to do so will cause lubricant to enter the low-pressure chamber.

●

When connecting tubes, always use a torque wrench and a back-up wrench.

●

After disconnecting tubes, immediately plug all openings to prevent entry of dust and moisture.

●

When installing an air conditioner in the vehicle, connect the pipes at the final stage of the opera-
tion. Never remove the seal caps of pipes and other components until just before required for con-
nection.

●

Allow components stored in cool areas to warm to working area temperature before removing seal
caps. This prevents condensation from forming inside A/C components.

●

Thoroughly remove moisture from the refrigeration system before charging the refrigerant.

●

Always replace used O-rings.

●

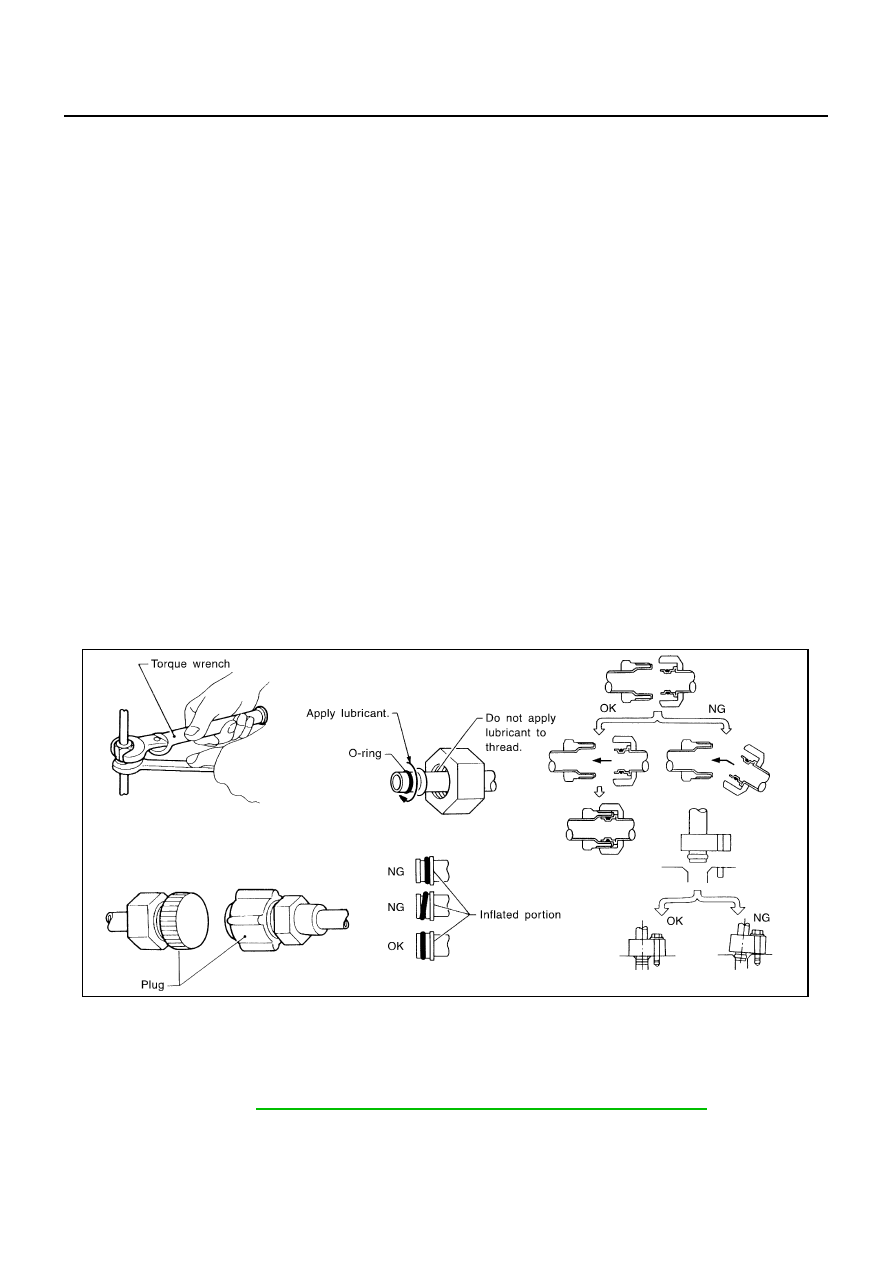

When connecting tubes, apply lubricant to circle of the O-rings shown in illustration. Be careful
not to apply lubricant to threaded portion.

●

O-ring must be closely attached to the groove of tube.

●

When replacing the O-ring, be careful not to damage O-ring and tube.

●

Connect tube until a click can be heard, then tighten the nut or bolt by hand. Make sure that the O-
ring is installed to tube correctly.

●

After connecting line, perform leak test and make sure that there is no leakage from connections.
When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then
tighten connections of seal seat to the specified torque.

Precautions for Servicing Compressor

NJS000FT

●

Plug all openings to prevent moisture and foreign matter from entering.

●

When the compressor is removed, store it in the same way at it is when mounted on the car.

●

When replacing or repairing compressor, follow “Maintenance of Lubricant Quantity in Compres-
sor” exactly. Refer to

ATC-26, "Maintenance of Lubricant Quantity in Compressor"

 .

●

Keep friction surfaces between clutch and pulley clean. If the surface is contaminated with lubri-
cant, wipe it off by using a clean waste cloth moistened with thinner.

Name

: Nissan A/C System Oil Type S

RHA861F

PRECAUTIONS

ATC-13

C

D

E

F

G

H

I

K

L

M

A

B

ATC

●

After compressor service operation, turn the compressor shaft by hand more than five turns in
both directions. This will equally distribute lubricant inside the compressor. After the compressor
is installed, let the engine idle and operate the compressor for one hour.

●

After replacing the compressor magnet clutch, apply voltage to the new one and check for normal
operation.

Precautions for Service Equipment

NJS000FU

RECOVERY/RECYCLING EQUIPMENT

Be certain to follow the manufacturer’s instructions for machine operation and machine maintenance. Never
introduce any refrigerant other than that specified into the machine.

ELECTRICAL LEAK DETECTOR

Be certain to follow the manufacturer’s instructions for tester operation and tester maintenance.

VACUUM PUMP

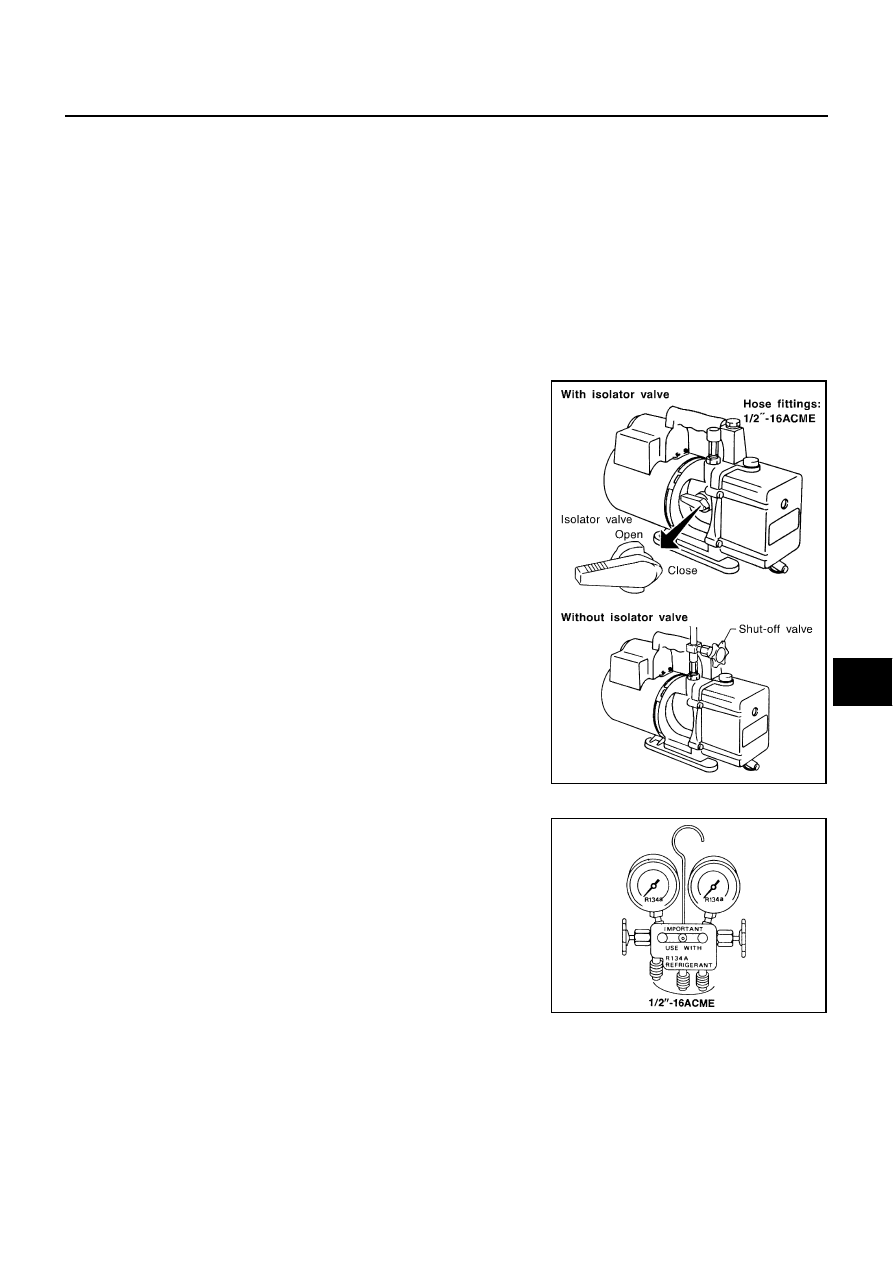

The lubricant contained inside the vacuum pump is not compatible
with the specified lubricant for HFC-134a (R-134a) A/C systems.
The vent side of the vacuum pump is exposed to atmospheric pres-
sure. So the vacuum pump lubricant may migrate out of the pump
into the service hose. This is possible when the pump is switched off
after evacuation (vacuuming) and hose is connected to it.
To prevent this migration, use a manual valve placed near the hose-
to-pump connection, as follows.

●

Usually vacuum pumps have a manual isolator valve as part of
the pump. Close this valve to isolate the service hose from the
pump.

●

For pumps without an isolator, use a hose equipped with a man-
ual shut-off valve near the pump end. Close the valve to isolate
the hose from the pump.

●

If the hose has an automatic shut-off valve, disconnect the hose
from the pump. As long as the hose is connected, the valve is
open and lubricating oil may migrate.

Some one-way valves open when vacuum is applied and close
under no vacuum condition. Such valves may restrict the pump’s
ability to pull a deep vacuum and are not recommended.

MANIFOLD GAUGE SET

Be certain that the gauge face indicates HFC-134a or R-134a. Be
sure the gauge set has 1/2

″

-16 ACME threaded connections for ser-

vice hoses. Confirm the set has been used only with refrigerant
HFC-134a (R-134a) and specified lubricants.

RHA270DA

SHA533D

ATC-14

PRECAUTIONS

SERVICE HOSES

Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite to the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2

″

-16

ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electrical scale or of quality recycle/recharge equipment.

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D
