TRANSFER ASSEMBLY

TF-51

C

E

F

G

H

I

J

K

L

M

A

B

TF

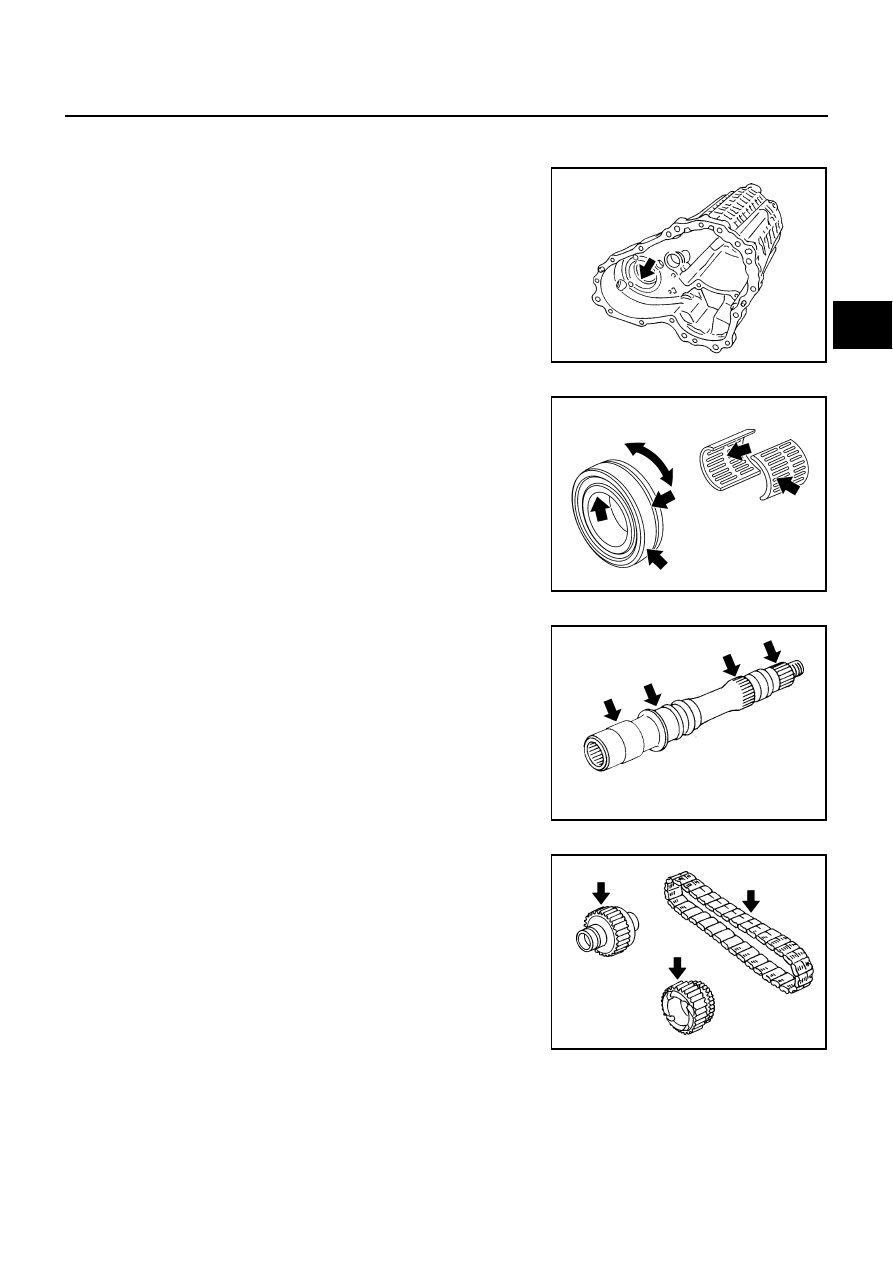

INSPECTION
Cases

Check items below. If necessary, replace them with new ones.

Contact surfaces of bearing for wear, damage, etc.

Damage and cracks of case.

Bearing

Check items below. If necessary, replace them with new ones.

Damage and rough rotation of bearing.

Shaft

Check items below. If necessary, replace them with new one.

Damage, peeling, dent, uneven wear, bending, etc. of shaft.

Gears and Chain

Check items below. If necessary, replace them with new ones.

Excessive wear, damage, peeling, etc. of gear and chain.

PDIA0293E

PDIA0300E

PDIA0294E

SDIA2365E

TF-52

TRANSFER ASSEMBLY

ASSEMBLY
Front Drive Shaft and Drive Chain

1.

Install front drive shaft front bearing, using the drift.

2.

Install front drive shaft rear bearing, using the drift.

3.

Install drive chain to front drive shaft.

CAUTION:

Identification mark of drive chain should be in the side of
front bearing of front drive shaft.

4.

Install drive chain to mainshaft, and then install tap front drive
shaft with plastic hammer. Press-fit rear bearing of front drive
shaft to rear case.

CAUTION:

Be careful not to tap drive chain.

5.

Install front case to rear case. Refer to

TF-53, "Front Case and

Rear Case"

 .

Tool number

: ST33200000 (J-26082)

PDIA0276E

Tool number

: KV38104010 (

)

PDIA0277E

PDIA0284E

PDIA0257E

TRANSFER ASSEMBLY

TF-53

C

E

F

G

H

I

J

K

L

M

A

B

TF

Mainshaft Assembly

1.

Install needle bearing to mainshaft.

CAUTION:

Apply ATF to periphery of needle bearing.

2.

Install sprocket and electric controlled coupling to mainshaft.

3.

Install spacer to main shaft.

4.

Install snap ring to mainshaft.

CAUTION:

Do not reuse snap ring.

5.

Install mainshaft assembly to rear case, then install front case
and rear case. Refer to

TF-53, "Front Case and Rear Case"

 .

Front Case and Rear Case

1.

Install breather tube, with plastic hammer.

CAUTION:

Pay attention to the direction of breather tube.

2.

Install baffle plate to rear case, and tighten bolt to the specified
torque. Refer to

TF-45, "COMPONENTS"

 .

3.

Install rear bearing to rear case, using the drift.

CAUTION:

Apply ATF to inside of rear bearing.

PDIA0273E

SDIA1602E

PDIA0274E

Tool number

: KV38104010 (

)

PDIA0275E

TF-54

TRANSFER ASSEMBLY

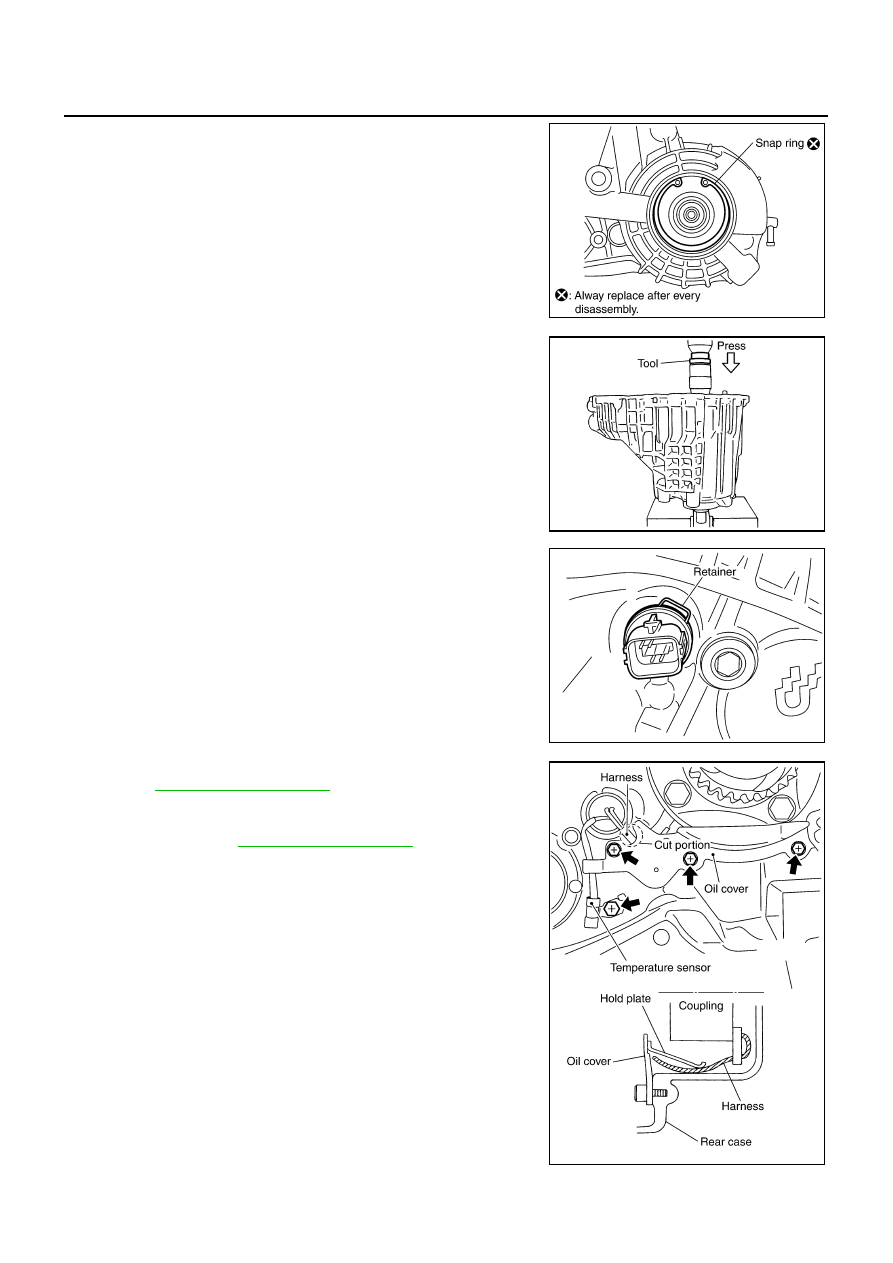

4.

Install snap ring to rear case.

CAUTION:

Do not reuse snap ring.

5.

Install mainshaft assembly to rear case, using the drift.

CAUTION:

ATF should be applied to contact surface of mainshaft and
rear bearing.

6.

Install O-ring to transfer assembly harness connector.

CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.

7.

Install transfer assembly harness connector into rear case.

8.

Install retainer to transfer assembly harness connector.

9.

Set temperature sensor and tighten bolt to the specified torque.
Refer to

TF-45, "COMPONENTS"

 .

10. Hold electric controlled coupling harness with oil cover hold

plate, install oil cover to rear case, and tighten bolt to the speci-
fied torque. Refer to

TF-45, "COMPONENTS"

 .

CAUTION:

The harness should be guided by a cut portion.
NOTE:
Regarding models after december

06, temperature sensor may

not included.

PDIA0263E

Tool number

: ST35321000 (

)

SDIA2368E

SDIA1597E

SDIA2404E
