REAR DOOR GLASS AND REGULATOR

GW-55

C

D

E

F

G

H

J

K

L

M

A

B

GW

6.

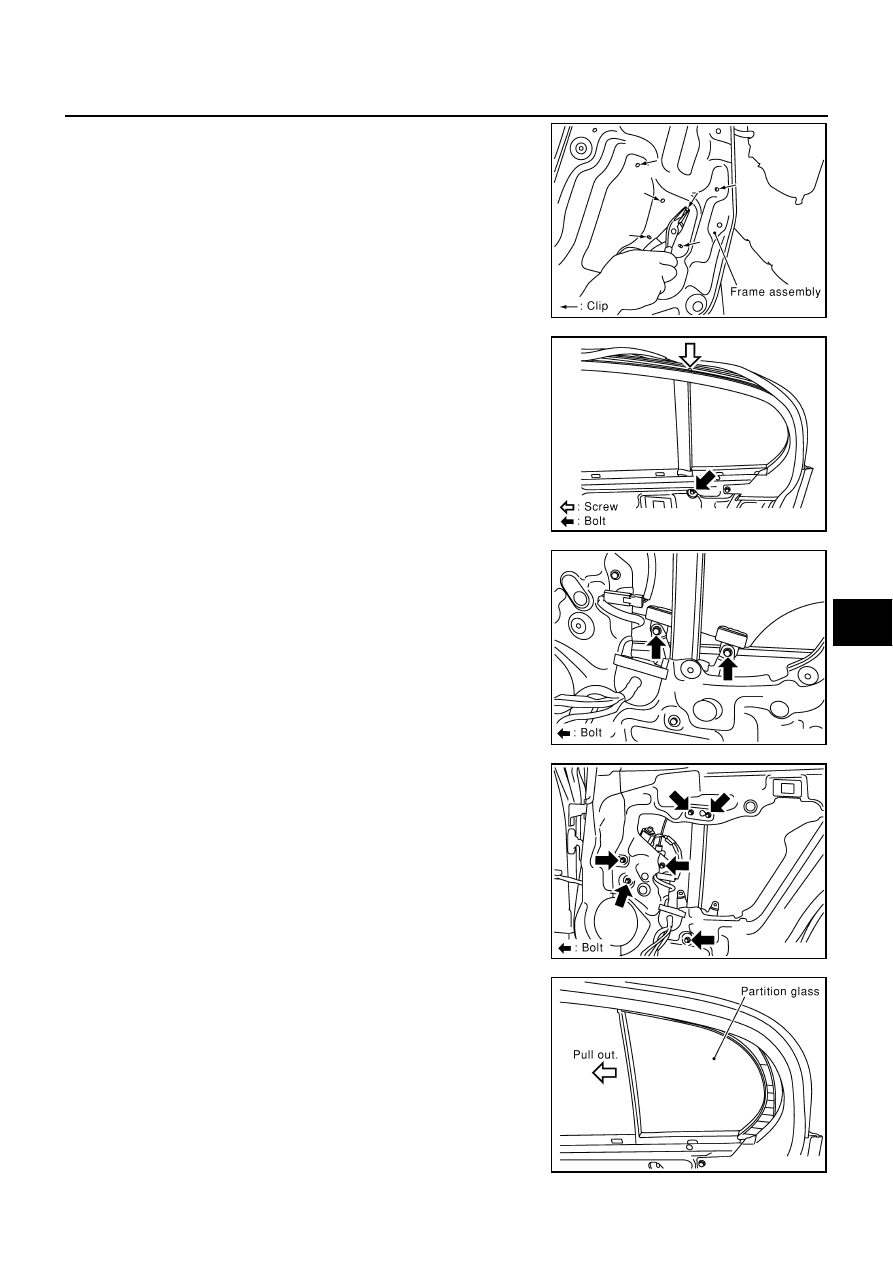

Remove the harness connector routed on the frame assembly,
then remove the harness clip from the back.

7.

Remove the partition sash from the glass run.

8.

Remove the partition sash mounting bolt (lower) and screw
(upper) to remove the sash.

9.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

10. Remove the glass mounting bolts, and remove the glass from

the inside of the panel.

11. Remove the mounting bolts, and remove the regulator and guide

channel from the panel.

12. Disconnect the connector for the regulator assembly.

13. Remove the partition glass from the panel.

SIIA0289E

SIIA0292E

SIIA0290E

SIIA0291E

SIIA0348E

GW-56

REAR DOOR GLASS AND REGULATOR

INSTALLATION

Install in the reverse order of removal.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.

●

Wire wear

●

Regulator deformation

●

Grease condition for each sliding part

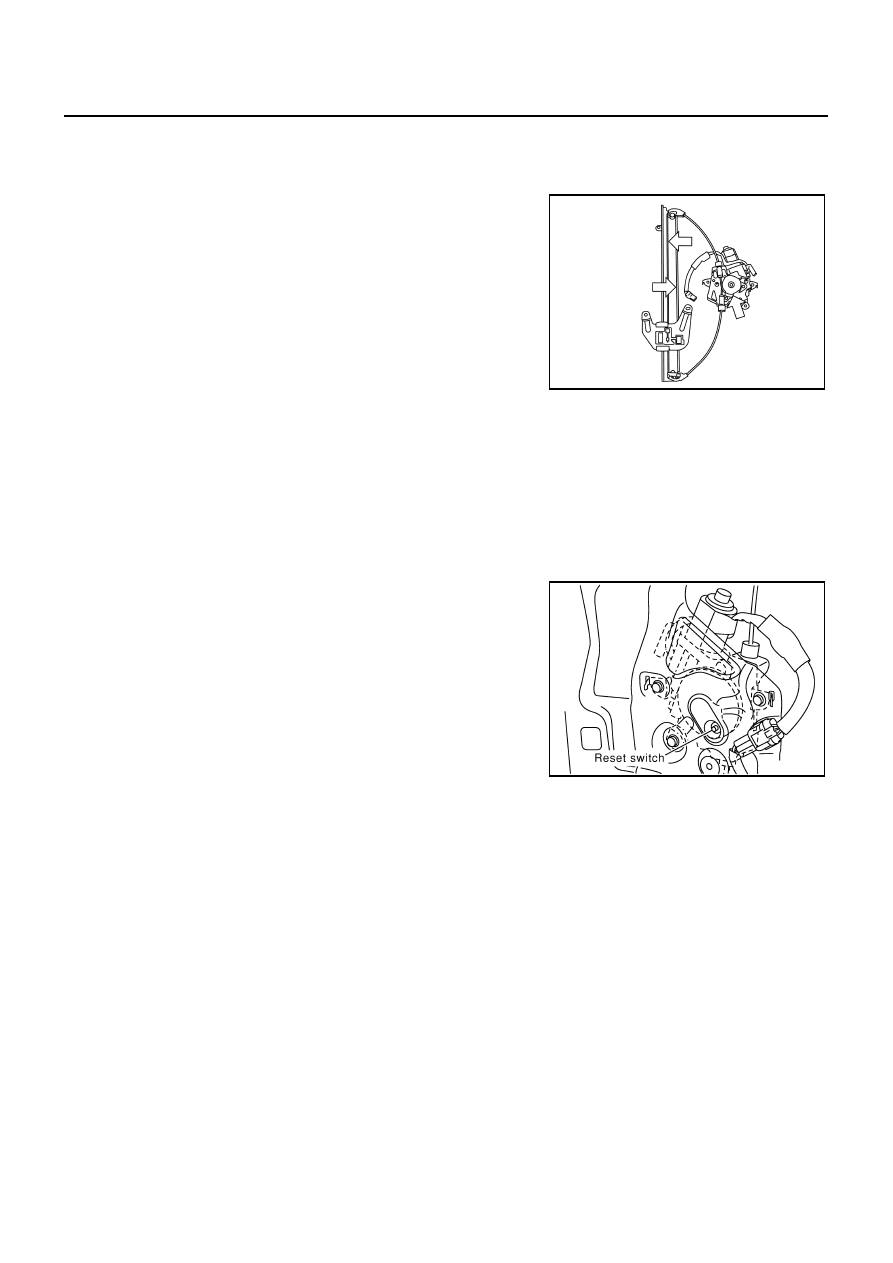

The arrows in the figure show the application points of the body
grease.

SETTING AFTER INSTALLATION

If any of the following work has been done, set the limit switch (integrated in the motor).

●

Removal and installation of the regulator.

●

Removal and installation of the motor from the regulator.

●

Operate the regulators a unit.

●

Removal and installation of the glass.

●

Removal and installation of the glass run.

Setting Of Limit Switch

After installing each component to the vehicle, follow the steps
below.

CAUTION:

Do not assemble the frame assembly.

1.

Raise the glass to the top position.

2.

While pressing and holding the reset switch, lower the glass to
the bottom position.

3.

Release the reset switch, and check that the reset switch returns
to the original position, and then raise the glass to the top posi-
tion.

CAUTION:

Do not operate the glass automatically to raise the glass to the top dead center.

FITTING INSPECTION

●

Check that the glass is securely fit into the glass run groove.

●

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass & carrier plate mounting bolts to correct the glass position.

SIIA0294J

SIIA0296E

INSIDE MIRROR

GW-57

C

D

E

F

G

H

J

K

L

M

A

B

GW

INSIDE MIRROR

PFP:96321

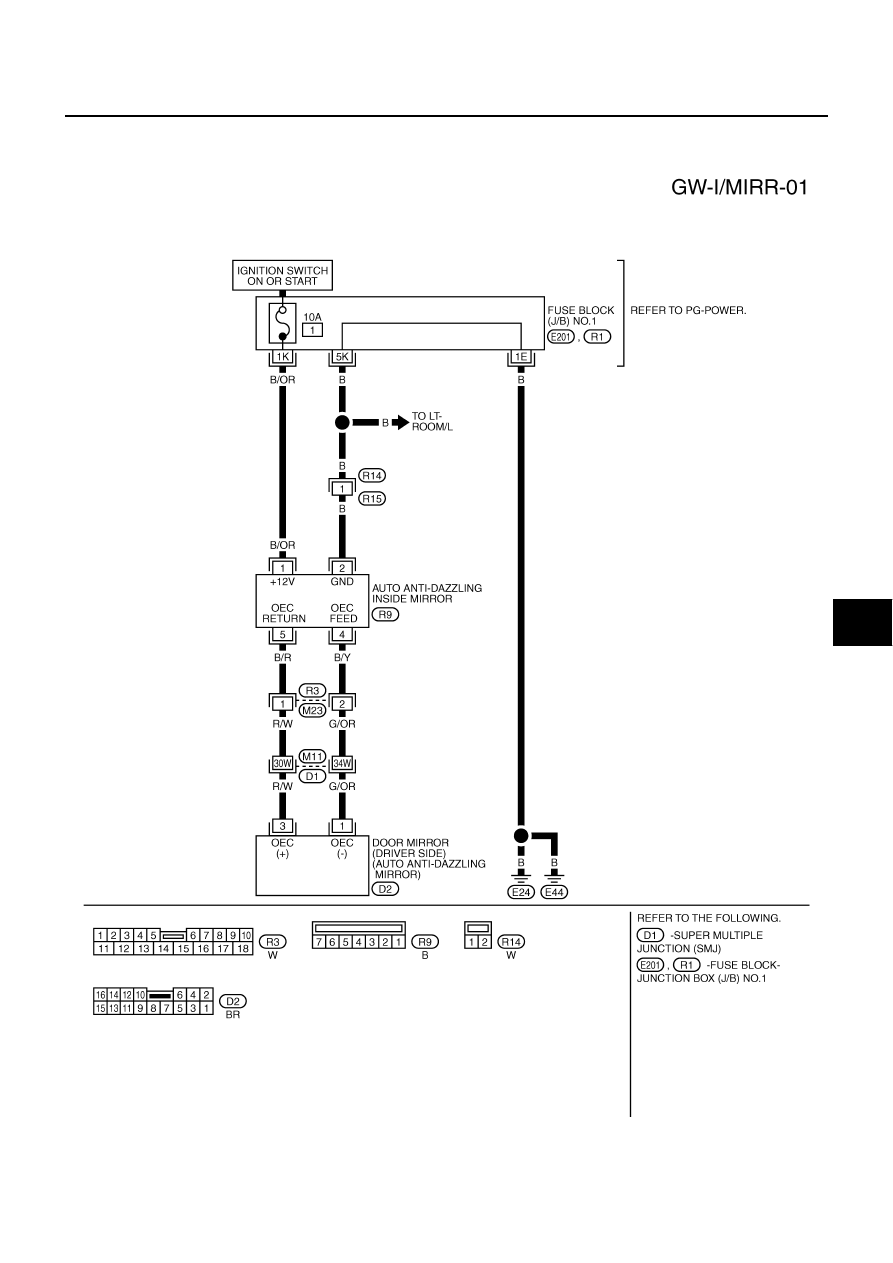

Wiring Diagram—I/MIRR—

EIS000UA

TIWM0180E

GW-58

INSIDE MIRROR

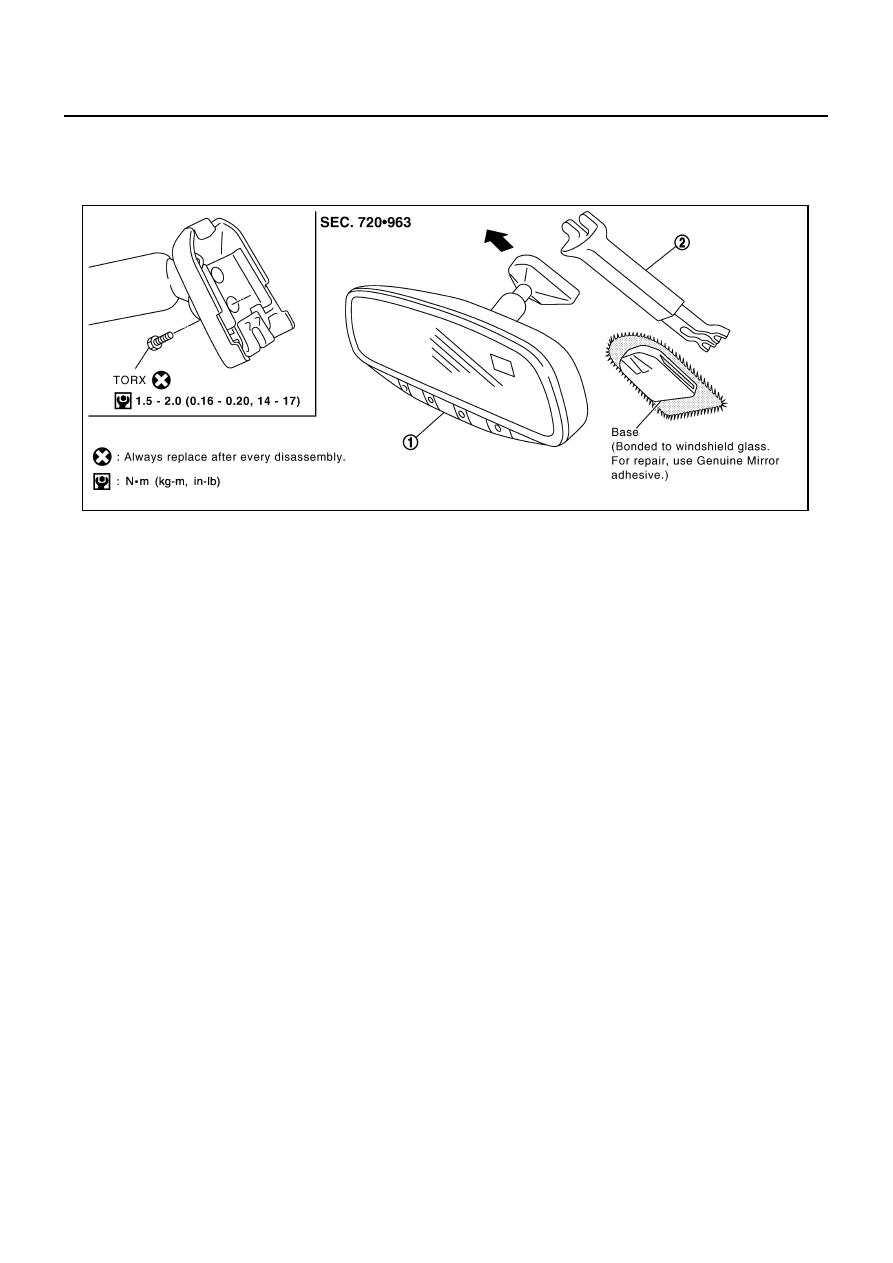

Removal and Installation

EIS000JK

AUTO ANTI–DAZZLING INSIDE MIRROR

1.

Remove connector cover.

2.

Slide the mirror upward to remove, and disconnect the connector.

1

Inside mirror

2

Connector cover

PIIA6421E
