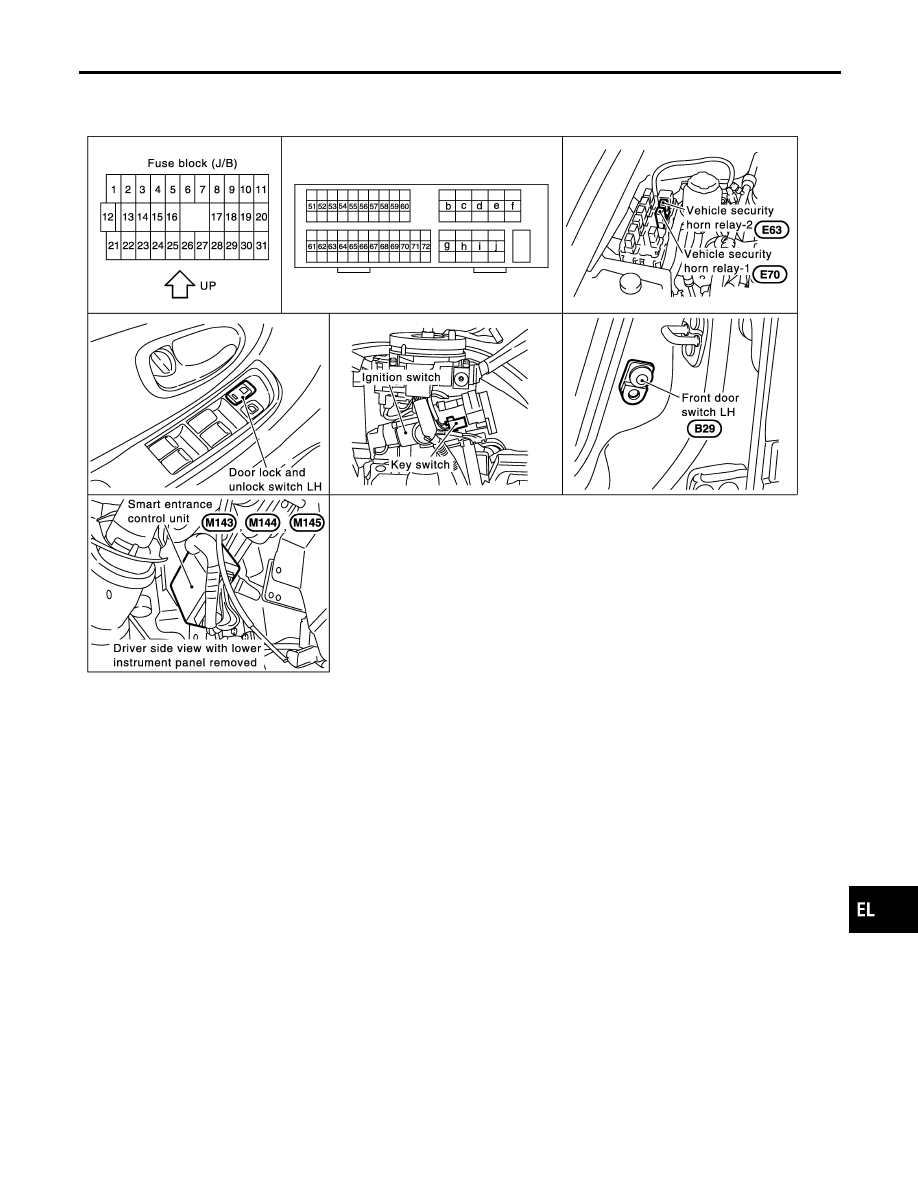

Component Parts and Harness Connector
Location

NHEL0111

SEL054YA

System Description

NHEL0194

INPUTS

NHEL0194S01

Power is supplied at all times

I

to smart entrance control unit terminal 49 and

I

to key switch terminal 3

I

through 10A fuse [No. 13, located in the fuse block (J/B)].

When the key switch is ON (ignition key is inserted in key cylinder), power is supplied

I

through key switch terminal 4

I

to smart entrance control unit terminal 25.

When the front door switch LH is ON (door is OPEN), ground is supplied

I

to smart entrance control unit terminal 1

I

through front door switch LH terminal 2

I

to front door switch LH terminal 3

I

through body grounds B7 (with TCS) or B78 (with VDC) and B46.

When the front door switch RH is ON (door is OPEN), ground is supplied

I

to smart entrance control unit terminal 2

I

through front door switch RH terminal 2, and

I

to front door switch RH terminal 3

I

through body grounds B127 and B106.

When the rear door switches are ON (door is OPEN), ground is supplied

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REMOTE KEYLESS ENTRY SYSTEM

Component Parts and Harness Connector Location

EL-297

I

to smart entrance control unit terminal 3

I

through each rear door switches terminal 1

I

to rear door switches case grounds.

When door lock/unlock switch of front power window main switch is LOCK/UNLOCK, ground is supplied

I

to smart entrance control unit terminal 33

I

through front power window main switch terminals 8 and 5, and

I

through body grounds M9, M25 and M87.

Keyfob signal is inputted to smart entrance control unit (The antenna of the system is combined with smart
entrance control unit).
The remote keyless entry system controls operation of the

I

power door lock

I

auto door lock

I

trunk lid opener

I

interior lamp

I

panic alarm

I

hazard and horn reminder

I

power window opener

OPERATED PROCEDURE

NHEL0194S02

Power Door Lock Operation

NHEL0194S0201

Smart entrance control unit receives a LOCK signal from keyfob. Smart entrance control unit locks all doors
with input of LOCK signal from keyfob.
When an UNLOCK signal is sent from keyfob once, driver’s door will be unlocked.
Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other door will be unlocked.
Select unlock mode can be changed by CONSULT-II (EL-308).

Auto Door Lock Operation

NHEL0194S0206

Auto lock function signal is sent for operation when any of the following signals are not sent within 5 minutes
after the unlock signal is sent from the keyfob:

I

when door switch is turned ON for open.

I

when the ignition switch is turned ON.

I

when the lock signal is sent from the keyfob.

Auto door lock mode can be changed by CONSULT-II (EL-308).

Hazard and Horn Reminder

NHEL0194S0202

Power is supplied at all times

I

to vehicle security horn relay-1 terminals 1 and 3, and

I

to vehicle security horn relay-2 terminal 1

I

through 10A fuse (No. 61, located in the fuse and fusible link box), and

I

to horn relay terminal 2

I

through 10A fuse (No. 57, located in the fuse and fusible link box)

When smart entrance control unit receives LOCK or UNLOCK signal from keyfob with all doors closed, ground
is supplied

I

to vehicle security horn relay-2 terminal 2

I

through smart entrance control unit terminal 42

Vehicle security horn relay-2 is then energized

I

to horn relay terminal 1, and

I

to vehicle security horn relay-1 terminal 2

I

through vehicle security horn relay-2 terminals 5 and 3, and

I

through body ground E11, E22 and E53

I

to smart entrance control unit terminals 47 and 48 from hazard warning lamp system.

Vehicle security horn relay-1 and horn relay are now energized, and hazard warning lamp flashes and horn
sounds as a reminder.
The hazard and horn reminder has six steps.

REMOTE KEYLESS ENTRY SYSTEM

System Description (Cont’d)

EL-298

Operating function of hazard and horn reminder

Lock

Unlock

Hazard warning lamp

flash

Horn sound

Hazard warning lamp

flash

Horn sound

C MODE

Twice

Once

Once

S MODE

Twice

MODE 3

MODE 4

Twice

Once

MODE 5

Twice

Once

MODE 6

Once

Once

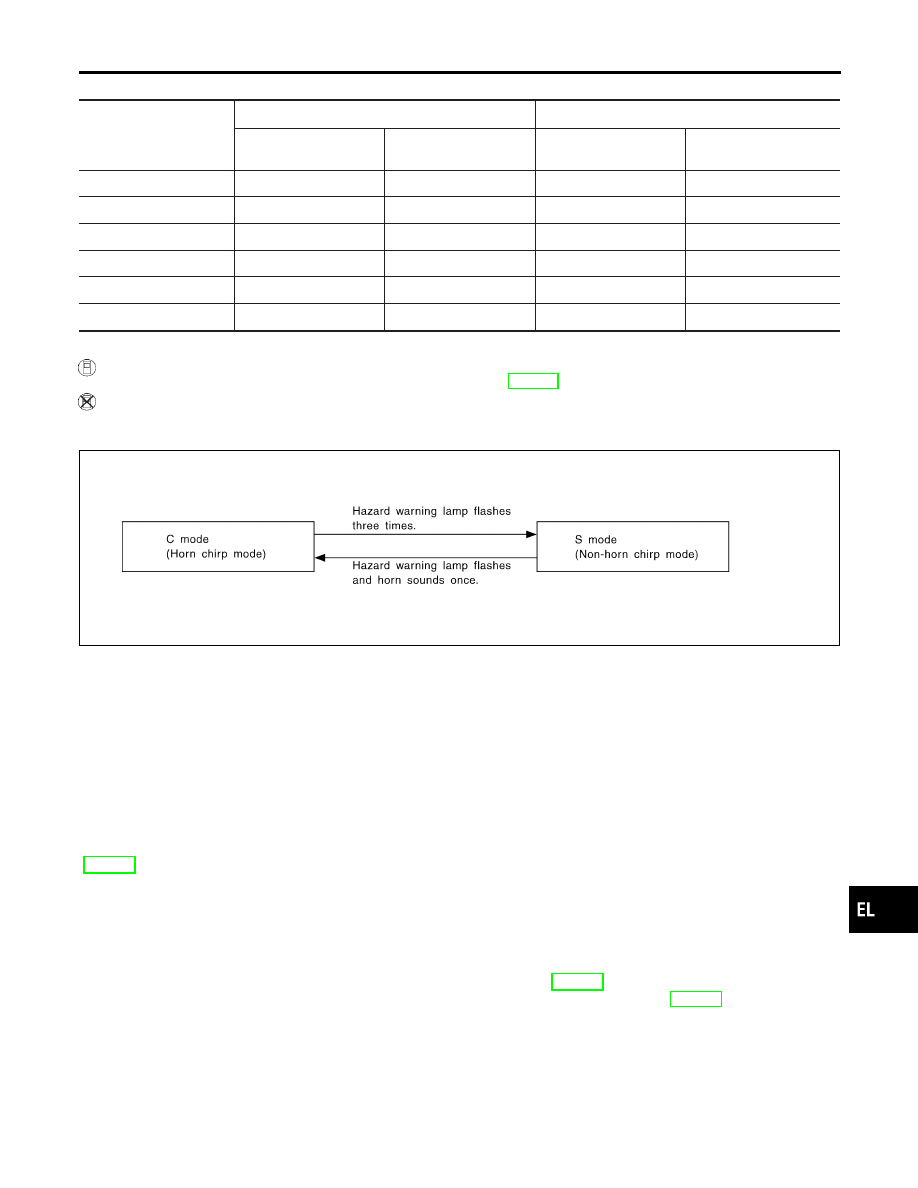

How to change hazard and horn reminder mode

With CONSULT-II

Hazard and horn reminder can be changed by CONSULT-II (EL-308).

Without CONSULT-II

When LOCK and UNLOCK signals are sent from the keyfob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:

SEL153WA

NOTE:
Reminder mode setting cannot be changed without CONSULT-II for MODES 3,4, 5, and 6. However, C and
S MODES can be changed without CONSULT-II.

Interior Lamp Operation

NHEL0194S0203

When the following input signals are both supplied:

I

door switch CLOSED (when all the doors are closed);

I

driver’s door LOCKED;

remote keyless entry system turns on interior lamp and key hole illumination (for 30 seconds) with input of
UNLOCK signal from keyfob.
For detailed description, refer to “INTERIOR, STEP, SPOT, VANITY MIRROR AND TRUNK ROOM LAMPS”
(EL-100).

Panic Alarm Operation

NHEL0194S0204

When key switch is OFF (when ignition key is not inserted in key cylinder), remote keyless entry system turns
on and off horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.
The alarm automatically turns off after 25 seconds or when smart entrance control unit receives any signal
from keyfob.
For detailed description, refer to “VEHICLE SECURITY SYSTEM” (EL-330).
The panic alarm button’s pressing time on keyfob can be changed by CONSULT-II (EL-308).

Trunk Lid Opener Operation

NHEL0194S0205

Power is supplied at all times

I

through 15A fuse [No. 3, located in the fuse block (J/B)]

I

to trunk lid opener actuator terminal 2.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REMOTE KEYLESS ENTRY SYSTEM

System Description (Cont’d)

EL-299

When a TRUNK OPEN signal is sent with key OFF (ignition key removed from key cylinder) from keyfob,
ground is supplied

I

to trunk lid opener actuator terminal 1

I

through smart entrance control unit terminal 63.

Then power and ground are supplied, trunk lid opener actuator opens trunk lid.
The trunk lid opener button’s pressing time on keyfob can be changed by CONSULT-II (EL-308).

Power Window Opener Operation

NHEL0194S0207

The front power windows open when the unlock button on keyfob is activated and kept pressed for more than
3 seconds with the ignition key OFF. The windows keep opening if the unlock button is continuously pressed.
The power window opening stops when the following operations are carried out:

I

When the unlock button is kept pressed more than 15 seconds.

I

When the ignition switch is turned ON while the power window opening is operated.

I

When the unlock button is released.

The unlock button’s pressing time can be changed by CONSULT-II (EL-308).
Door Lock/Unlock and front power window down signal is supplied

I

through smart entrance control unit terminal 33

I

to front power window main switch terminal 8 and

I

to front power window switch RH terminal 11.
