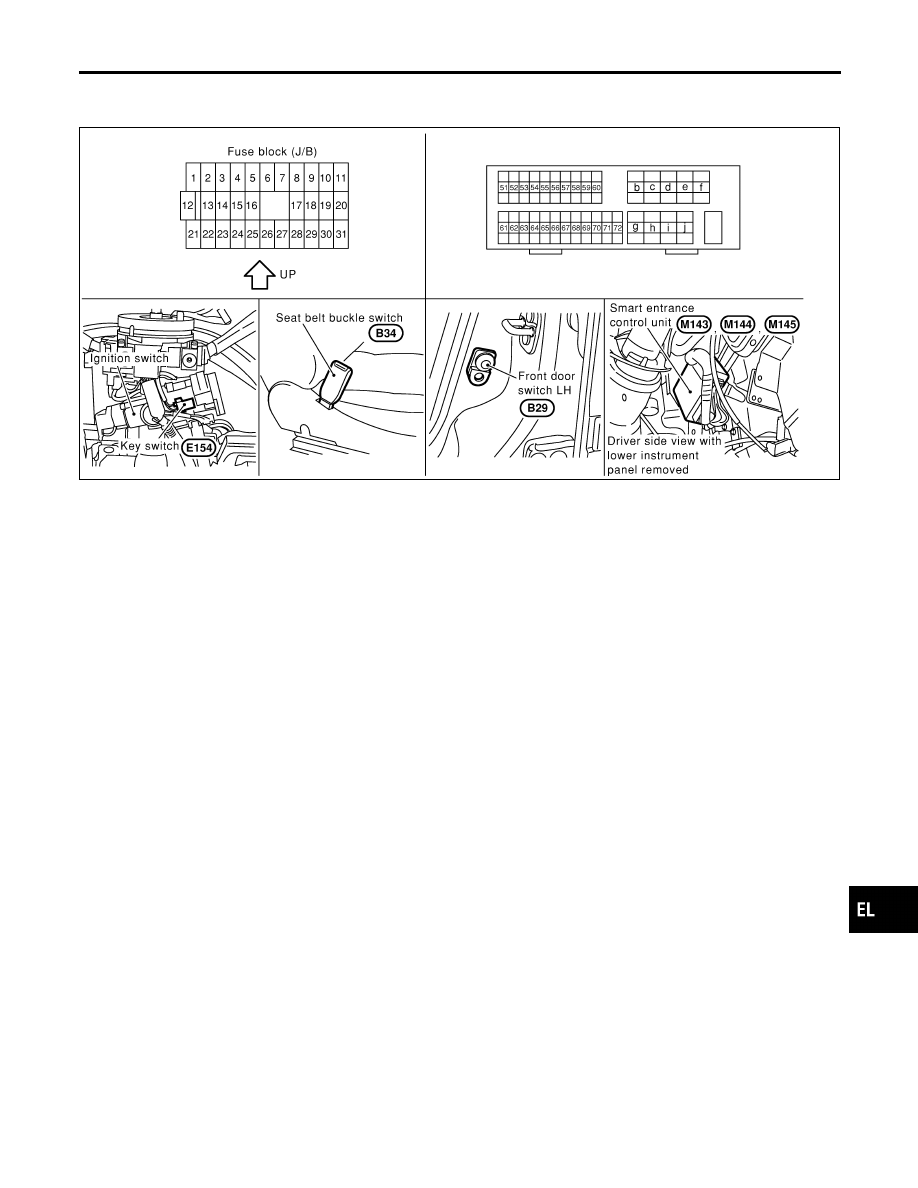

Component Parts and Harness Connector
Location
NHEL0052
SEL052YA

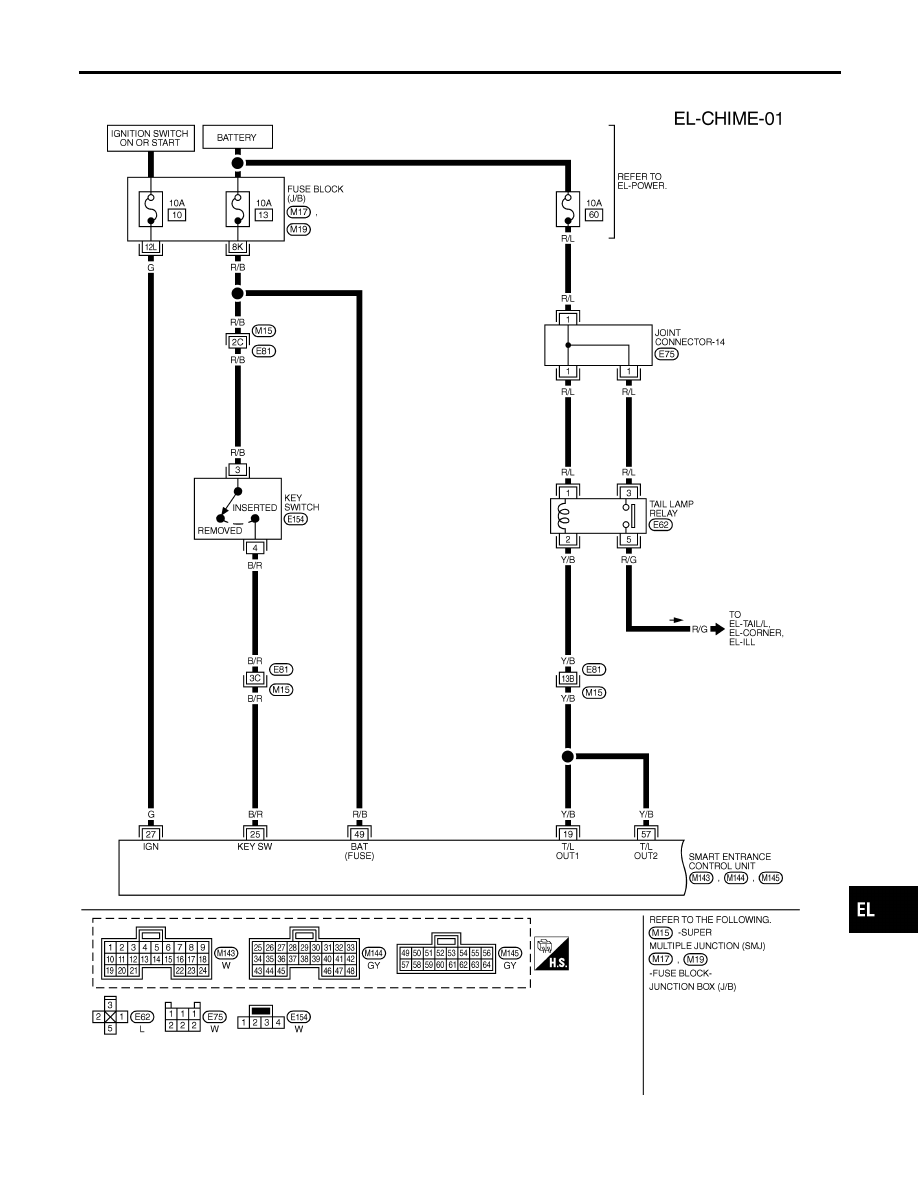

System Description
NHEL0053
The warning chime is controlled by the smart entrance control unit.
The warning chime is located in the smart entrance control unit.
Power is supplied at all times
I
through 10A fuse [No. 13, located in fuse block (J/B)]
I
to smart entrance control unit terminal 49 and
I
to key switch terminal 3,
I
through 10A fuse (No. 60, located in the fuse and fusible link box)
I
to tail lamp relay terminals 1 and 3.
With the ignition switch in the ON or START position, power is supplied
I
through 10A fuse [No. 10, located in the fuse block (J/B)]
I
to smart entrance control unit terminal 27.
Ground is supplied to smart entrance control unit terminal 43 and 64 through body grounds M9, M25 and M87.
When a signal, or combination of signals, is received by the smart entrance control unit, the warning chime
will sound.
IGNITION KEY WARNING CHIME
NHEL0053S01
With the key in the ignition switch in the OFF position, and the driver’s door open, the warning chime will sound.
Power is supplied
I
from key switch terminal 4
I
to smart entrance control unit terminal 25.

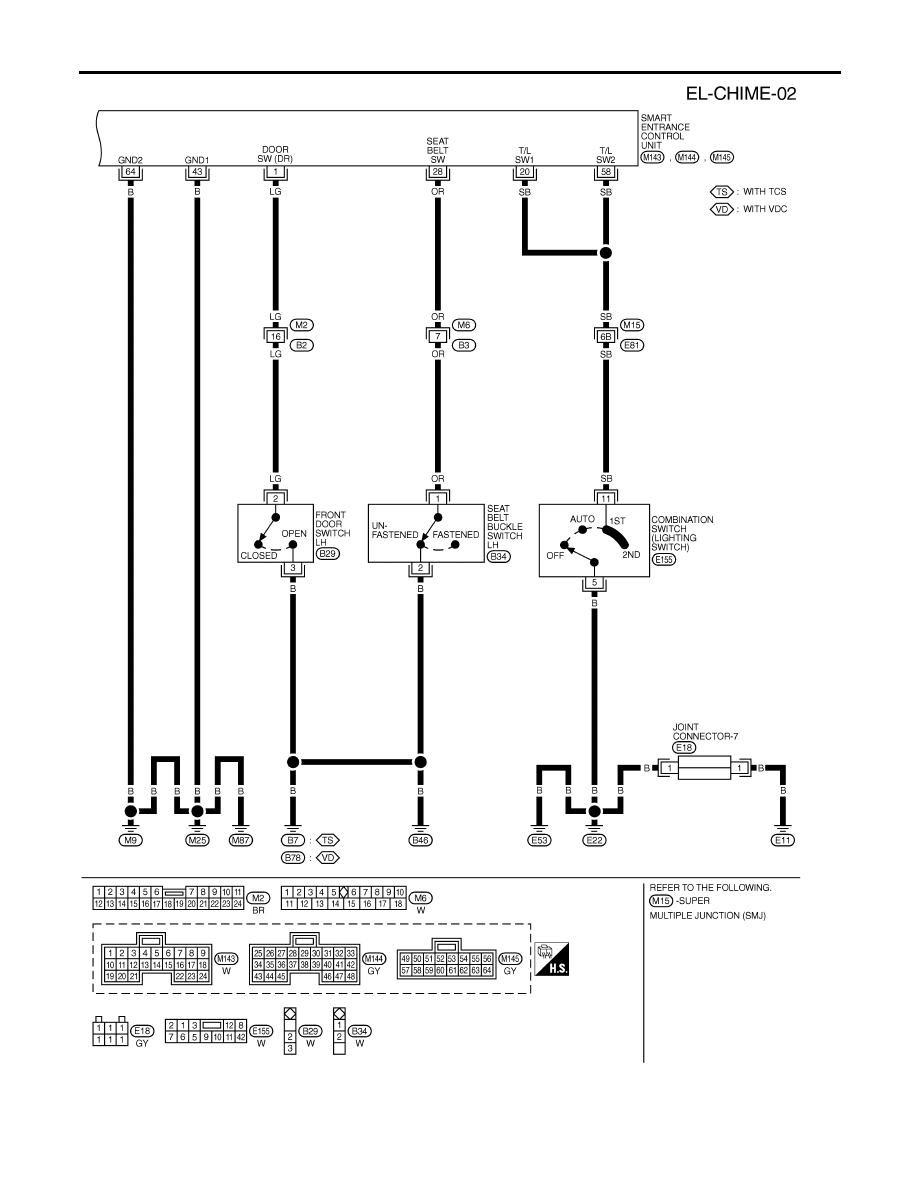

Ground is supplied
I
from front door switch (LH) terminal 2
I
to smart entrance control unit terminal 1.
Front door switch (LH) terminal 3 is grounded through body grounds B7 (with TCS) or B78 (with VDC) and
B46.
LIGHT WARNING CHIME
NHEL0053S02
With ignition switch OFF, driver’s door open, and lighting switch in 1ST or 2ND position, warning chime will
sound. Power is supplied.
I
from tail lamp relay terminal 2
I
to smart entrance control unit terminal 19 and 57.
Ground is supplied
GI
MA
EM
LC
EC
FE
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING CHIME
Component Parts and Harness Connector Location
EL-161
