Infiniti I35 (A33). Manual - part 189

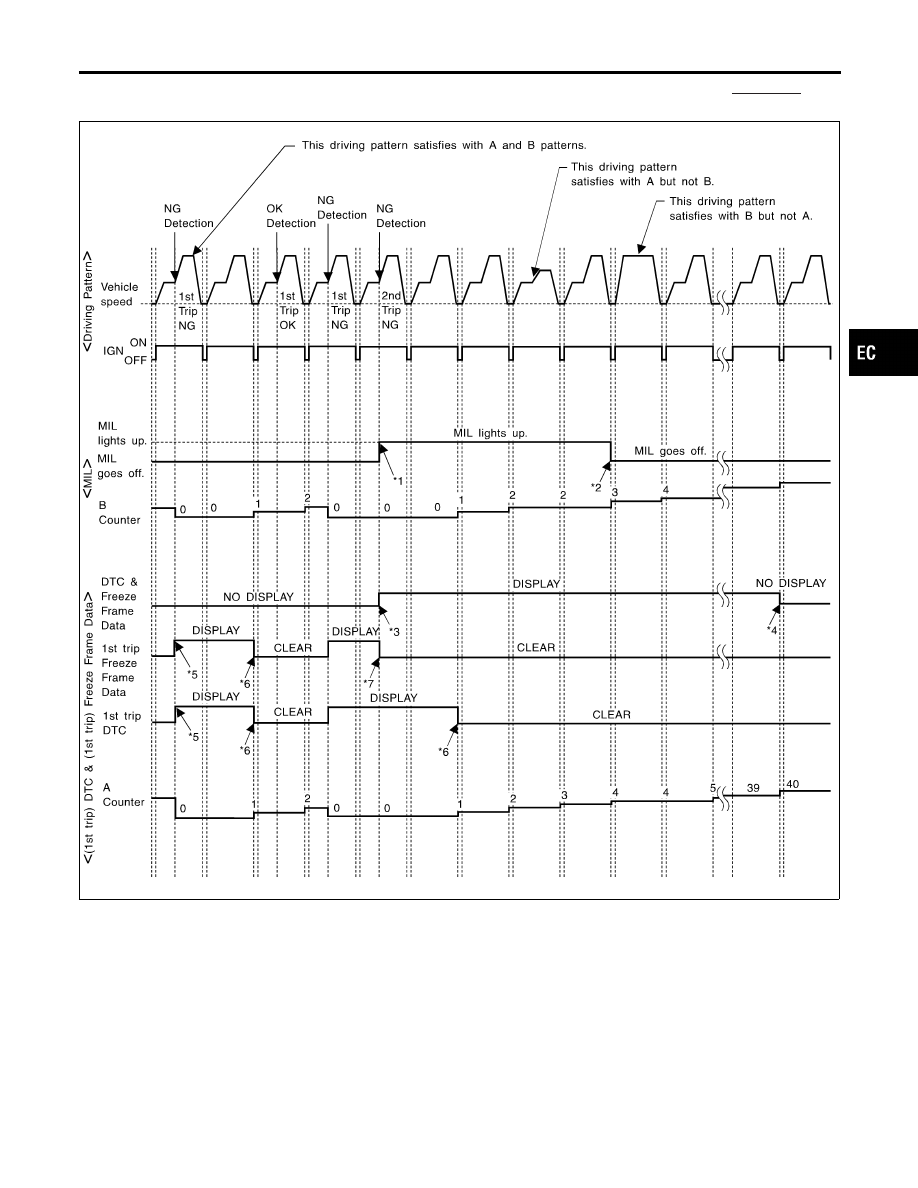

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT
FOR “MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

NHEC0033S05

SEF393SD

*1: When the same malfunction is

detected in two consecutive trips,
MIL will light up.

*2: MIL will go off after vehicle is

driven 3 times (pattern B) without
any malfunctions.

*3: When the same malfunction is

detected in two consecutive trips,
the DTC and the freeze frame
data will be stored in ECM.

*4: The DTC and the freeze frame

data will not be displayed any
longer after vehicle is driven 40
times (pattern A) without the same
malfunction.
(The DTC and the freeze frame
data still remain in ECM.)

*5: When a malfunction is detected

for the first time, the 1st trip DTC

and the 1st trip freeze frame data
will be stored in ECM.

*6: 1st trip DTC will be cleared after

vehicle is driven once (pattern B)
without the same malfunction.

*7: When the same malfunction is

detected in the 2nd trip, the 1st
trip freeze frame data will be
cleared.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

OBD System Operation Chart (Cont’d)

EC-97

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY
DETERIORATION>”, “FUEL INJECTION SYSTEM”

NHEC0033S06

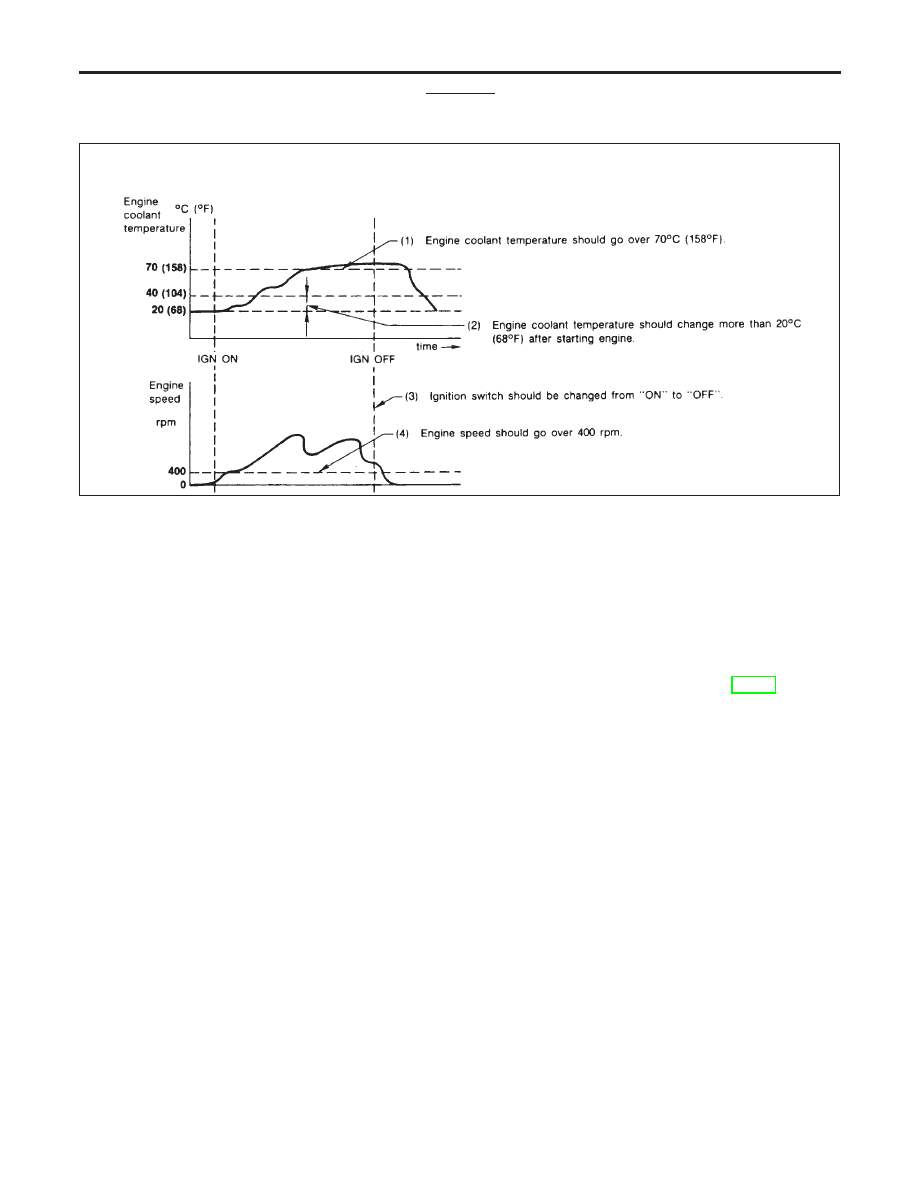

<Driving Pattern A>

NHEC0033S0601

AEC574

I

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).

I

The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.

I

The DTC will not be displayed after the A counter reaches 40.

<Driving Pattern B>

NHEC0033S0602

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.

I

The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

I

The B counter will be counted up when driving pattern B is satisfied without any malfunctions.

I

The MIL will go off when the B counter reaches 3 (*2 in “OBD System Operation Chart”, EC-94).

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

OBD System Operation Chart (Cont’d)

EC-98

SEF289X

CONSULT-II

=NHEC0034

INSPECTION PROCEDURE

NHEC0034S01

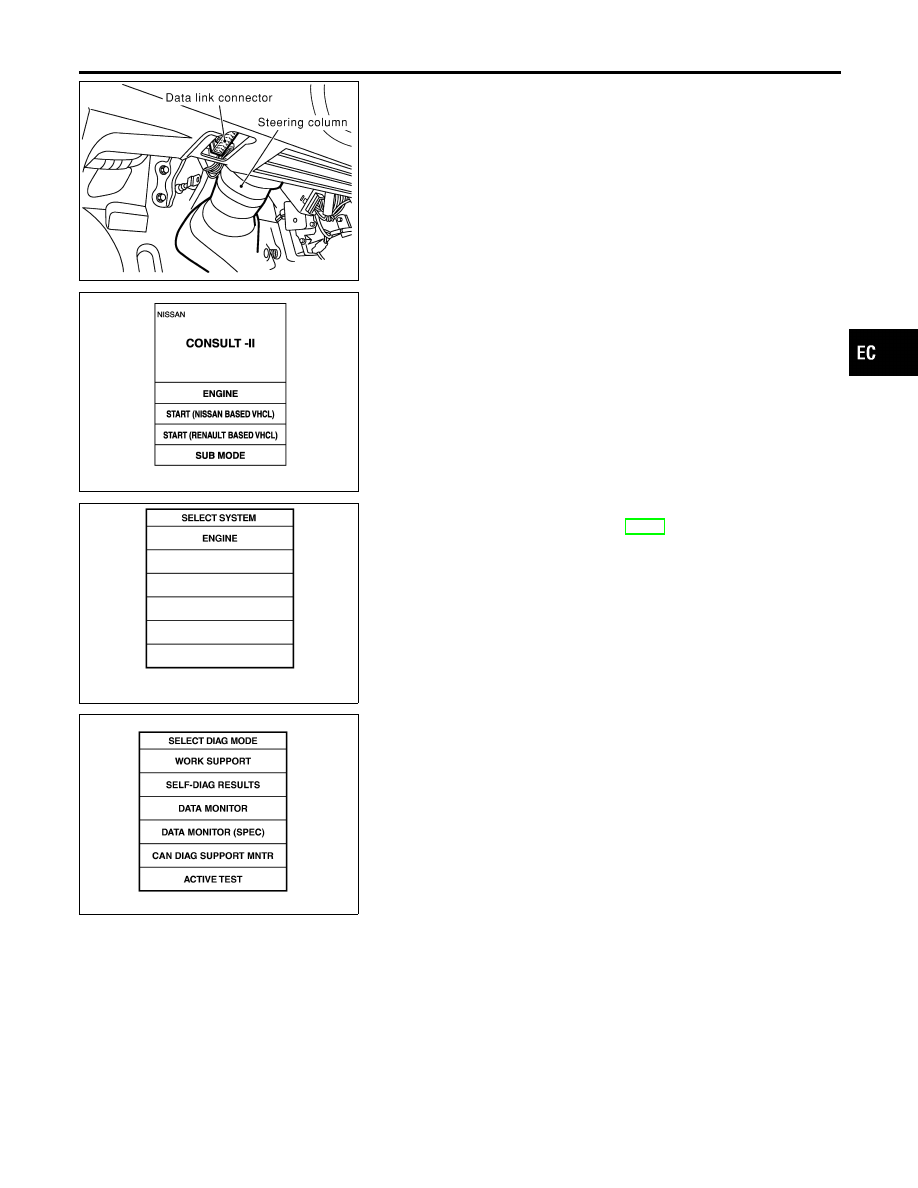

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located under LH dash panel near the
fuse box cover.

MBIB0233E

3.

Turn ignition switch ON.

4.

Touch “START” (NISSAN BASED VHCL).

SEF948Y

5.

Touch “ENGINE”.

If “ENGINE” is not indicated go to GI-42, “CONSULT-II Data Link
Connector (DLC) Circuit”.

PBIB2308E

6.

Perform each diagnostic test mode according to each service
procedure.

For further information, see the CONSULT-II Operation
Manual.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II

EC-99

ENGINE CONTROL COMPONENT PARTS/CONTROL
SYSTEMS APPLICATION

NHEC0034S02

Item

DIAGNOSTIC TEST MODE

WORK

SUP-

PORT

SELF-DIAGNOSTIC

RESULTS

DATA

MONI-

TOR

DATA

MONI-

TOR

(SPEC)

ACTIVE

TEST

DTC & SRT

CONFIRMATION

DTC*1

FREEZE

FRAME
DATA*2

SRT

STATUS

DTC

WORK

SUP-

PORT

ENGINE

CONTROL

COMPONENT

P

ARTS

INPUT

Crankshaft position sensor
(POS)

X

X

X

X

Camshaft position sensor
(PHASE)

X

Mass air flow sensor

X

X

X

Engine coolant temperature sen-
sor

X

X

X

X

X

Heated oxygen sensor 1

X

X

X

X

X

Heated oxygen sensor 2

X

X

X

X

X

Vehicle speed sensor

X

X

X

X

Accelerator pedal position sensor

X

X

X

Throttle position sensor

X

X

X

Fuel tank temperature sensor

X

X

X

X

EVAP control system pressure
sensor

X

X

X

Absolute pressure sensor

X

X

X

Intake air temperature sensor

X

X

X

X

Knock sensor

X

Refrigerant pressure sensor

X

X

Ignition switch (start signal)

X

X

Closed throttle position switch
(accelerator pedal position sen-
sor signal)

X

X

Air conditioner switch

X

X

Park/neutral position (PNP)
switch

X

X

X

Power steering pressure sensor

X

X

X

Battery voltage

X

X

Load signal

X

X

Fuel level sensor

X

X

X

ASCD steering switch

X

X

X

ASCD brake switch

X

X

X

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

EC-100
