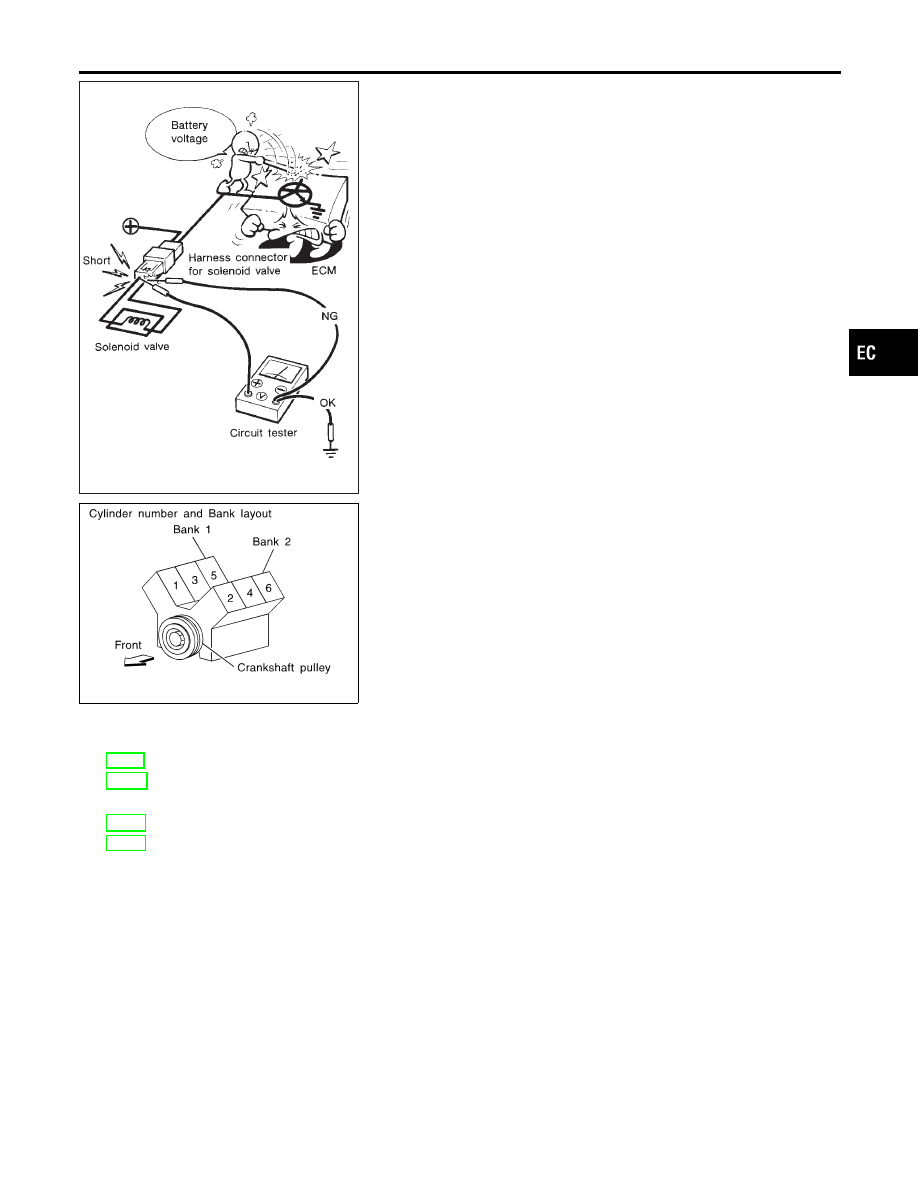

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
I
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the
ECM’s transistor. Use a ground other than the ECM
terminals, such as the ground.
SEC893C
I
B1 indicates the bank 1 and B2 indicates the bank 2 as
shown in the figure.
Wiring Diagrams and Trouble Diagnosis
NHEC0006
When you read Wiring diagrams, refer to the following:
I
GI-11, “HOW TO READ WIRING DIAGRAMS”
I
EL-11, “POWER SUPPLY ROUTING” for power distribution circuit
When you perform trouble diagnosis, refer to the following:
I
GI-25, “HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES”
I
GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”
