Infiniti I35 (A33). Manual - part 145





2

SELF-DIAGNOSIS RESULT CHECK 1

Perform the VDC/TCS/ABS control unit self-diagnosis.

Is the self-diagnosis results displayed?

Yes

©

After checking and repairing the applicable item, perform the VDC/TCS/ABS control unit
self-diagnosis again.

No

©

GO TO 3.

3

ECM SELF-DIAGNOSIS RESULT CHECK

Perform the ECM self-diagnosis.

Is the self-diagnosis results indicated?

Yes

©

Repair or replace the camshaft position sensor system.

No

©

GO TO 4.

4

SELF-DIAGNOSIS RESULT 2

Disconnect connectors for the VDC/TCS/ABS control unit and ECM, and reconnect them correctly to perform the self-diag-
nosis again.

Is inspection result OK?

OK

©

GO TO 5.

NG

©

Connector malfunction. Repair or replace the connector.

5

SELF-DIAGNOSIS RESULT CHECK 3

Perform the TCM self-diagnosis.

Is inspection result OK?

OK

©

GO TO 6.

NG

©

Repair or replace the applicable part.

6

SELF-DIAGNOSIS RESULT CHECK 4

Perform the VDC/TCS/ABS control unit self-diagnosis again.

Is the self-diagnosis results displayed?

Yes

©

Repair or replace the applicable item.

No

©

GO TO 7.

7

CIRCUIT CHECK BETWEEN VDC/TCS/ABS CONTROL UNIT AND ECM

1. Disconnect connectors for the VDC/TCS/ABS control unit and ECM.
2. Check the engine speed signal harness between the VDC/TCS/ABS control unit and ECM for an open/shorted circuit.
3. Check connectors for the VDC/TCS/ABS control unit and ECM.

Is inspection result OK?

OK

©

INSPECTION END

NG

©

Repair or replace the applicable item and perform the VDC/TCS/ABS control unit self-
diagnosis again.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

VDC

Symptom 8: During VDC/TCS/ABS Control, Vehicle Behavior is Jerky (Cont’d)

BR-165

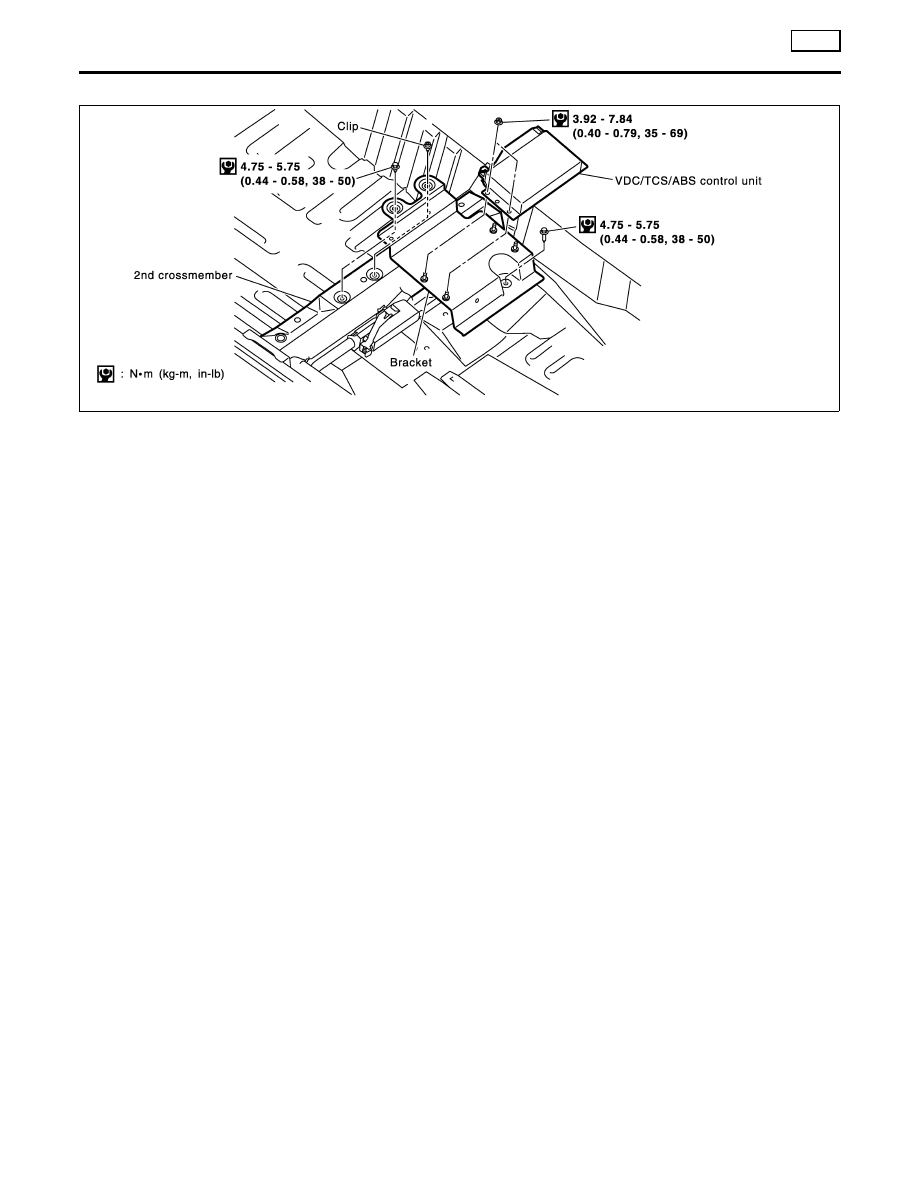

Removal and Installation

NHBR0294

SBR031F

REMOVAL

NHBR0294S01

1.

Remove the front seat LH.

2.

Remove the VDC/TCS/ABS control unit.

INSTALLATION

NHBR0294S02

I

Installation is the reverse order of removal.

VDC/TCS/ABS CONTROL UNIT

VDC

Removal and Installation

BR-166

Removal and Installation

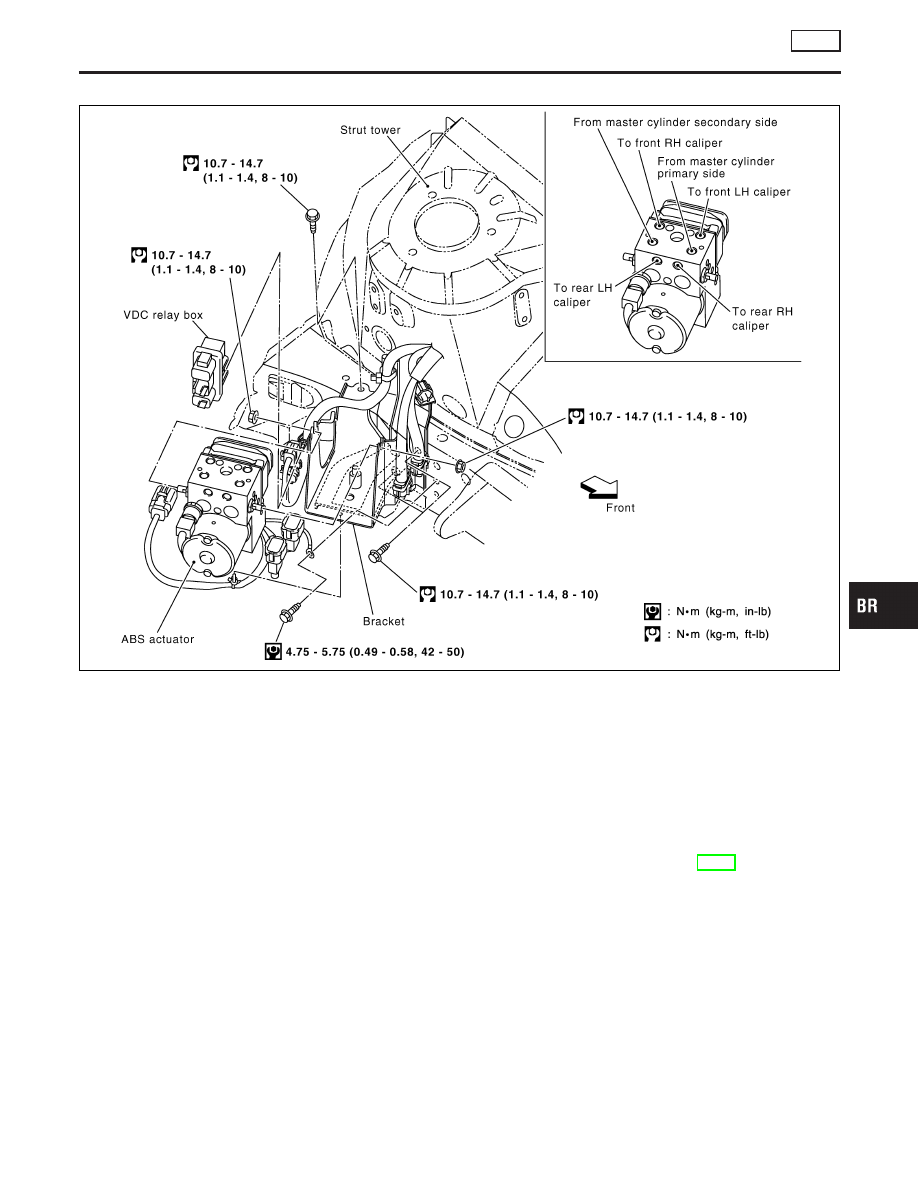

NHBR0297

SBR228F

Be careful of the following.

CAUTION:

I

Before servicing, disconnect the battery terminals.

I

To remove the brake tube, use a flare nut wrench to pre-
vent the flare nuts and brake tube from being damaged. To
install, use a brake tube torque wrench.

I

Do not remove and install the actuator by holding the
harness.

I

After completing the work, bleed the brake piping of air.
Refer to Brake Burnishing Procedure, BR-7.

I

Make sure to connect the ground terminal securely.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

ABS ACTUATOR AND VDC RELAY BOX

VDC

Removal and Installation

BR-167

SBR033F

Removal and Installation

NHBR0298

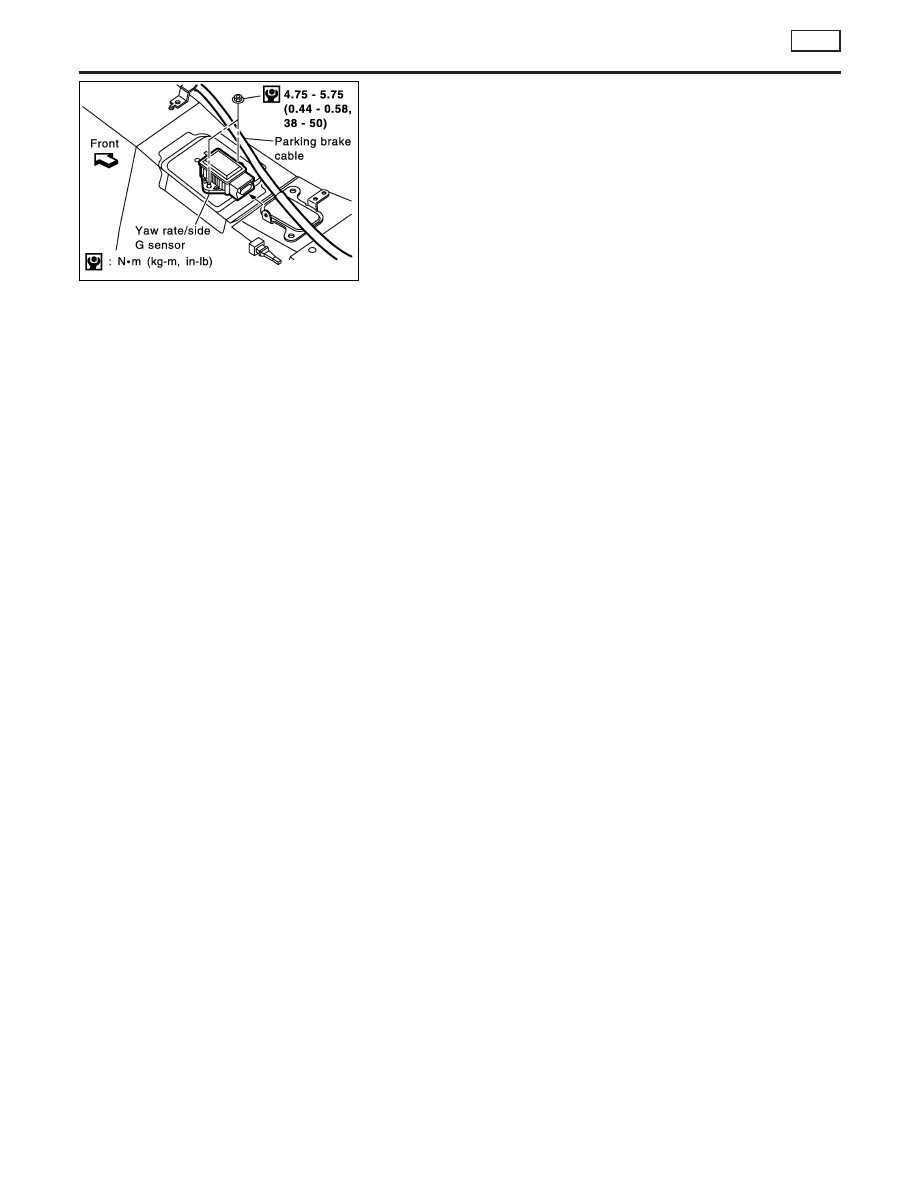

REMOVAL

NHBR0298S01

1.

Remove the center console.

2.

Disconnect the harness connector.

3.

Remove the mounting bolts, and remove the yaw rate/side G
sensor.

CAUTION:

Do not drop or strike the yaw rate/side G sensor, because it
has little endurance against impact.

INSTALLATION

NHBR0298S02

I

Installation is the reverse order of removal.

CAUTION:

Do not drop or strike the yaw rate/side G sensor, because it
has little endurance against impact.

YAW RATE/SIDE G SENSOR

VDC

Removal and Installation

BR-168
