OUTPUT SHAFT ADJUSTING SHIMS

NHAT0194S03

Thickness

mm (in)

Part number*

0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)
1.12 (0.0441)
1.16 (0.0457)
1.20 (0.0472)

31438-80X60
31438-80X61
31438-80X62
31438-80X63
31438-80X64
31438-80X65
31438-80X66
31438-80X67
31438-80X68
31438-80X69
31438-80X70

*: Always check with the Parts Department for the latest parts information.

Bearing Retainer

NHAT0195

SEAL RING CLEARANCE

NHAT0195S01

Bearing retainer seal ring clearance

(in)

Standard

0.10 - 0.30 (0.0039 - 0.0118)

Allowable limit

0.30 (0.0118)

Total End Play

NHAT0196

Total end play

mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

BEARING RACE FOR ADJUSTING TOTAL END PLAY

NHAT0196S01

Thickness

mm (in)

Part number*

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
0.9 (0.035)
1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)
1.9 (0.075)

31435-80X00
31435-80X01
31435-80X02
31435-80X03
31435-80X04
31435-80X05
31435-80X06
31435-80X09
31435-80X10

31435-80X11

31435-80X12
31435-80X13
31435-80X14

*: Always check with the Parts Department for the latest parts information.

Reverse Clutch End Play

NHAT0197

Reverse clutch end play

mm (in)

0.55 - 0.90 (0.0217 - 0.0354)

THRUST WASHERS FOR ADJUSTING REVERSE CLUTCH DRUM END PLAY

NHAT0197S01

Thickness

mm (in)

Part number*

0.80 (0.0315)
0.95 (0.0374)
1.10 (0.0433)
1.25 (0.0492)
1.40 (0.0551)
1.55 (0.0610)
1.70 (0.0669)
1.85 (0.0728)

31508-80X13
31508-80X14
31508-80X15
31508-80X16
31508-80X17
31508-80X18
31508-80X19
31508-80X20

*: Always check with the Parts Department for the latest parts information.

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Output Shaft (Cont’d)

AT-389

Removal and Installation

NHAT0198

Unit: mm (in)

Distance between end of converter housing and torque converter

14 (0.55)

Shift Solenoid Valves

NHAT0264

Gear position

Shift solenoid valve A

ON (Closed)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

OFF (Open)

Solenoid Valves

NHAT0265

Solenoid valves

Resistance (Approx.)

Ω

Terminal No.

Shift solenoid valve A

20 - 30

Shift solenoid valve B

5 - 20

Overrun clutch solenoid valve

20 - 30

Line pressure solenoid valve

2.5 - 5

Torque converter clutch solenoid valve

5 - 20

A/T Fluid Temperature Sensor

NHAT0266

Remarks: Specification data are reference values.

Monitor item

Condition

Specification (Approximately)

A/T fluid temperature
sensor

Cold [20°C (68°F)]

Hot [80°C (176°F)]

1.5V

0.5V

2.5 k

Ω

0.3 k

Ω

Revolution Sensor (For Speed Sensor)

NHAT0267

Condition

Judgement

standard

When moving at 20 km/h (12 MPH), use the CONSULT-II pulse frequency measuring function.*1

CAUTION:

Connect the diagnosis data link cable to the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this item.

450 Hz (Approx.)

When vehicle parks.

Dropping Resistor

NHAT0268

Resistance

Approx. 12

Ω

Power Train Revolution Sensor

NHAT0271

Condition

Judgement

standard

When moving at 20 km/h (12 MPH), use the CONSULT-II pulse frequency measuring function.*1

CAUTION:

Connect the diagnosis data link cable to the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this item.

240 Hz (Approx.)

When vehicle parks.

Under 1.3V or over 4.5V

SERVICE DATA AND SPECIFICATIONS (SDS)

Removal and Installation

AT-390

FRONT & REAR AXLE

SECTION

CONTENTS

FRONT AXLE ..................................................................2

Precautions ..................................................................2

PRECAUTIONS

.........................................................2

Preparation ..................................................................2

SPECIAL SERVICE TOOLS

........................................2

COMMERCIAL SERVICE TOOLS

................................2

Noise, Vibration and Harshness (NVH)
Troubleshooting ...........................................................3

NVH TROUBLESHOOTING CHART

............................3

On-vehicle Service.......................................................3

FRONT AXLE PARTS

................................................3

FRONT WHEEL BEARING

.........................................4

DRIVE SHAFT

...........................................................4

Wheel Hub and Knuckle..............................................5

COMPONENTS

.........................................................5

REMOVAL

.................................................................5

INSTALLATION

..........................................................6

DISASSEMBLY

..........................................................7

INSPECTION

.............................................................8

ASSEMBLY

...............................................................8

Drive Shaft ...................................................................9

COMPONENTS

.........................................................9

REMOVAL

...............................................................10

INSTALLATION

........................................................ 11

DISASSEMBLY

........................................................ 11

INSPECTION

...........................................................13

ASSEMBLY

.............................................................13

Service Data and Specifications (SDS).....................15

DRIVE SHAFT

.........................................................15

WHEEL BEARING (FRONT)

.....................................16

REAR AXLE...................................................................17

Precautions ................................................................17

PRECAUTIONS

.......................................................17

Preparation ................................................................17

SPECIAL SERVICE TOOLS

......................................17

COMMERCIAL SERVICE TOOLS

..............................17

Noise, Vibration and Harshness (NVH)
Troubleshooting .........................................................18
On-vehicle Service.....................................................18

REAR AXLE PARTS

.................................................18

REAR WHEEL BEARING

.........................................18

Wheel Hub .................................................................19

COMPONENTS

.......................................................19

REMOVAL

...............................................................19

INSTALLATION

........................................................20

Service Data and Specifications (SDS).....................22

WHEEL BEARING (REAR)

.......................................22

IDX

SBR686C

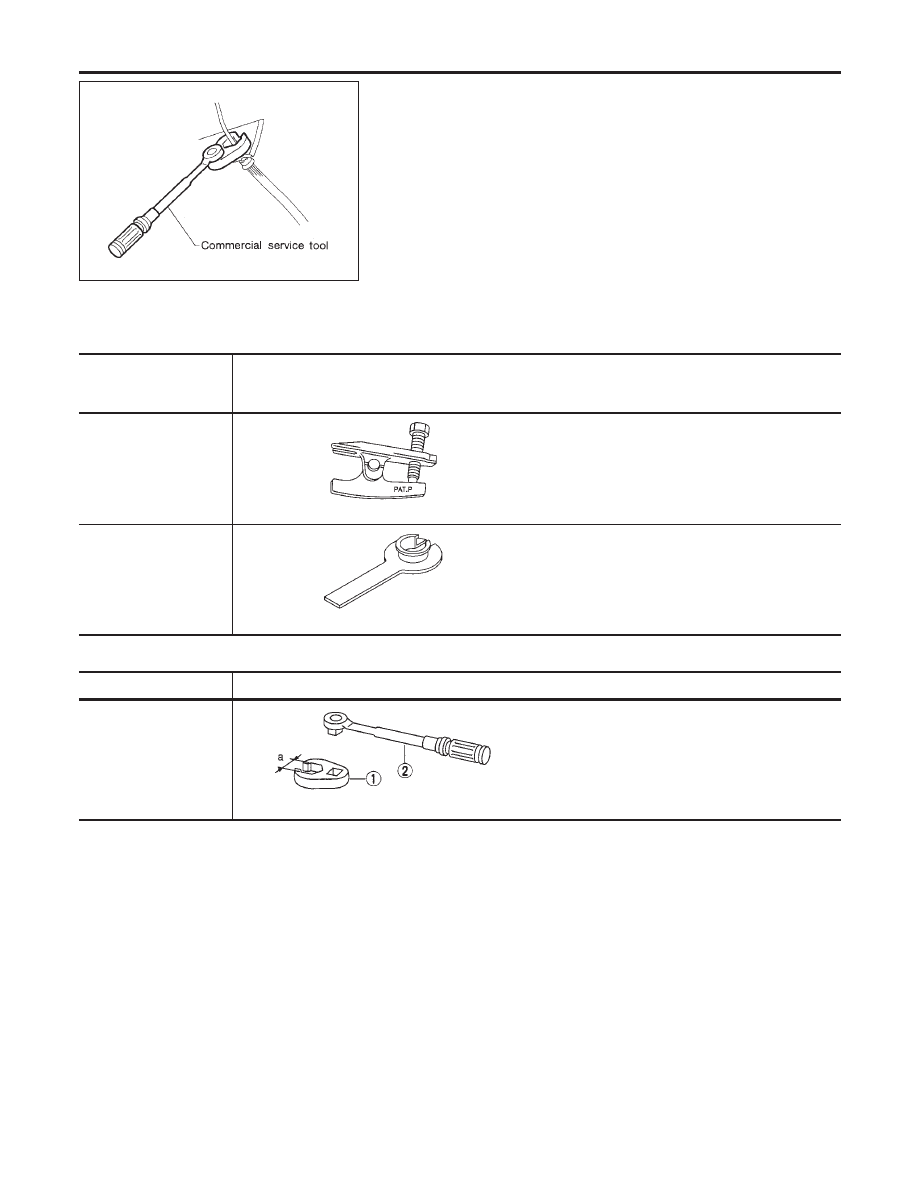

Precautions

PRECAUTIONS

NHAX0001

When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

After installing removed suspension parts, check wheel
alignment and adjust if necessary.

Use flare nut wrench when removing or installing brake
tubes.

Always torque brake lines when installing.

Preparation

SPECIAL SERVICE TOOLS

NHAX0002

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

HT72520000
(J25730-B)
Ball joint remover

NT146

Removing tie-rod outer end and lower ball joint

KV38106700
(J34296)
KV38106800
(J34297)
Differential side oil seal
protector

NT147

Installing drive shaft
LH: KV38106700 (J34296)
RH: KV38106800 (J34297)

COMMERCIAL SERVICE TOOLS

NHAX0003

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing each brake piping
a: 10 mm (0.39 in)

FRONT AXLE

Precautions

AX-2
