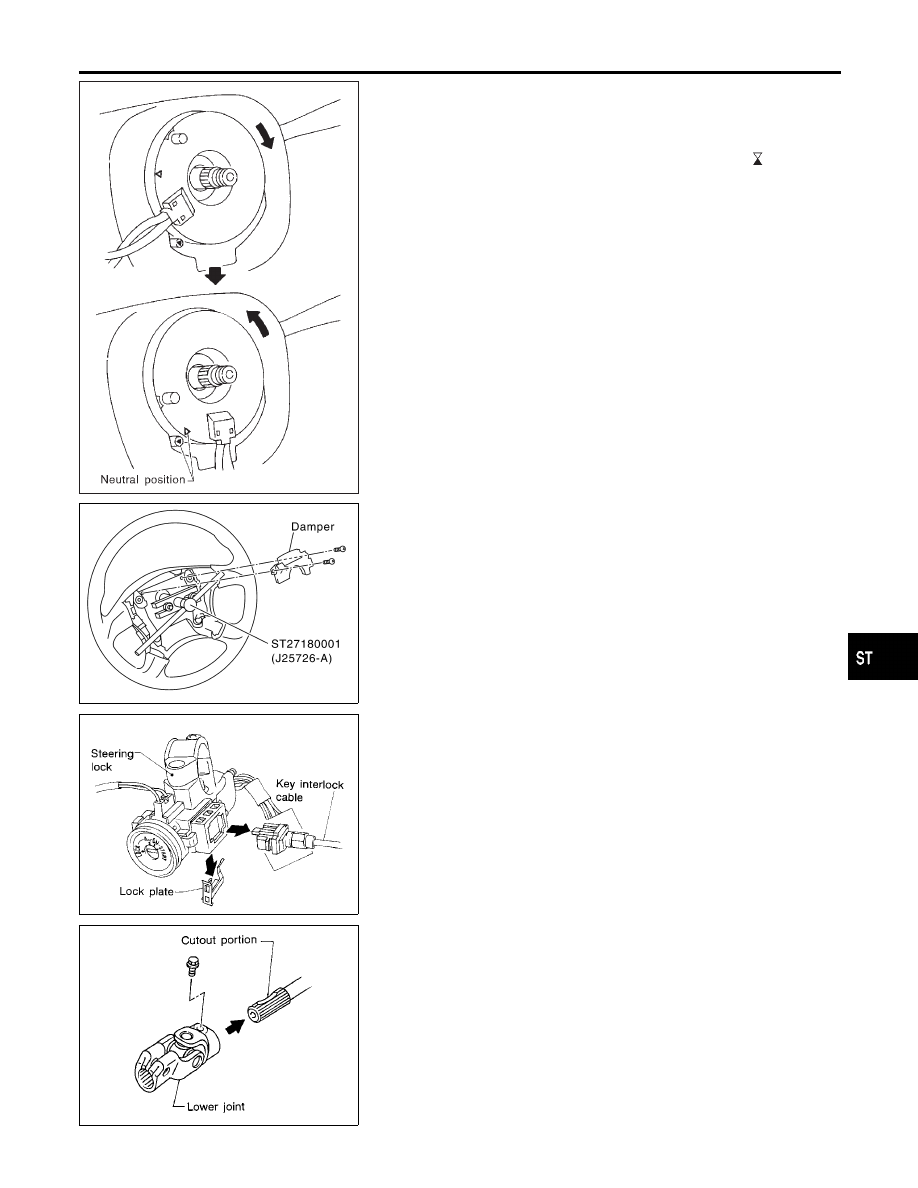

SRS266

I

Align spiral cable correctly when installing steering wheel.

a)

Set the front wheels in the straight-ahead position.

b)

Make sure that the spiral cable is in the neutral position.
The neutral position is detected by turning left 2.5 revolutions
from the right end position. Align the two marks (

).

CAUTION:

The spiral cable may snap due to steering operation if the
cable is installed in an improper position.
Also, with the steering linkage disconnected, the cable may
snap by turning the steering wheel beyond the limited number
of turns. (The spiral cable can be turned up to 2.5 turns from
the neutral position to both the right and left.)

SST853C

I

Remove damper for steering wheel.

I

Remove steering wheel with Tool.

SST329C

STEERING COLUMN

NHST0018S02

I

Remove key interlock cable.

SST800A

I

When installing steering column, fingertighten all lower bracket
and clamp retaining bolts; then tighten them securely. Do not
apply undue stress to steering column.

I

When attaching coupling joint, be sure tightening bolt faces
cutout portion.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

STEERING WHEEL AND STEERING COLUMN

Removal and Installation (Cont’d)

ST-11

SST491C

I

Align slit of lower joint with projection on dust cover. Insert joint
until surface A contacts surface B.

CAUTION:

After installation, turn steering wheel to make sure it moves
smoothly. Ensure the number of turns are the same from the
straight forward position to left and right locks. Be sure that
the steering wheel is in a neutral position when driving
straight ahead.

STEERING WHEEL AND STEERING COLUMN

Removal and Installation (Cont’d)

ST-12

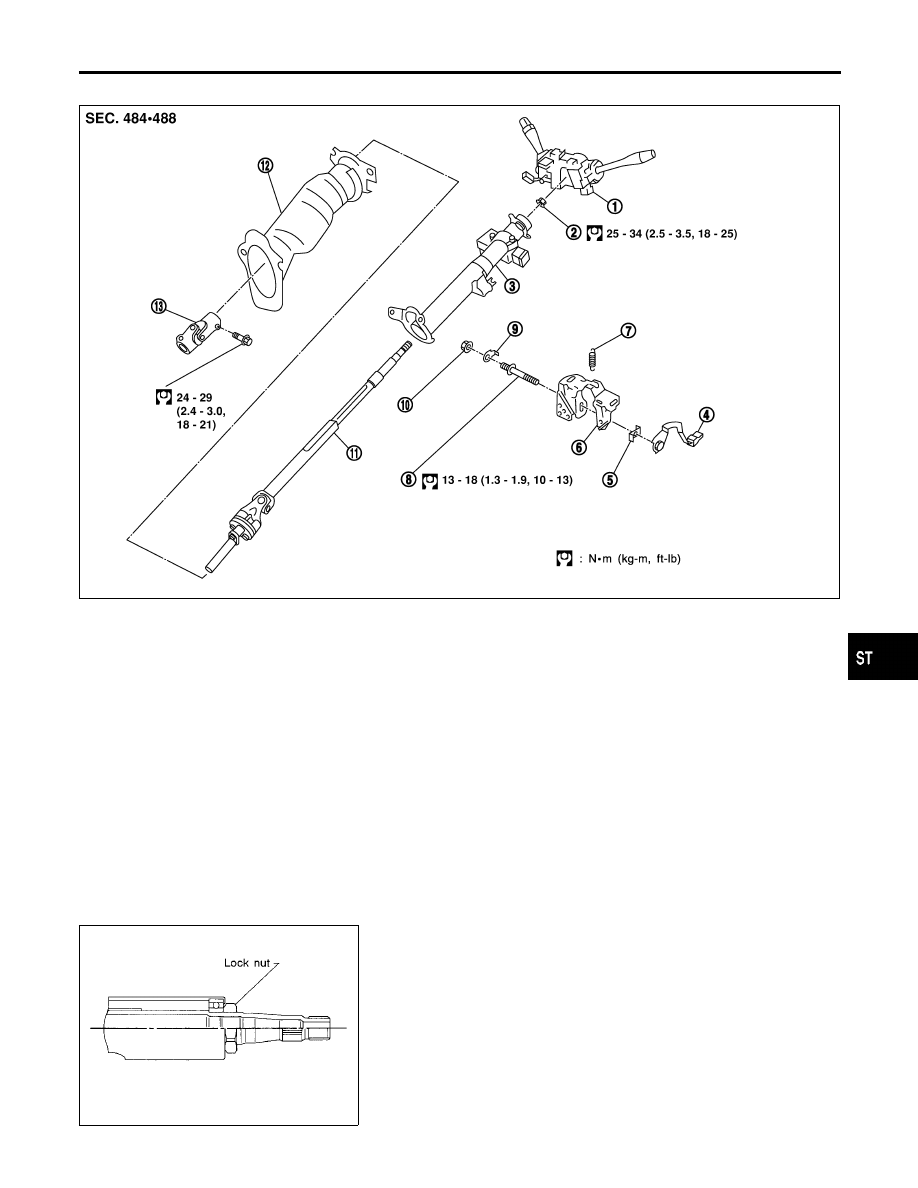

Disassembly and Assembly

=NHST0019

SST854CA

1.

Combination switch

2.

Lock nut

3.

Jacket tube assembly

4.

Tilt lever

5.

Tilt lever stopper

6.

Steering column mounting bracket

7.

Spring

8.

Adjust bolt

9.

Adjust bolt stopper

10. Nut
11. Column shaft assembly
12. Steering column lower cover
13. Lower joint

SST490C

I

When disassembling and assembling, unlock steering lock
with key.

I

Remove combination switch.

I

Install lock nut on steering column shaft and tighten the nut.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

STEERING WHEEL AND STEERING COLUMN

Disassembly and Assembly

ST-13

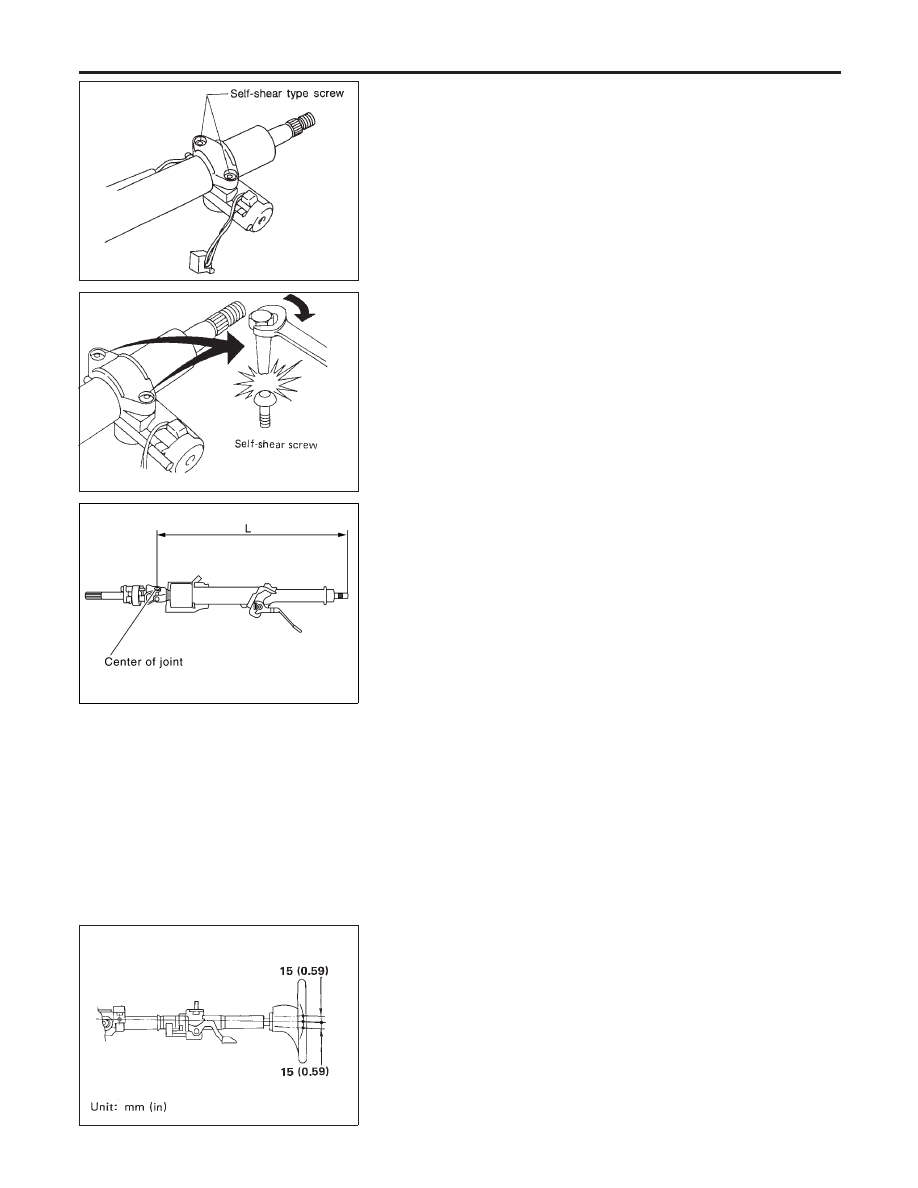

SST741A

I

Steering lock

a)

Break self-shear type screws with a drill or other appropriate
tool.

SST742A

b)

Install new self-shear type screws and then cut off self-shear
type screw heads.

SST855C

Inspection

NHST0020

I

When steering wheel does not turn smoothly, check the steer-
ing column as follows and replace damaged parts.

a)

Check column bearings for damage or unevenness. Lubricate
with recommended multi-purpose grease or replace steering
column as an assembly, if necessary.

b)

Check jacket tube for deformation or breakage. Replace if
necessary.

I

When the vehicle comes into a light collision, check length “L”.

Steering column length “L”:

542 - 544 mm (21.34 - 21.42 in)

If out of the specifications, replace steering column as an assem-
bly.

SST582B

TILT MECHANISM

NHST0020S01

I

After installing steering column, check tilt mechanism opera-
tion.

STEERING WHEEL AND STEERING COLUMN

Disassembly and Assembly (Cont’d)

ST-14
