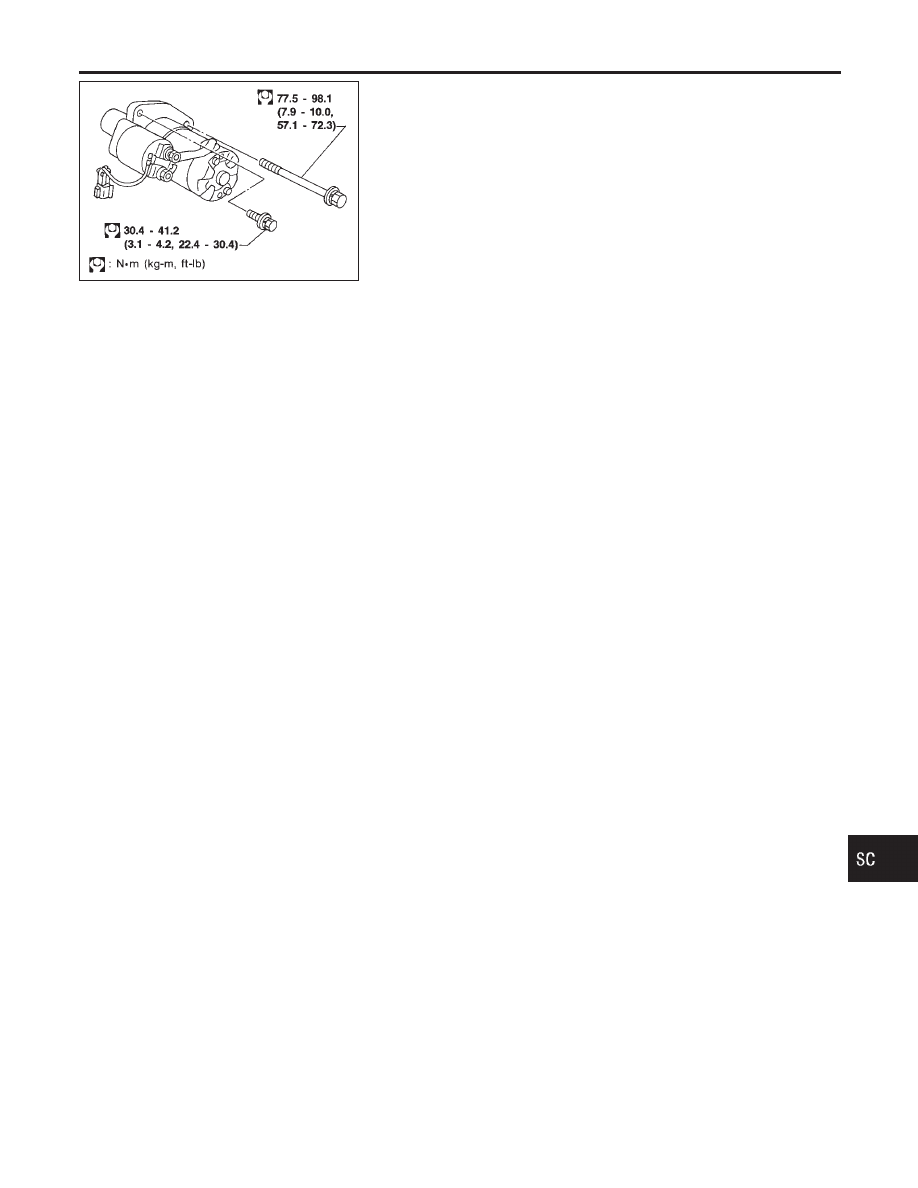

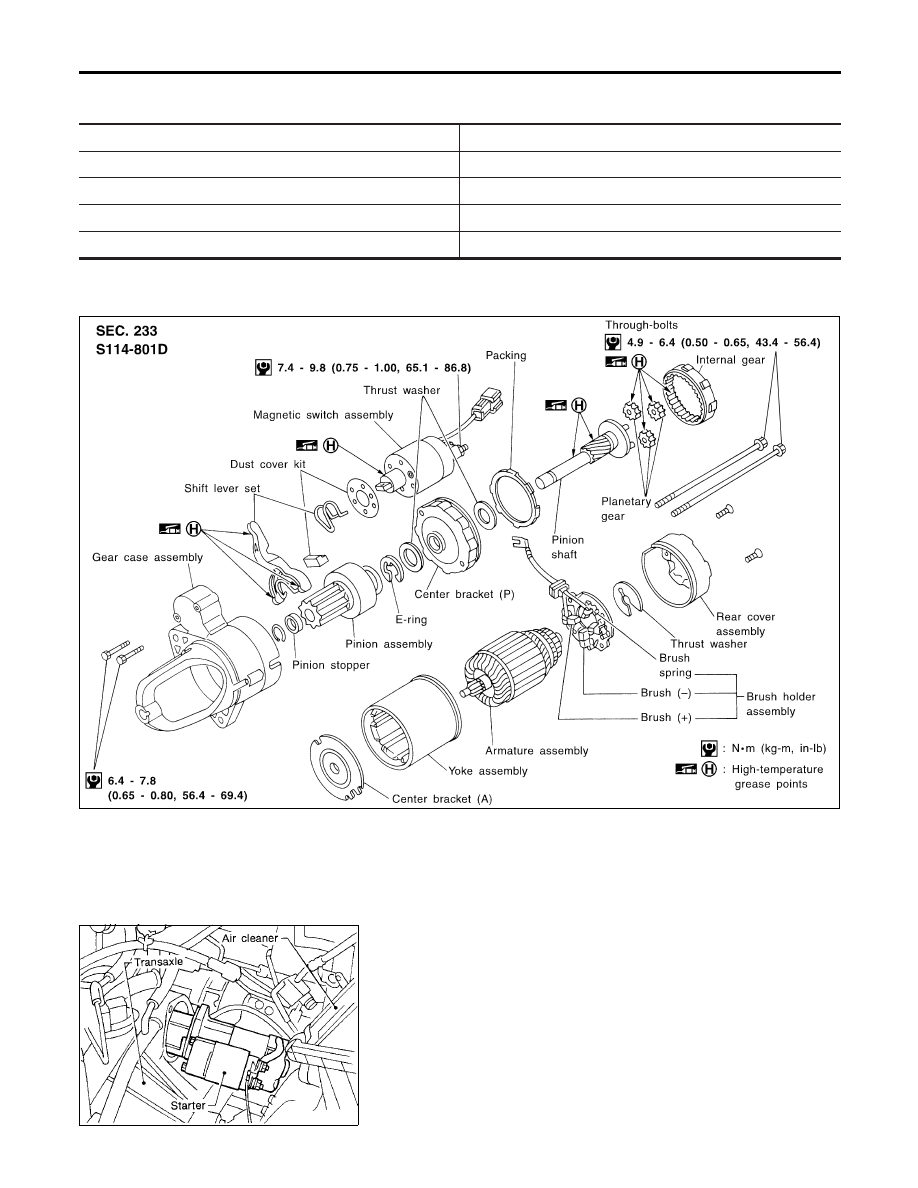

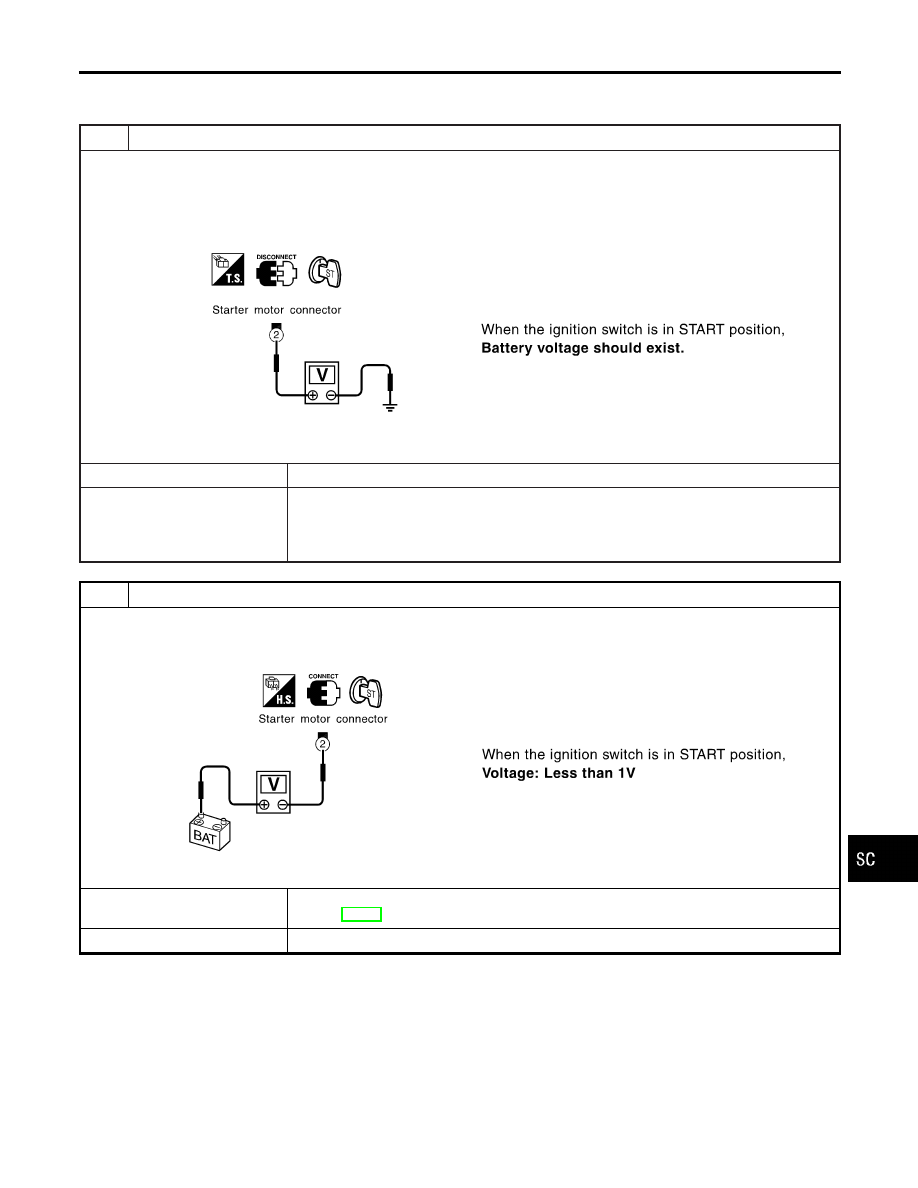

DIAGNOSTIC PROCEDURE 2 =NHSC0019S04 Check “S” Terminal Circuit NHSC0019S0401 1 CHECK POWER SUPPLY FOR STARTER MOTOR “S” TERMINAL 1. Remove the fuel pump fuse. SEL964X OK or NG OK © GO TO 2. NG © Check the following. I 40A fusible link (letter C, located in fuse and fusible link box) I Park/neutral position relay I Harness for open or short 2 CHECK “S” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST) 1. Connect starter motor connector. tester. SEL965X OK or NG OK © Starter motor “S” terminal circuit is OK. Further inspection necessary. Refer to “WORK NG © Check harness between the battery and the starter motor “S” terminal for poor continuity. GI MA EM LC EC FE AT AX SU BR ST RS BT HA EL IDX STARTING SYSTEM Trouble Diagnoses with Battery/Starting/Charging System Tester (Cont’d) SC-17 |
