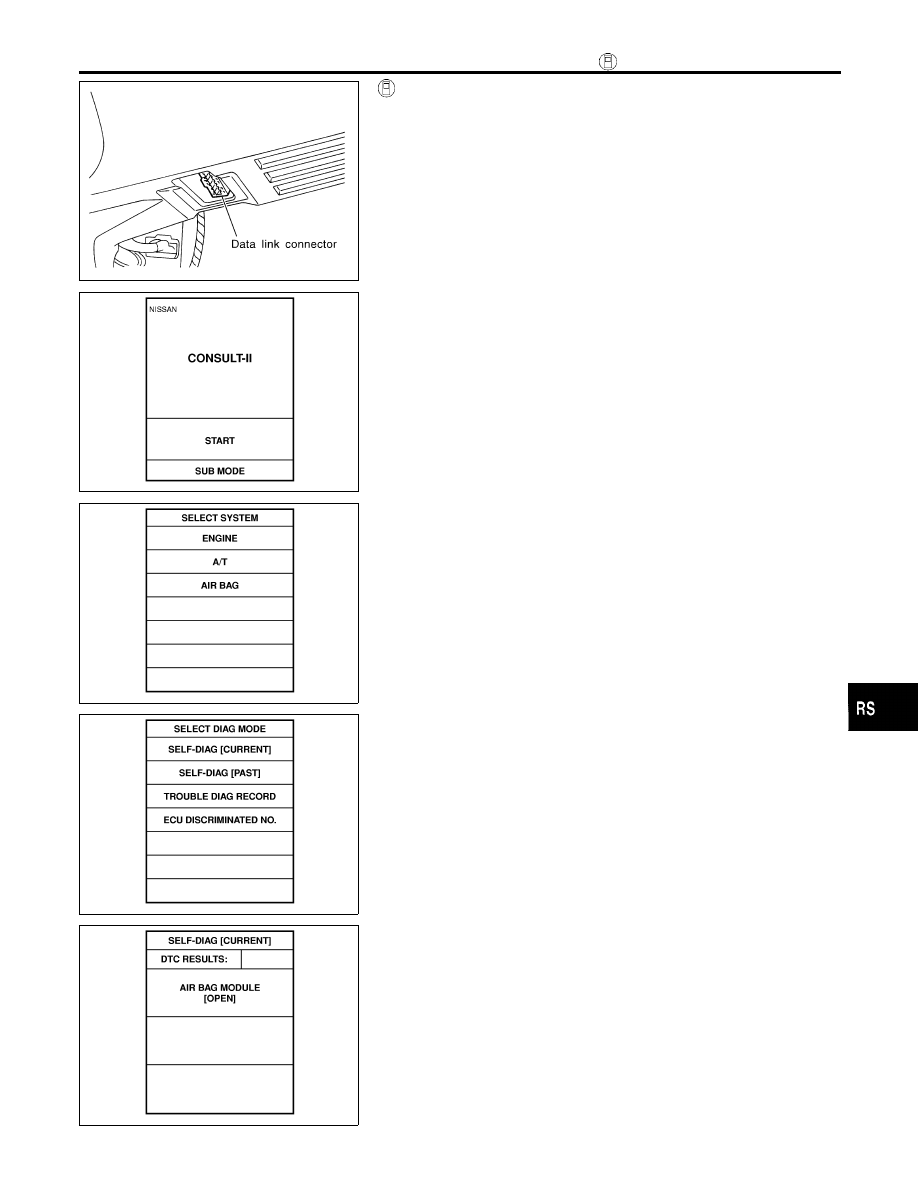

SRS694 Trouble Diagnoses with CONSULT-II =NHRS0048 DIAGNOSTIC PROCEDURE 2 NHRS0048S01 Inspecting SRS malfunctioning parts by using CONSULT-II — Turn ignition switch “OFF”. 2. Connect “CONSULT-II” to data link connector. SRS695 3. Turn ignition switch “ON”. 4. Touch “START”. SRS771 5. Touch “AIR BAG”. SRS697 6. Touch “SELF-DIAG [CURRENT]”. SRS772 7. Diagnostic codes are displayed on “SELF-DIAG [CURRENT]”. GI MA EM LC EC FE AT AX SU BR ST BT HA SC EL IDX SUPPLEMENTAL RESTRAINT SYSTEM (SRS) Trouble Diagnoses with CONSULT-II RS-45 |
