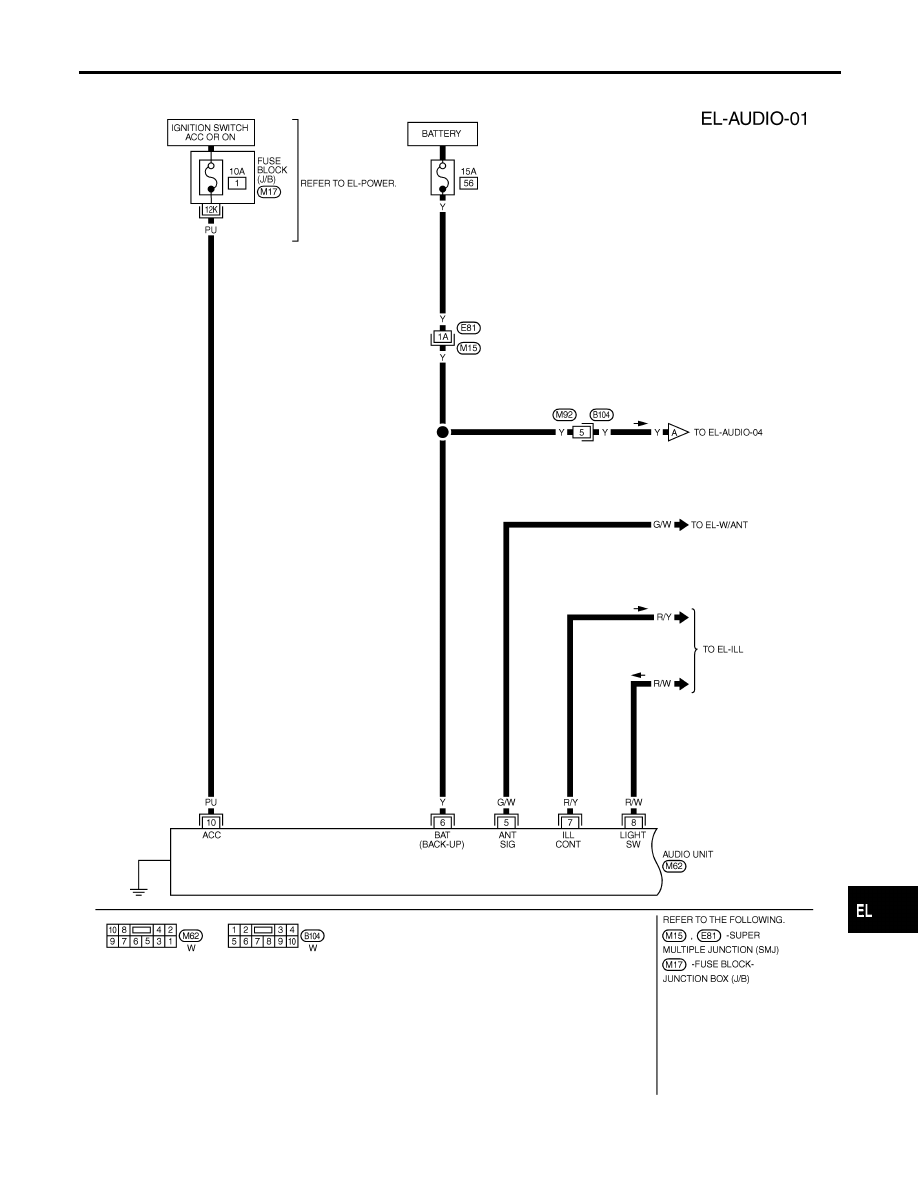

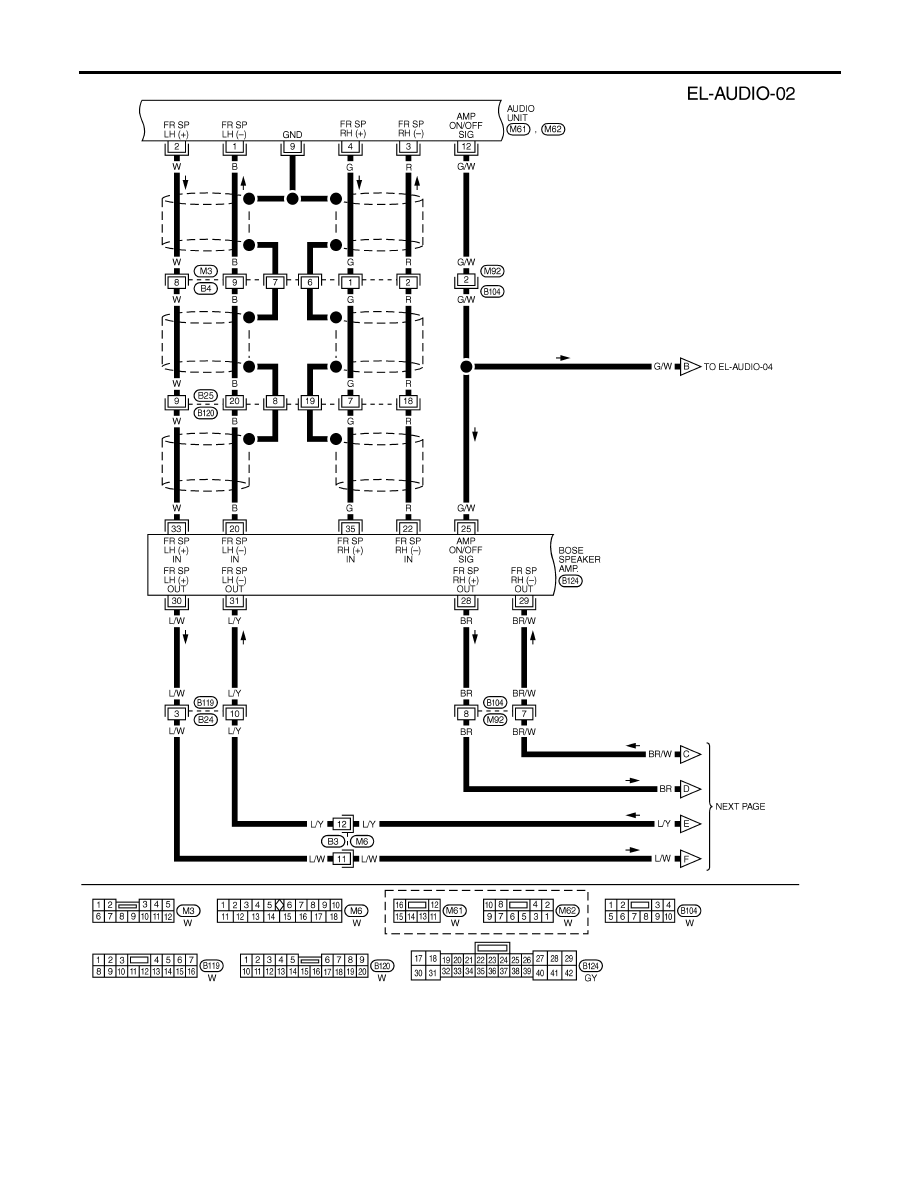

System Description NHEL0079 Refer to Owner’s Manual for audio system operating instructions. I through 15A fuse [No. 56, located in the fuse block (J/B)] I to speaker amp. terminal 27, and I to audio unit terminal 6. I through 15A fuse [No. 67, located in the fuse block (J/B)] I to woofer terminal 48. With the ignition switch in the ACC or ON position, power is supplied I through 10A fuse [No. 1, located in the fuse block (J/B)] I to audio unit terminal 10. Ground is supplied through the case of the audio unit. I to speaker amp. terminal 40, and I to woofer terminal 47 I through body grounds B106 and B127. Audio signals are supplied I through audio unit terminals 1, 2, 3, 4, 13, 14, 15 and 16 I to speaker amp. terminals 20, 21, 22, 23, 25, 33, 34, 35 and 36. Audio signals are amplified by the speaker amp. I through speaker amp. terminals 17, 18, 24, 28, 29, 30, 31, 37, 41 and 42 I to terminals 1 and 2 of the front door speaker LH and RH I to terminals 1 and 2 of the tweeter LH and RH I to terminals 1 and 2 of the rear speaker LH and RH I to terminals 43 and 44 of the woofer. GI MA EM LC EC FE AT AX SU BR ST RS BT HA SC IDX AUDIO System Description EL-209 |
