PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L — (Cont’d)

EL-89

SEF289X

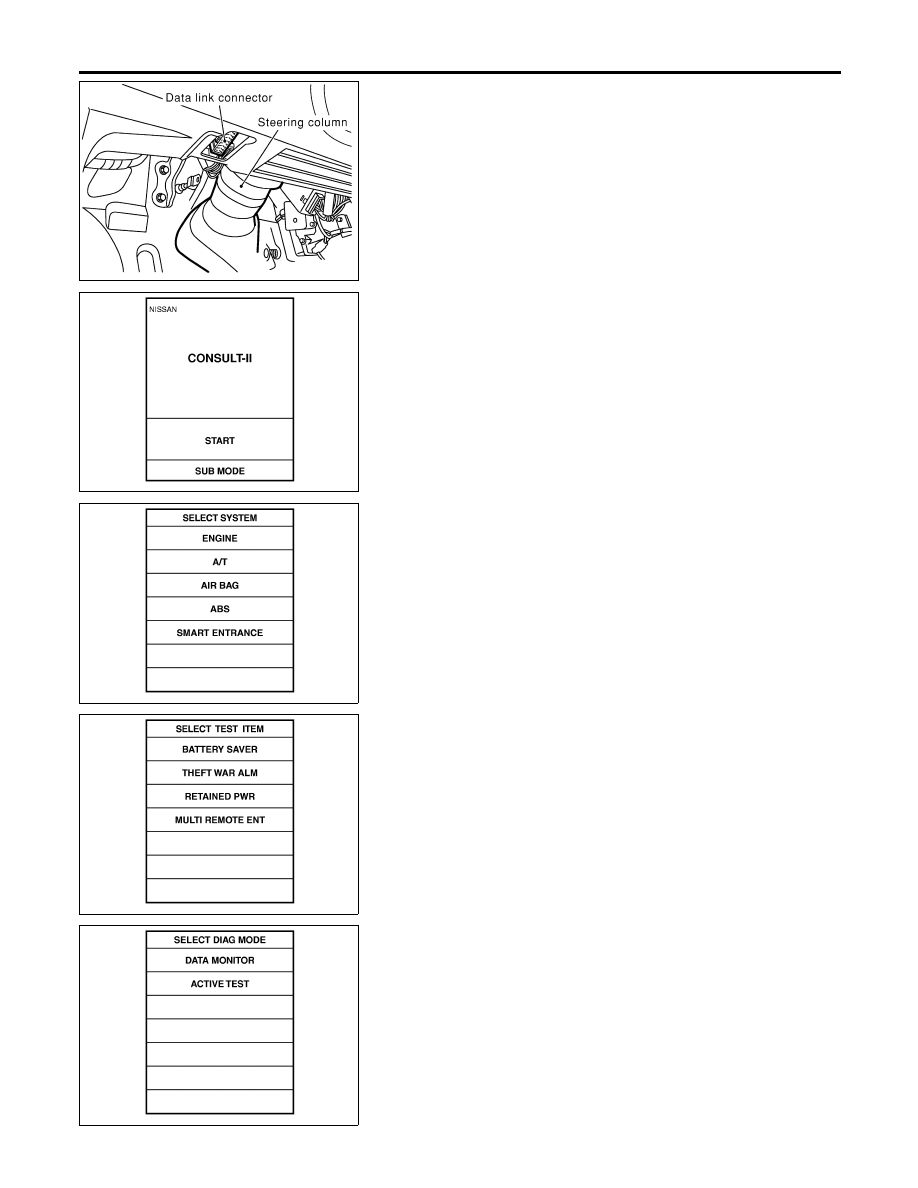

CONSULT-II Inspection Procedure

NHEL0209

“RETAINED PWR”

NHEL0209S01

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to the data link connector.

PBR455D

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SEL941W

5.

Touch “SMART ENTRANCE”.

SEL273W

6.

Touch “RETAINED PWR”.

SEL322W

7.

Select diagnosis mode.
“DATA MONITOR” and “ACTIVE TEST” are available.

PARKING, LICENSE AND TAIL LAMPS

CONSULT-II Inspection Procedure

EL-90

CONSULT-II Application Items

NHEL0210

“RETAINED PWR”

NHEL0210S01

Data Monitor

NHEL0210S0101

Monitored Item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

Active Test

NHEL0210S0102

Test Item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from smart entrance control unit to power window
system, power sunroof system and headlamp system. Those systems can be operated when turn-
ing on “RETAINED PWR” on CONSULT-II screen even if the ignition switch is tuned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch “OFF” position.
“RETAINED PWR” should be turned “ON” or “OFF” on CONSULT-II screen when ignition
switch is ON. Then turn ignition switch OFF for checking retained power operation. CON-
SULT-II might be stuck if “RETAINED PWR” is turned “ON” or “OFF” on CONSULT-II screen
when ignition switch is OFF.

Trouble Diagnoses

NHEL0211

Symptom

Possible cause

Repair order

No lamps operate (including head-
lamps).

1. 10A fuse
2. Lighting switch
3. Smart entrance control unit

1. Check 10A fuse [No. 13, lacated in fuse block (J/B)].

Verify battery positive voltage is present at terminal
49 of smart entrance control unit.

2. Check lighting switch.
3. Check smart entrance control unit. (EL-406)

No parking, side marker, license
and tail lamps operate, but head-
lamps do operate.

1. 10A fuse
2. Tail lamp relay
3. Tail lamp relay circuit
4. Lighting switch
5. Lighting switch circuit
6. Smart entrance control unit

1. Check 10A fuse (No. 60, located in fusible and fuse

block). Verify battery positive voltage is present at
terminals 1 and 3 of tail lamp relay.

2. Check tail lamp relay.
3. Check harness between smart entrance control unit

terminals 19 and 57 and tail lamp relay terminal 2.
Check harness between tail lamp relay terminal 5 and
ground.

4. Check lighting switch.
5. Check harness between lighting switch terminal 11

and smart entrance control unit terminals 20 and 58.
Check harness between lighting switch terminal 5 and
ground.

6. Check smart entrance control unit. (EL-406)

Battery saver control does not
operate properly.

1. Smart entrance control unit

1. Check smart entrance control unit. (EL-406)

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

CONSULT-II Application Items

EL-91

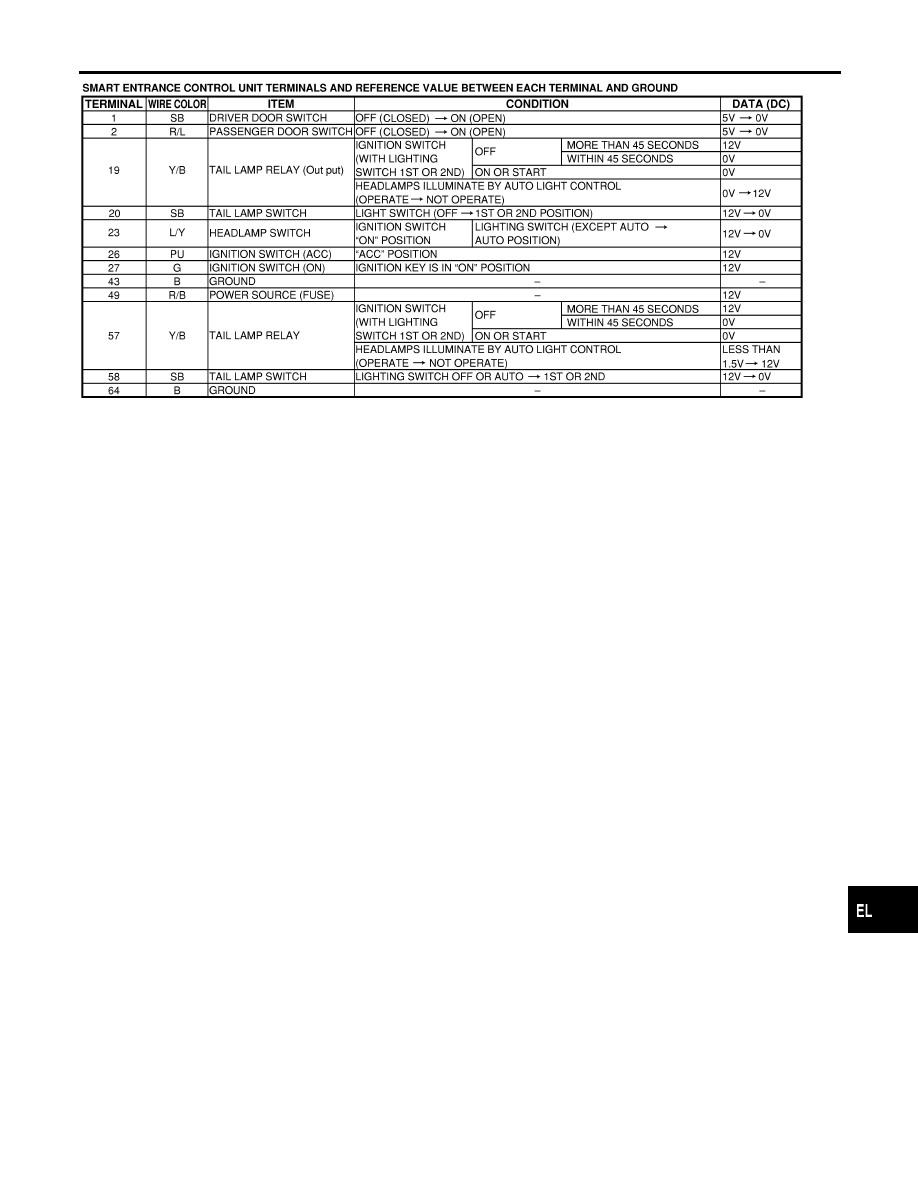

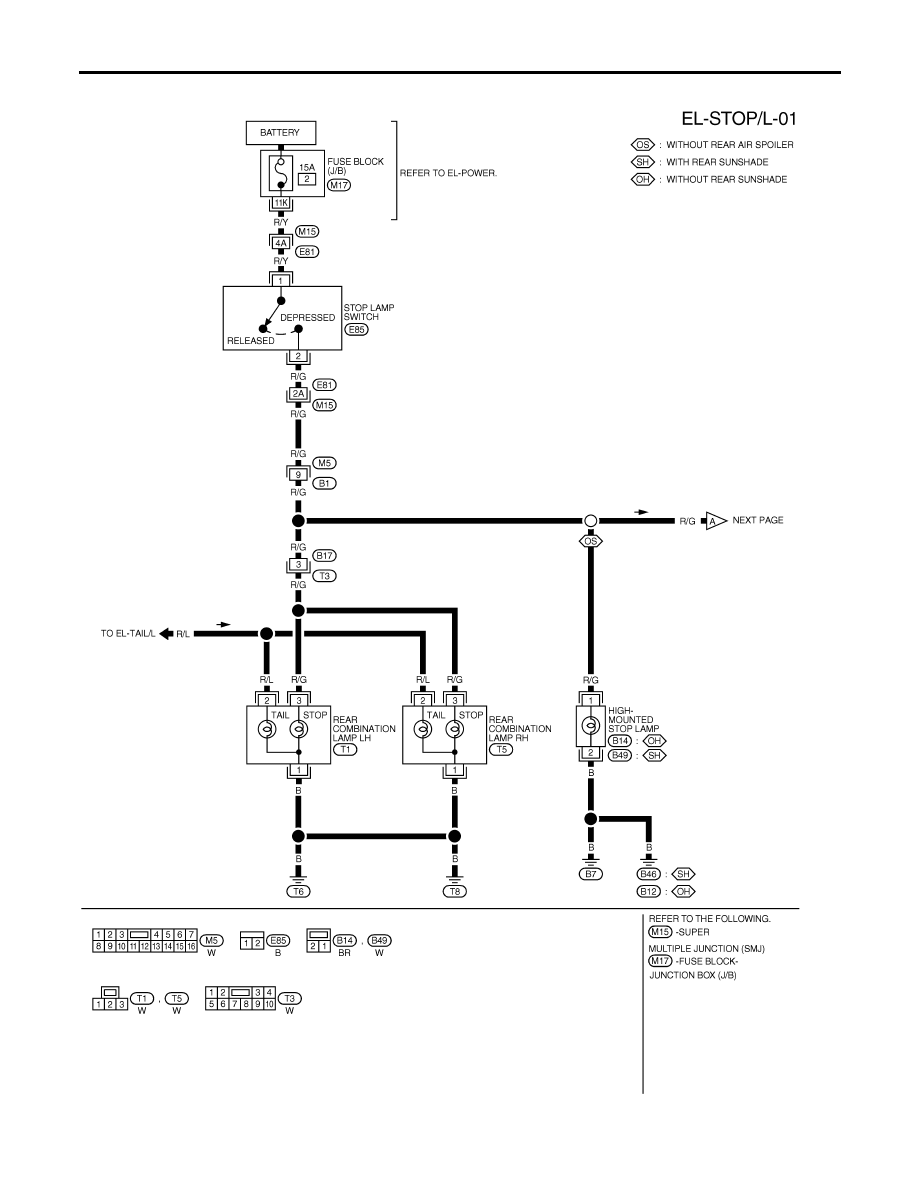

Wiring Diagram — STOP/L —

NHEL0025

MEL408M

STOP LAMP

Wiring Diagram — STOP/L —

EL-92
