PREPARATION

MIR-47

< PREPARATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

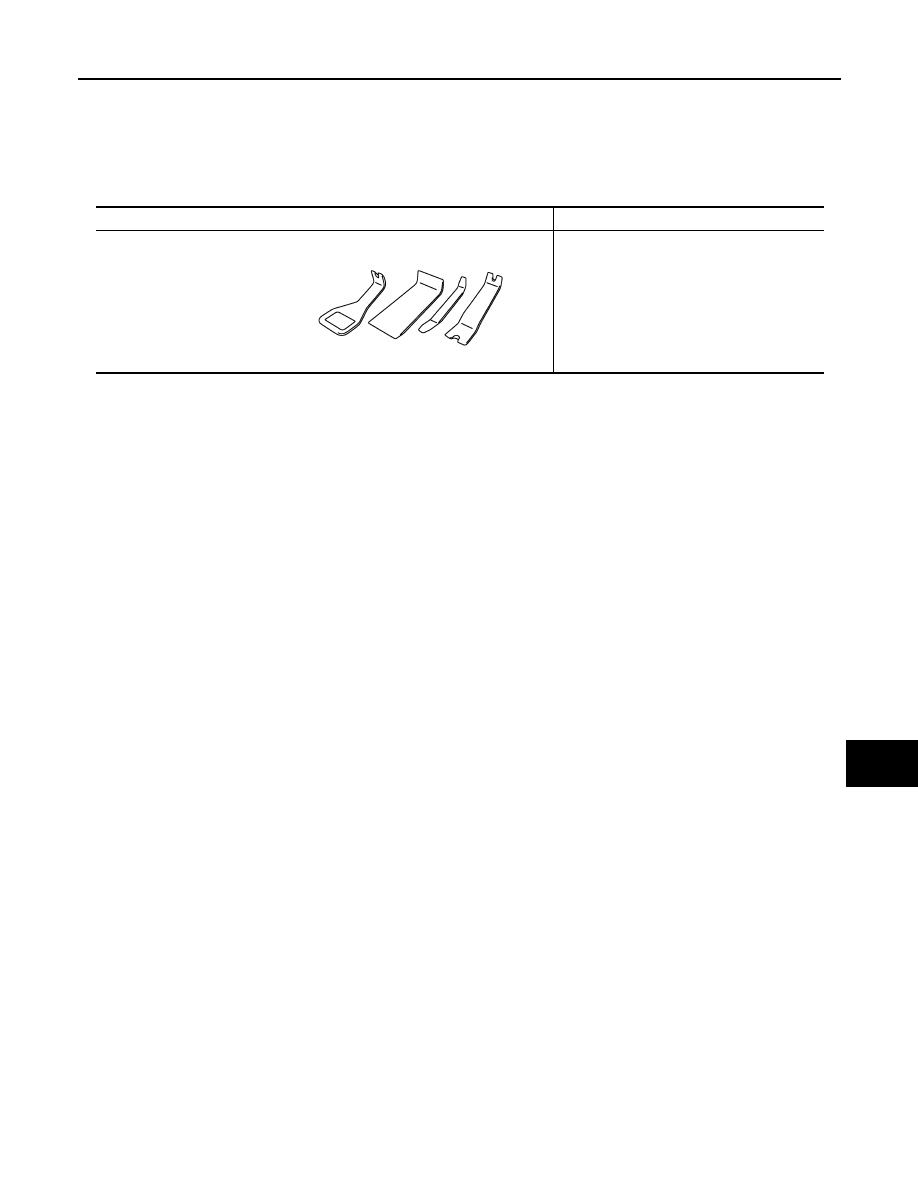

Commercial Service Tools

INFOID:0000000001696840

Tool name

Description

Remover tool

Remove the clip and pawl and metal clip

PIIB7923J

MIR-48

< ON-VEHICLE REPAIR >

[WITH ADP]

INSIDE MIRROR

ON-VEHICLE REPAIR

INSIDE MIRROR

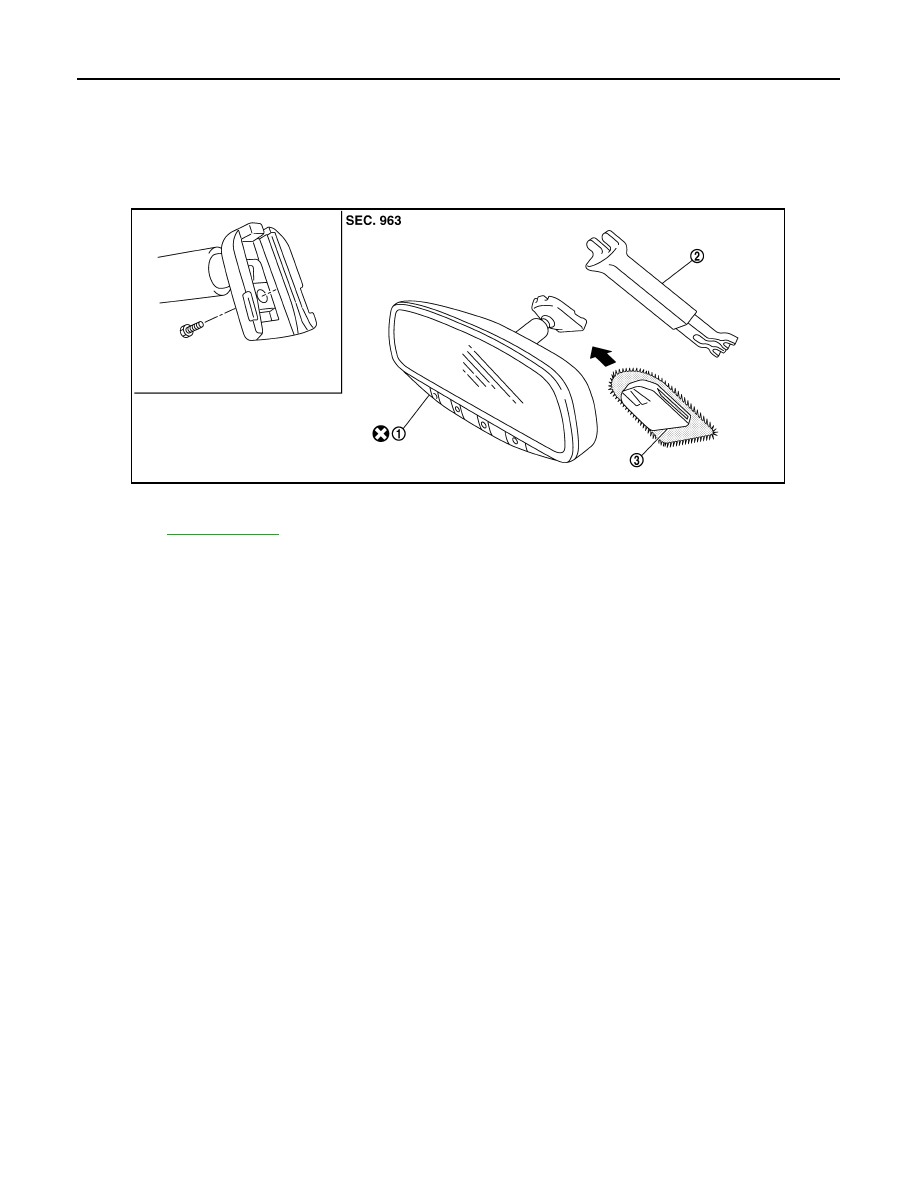

Exploded View

INFOID:0000000001766528

Removal and Installation

INFOID:0000000001766529

REMOVAL

1.

Remove inside mirror finisher (if equipped).

2.

Remove nut of mirror base.

3.

Slide the mirror upward to remove.

4.

Disconnect the connector (if equipped).

INSTALLATION

Install in the reverse order of removal.

1.

Inside mirror

2.

Inside mirror finisher (if equipped)

3.

Mirror base

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0015ZZ

DOOR MIRROR

MIR-49

< ON-VEHICLE REPAIR >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

DOOR MIRROR ASSEMBLY

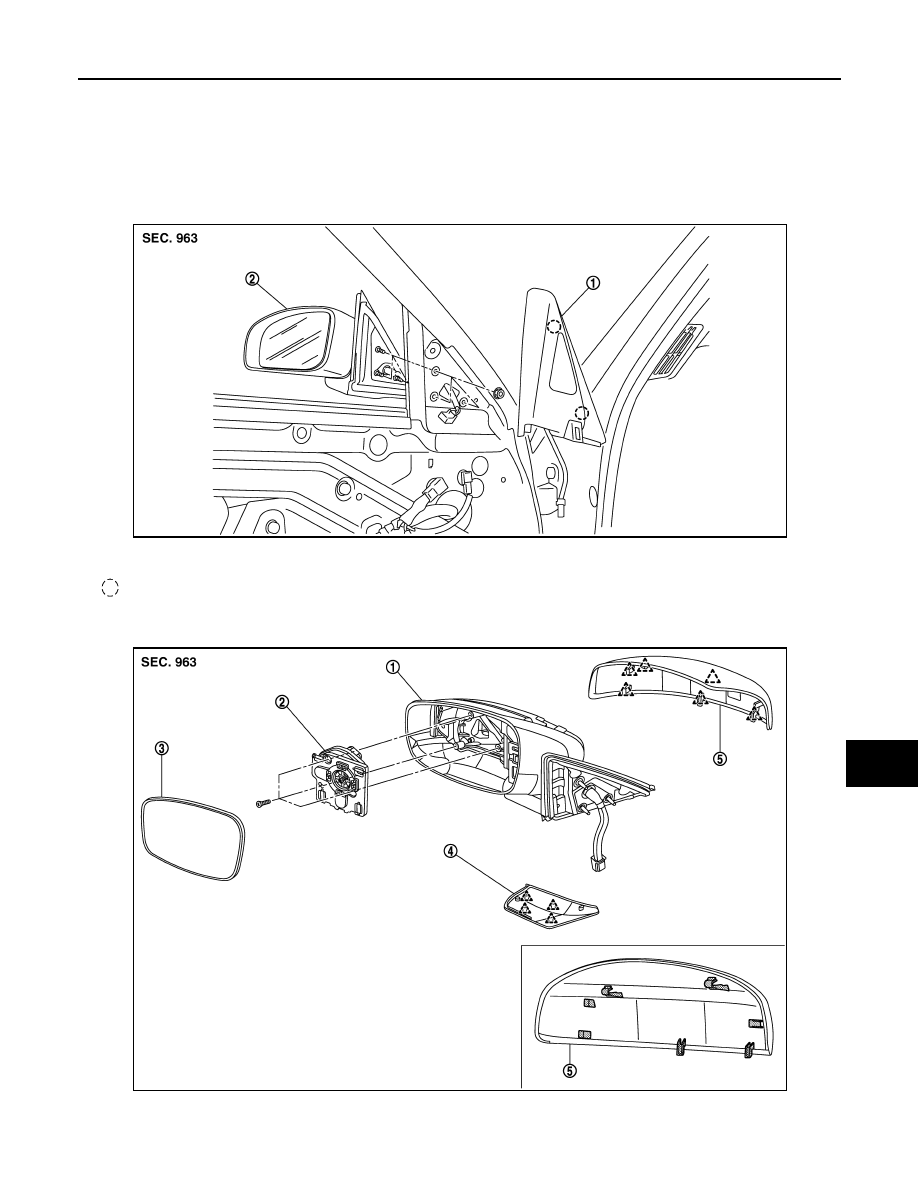

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000001766530

REMOVAL

DISASSEMBLY

1.

Corner cover

2.

Door mirror assembly

: Clip

JMLIA0001ZZ

JMLIA0081ZZ

1.

Mirror assembly

2.

Door mirror actuator

3.

Glass mirror

MIR-50

< ON-VEHICLE REPAIR >

[WITH ADP]

DOOR MIRROR

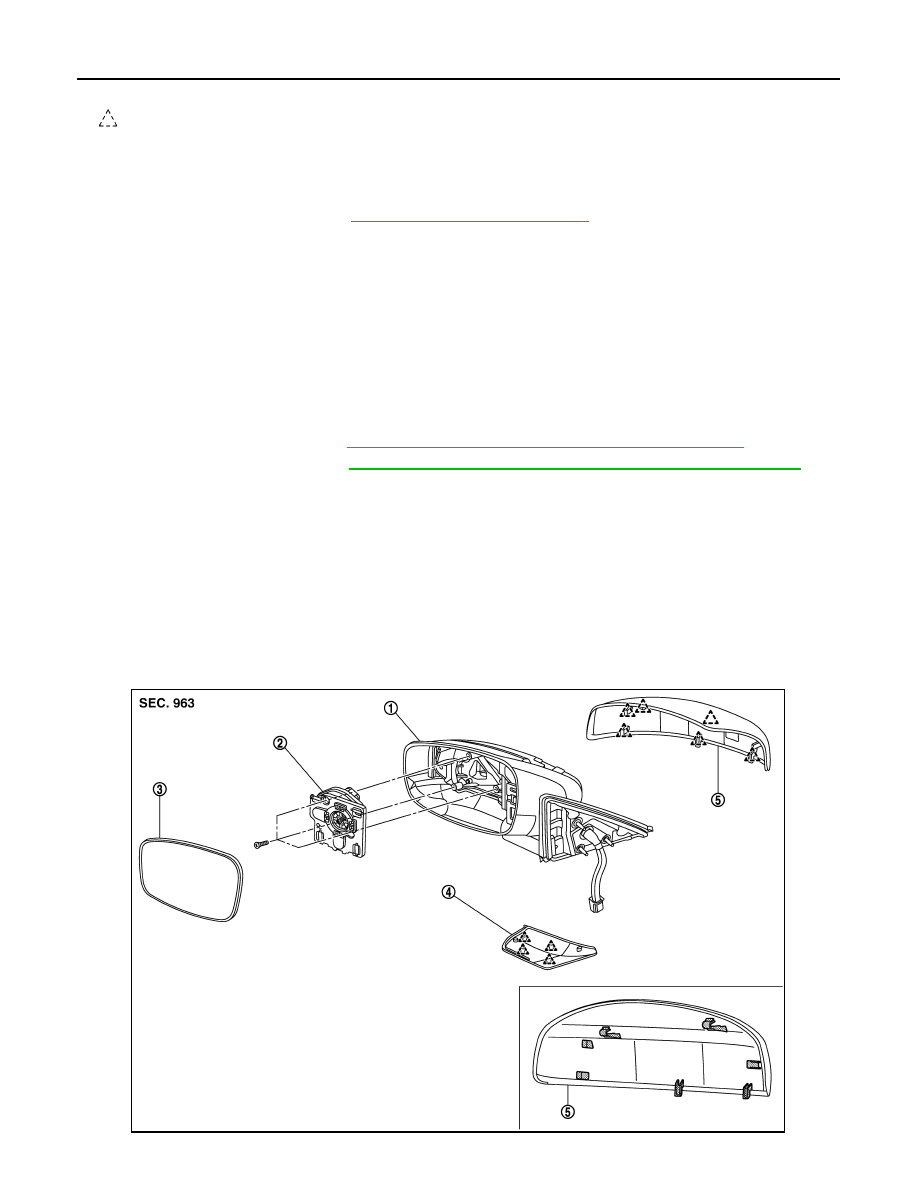

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000001766531

REMOVAL

1.

Remove the door finisher. Refer to

INT-11, "Removal and Installation"

.

2.

Remove the corner cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000001766532

DISASSEMBLY

1.

Remove the pawls and disassemble the base cover.

2.

Remove the glass mirror. Refer to

MIR-51, "GLASS MIRROR : Disassembly and Assembly"

.

3.

Remove the mirror cover. Refer to

MIR-52, "DOOR MIRROR COVER : Disassembly and Assembly"

.

4.

Remove the screws and mirror actuator from the housing assembly.

ASSEMBLY

Assemble in the reverse order of disassemble.

CAUTION:

After installation, visually check that pawls are securely engaged.

GLASS MIRROR

GLASS MIRROR : Exploded View

INFOID:0000000001831176

DISASSEMBLY

4.

Base cover

5.

Door mirror cover

: Pawl

JMLIA0081ZZ
