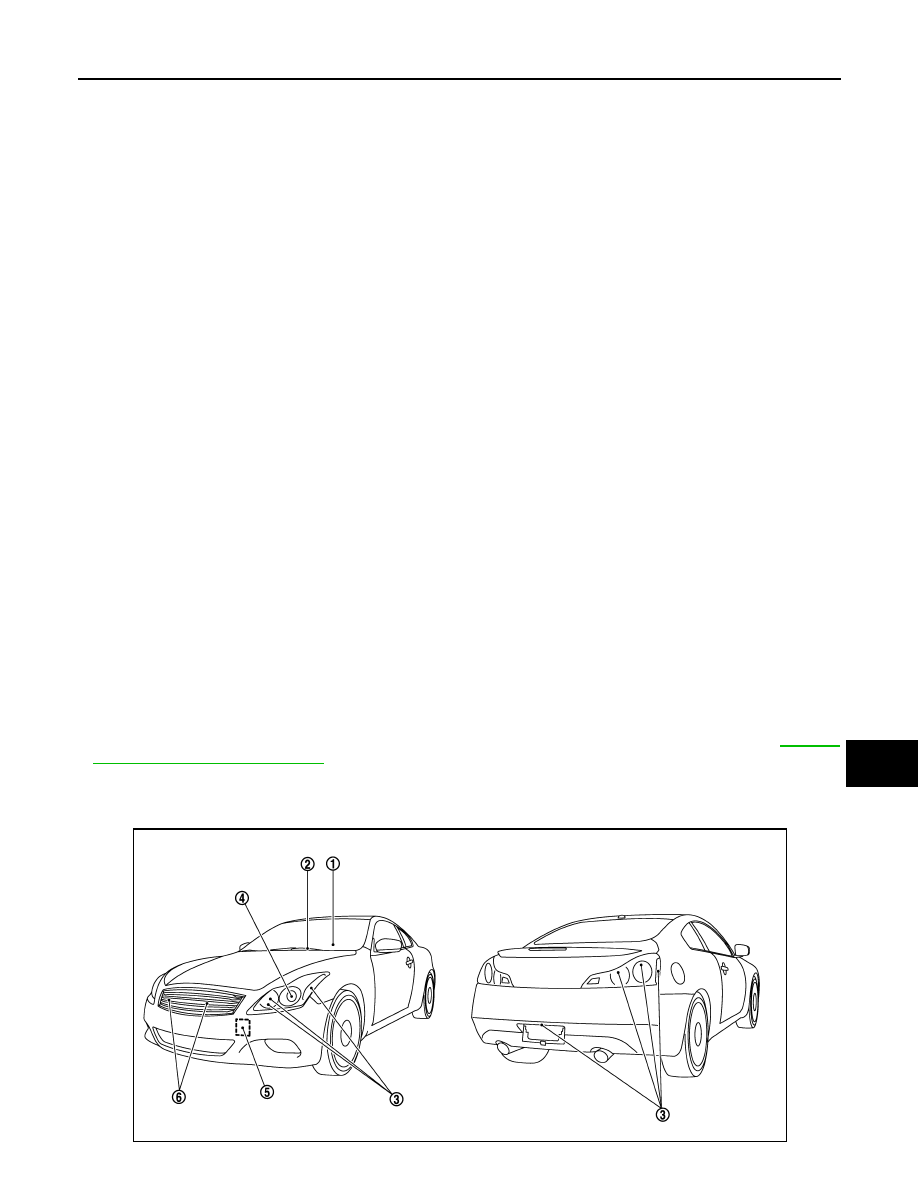

EXL-32 < FUNCTION DIAGNOSIS > [XENON TYPE] DIAGNOSIS SYSTEM (BCM) *: Initial setting DATA MONITOR ILL DELAY SET MODE 1* 45 sec. Sets delay timer function timer operation time. MODE 2 Without the func- MODE 3 30 sec. MODE 4 60 sec. MODE 5 90 sec. MODE 6 120 sec. MODE 7 150 sec. MODE 8 180 sec. CUSTOM A/LIGHT SET- MODE 1* Normal MODE 2 More sensitive setting than normal setting (Turns ON earlier than normal operation.) MODE 3 More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.) MODE 4 Less sensitive setting than normal setting (Turns ON later than normal operation.) Service item Setting item Setting Monitor item [Unit] Description PUSH SW The switch status input from push-button ignition switch ENGINE STATE The engine status received from ECM with CAN communication VEH SPEED 1 The value of the vehicle speed received from unified meter and A/C amp. with CAN KEY SW-SLOT Key switch status input from key slot TURN SIGNAL R Each switch status that BCM judges from the combination switch reading function TURN SIGNAL L TAIL LAMP SW HI BEAM SW HEAD LAMP SW1 HEAD LAMP SW2 PASSING SW AUTO LIGHT SW FR FOG SW RR FOG SW NOTE: DOOR SW-DR The switch status input from driver side door switch DOOR SW-AS The switch status input from passenger side door switch |
