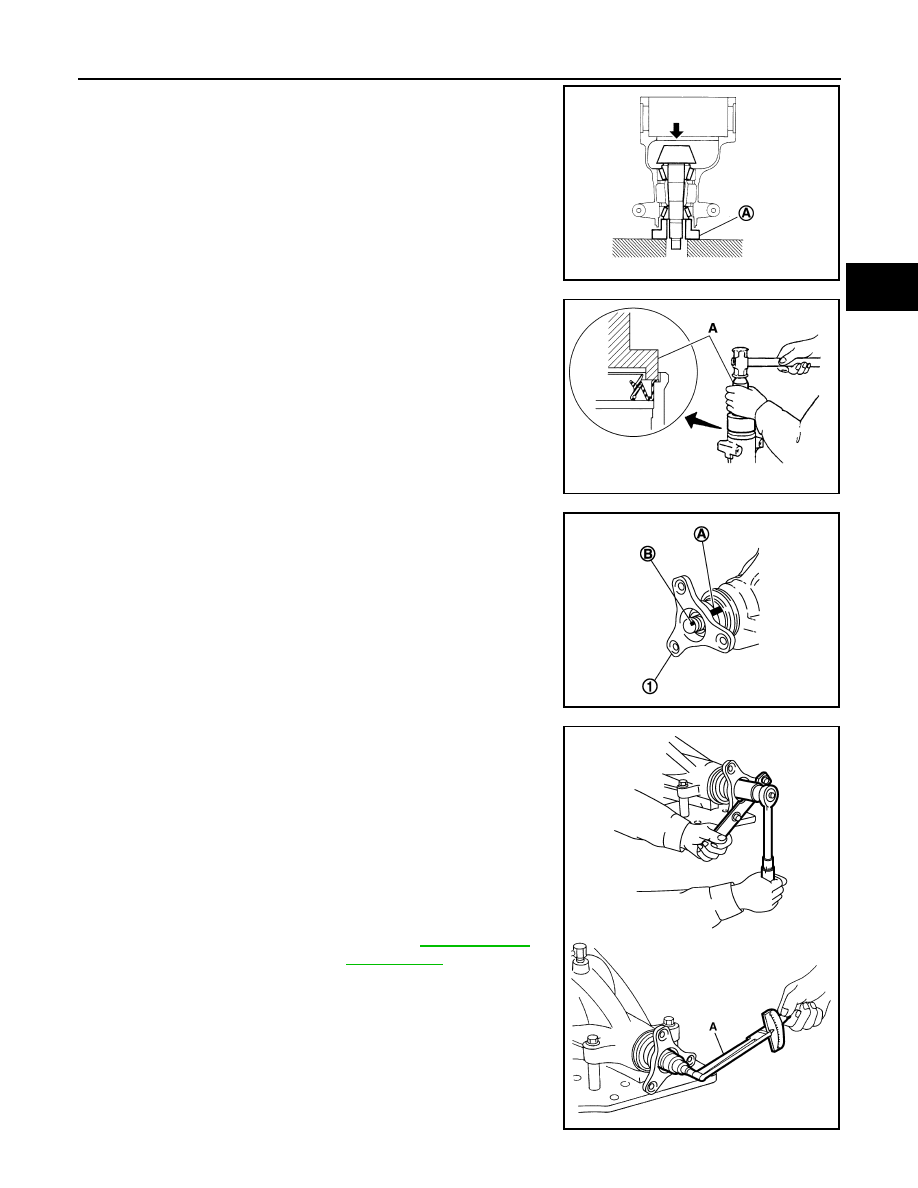

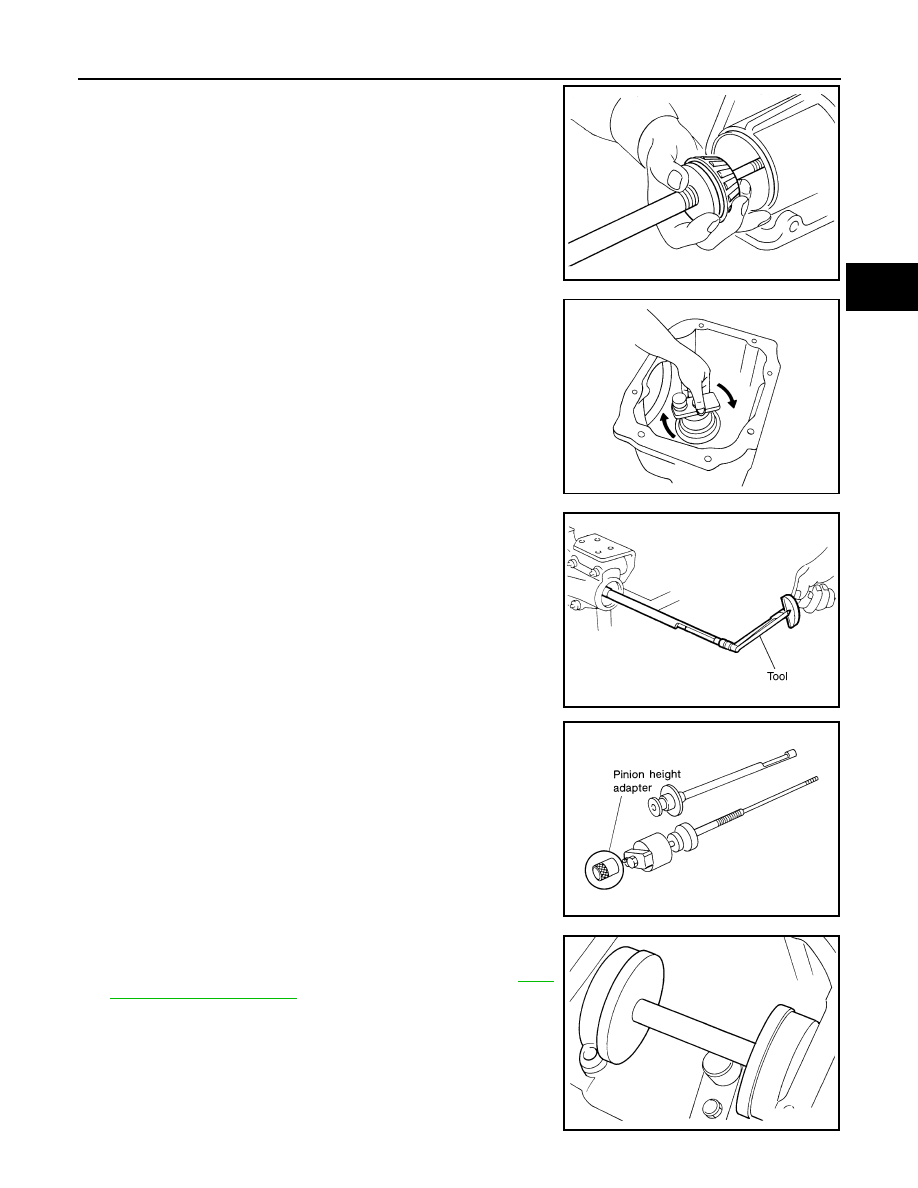

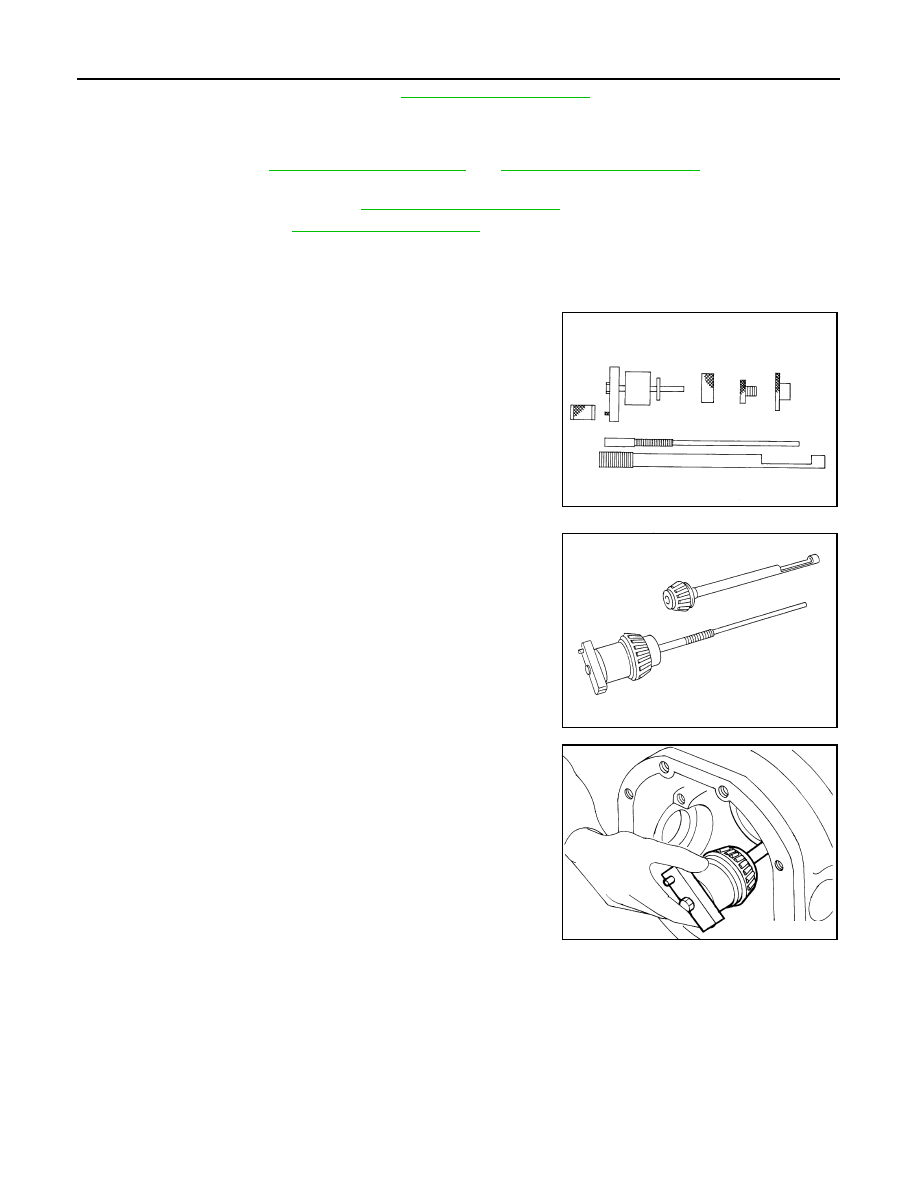

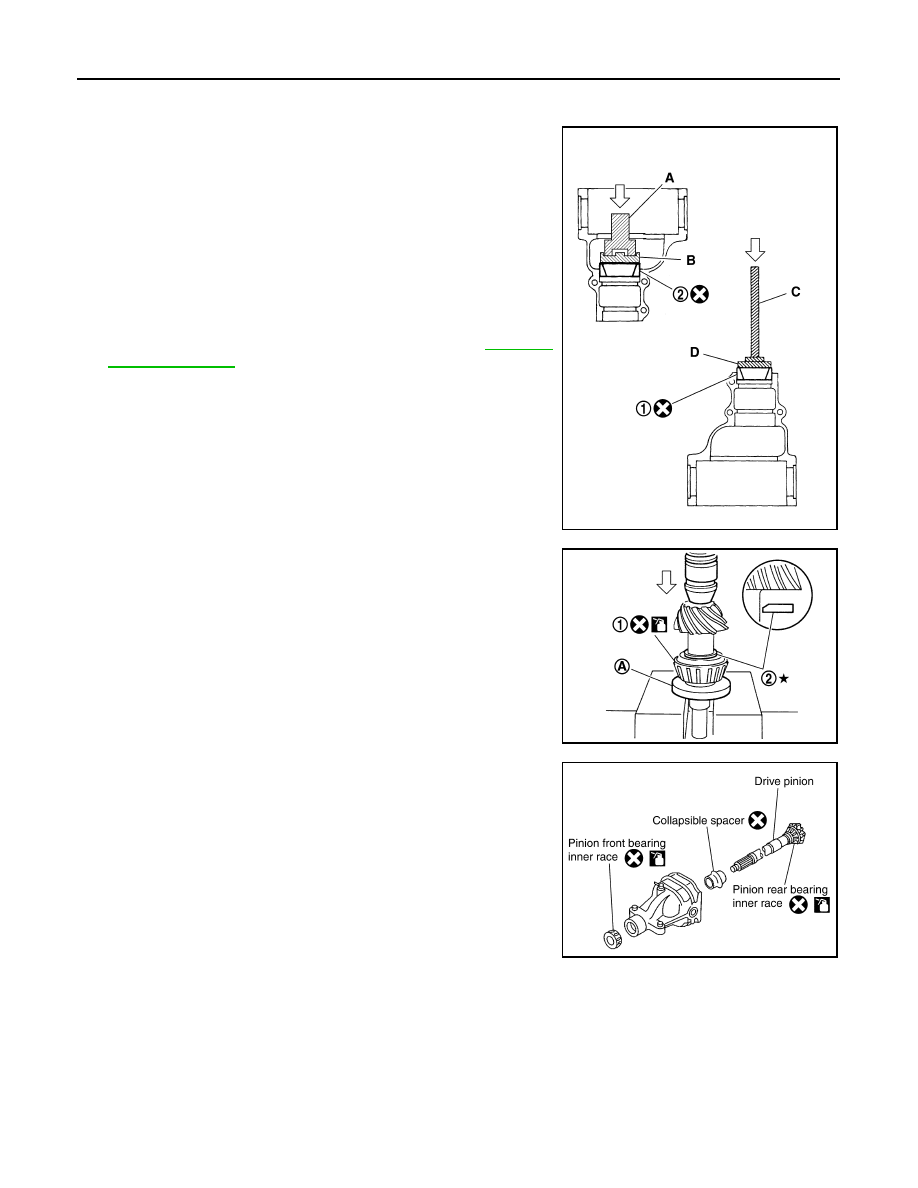

DLN-126 < DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R200V] DRIVE PINION A/T : Assembly INFOID:0000000001714289 1. Install front bearing outer race (1) and rear bearing outer race CAUTION: • At first, using a hammer, tap bearing outer race until it becomes flat to gear carrier. • Never reuse pinion front and rear bearing outer race. 2. Select drive pinion height adjusting washer. Refer to . 3. Install selected drive pinion height adjusting washer (2) to drive CAUTION: • Be careful of the direction of pinion height adjusting washer. (Assemble as shown in the figure.) • Never reuse pinion rear bearing inner race. 4. Assemble collapsible spacer to drive pinion. CAUTION: Never reuse collapsible spacer. 5. Apply gear oil to pinion rear bearing, and assemble drive pinion 6. Apply gear oil to pinion front bearing, and assemble pinion front CAUTION: Never reuse pinion front bearing inner race. A: Drift [SST: ST30720000 (J-25405)] B: Drift [SST: KV40105230 ( — )] C: Drift bar [SST: ST30611000 (J-25742-1)] D: Drift [SST: ST30613000 (J-25742-3)] PDIA0761J PDIA0805J PDIA0492E |
