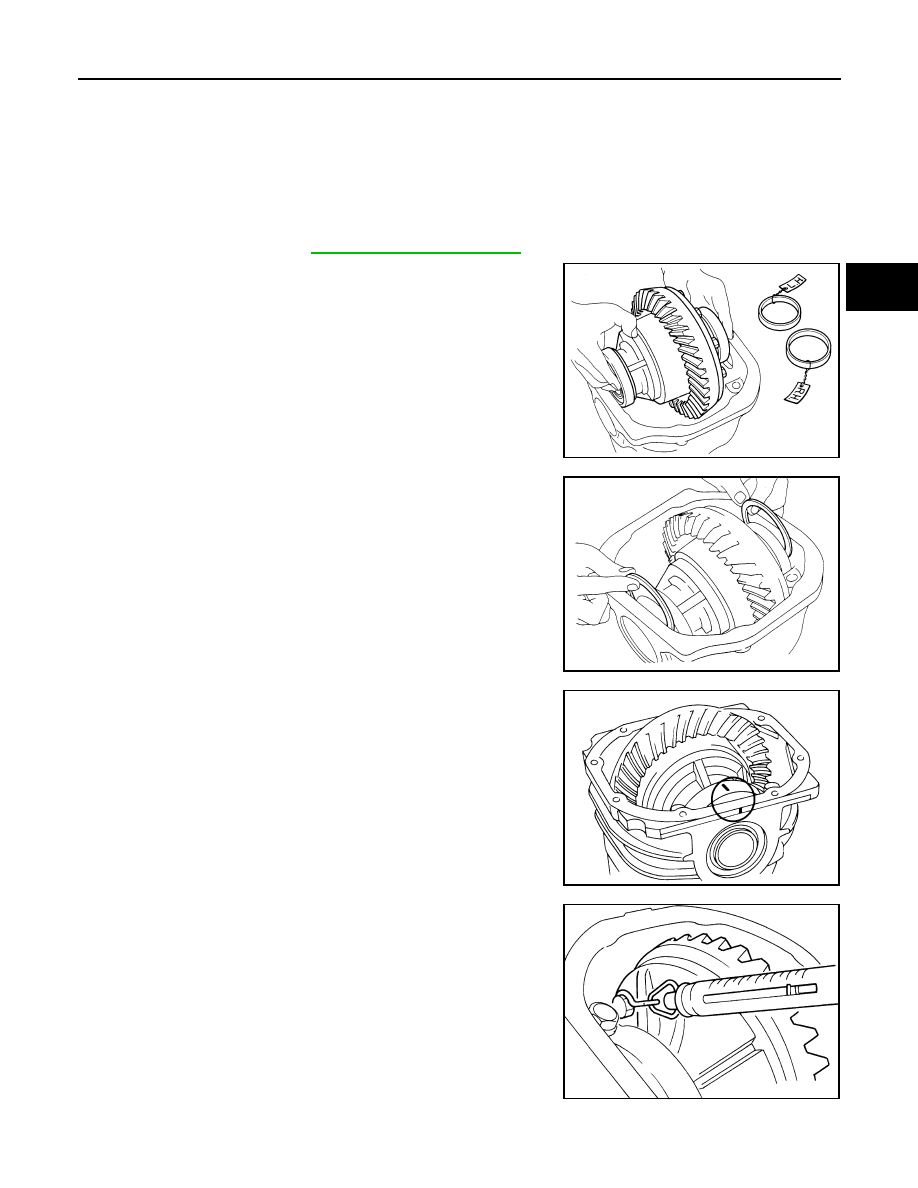

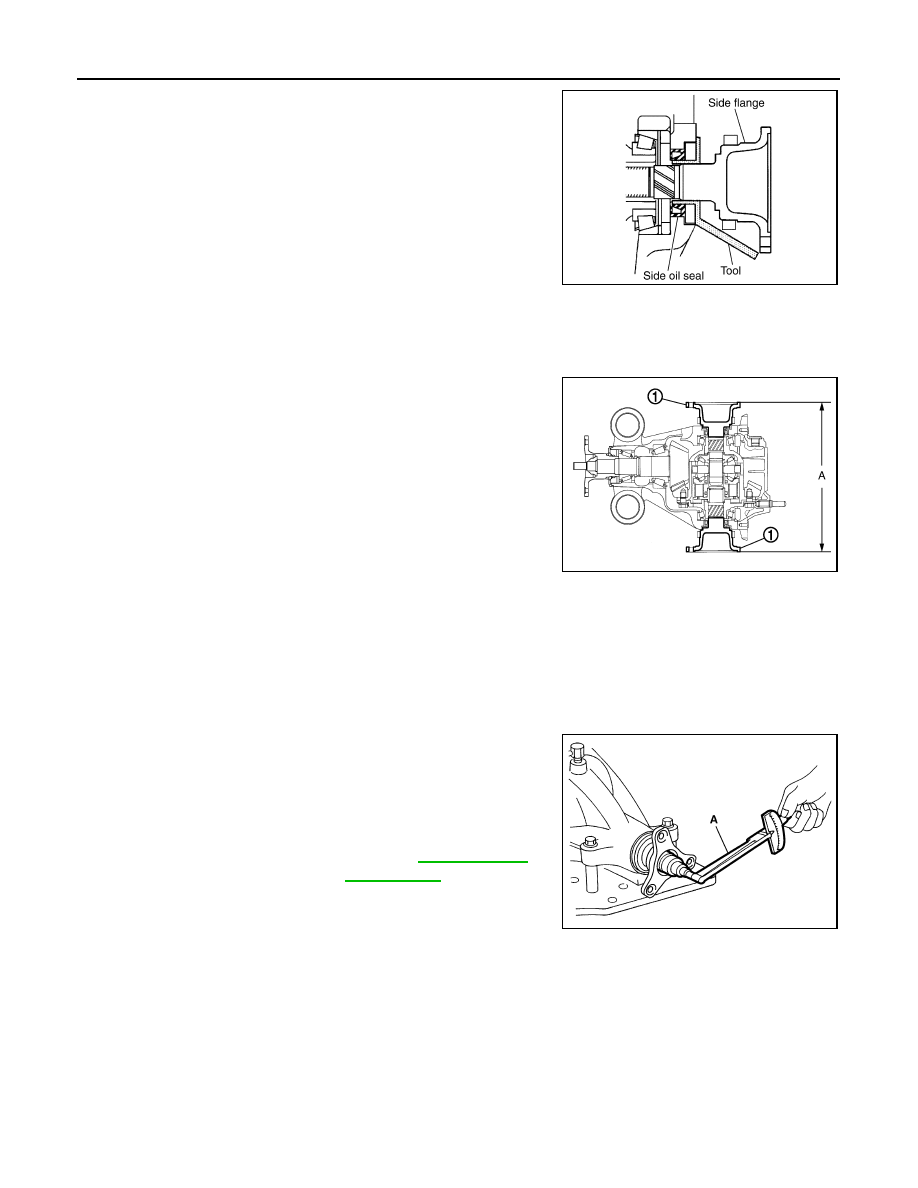

DLN-110 < DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R200V] DIFFERENTIAL ASSEMBLY 21. Install side flange with the following procedure. a. Attach the protector [SST: KV38107900 (J-39352)] to side oil b. After the side flange is inserted and the serrated part of side c. Put a suitable drift on the center of side flange, then drive it until sound changes. d. Confirm that the dimension of the side flange (1) installation A/T : Adjustment INFOID:0000000001714280 TOTAL PRELOAD TORQUE • Before inspection and adjustment, drain gear oil. 1. Secure final drive assembly onto an attachment [SST: KV38100800 (J-25604-01)]. 2. Remove side flanges. 3. Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction. 4. Rotate drive pinion at least 20 times to check for smooth opera- 5. Measure total preload with the preload gauge (A) [SST: NOTE: pinion bearing preload and side bearing preload. SDIA0822E Measurement “A” : 326 – 328 mm (12.83 – JSDIA0110ZZ Standard Total preload torque : Refer to JSDIA0031ZZ When the preload torque is large On pinion bearings: Replace the collapsible spacer. On side bearings: Use thinner side bearing adjusting washers by the same amount to |
