WARNING FUNCTION

DLK-45

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

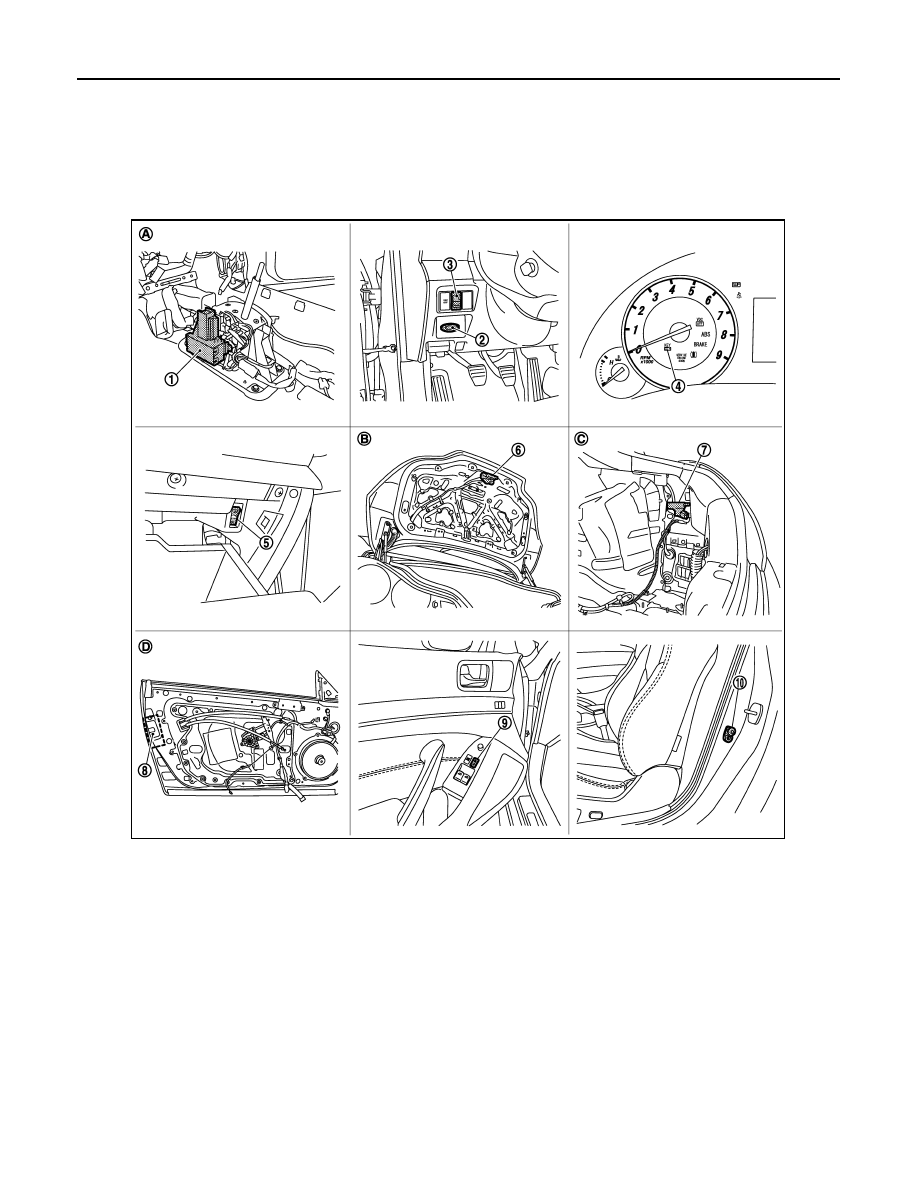

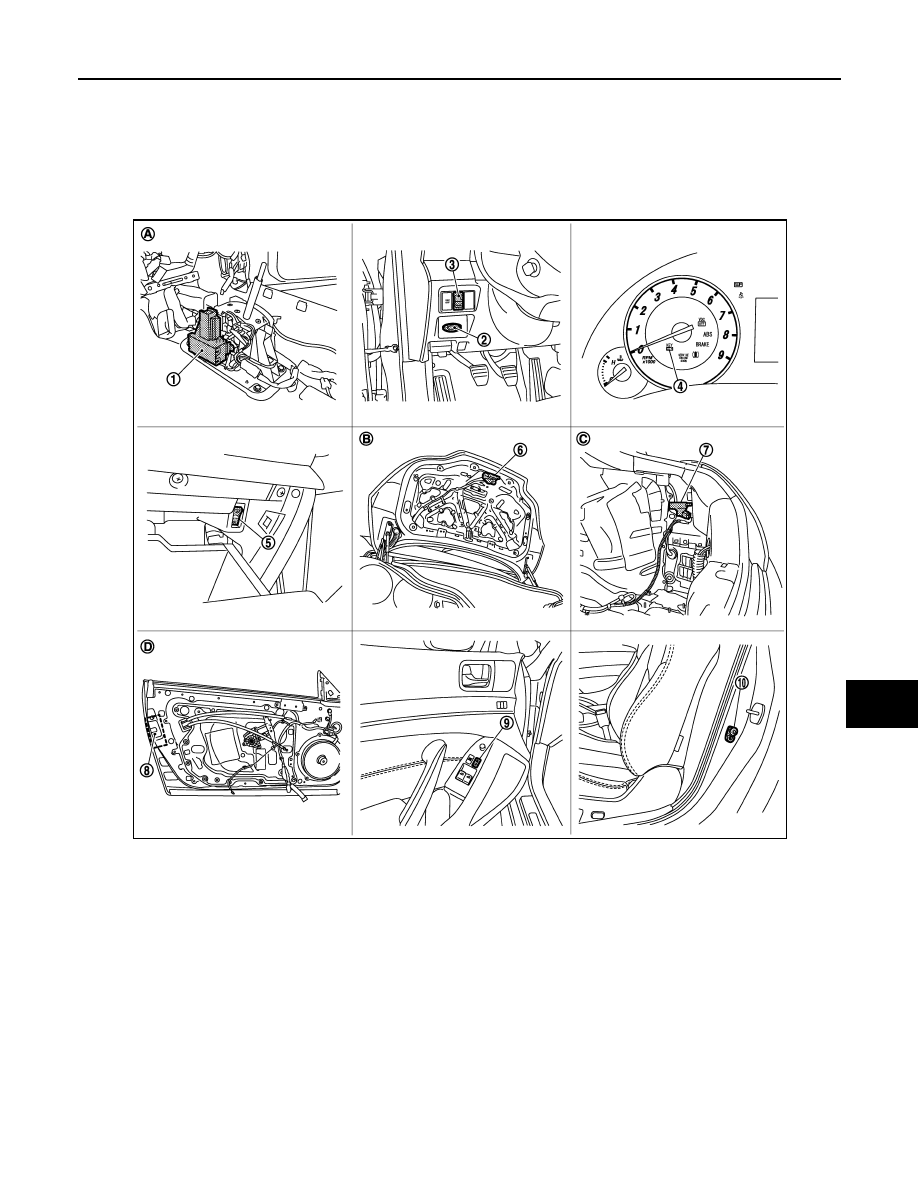

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk front finisher re-
moved.

G.

View of driver side door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA1119ZZ

1.

A/T device (detention switch) M137

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid lock actuator B242

8.

Door lock assembly (door lock actuator)
D15

9.

Power window main switch (door
lock unlock switch) D8

10. Driver side door switch B16

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with driver side door finisher re-
moved.

DLK-46

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION

System Description

INFOID:0000000001683036

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the trunk is open/closed and the buzzers sound, if

the following operations are performed, the key reminder function is cleared and buzzer sounds are
stopped.

- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the trunk is closed, the Intelligent Key is not inside the vehicle
- When any door is open

Key remainder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Honk Intelligent Key warning

buzzer

Trunk is closed

Right after trunk is closed under the following conditions
• Intelligent Key is inside trunk room
• All doors are closed
• All doors are locked

• Trunk open
• Honk Intelligent Key warning

buzzer

KEY REMINDER FUNCTION

DLK-47

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Parts Location

INFOID:0000000001735261

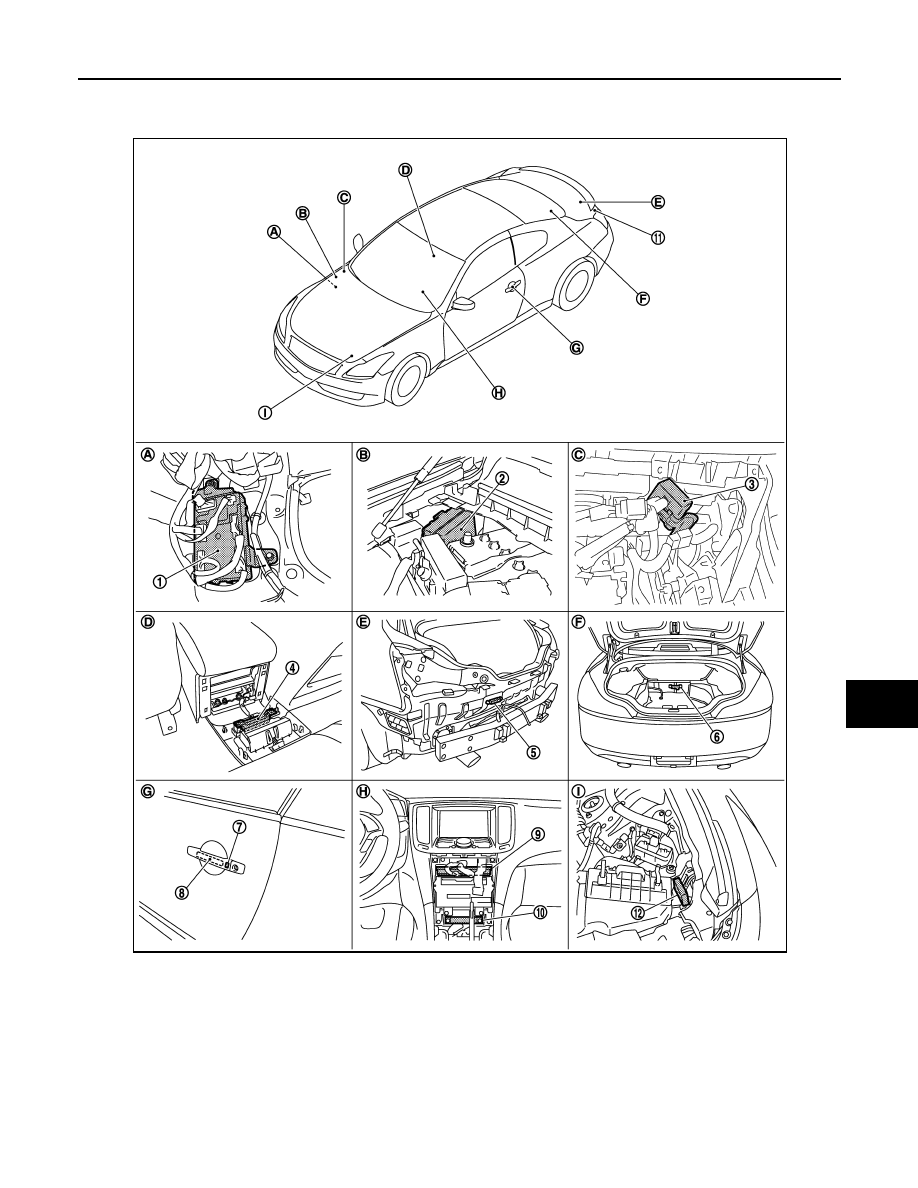

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6,E7

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Outside handle LH (request switch) D13

8.

Outside handle LH (outside key anten-
na) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Rear combination lamp LH
(Trunk lid opener request switch) B60

12.

Intelligent Key warning buzzer (en-
gine room) E57

JMKIA1118ZZ

DLK-48

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk front finisher re-
moved.

G.

View of driver side door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA1119ZZ

1.

A/T device (detention switch) M137

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid lock actuator B242

8.

Door lock assembly (door lock actuator)
D15

9.

Power window main switch (door
lock unlock switch) D8

10. Driver side door switch B16

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with driver side door finisher re-
moved.
