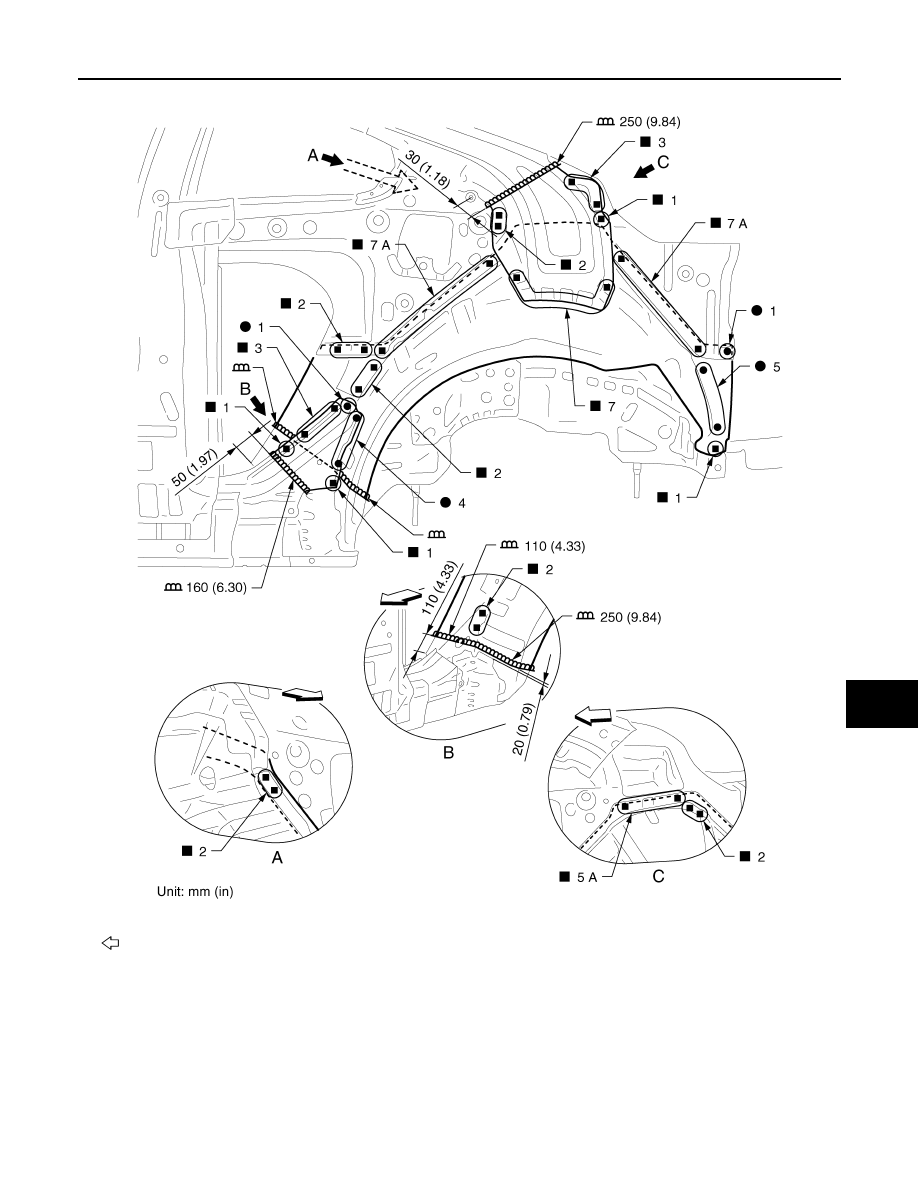

View B: Before installing upper outer rear wheelhouse extension
View C: Before installing rear pillar reinforcement

: vehicle front

Replacement parts

●

Outer rear wheelhouse (LH)

JSKIA0390GB

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000001672411

Rear Floor Rear

INFOID:0000000001672413

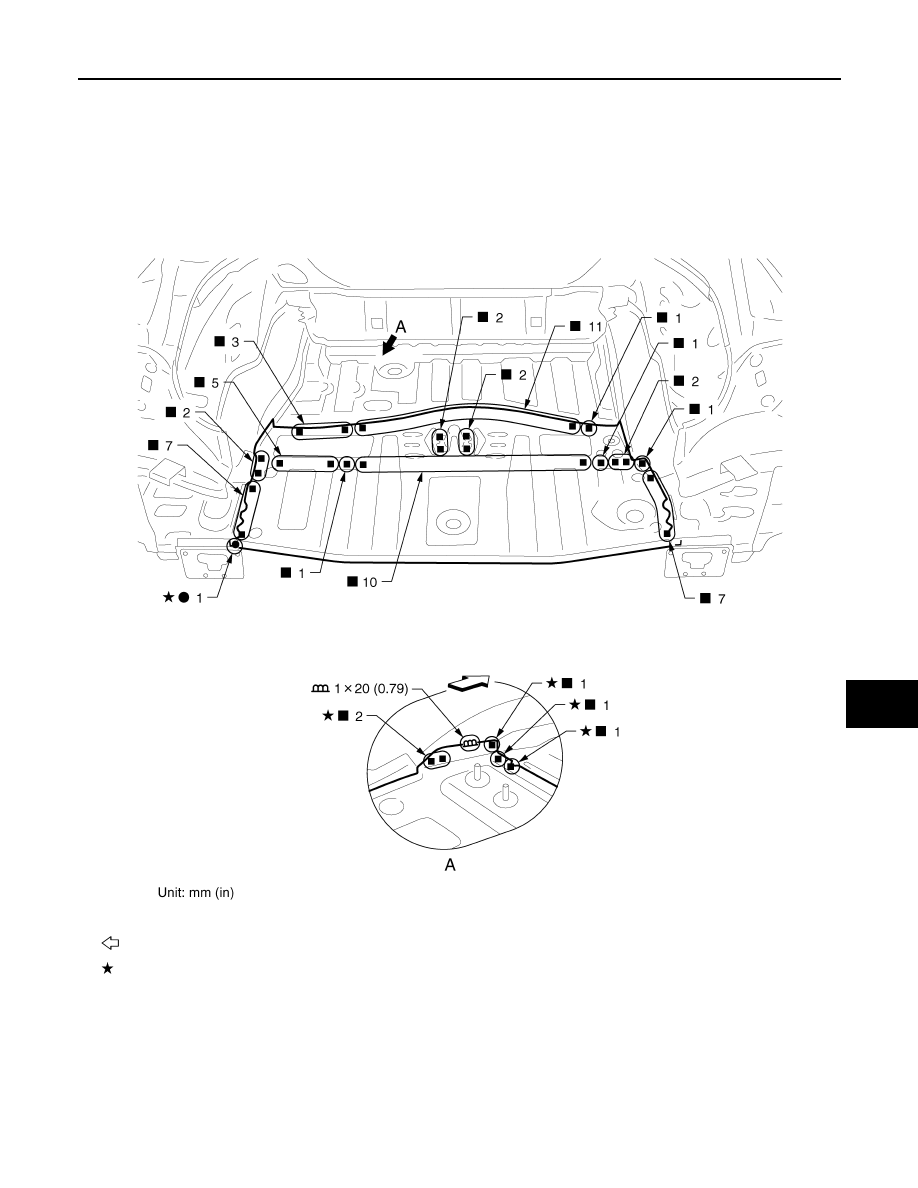

Work after rear panel has been removed.

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

●

Rear panel assembly

JSKIA0391GB

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Side Member Extension

INFOID:0000000001672414

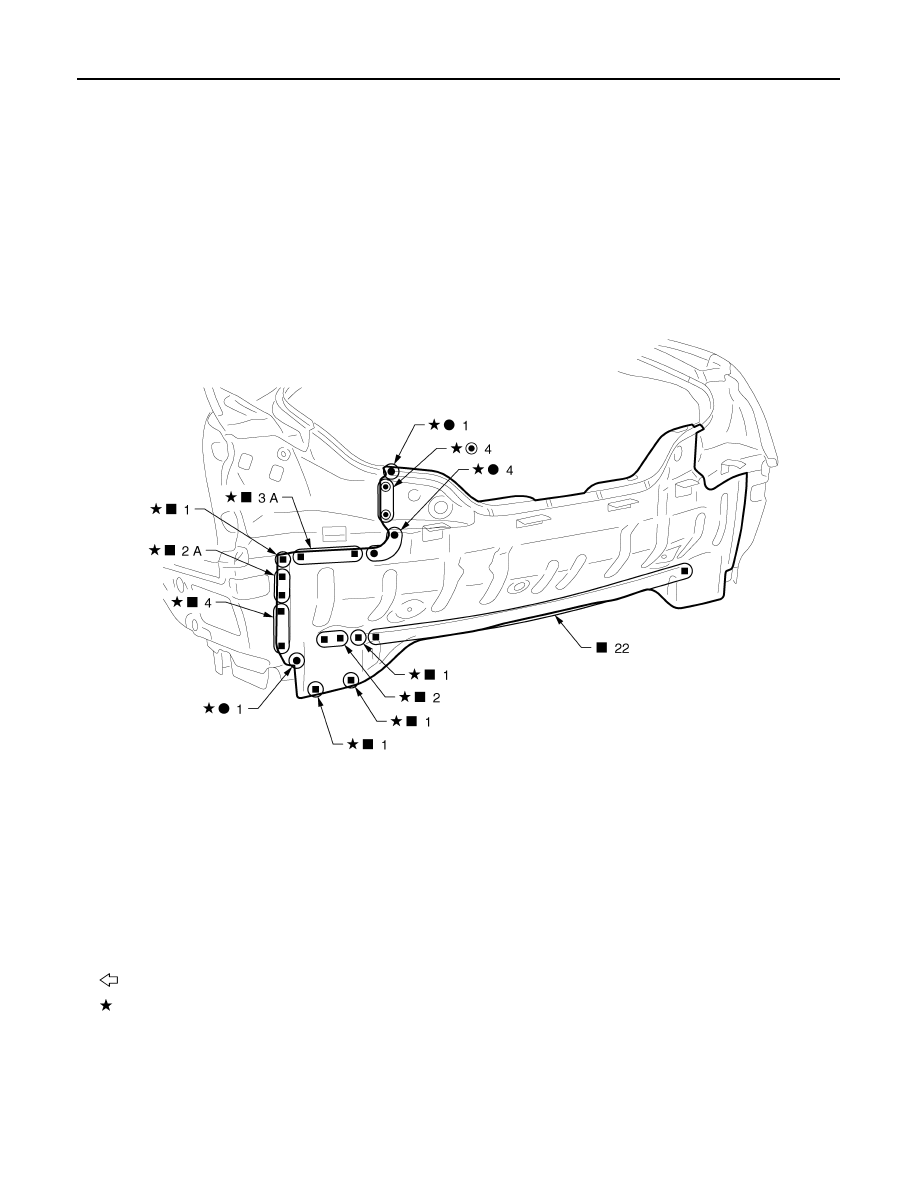

Work after rear panel has been removed.

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

●

Rear floor rear

●

Spare tire clamp bracket

JSKIA0392GB

BRM-56

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

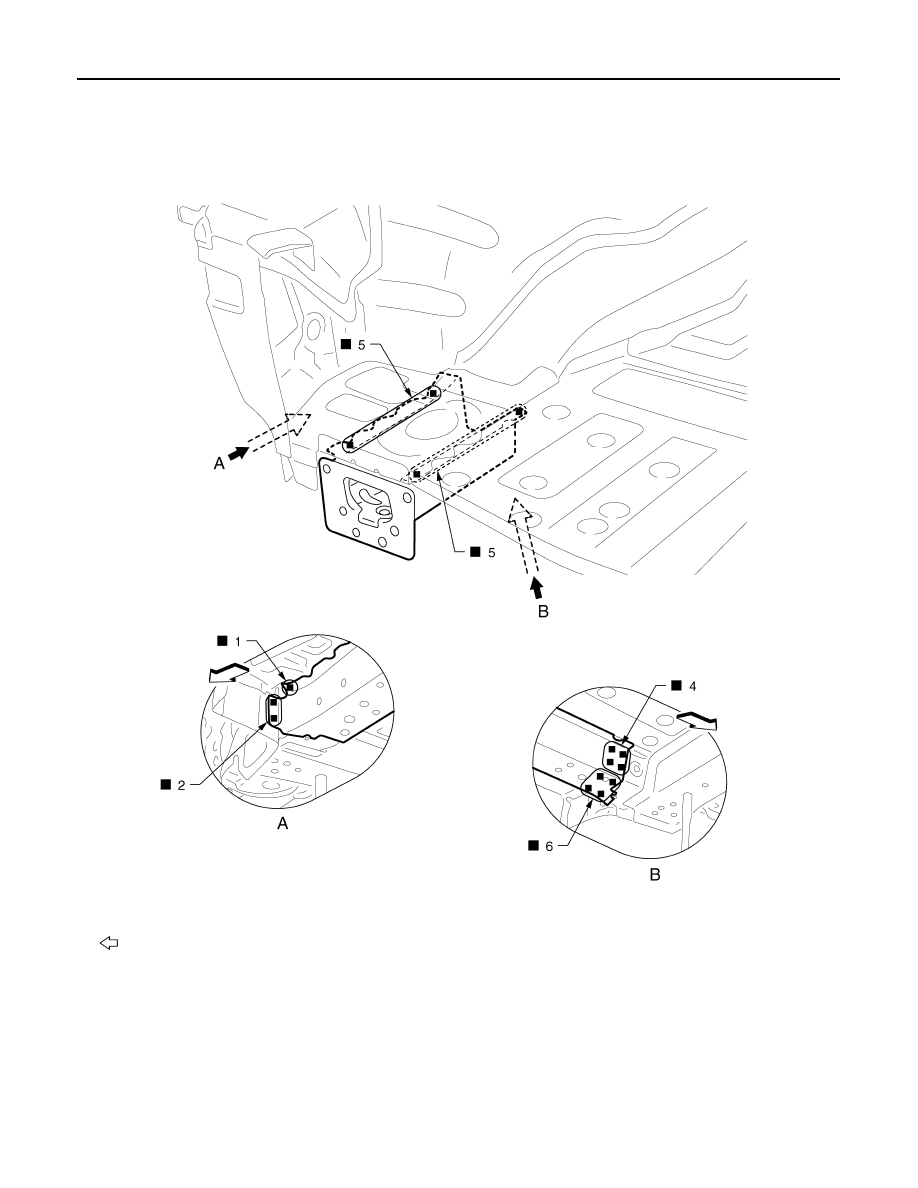

: Vehicle front

Replacement parts

●

Rear side member extension (LH)

JSKIA0393GB
