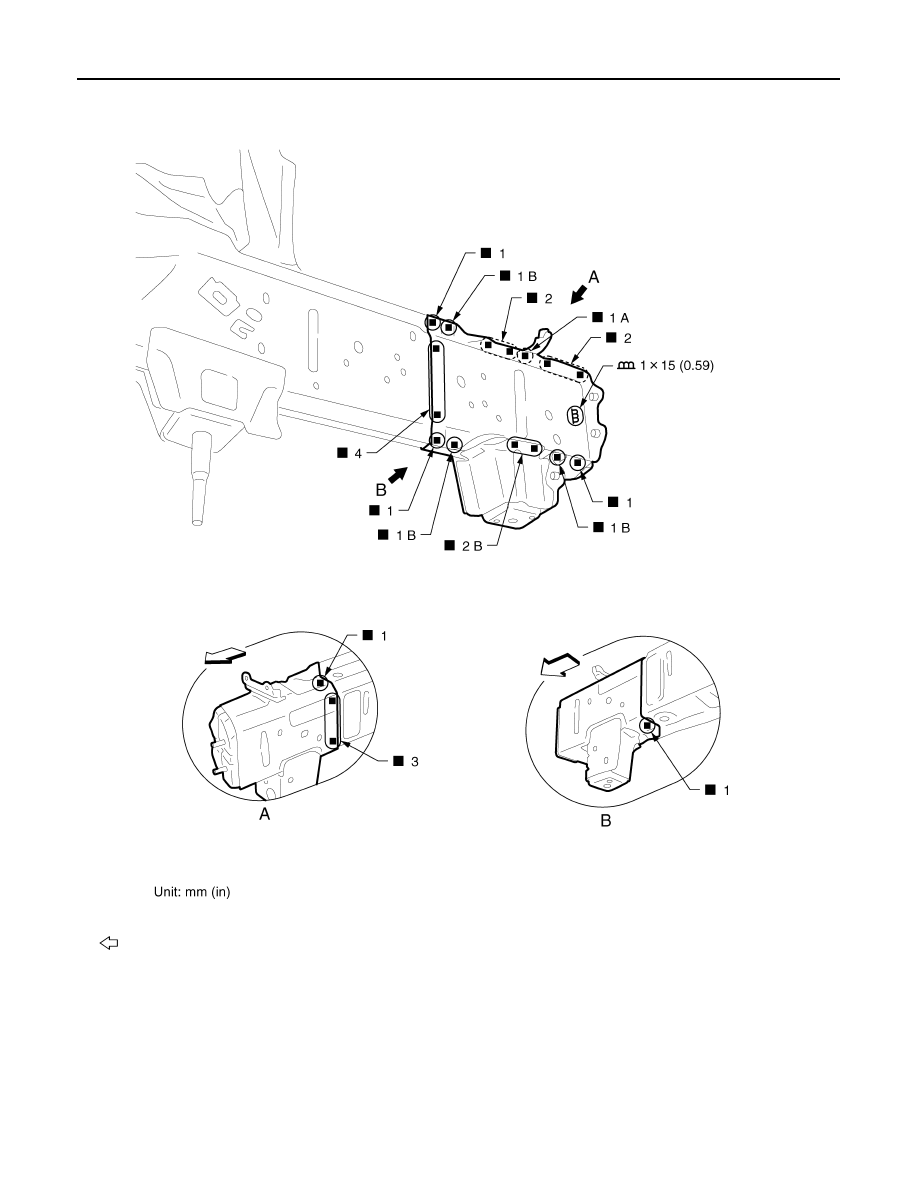

Front Side Member (Partial Replacement)

INFOID:0000000001672406

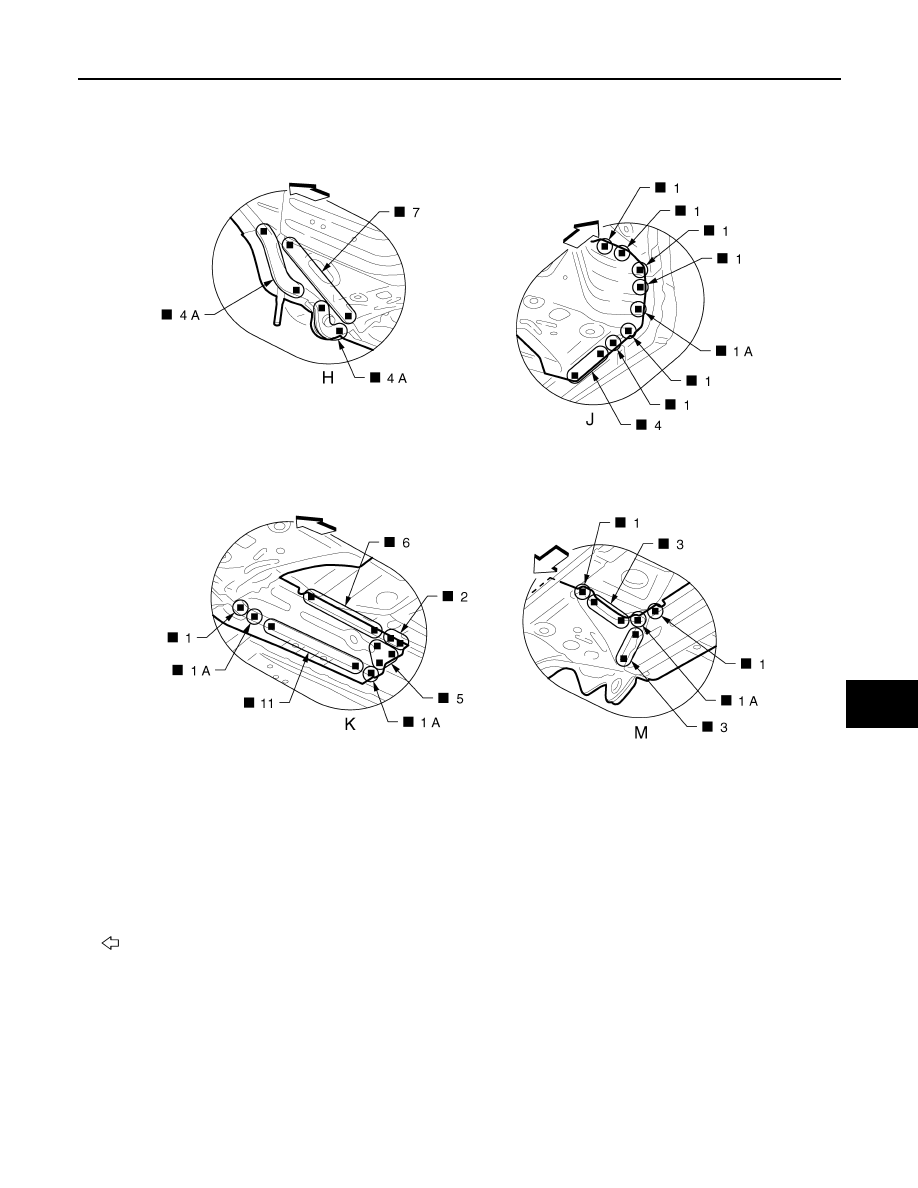

Work after radiator core support has been removed.

: Vehicle front

JSKIA0379GB

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

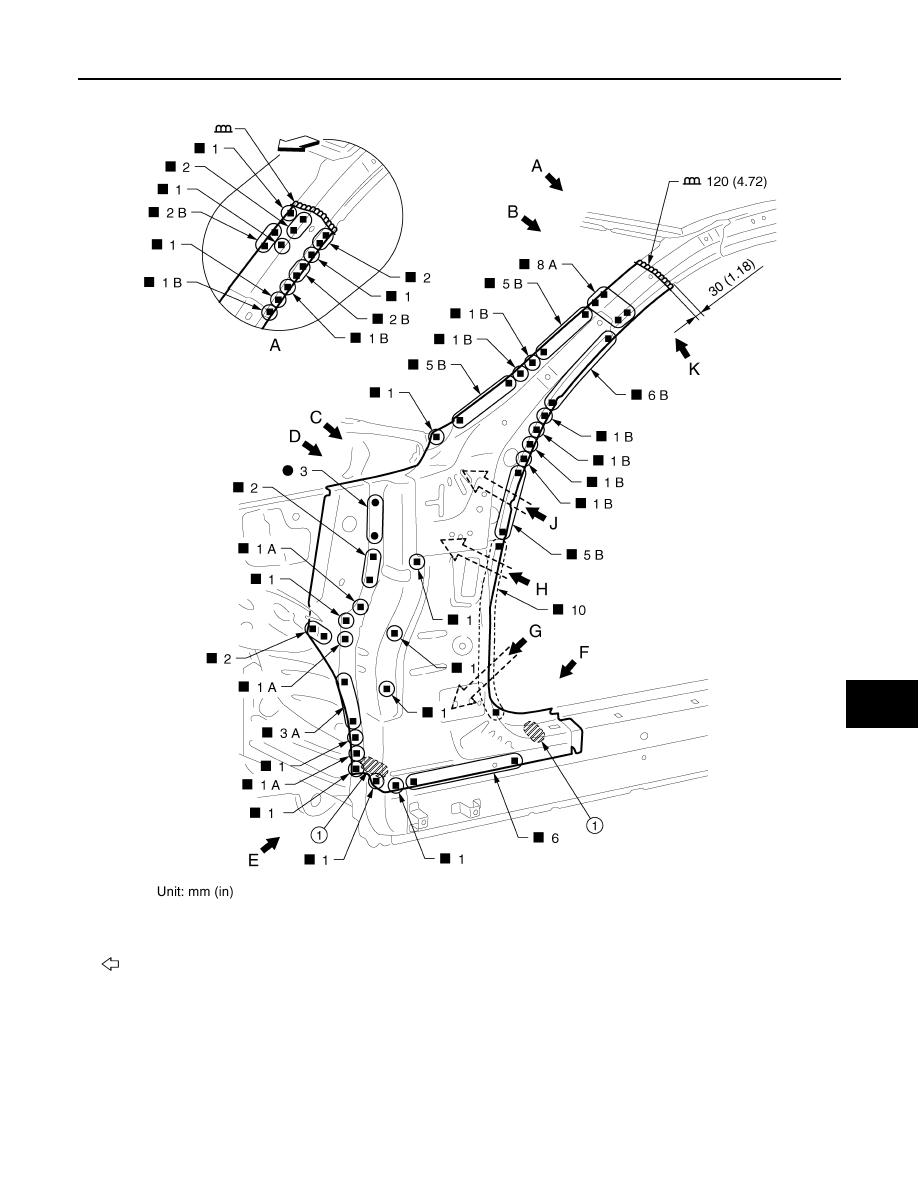

Front Pillar

INFOID:0000000001672407

Work after hoodledge reinforcement and outer step sill have been removed.

: Vehicle front

Replacement parts

●

Front side member front extension
(RH)

●

Front side member front closing
plate (RH)

JSKIA0380GB

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

1.

Urethane foam

: Vehicle front

Replacement parts

●

Upper front pillar reinforcement (LH)

●

Upper rear hoodledge (LH)

●

Upper inner front pillar assembly
(LH)

JSKIA0381GB

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

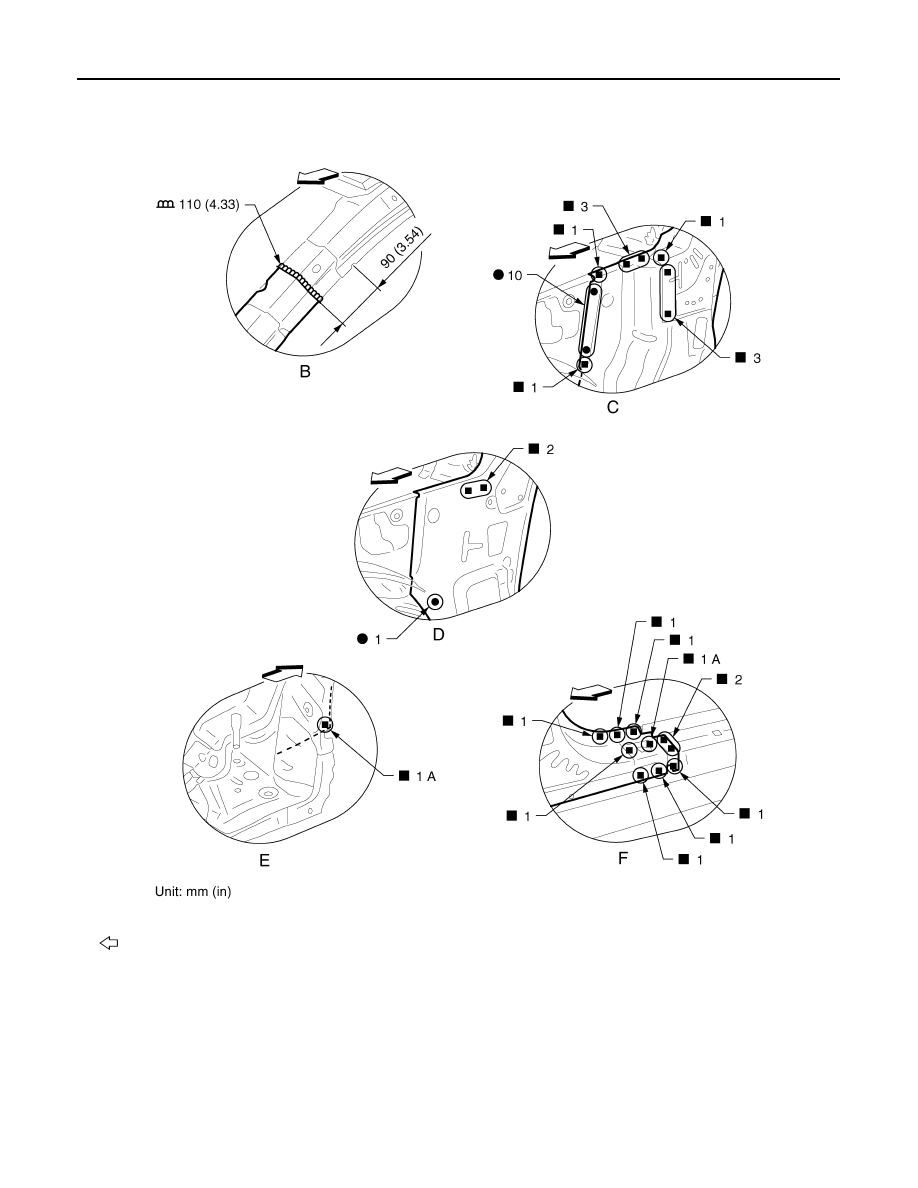

View D: Before installing upper front pillar reinforcement

: Vehicle front

JSKIA0382GB
