BODY ALIGNMENT

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

Rear Body

INFOID:0000000001672400

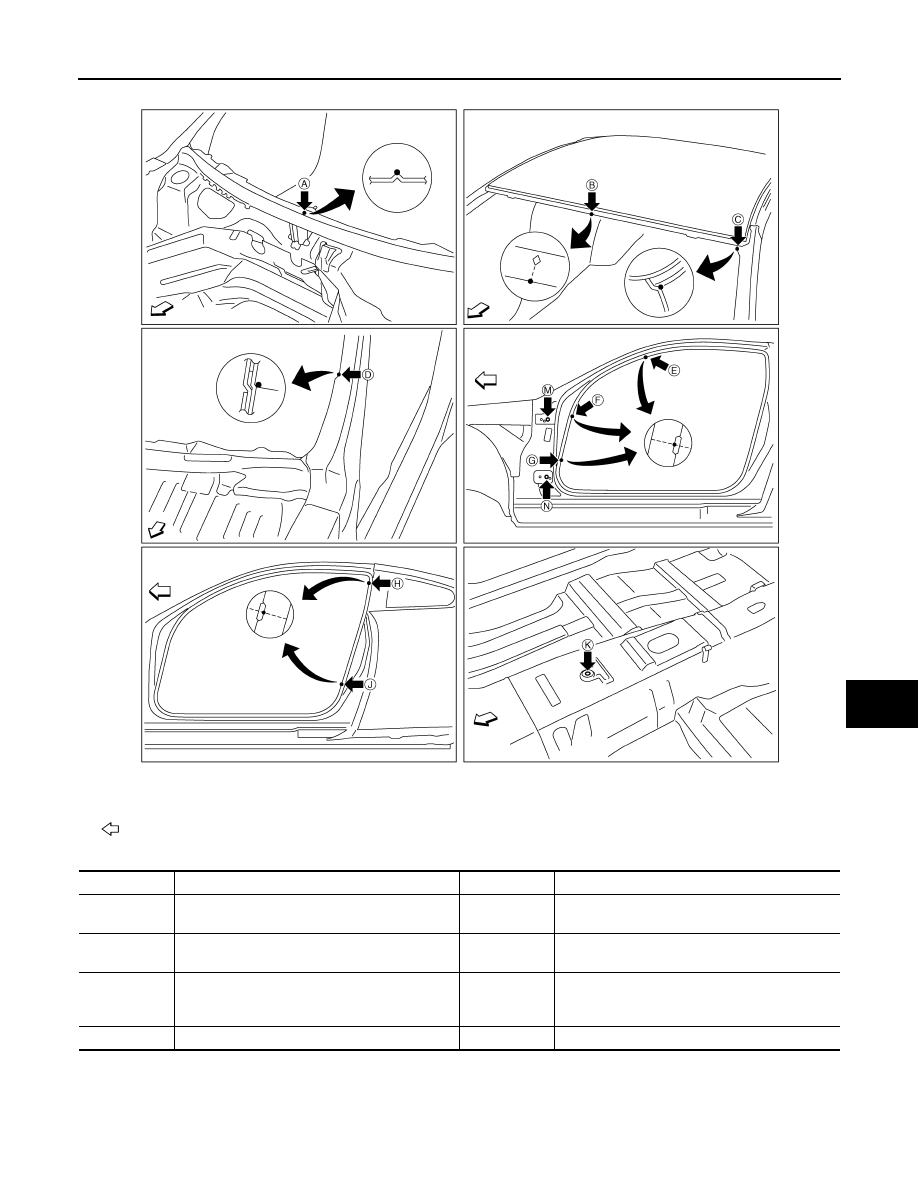

Measurement

: Vehicle front

JSKIA0357GB

Point

Material

Point

Material

A

Upper dash positioning mark of center position-
ing mark

H, h, J, j

Rear fender indent

B

Roof flange end of center positioning mark

K

Trans control reinforcement hole center of center
positioning mark 14

×

12 (0.55

×

0.47)

C, c, D, d

Front pillar joggle

M, m, N, n

Door hinge installing hole center
M, m:

φ

14 (0.55)

N, n:

φ

12 (0.47)

E, e, F, f, G, g

Front pillar indent

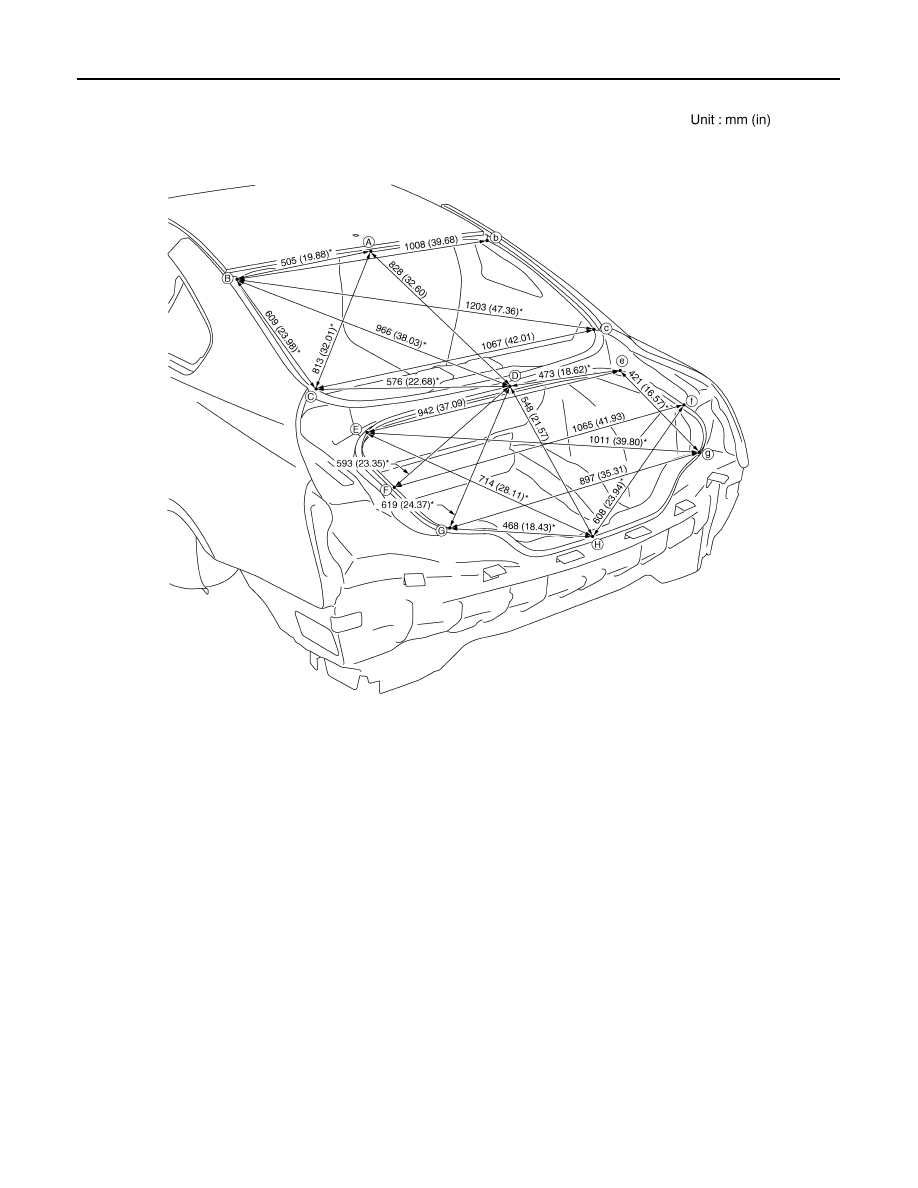

BRM-26

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Figures marked with a (*) indicate symmetrically identical dimensions on both right and left hand of the vehicle.

Measurement Points

JSKIA0358GB

BODY ALIGNMENT

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

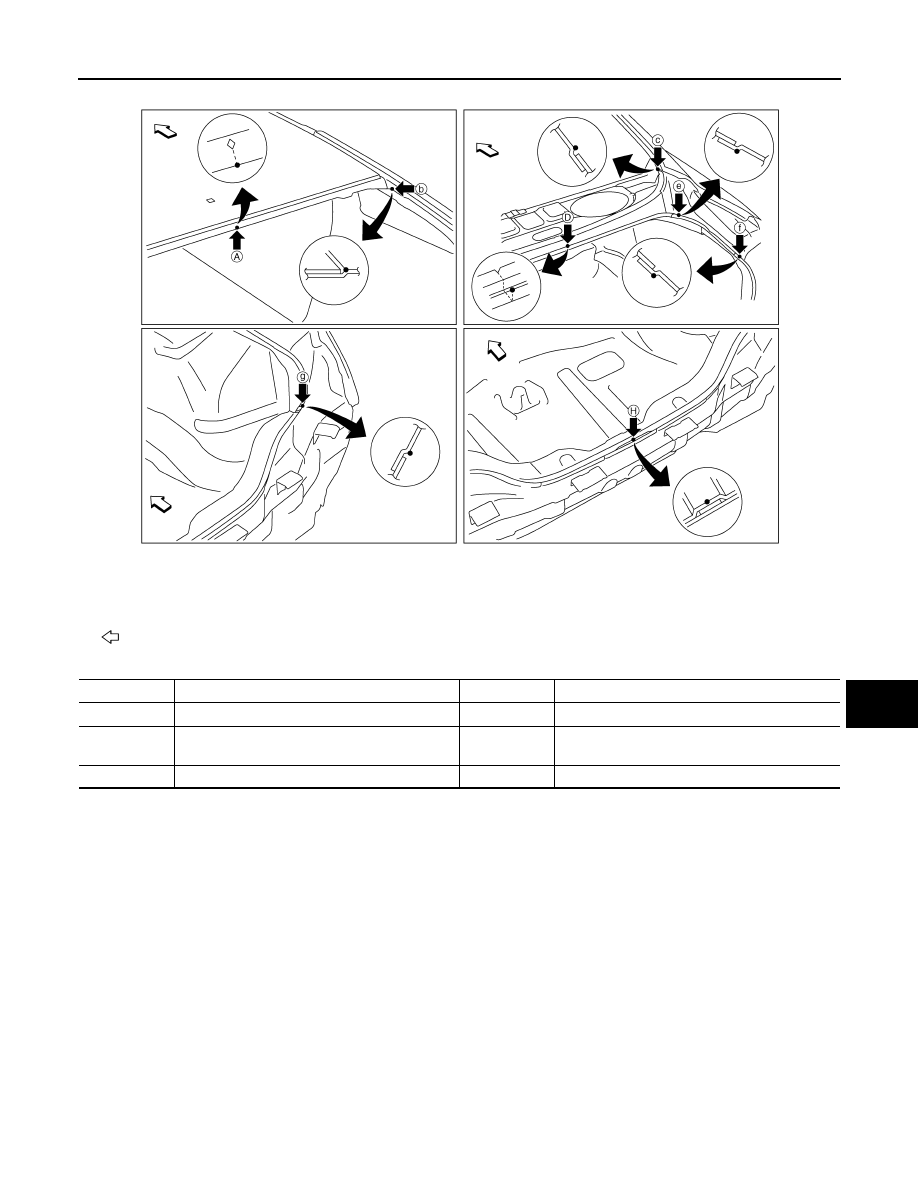

Unit: mm (in)

: Vehicle front

JSKIA0359GB

Point

Material

Point

Material

A

Roof flange end of center positioning mark

F, f, G, g

Rear combination lamp base joggle

B, b, C, c, E, e

Rear fender corner joggle

H

Upper rear panel flange end of center positioning
mark

D

Rear waist flange end of center positioning mark

BRM-28

< REMOVAL AND INSTALLATION >

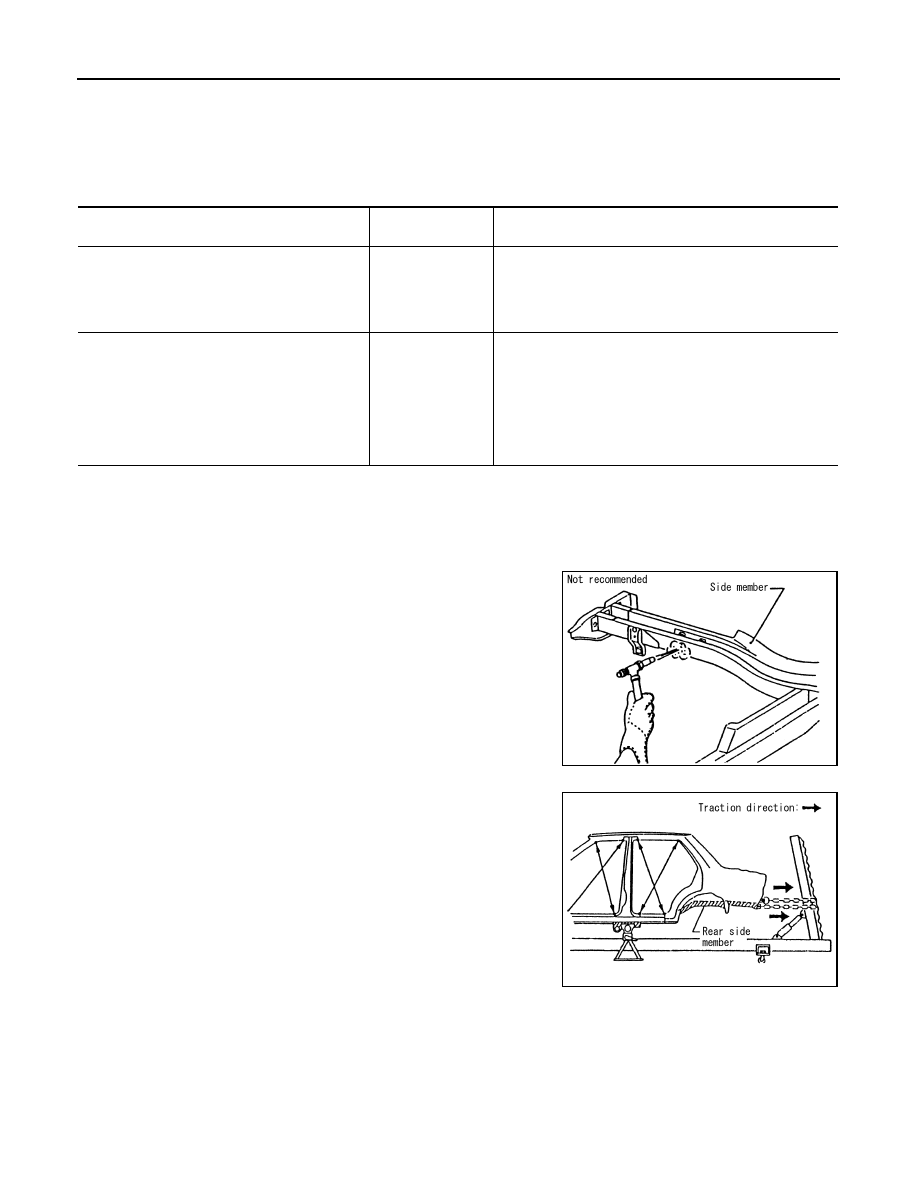

REPAIRING HIGH STRENGTH STEEL

REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

INFOID:0000000001672401

High strength steel is used for body panels in order to reduce vehicle weight.
Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

SP130 is the most commonly used HSS.

SP150 HSS is used only on parts that require much more strength.

Read the following precautions when repairing HSS:

1.

Additional points to consider
• The repair of reinforcements (such as side members) by heat-

ing is not recommended since it may weaken the component.
When heating is unavoidable, do not heat HSS parts above
550

°

C (1,022

°

F).

Verify heating temperature with a thermometer.
(Crayon-type and other similar type thermometer are appropri-
ate.)

• When straightening body panels, use caution in pulling any

HSS panel. Because HSS is very strong, pulling may cause
deformation in adjacent portions of the body. In this case,
increase the number of measuring points, and carefully pull
the HSS panel.

Tensile strength

Nissan/Infiniti

designation

Major applicable parts

373 N/mm

2

(38 kg/mm

2

, 54 klb/sq in)

SP130

• Side  dash
• Front floor
• Rear side member assembly
• Other reinforcements
• Inner center front bumper reinforcement

785 - 1350 N/mm

2

(80 - 138 kg/mm

2

, 114 - 196 klb/sq in)

SP150

• Front side member assembly
• Front side member closing plate assembly
• Lower dash crossmember reinforcement
• Lower dash crossmember assembly
• Front side member rear extension

(Front floor component part)

• Inner sill
• Inner center rear bumper reinforcement

PIIA0115E

PIIA0116E
