BRC-18

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

ABS

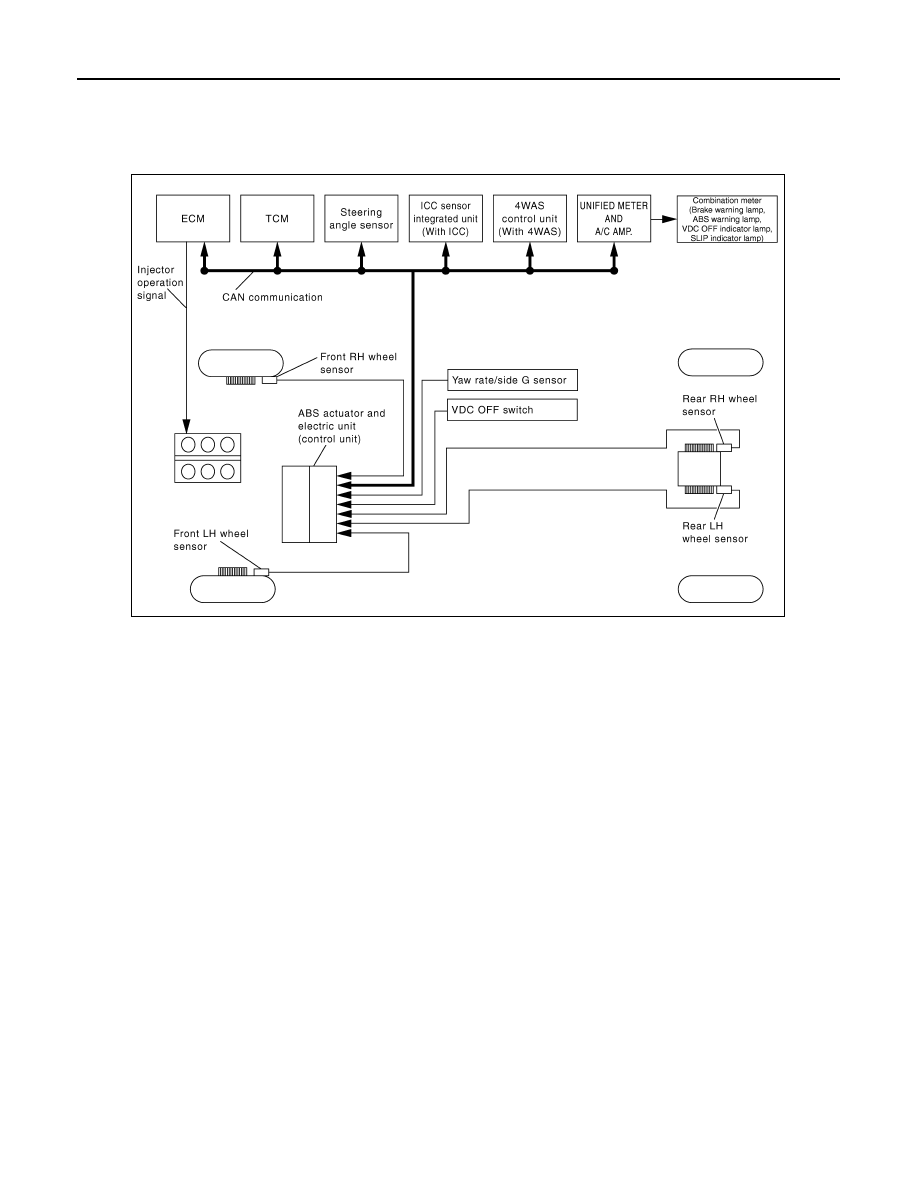

System Diagram

INFOID:0000000001645295

System Description

INFOID:0000000001635032

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

JSFIA0124GB

ABS

BRC-19

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

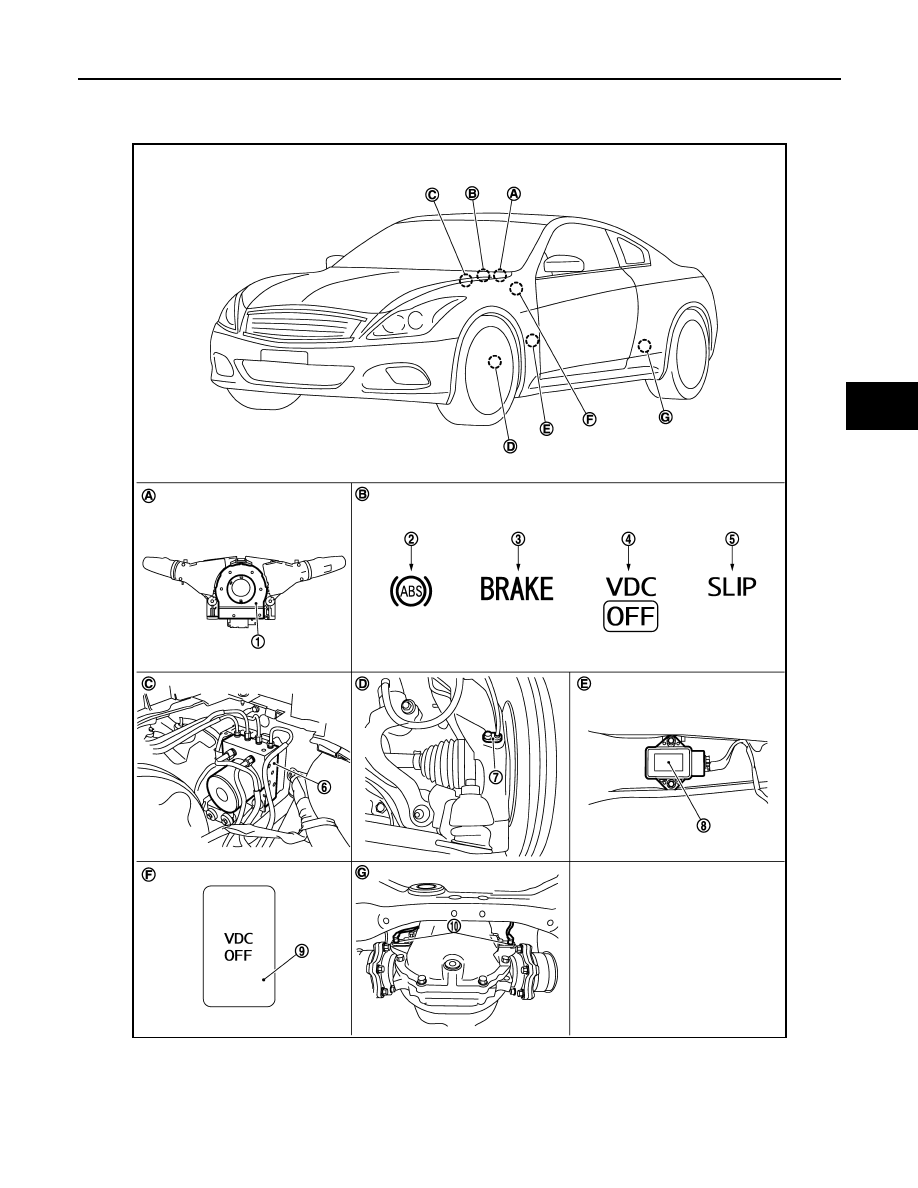

Component Parts Location

INFOID:0000000001645296

For USA

JSFIA0125ZZ

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

BRC-20

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

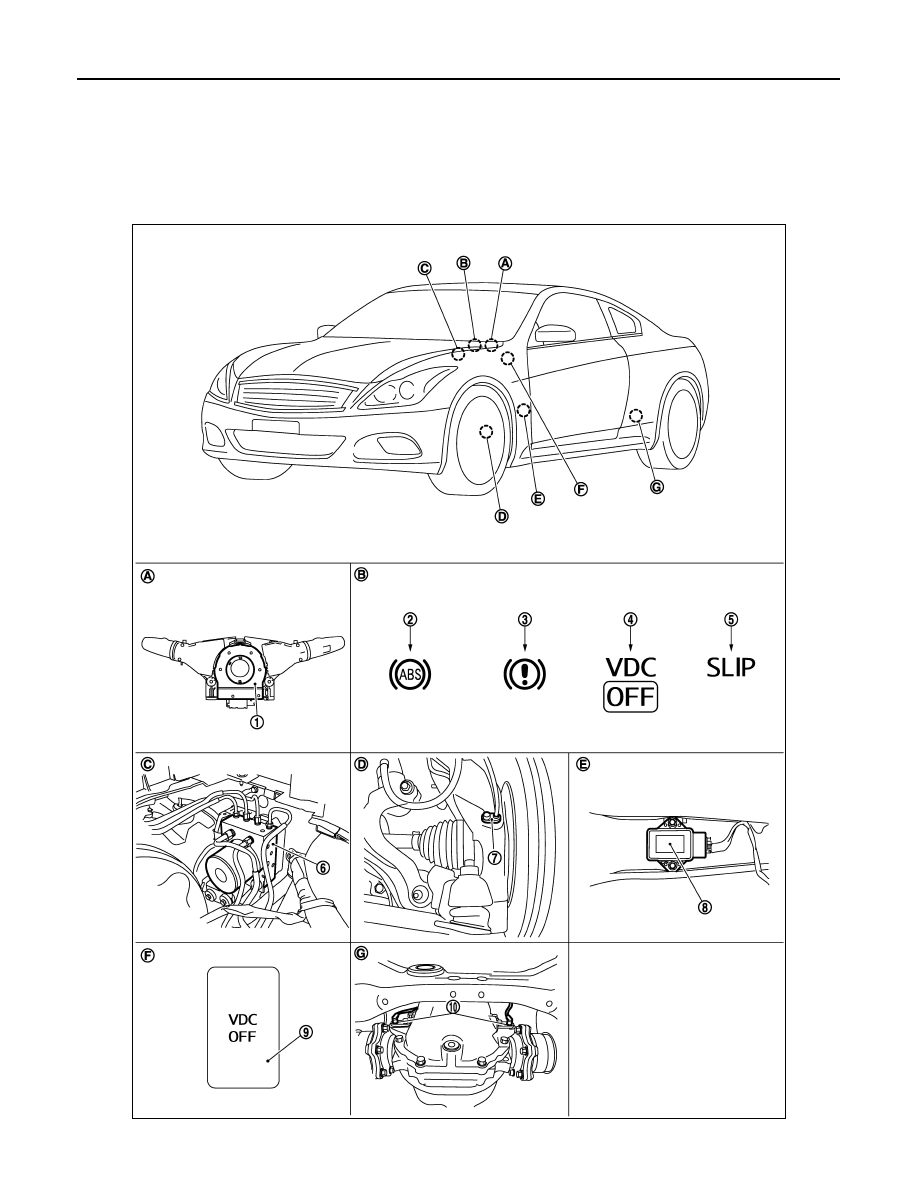

For Canada

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear final drive assembly

JSFIA0126ZZ

ABS

BRC-21

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000001645297

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear final drive assembly

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-40, "Description"

Motor

Actuator relay (Main relay)

BRC-42, "Description"

Solenoid valve

BRC-49, "Description"

Pressure sensor

BRC-57, "Description"

VDC switch-over valve
(USV1, USV2, HSV1, HSV2)

BRC-64, "Description"

Wheel sensor

BRC-31, "Description"

Yaw rate/side G sensor

BRC-61, "Description"

Steering angle sensor

BRC-59, "Description"

VDC OFF switch

BRC-73, "Description"

ABS warning lamp

BRC-75, "Description"

Brake warning lamp

BRC-76, "Description"

VDC OFF indicator lamp

BRC-77, "Description"

SLIP indicator lamp

BRC-78, "Description"
