INSPECTION AND ADJUSTMENT

AV-369

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000001558762

Always correct the center position of the rear view monitor's possible route line after disconnecting the battery
negative terminal.

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000001558763

CORRECTION OF CENTER POSITION OF REAR VIEW MONITOR'S POSSIBLE ROUTE LINE

Refer to the following for details.

>> Refer to

AV-369, "REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION

ADJUSTMENT : Special Repair Requirement"

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001558764

When camera control unit is replaced, the center position of rear view monitor possible route line is corrected.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001558765

CORRECTION OF CENTER POSITION OF REAR VIEW MONITOR'S POSSIBLE ROUTE LINE

Refer to the following for details.

>> Refer to

AV-369, "REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION

ADJUSTMENT : Special Repair Requirement"

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Description

INFOID:0000000001558766

Adjust the center position of the possible route line of the rear view monitor if it is shifted.

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Special Repair Requirement

INFOID:0000000001558767

STEERING OPERATION

Steer the steering wheel to the leftmost and rightmost ends.

>> GO TO 2

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

AV-370

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

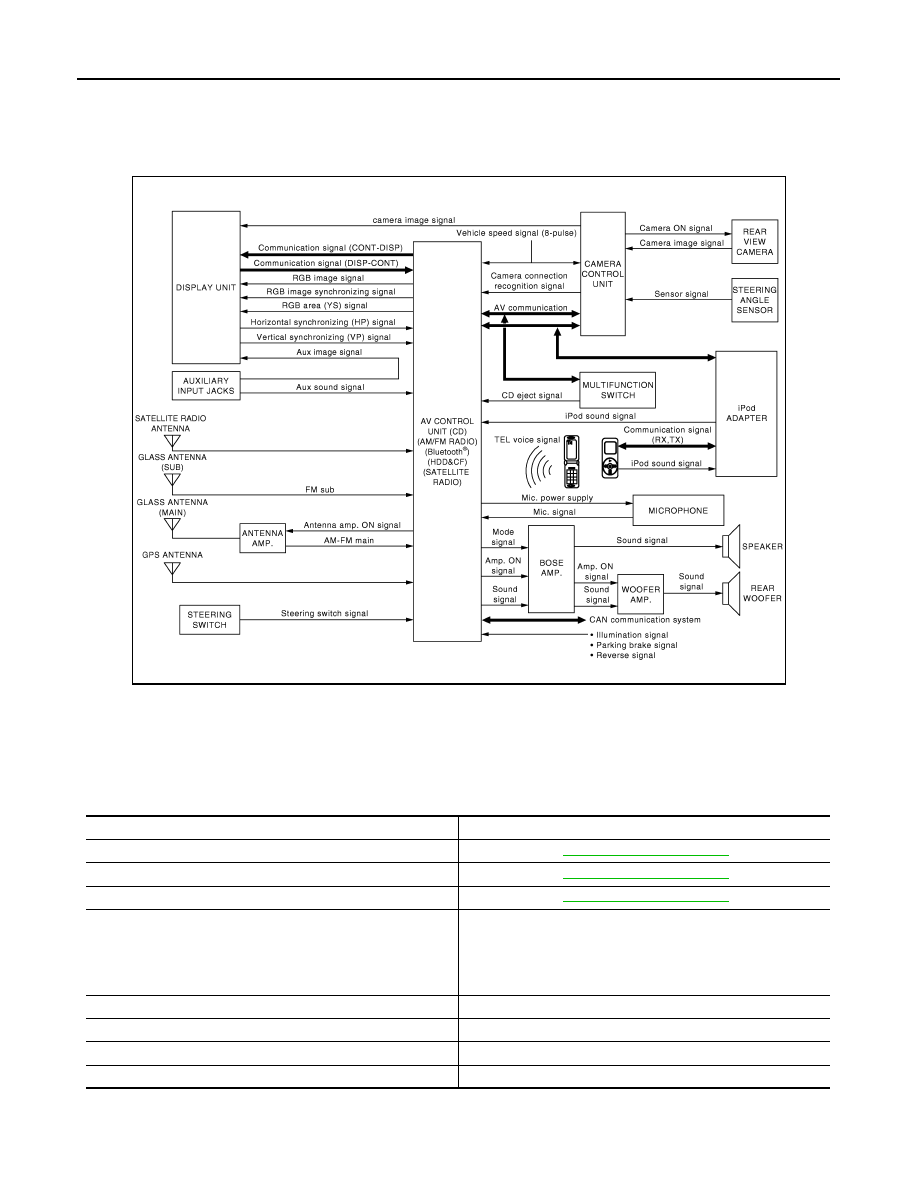

System Diagram

INFOID:0000000001558770

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

System Description

INFOID:0000000001558771

Multi AV system means that the following systems are integrated.

• AV control unit function by transmitting/receiving data one by one with each unit (slave unit) that configures

them completely as a master unit by connecting between units that configure MULTI AV system with two AV
communication lines (H, L).

JPNIA0405GB

System name

System explanation

NAVIGATION SYSTEM

AV-376, "System Description"

AUDIO SYSTEM

AV-384, "System Description"

REAR VIEW MONITOR SYSTEM

AV-381, "System Description"

VEHICLE INFORMATION SYSTEM

• Status of audio, climate control system, fuel economy, mainte-

nance and navigation is displayed.

• AV control unit displays the fuel consumption status while re-

ceiving data signal through CAN communication from ECM,
unified meter and A/C amp. and BCM.

HANDS-FREE PHONE SYSTEM

Refer to the following “HANDS-FREE PHONE SYSTEM”.

AUXILIARY INPUT SYSTEM

Refer to the following “AUXILIARY INPUT SYSTEM”.

VOICE RECOGNITION SYSTEM

Refer to the following “VOICE RECOGNITION SYSTEM”.

TOUCH PANEL SYSTEM

Refer to the following “TOUCH PANEL SYSTEM”.

MULTI AV SYSTEM

AV-371

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• AV control unit is connected by CAN communication, and it receives data signal from ECM, unified meter

and A/C amp. It computes and displays fuel economy information value with the obtained information. Trans-
mitting/receiving of data signal is performed by BCM. Also, it transmits the required signal of vehicle setting
and receives the response signal.

• AV control unit is connected with display and serial communication, and it transmits the required signal of

display and display control and receives the response signal from display. Also, it is connected with satellite
radio by serial communication, and it transmits the operating signal and receives the display signal.

NOTE:
AV control unit can perform CONSULT-III self-operating function and on board self-diagnosis.
• CONSULT-III self diagnosis: Refer to

AV-403, "CONSULT - III Function (MULTI AV)"

• On board self diagnosis: Refer to

AV-388, "Diagnosis Description"

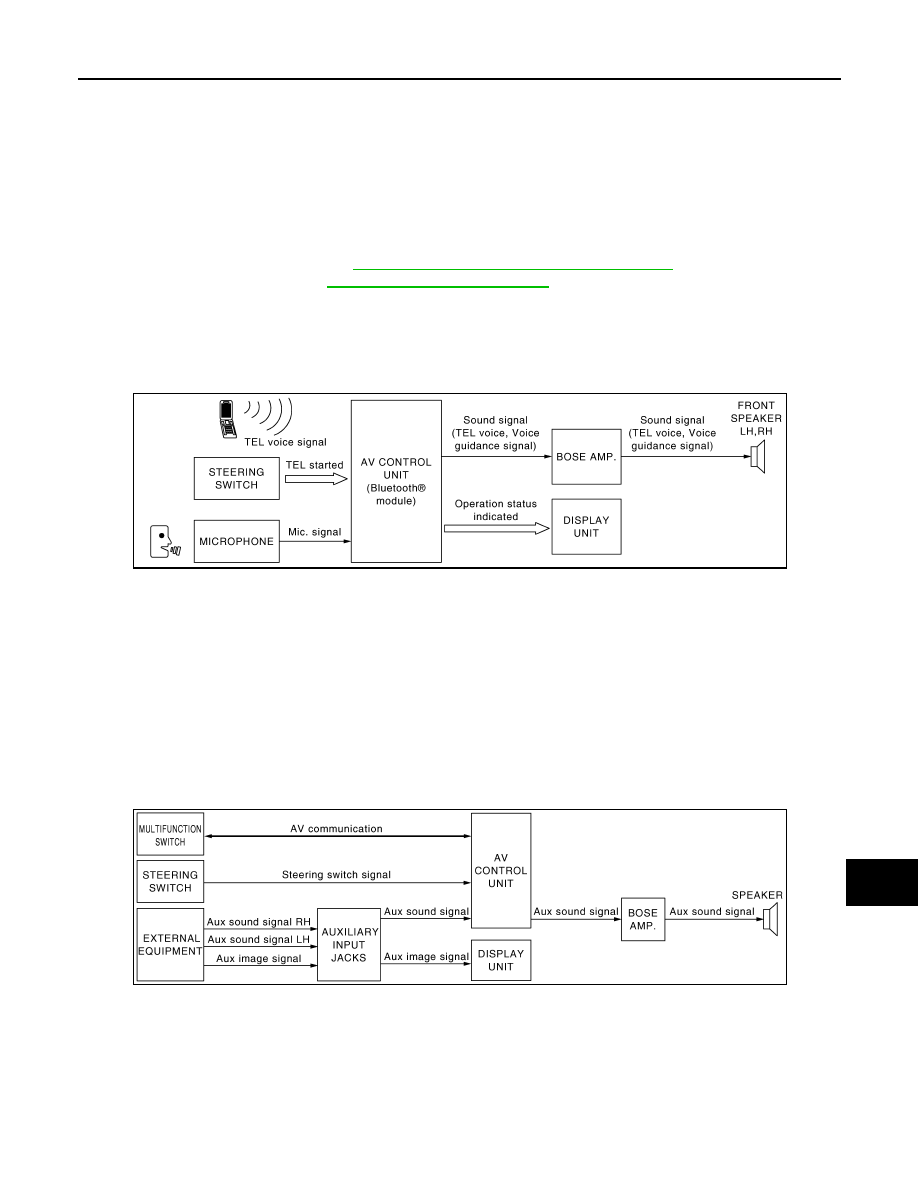

HANDS-FREE PHONE SYSTEM

• Hands-free communication can be operated by connecting using Bluetooth

with cellular phone.

• Operation is performed by steering switch, and operating condition is indicated on display.
• Guide sound that is heard during operation is input from AV control unit to BOSE amp., and is output from

door speaker.

When a call is originated

Spoken voice sound output from the microphone (Mic. Signal) is input to AV control unit. AV control unit out-
puts to cellular phone with Bluetooth communication as a TEL voice signal. Voice sound is then heard at the
other party.

When receiving a call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to door speaker, and
the signal is input to BOSE amp. via AV control unit by establishing Bluetooth communication from cellular
phone.

AUXILIARY INPUT SYSTEM

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• Operation can be performed with multifunction switch and steering switch. Multifunction switch transmits

operation signal to AV control unit by AV communication.

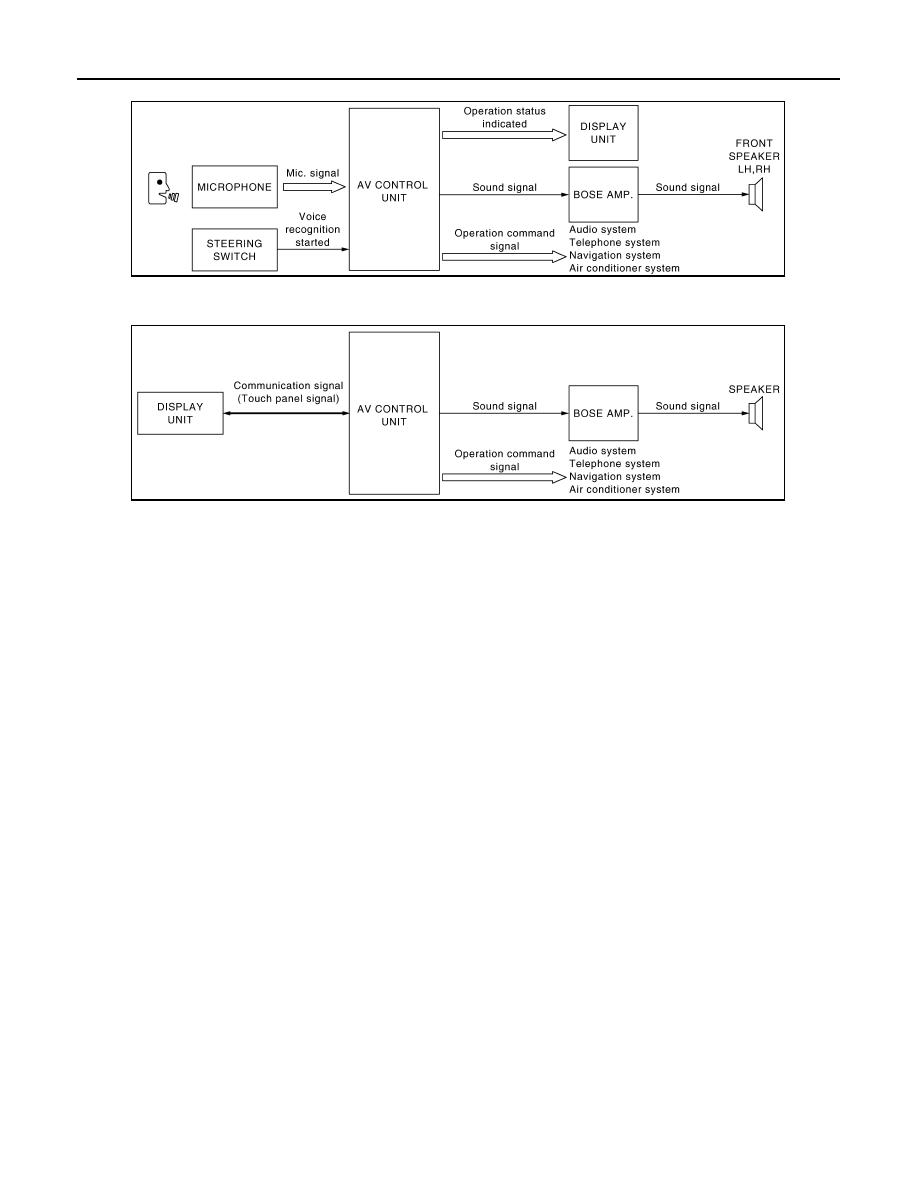

VOICE RECOGNITION SYSTEM

• Each operation of multi AV system can be performed by inputting sound to microphone.

JPNIA0510GB

JSNIA0056GB

AV-372

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

• Start of sound recognition system can be performed by steering switch.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a display.

JSNIA0053GB

JSNIA0052GB
