Infiniti G37 Coupe. Manual - part 1366

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-317

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

7.

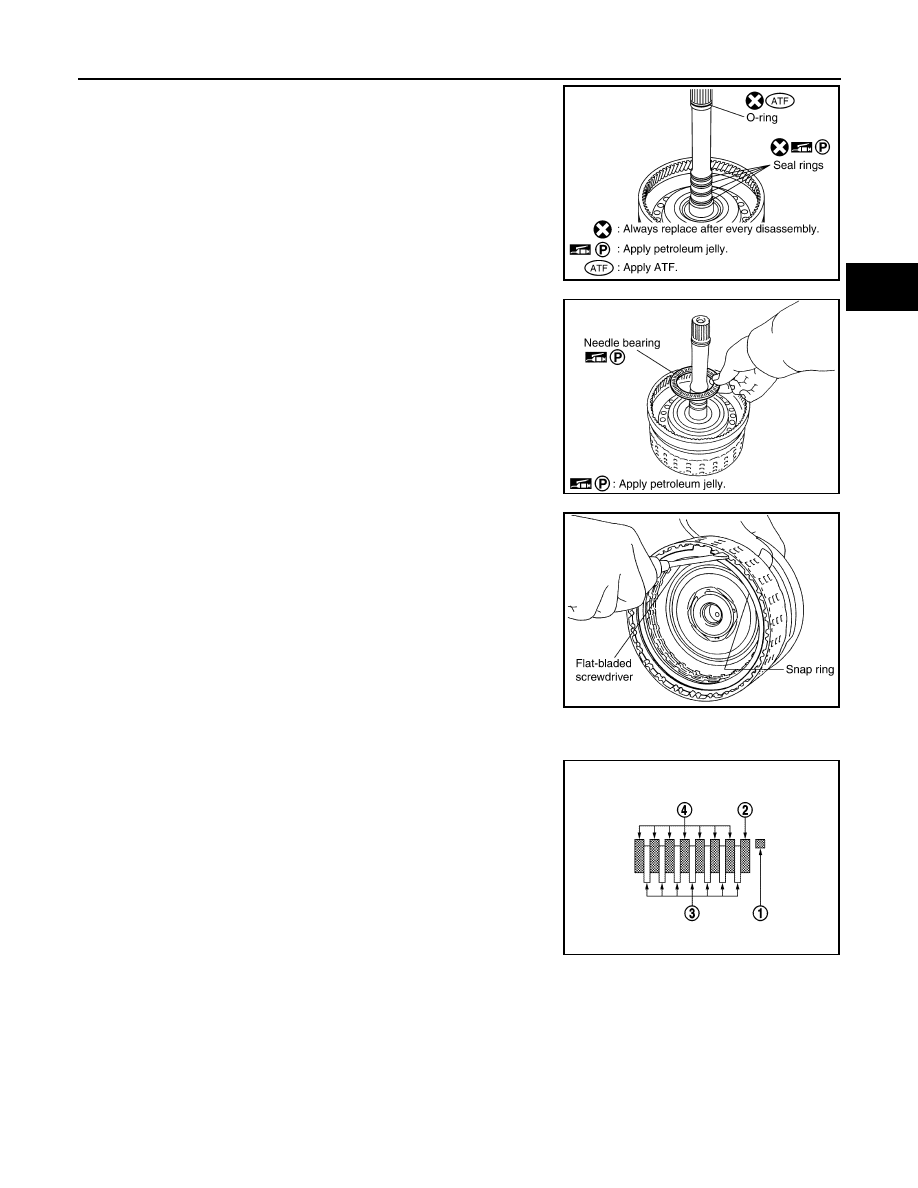

Remove O-ring and seal rings from input clutch assembly.

8.

Remove needle bearing from input clutch assembly.

9.

Using a flat-bladed screwdriver, remove snap ring from input
clutch drum.

10. Remove drive plates, driven plates and retaining plate from input

clutch drum.

Assembly

INFOID:0000000001672309

1.

Install drive plates, driven plates and retaining plate in input
clutch drum.

CAUTION:

Check order of plates.

SCIA5235E

SCIA2853E

SCIA2864E

1

:  Snap  ring

2

: Retaining plate

3

: Drive plate

4

: Driven plate

7 /7

: Drive plate / Driven plate

SCIA7133E

TM-318

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

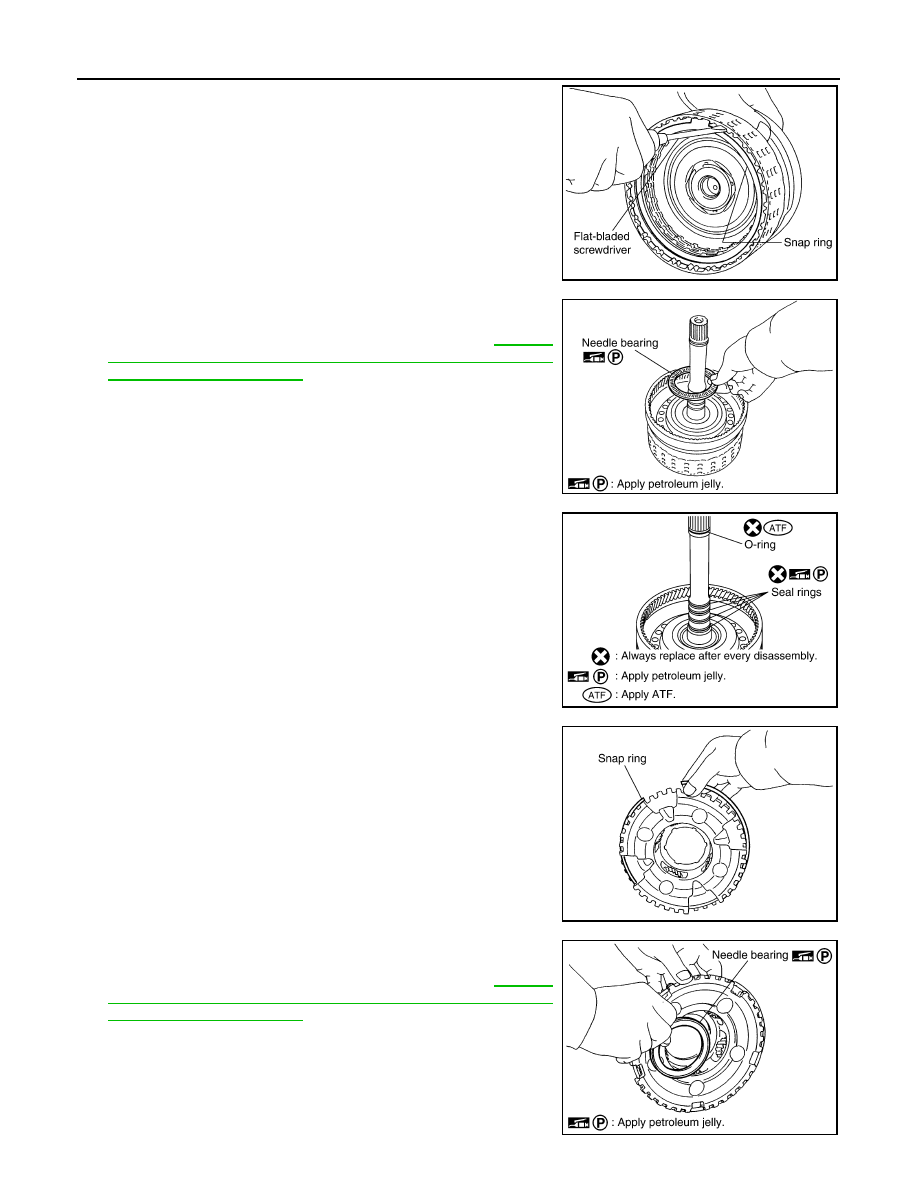

2.

Using a flat-bladed screwdriver, install snap ring in input clutch
drum.

3.

Install needle bearing in input clutch assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

4.

Install O-ring and seal rings in input clutch assembly.

5.

Install snap ring to front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

6.

Install needle bearing in front carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

SCIA2864E

SCIA2853E

SCIA5235E

SCIA5476E

SCIA5233E

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-319

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

7.

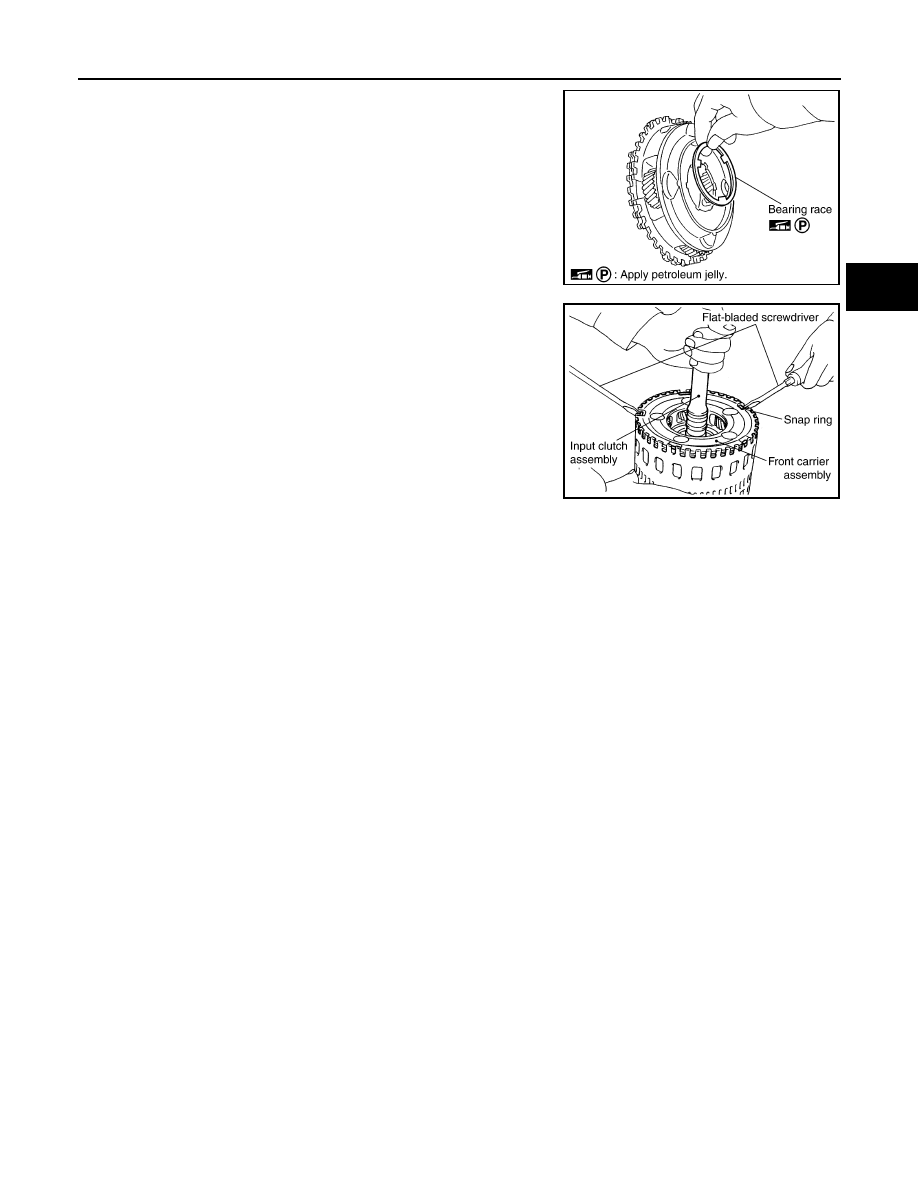

Install bearing race in front carrier assembly.

8.

Install front carrier assembly to input clutch assembly.

9.

Compress snap ring using 2 flat-bladed screwdrivers.

10. Install front carrier assembly and input clutch assembly to rear

internal gear.

Inspection

INFOID:0000000001672310

• Front Carrier Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

• Input Clutch Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Drum

Check for deformation, fatigue or damage or burns.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Drive Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Input Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

CAUTION:

If necessary, replace the input clutch assembly.

• Front Carrier

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front carrier assembly.

• Rear Internal Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the rear internal gear.

SCIA2847E

SCIA5339E

TM-320

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

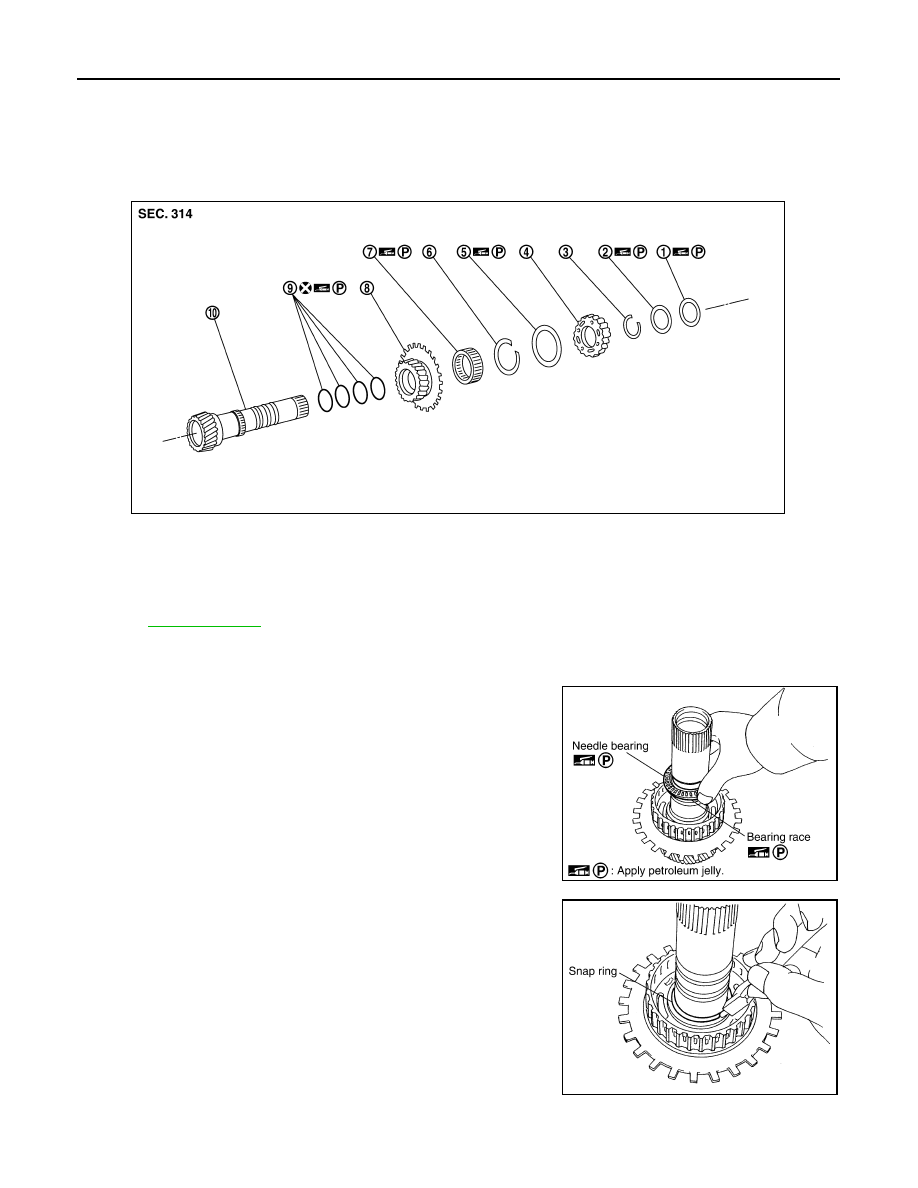

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH
HUB

Exploded View

INFOID:0000000001672311

Disassembly

INFOID:0000000001672312

1.

Remove needle bearing and bearing race from high and low
reverse clutch hub.

2.

Using pair of snap ring pliers, remove snap ring from mid sun
gear assembly.

CAUTION:

Do not expand snap ring excessively.

1.

Needle bearing

2.

Bearing race

3.

Snap ring

4.

High and low reverse clutch hub

5.

Needle bearing

6.

Snap ring

7.

1st one-way clutch

8.

Rear sun gear

9.

Seal ring

10. Mid sun gear

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA8369E

SCIA2854E

SCIA2855E
