Infiniti G37 Coupe. Manual - part 1348

PARKING COMPONENTS

TM-245

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PARKING COMPONENTS

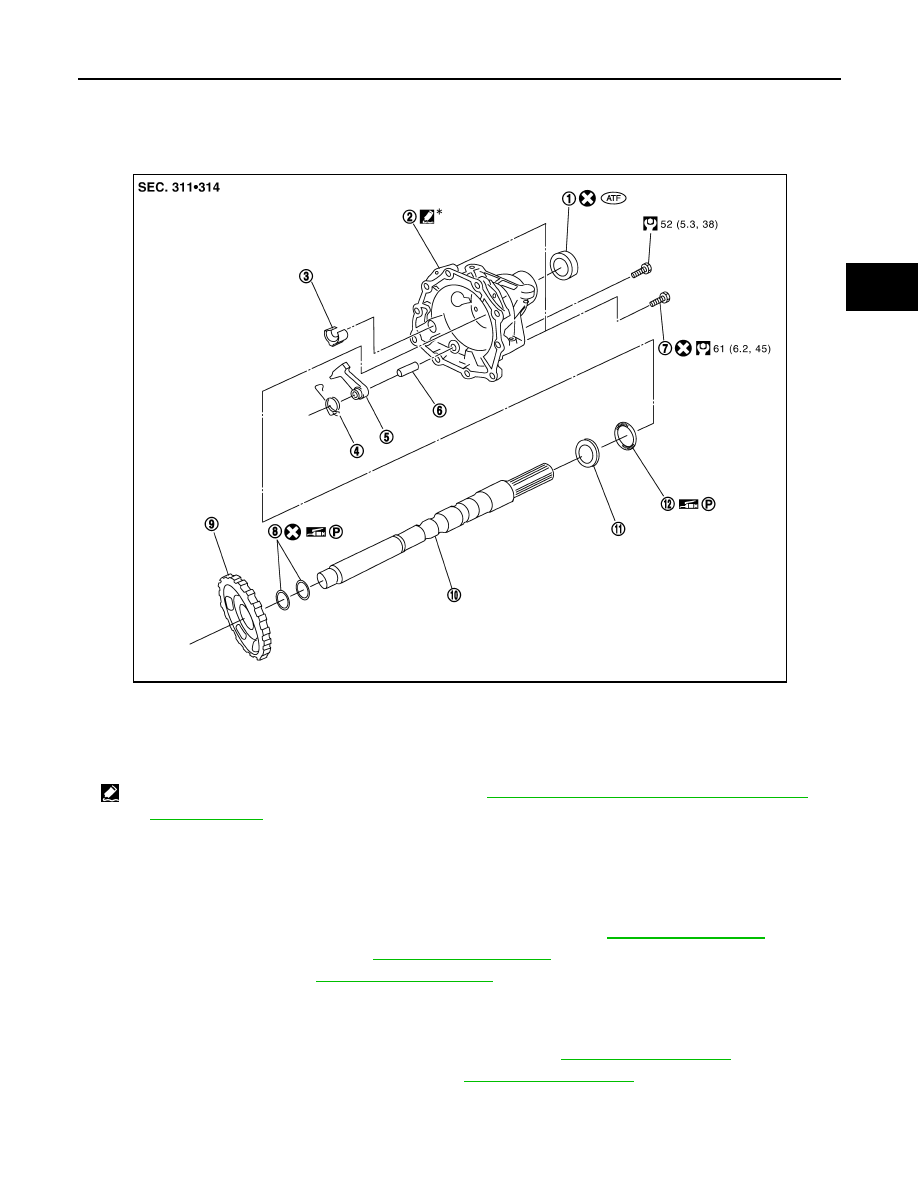

Exploded View

INFOID:0000000001672266

Removal and Installation

INFOID:0000000001672267

REMOVAL

1.

Drain ATF through drain plug.

2.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-5, "Exploded View"

.

3.

Remove rear propeller shaft. Refer to

DLN-14, "Exploded View"

.

4.

Remove control rod. Refer to

TM-229, "Exploded View"

.

5.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, be careful not to allow it to collide against the drain plug.

6.

Remove rear engine mounting member with power tool. Refer to

EM-67, "Exploded View"

.

7.

Remove engine mounting insulator (rear). Refer to

EM-67, "Exploded View"

.

1.

Rear oil seal

2.

Rear extension

3.

Parking actuator support

4.

Return spring

5.

Parking pawl

6.

Pawl shaft

7.

Self-sealing bolt

8.

Seal ring

9.

Parking gear

10.

Output shaft

11.

Bearing race

12. Needle bearing

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA8364E

TM-246

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

PARKING COMPONENTS

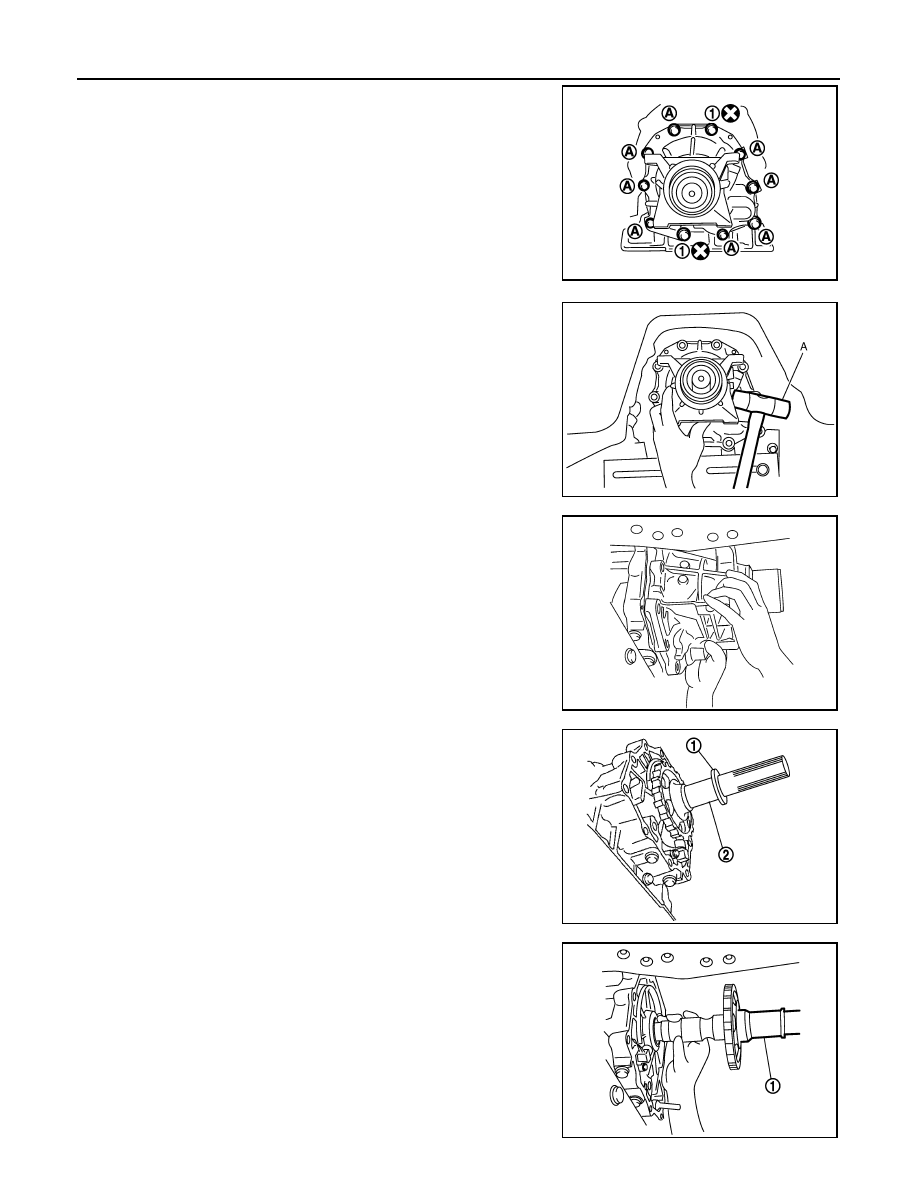

8.

Remove tightening bolts for rear extension assembly and trans-
mission case.

9.

Tap rear extension assembly with a soft hammer (A).

10. Remove rear extension assembly (with needle bearing) from

transmission case.

11. Remove bearing race (1) from output shaft (2).

12. Remove output shaft (1) from transmission case by rotating left/

right.

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ

JPDIA0027ZZ

SCIA3431E

JPDIA0057ZZ

JPDIA0028ZZ

PARKING COMPONENTS

TM-247

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

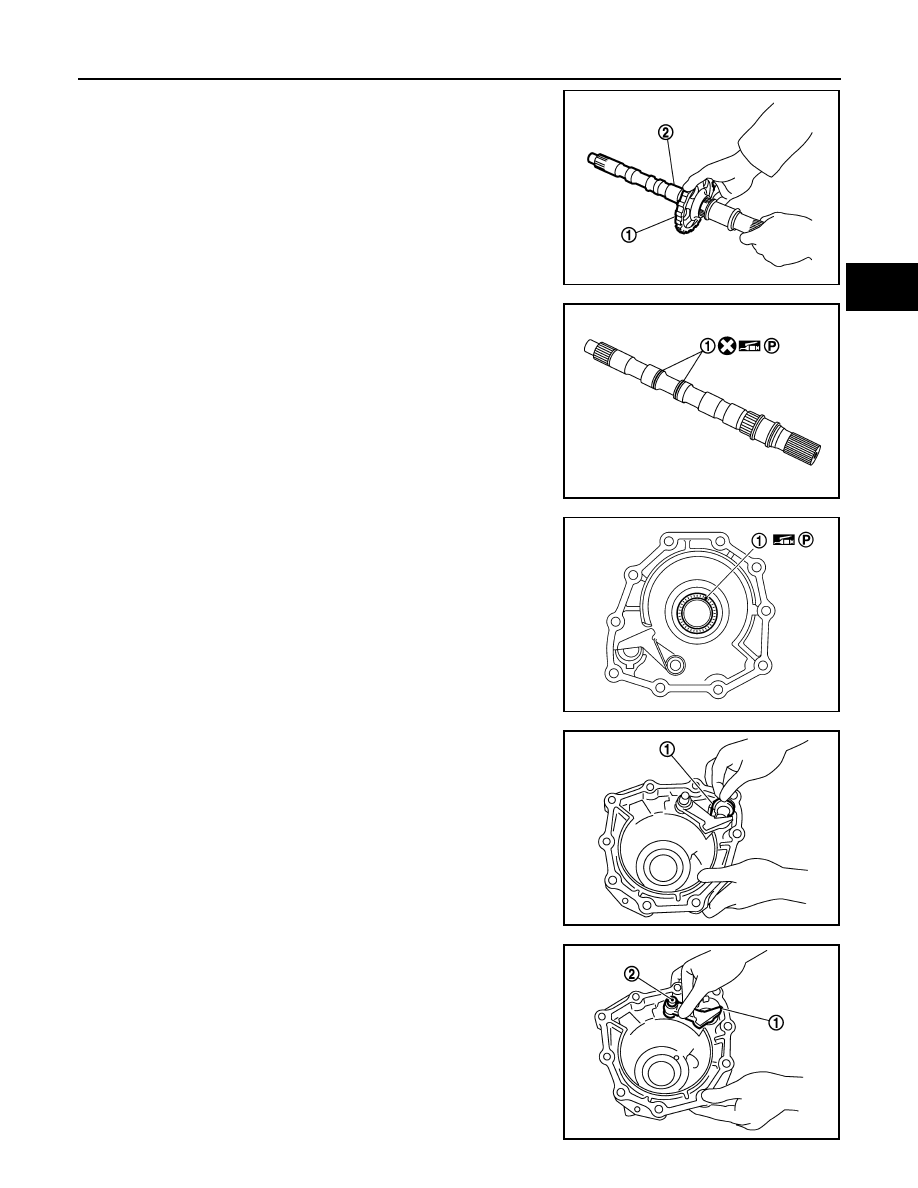

13. Remove parking gear (1) from output shaft (2).

14. Remove seal rings (1) from output shaft.

15. Remove needle bearing (1) from rear extension.

16. Remove parking actuator support (1) from rear extension.

17. Remove parking pawl (with return spring) (1) and pawl shaft (2)

from rear extension.

JPDIA0029ZZ

JPDIA0030ZZ

SCIA6179J

JPDIA0031ZZ

JPDIA0032ZZ

TM-248

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

PARKING COMPONENTS

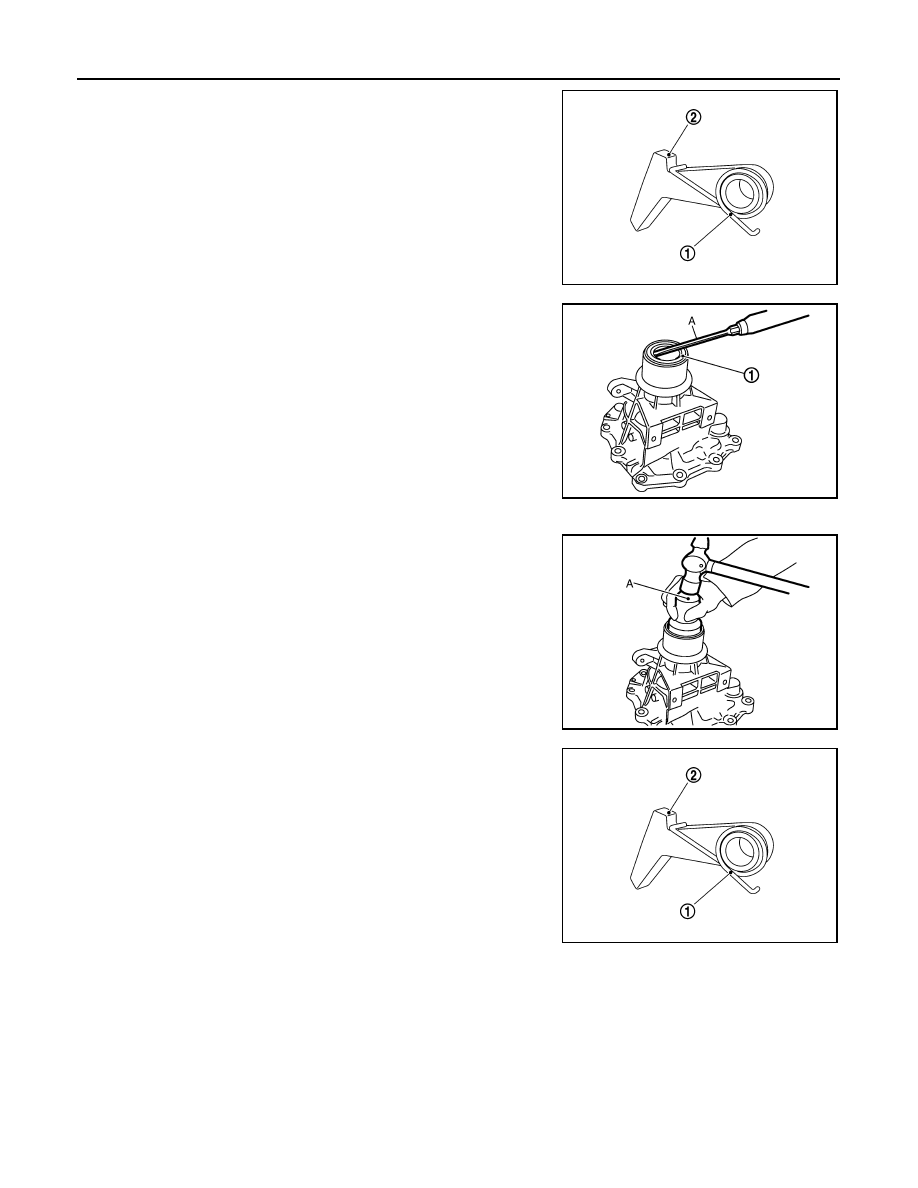

18. Remove return spring (1) from parking pawl (2).

19. Remove rear oil seal (1) from rear extension using flat-blade

screwdriver (A).

CAUTION:

Be careful not to scratch rear extension.

INSTALLATION

1.

As shown in the figure, use a drift [SST: ST33400001 (J-26082)]
(A) to drive rear oil seal into the rear extension until it is flush.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.

2.

Install return spring (1) to parking pawl (2).

SCIA6180J

JPDIA0033ZZ

JPDIA0035ZZ

SCIA6180J
