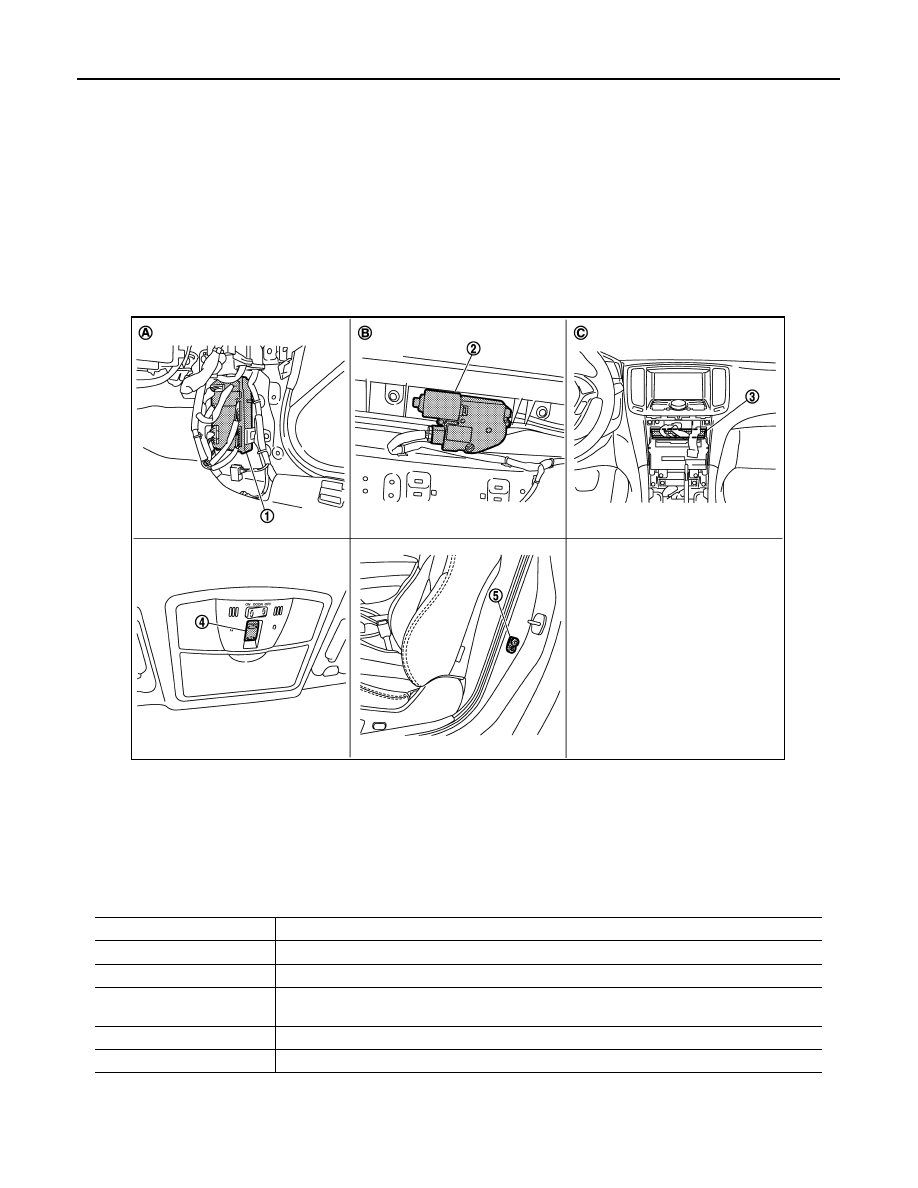

SUNROOF SYSTEM RF-5 < FUNCTION DIAGNOSIS > C D E F G H I J L M A B RF N O P FUNCTION DIAGNOSIS SUNROOF SYSTEM System Diagram INFOID:0000000001693819 SUNROOF System Description INFOID:0000000001693820 SUNROOF SYSTEM INPUT/OUTPUT SIGNAL CHART SUNROOF OPERATION • Sunroof motor assembly operates with the power supply that is output from BCM while ignition switch is ON or retained power is operating. • Tilt up/down & slide open/close signals from sunroof switch enables operate sunroof motor to move arbi- trarily. • Sunroof motor assembly receives a vehicle speed signal from unified meter and A/C amp. and controls the sunroof motor torque of tilt-down at the time of high speed operation. AUTO OPERATION Sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the sunroof with- RETAINED POWER OPERATION • Retained power operation is an additional power supply function that enables sunroof system to operate for 45 seconds period of time even when ignition switch is turned OFF. Retained power function cancel conditions • Front door CLOSE (door switch OFF) → OPEN (door switch ON). • When ignition switch is ON again. JMKIA1208GB Item Input signal to sunroof motor assembly Sunroof motor function Actuator Sunroof switch Sunroof switch signal (tilt down or slide Sunroof control Sunroof motor Sunroof switch signal (tilt up or slide Unified meter and A/ Vehicle speed signal BCM RAP signal |
