Infiniti G37 Coupe. Manual - part 100

AV

U1200 AV CONTROL UNIT

AV-153

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1200 AV CONTROL UNIT

Description

INFOID:0000000001559006

Replace the AV control unit if this DTC is displayed. Refer to

AV-343, "Exploded View"

.

DTC Logic

INFOID:0000000001559007

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication
signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and unified meter and A/C amp via CAN communica-

tion to obtain necessary information for the vehicle information function.

• It is connected to BCM via CAN communication transmitting/receiving for the

vehicle settings function.

• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

• Auxiliary image signal is input from the auxiliary input jacks.

DTC

Display contents of

CONSULT-III

DTC Detection Condition

Action to take

U1200

Cont Unit
FLASH- ROM
[U1200]

An internal malfunction is detected in AV control unit
(FLASH-ROM).

Replace AV control unit.

AV-154

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

U1216 AV CONTROL UNIT

U1216 AV CONTROL UNIT

Description

INFOID:0000000001559008

Replace the AV control unit if this DTC is displayed. Refer to

AV-343, "Exploded View"

.

DTC Logic

INFOID:0000000001559009

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication
signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and unified meter and A/C amp via CAN communica-

tion to obtain necessary information for the vehicle information function.

• It is connected to BCM via CAN communication transmitting/receiving for the

vehicle settings function.

• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

• Auxiliary image signal is input from the auxiliary input jacks.

DTC

Display contents of

CONSULT-III

DTC Detection Condition

Action to take

U1216

CAN CONT
[U1216]

Internal malfunction of AV control unit (CAN controller) is
detected.

Replace AV control unit.

AV

U1243 DISPLAY UNIT

AV-155

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1243 DISPLAY UNIT

Description

INFOID:0000000001559010

DTC Logic

INFOID:0000000001559011

Diagnosis Procedure

INFOID:0000000001559012

1.

CHECK DISPLAY UNIT POWER SUPPLY AND GROUND CIRCUIT

Check display unit power supply and ground circuit. Refer to

AV-160, "DISPLAY UNIT : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair malfunctioning parts.

2.

CHECK CONTINUITY COMMUNICATION CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminals 11, 22 and AV control unit harness
connector terminals 56, 44.

4.

Check continuity between display unit harness connector terminals 11, 22 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK COMMUNICATION SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 11 and ground.

Part name

Description

DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• Inputs the RGB image signal (RGB, RGB area and RGB synchronizing) from

AV control unit and the auxiliary image signal from the auxiliary input jacks.

• Outputs the synchronizing signals (HP and VP) to the AV control unit.

DTC

Display contents of

CONSULT-III

DTC Detection Condition

Possible causes

U1243

FRONT DISP CONN
[U1243]

• Display unit power supply and ground circuit malfunc-

tion is detected.

• Malfunction is detected in communication circuit be-

tween AV control unit and display unit.

• Malfunction is detected in communication signal be-

tween AV control unit and display unit.

• Display unit power supply and

ground circuit.

• Communication circuit between AV

control unit and display unit.

11 - 56

: Continuity should exist.

22 - 44

: Continuity should exist.

11, 22 - Ground

: Continuity should not exist.

AV-156

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

U1243 DISPLAY UNIT

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK COMMUNICATION SIGNAL

Check signal between display unit harness connector terminal 22 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace display unit.

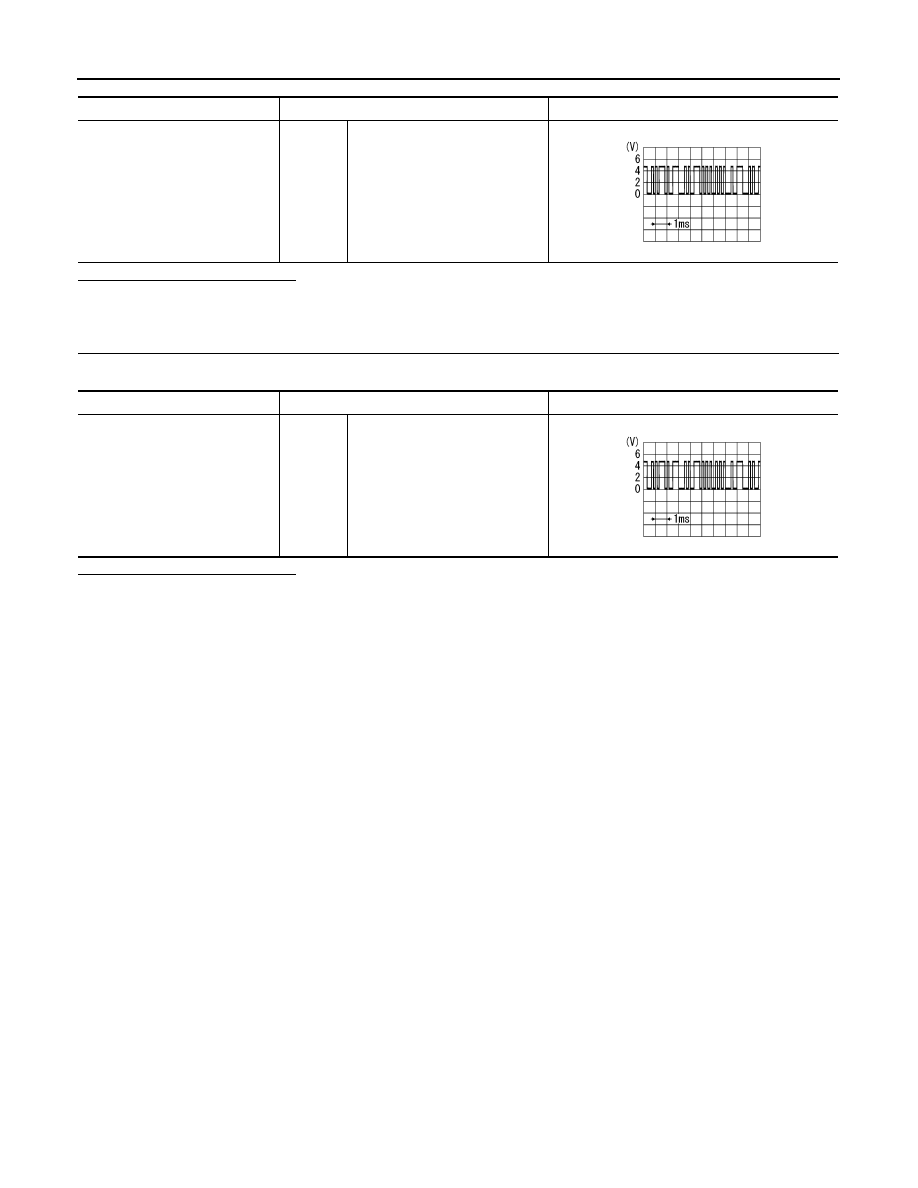

Terminal

Condition

Reference value

11 - Ground

Ignition

switch

ON

When adjusting display bright-
ness.

PKIB5039J

Terminal

Condition

Reference value

22 - Ground

Ignition

switch

ON

When adjusting display bright-
ness.

PKIB5039J
