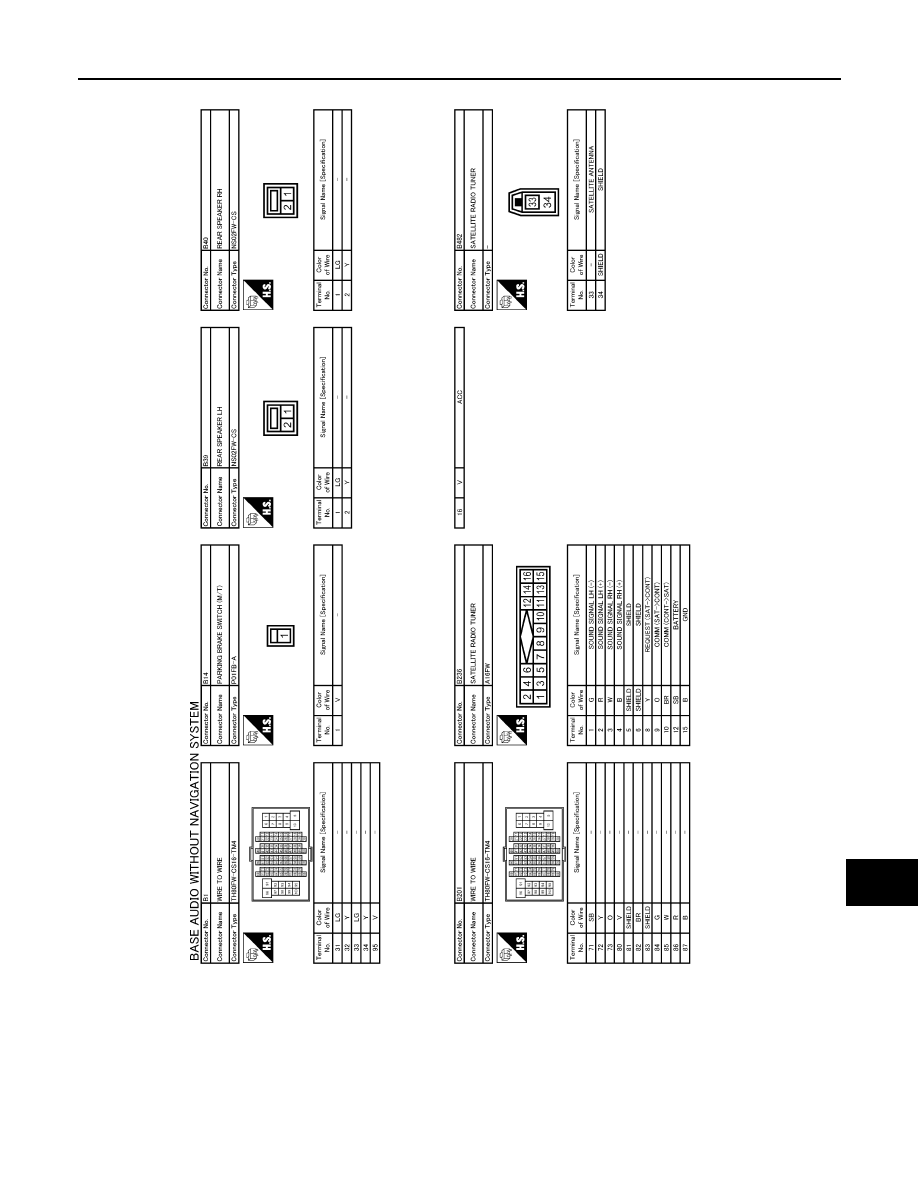

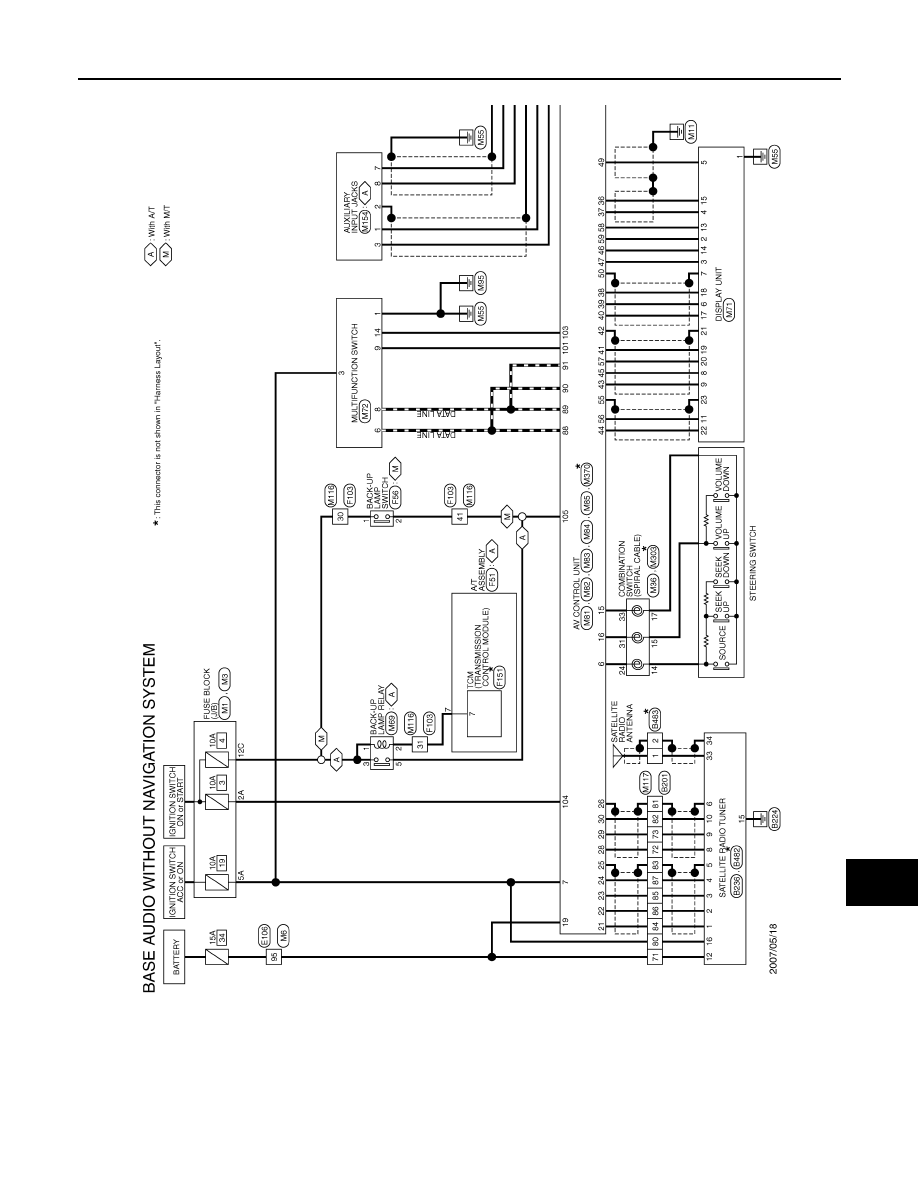

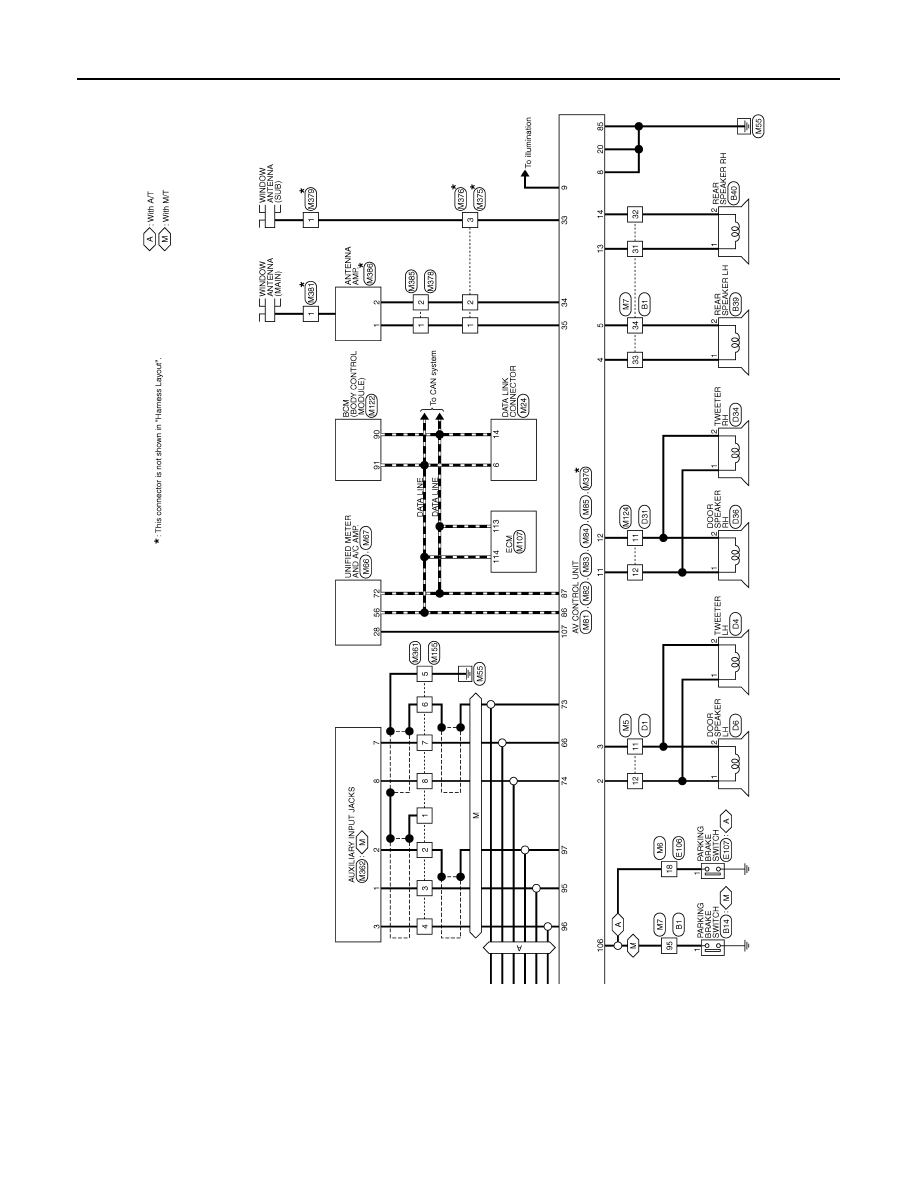

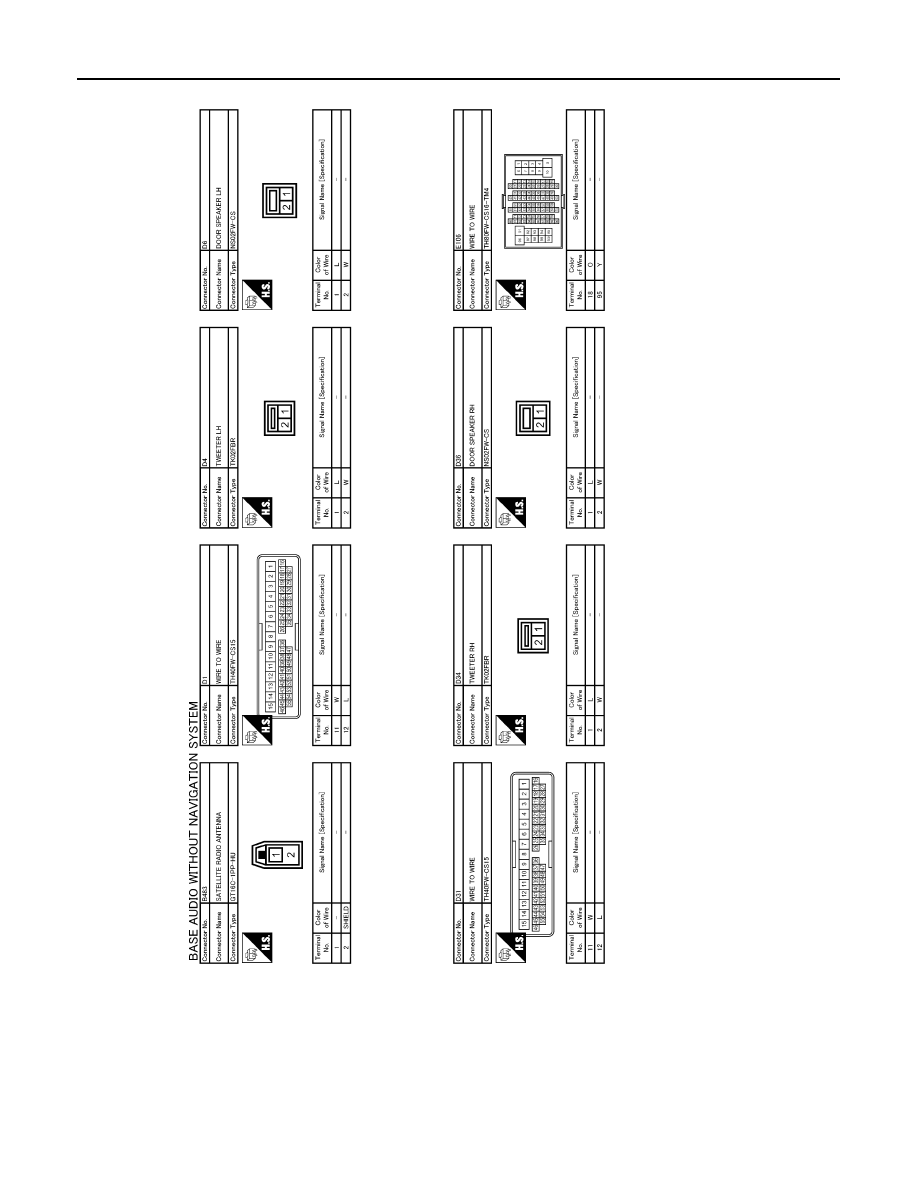

Wiring Diagram - BASE AUDIO WITHOUT NAVIGATION SYSTEM -

INFOID:0000000001689686

JCNWA0452GB

AV-82

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

JCNWA0453GB

AV

DISPLAY UNIT

AV-83

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0454GB

AV-84

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

JCNWA0455GB
