REAR BUMPER

Removal and Installation

INFOID:0000000000961797

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

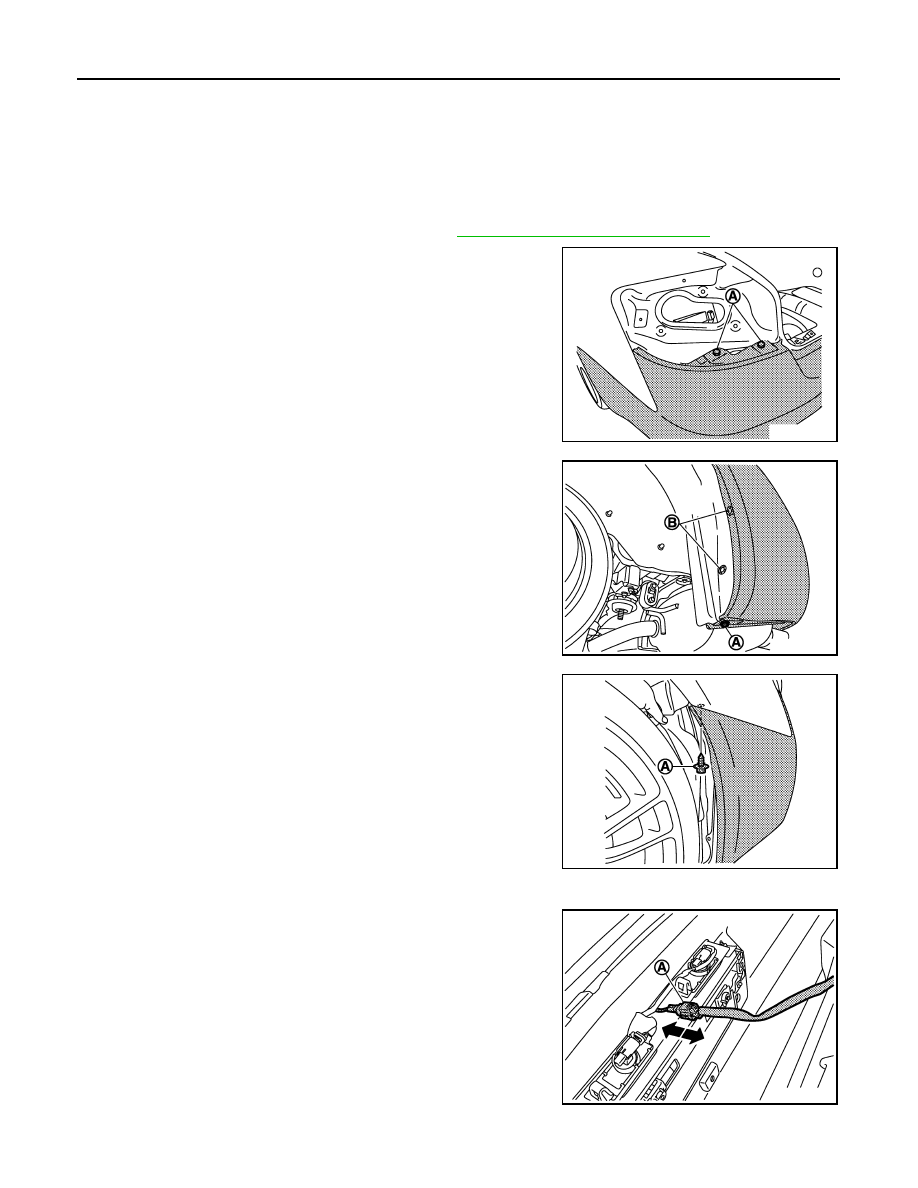

1.

Fully open trunk lid assembly.

2.

Remove rear combination lamp (LH/RH). Refer to

EXL-198, "Removal and Installation"

.

3.

Remove clips (A) located under rear combination lamp (LH/RH).

4.

Remove screw (A) of bumper fascia underside.

5.

Remove clips (B) of rear wheel house protector rear end (LH/
RH).

6.

Remove screws (A) of bumper fascia front end upper (LH/RH).

7.

Remove clips of bumper fascia underside, and then pull out bumper fascia toward rear of vehicle.

8.

Disconnect license plate lamp connector (A).

9.

Remove bumper fascia assembly.

JMKIA0093GB

JMKIA0094GB

JMKIA0095GB

JMKIA0096GB

REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia.

• License lamp. Refer to

EXL-202, "Removal and Installation"

.

• License lamp bracket.
• License plate bracket.
• Bumper clip.

11. Remove bumper energy absorber.

12. Remove license lamp harness clamps of bumper reinforcement.
13. Remove bumper reinforcement mounting nuts and bolts, and then remove bumper reinforcement with

power tool.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

Portion

Clearance

Rear bumper – Trunk lid

A – A

4.0 – 8.0 mm (0.157 – 0.315 in)

Rear bumper – Rear combination lamp

B – B

0.0 – 3.0 mm (0.000 – 0.118 in)

Rear bumper – Rear fender

C – C

0.0 – 0.8 mm (0.000 – 0.031 in)

Rear bumper – Rear fender

D – D

0.0 – 0.8 mm (0.000 – 0.031 in)

EXT-16

< ON-VEHICLE REPAIR >

FRONT GRILLE

FRONT GRILLE

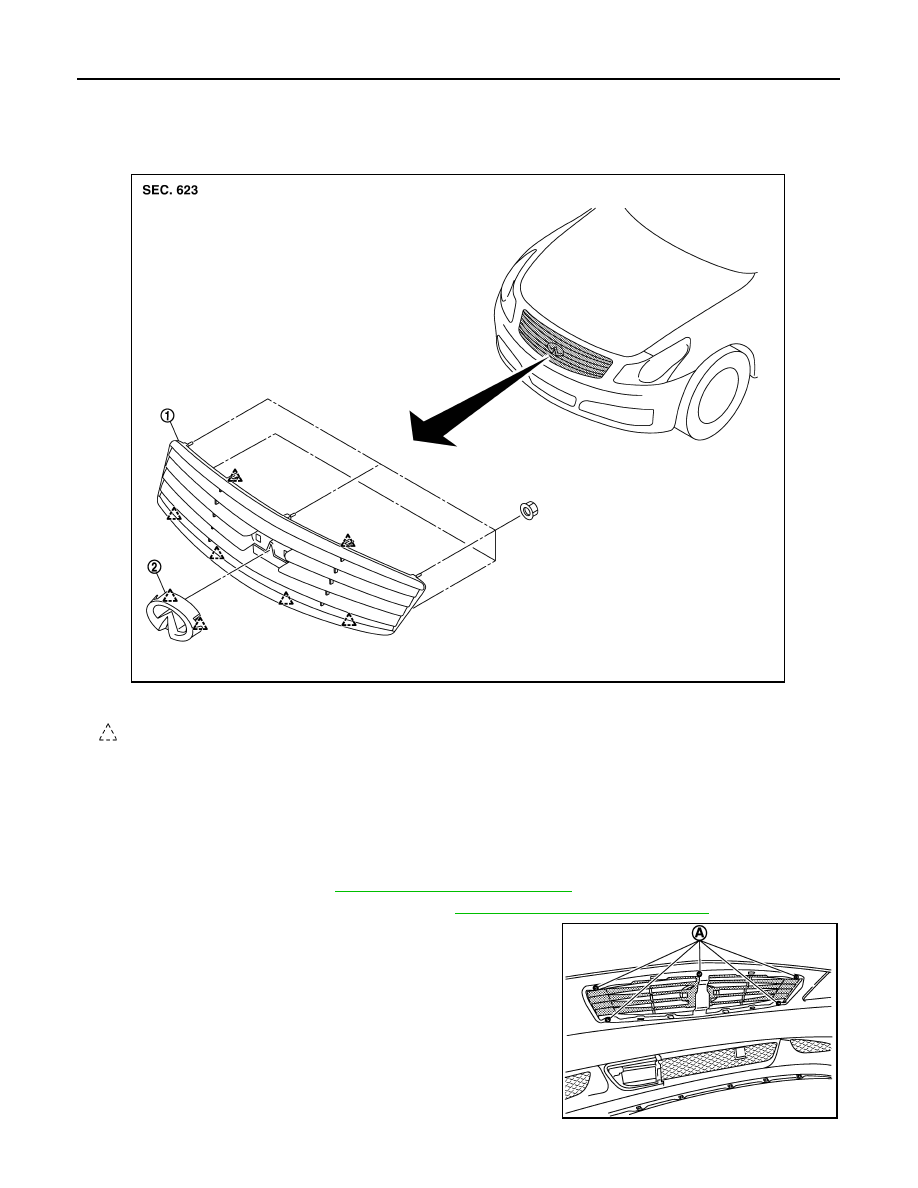

Exploded View

INFOID:0000000000961798

Removal and Installation

INFOID:0000000000961799

REMOVAL

CAUTION:

Apply protection tape around outer circumference of front grille (bumper fascia side).
1.

Fully open hood assembly.

2.

Remove reservoir tank. Refer to

CO-14, "Removal and Installation"

.

3.

Remove radiator core support ornament. Refer to

DLK-196, "Removal and Installation"

.

4.

Remove front grille mounting nuts (A).

1.

Front grille

2.

Front emblem

Pawl

JMKIA0076GB

JMKIA0097GB

FRONT GRILLE

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5.

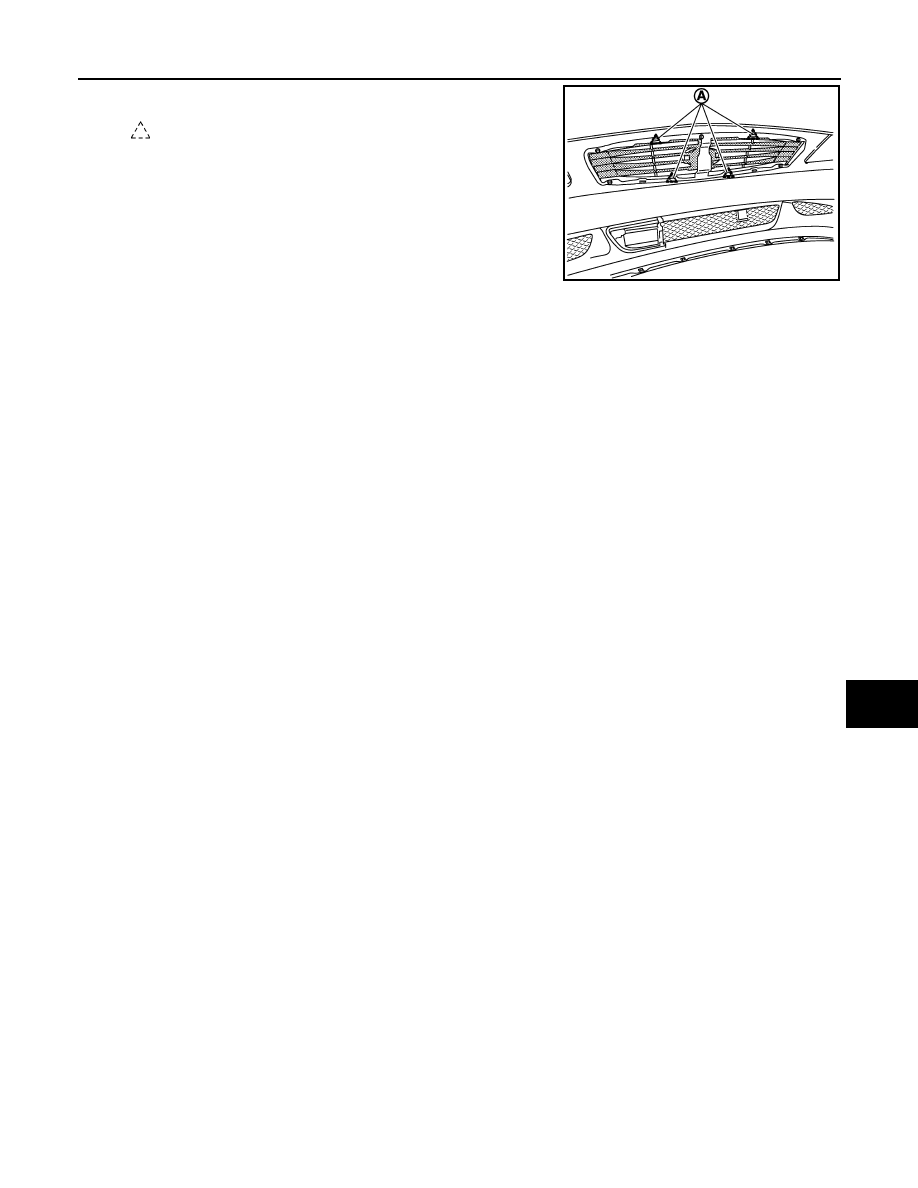

Disengage pawls (A) of fixing front grille.

6.

Pull front grille out toward vehicle front.

7.

Remove the following parts after removing front grille.
Front emblem

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA0098GB
