EVAP CANISTER
ON-VEHICLE REPAIR
EVAP CANISTER

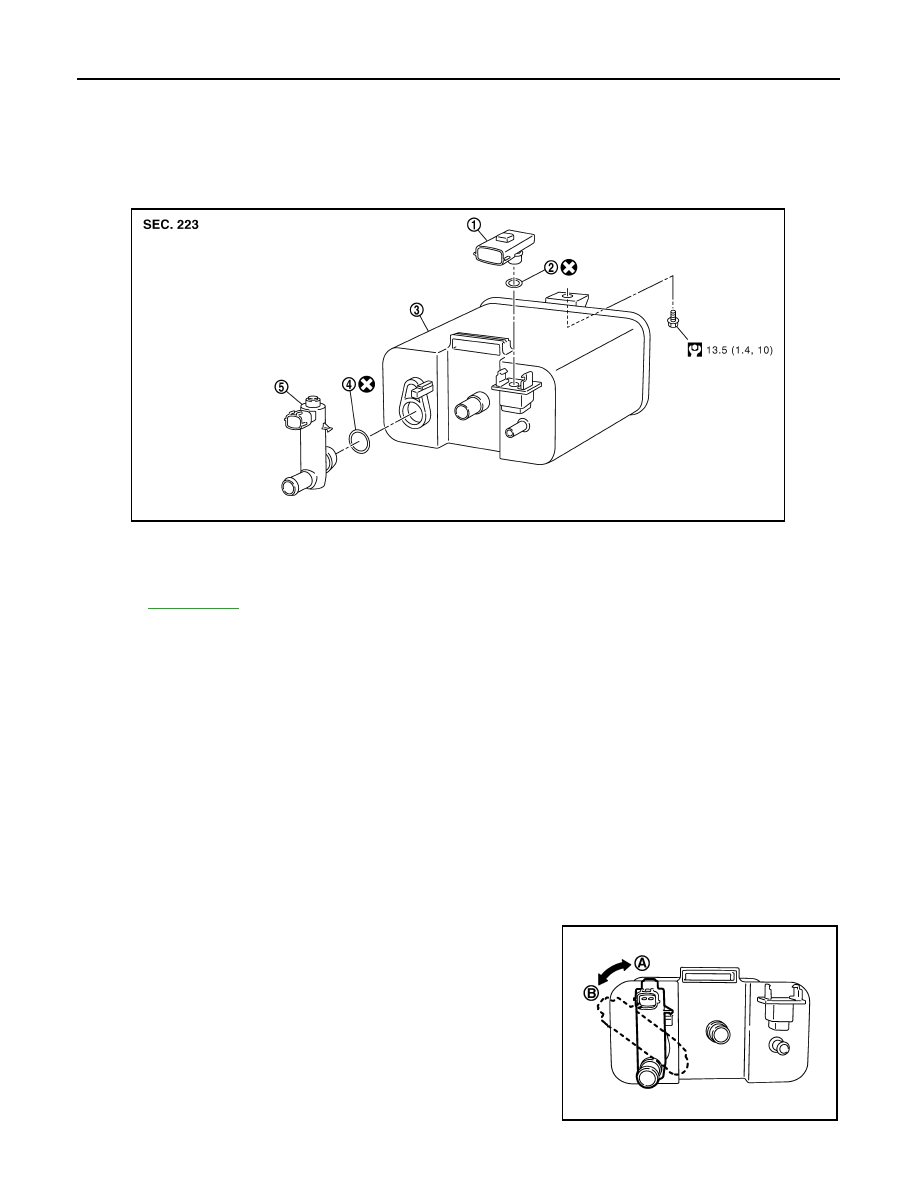

Exploded View
INFOID:0000000000956916
Removal and Installation
INFOID:0000000000956917

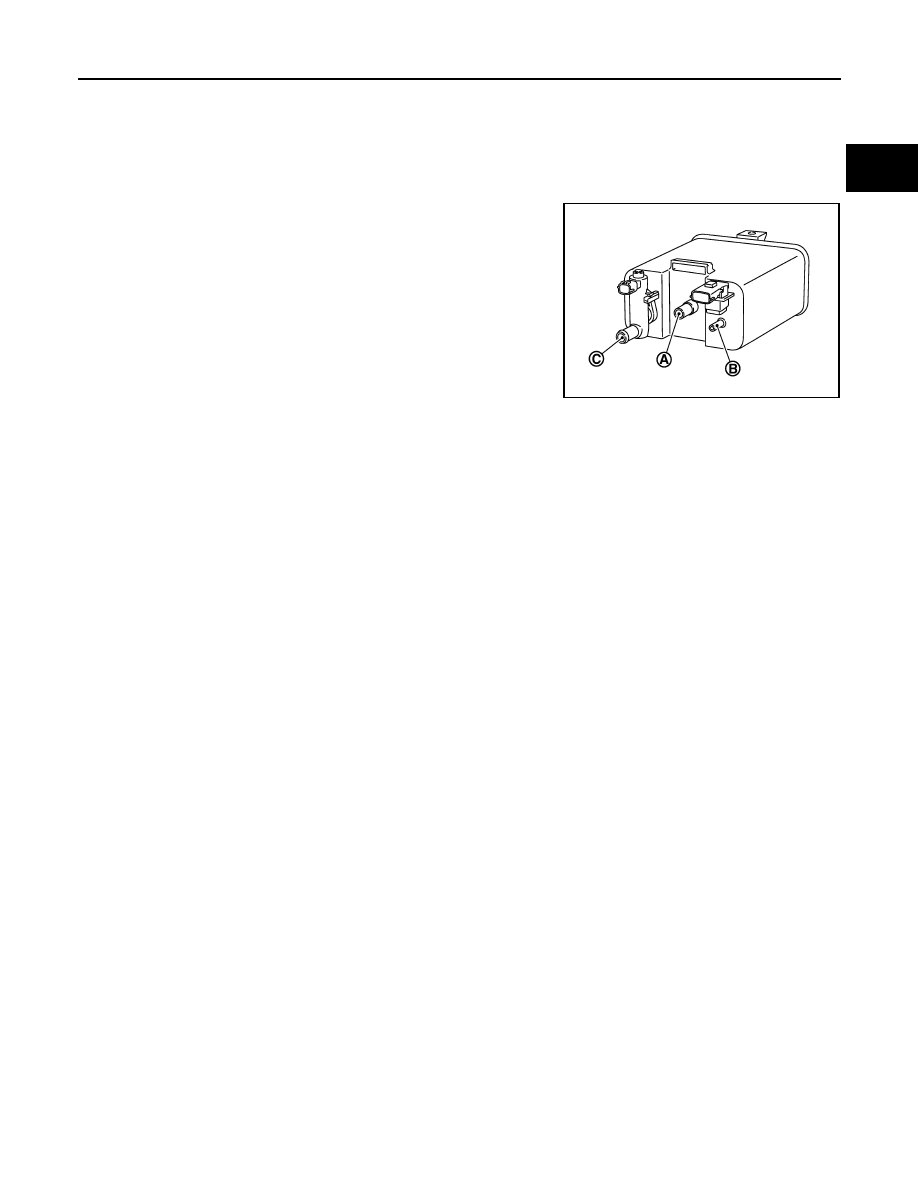

REMOVAL
1.
Lift up the vehicle.
2.
Remove EVAP canister fixing bolt.
3.
Remove EVAP canister.
NOTE:
The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without
removing the EVAP canister.
INSTALLATION
Install in the reverse order of removal.
NOTE:
Tighten EVAP canister fixing bolt to the specified torque.
DISASSEMBLY
1.
Turn EVAP canister vent control valve counterclockwise.
2.
Remove the EVAP canister vent control valve.
1.
EVAP canister system pressure sen-
sor
2.
O-ring
3.
EVAP canister
4.
O-ring
5.
EVAP canister vent control valve
Refer to
for symbols not described on the above.
JMBIA0049GB
A
: Lock
B
: Unlock
PBIB2730E
