Infiniti G35 (V35) Sedan. Manual - part 87

AV-120

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

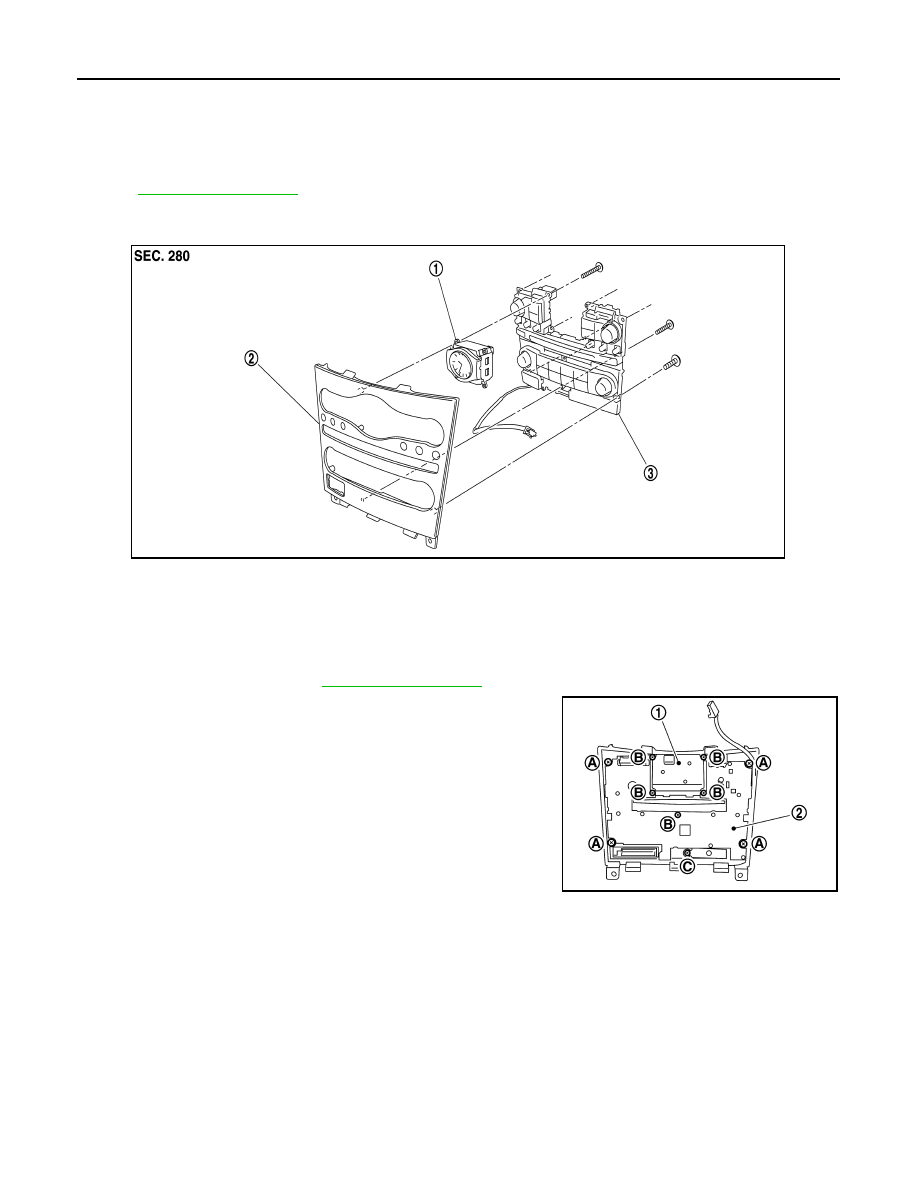

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000000964615

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964616

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove preset switch (2) from cluster lid C.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JPNIA0136ZZ

1.

Clock

A.

Screw

B.

Screw

C.

Screw

JSNIA0127ZZ

AV

STEERING SWITCH

AV-121

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000000964617

Refer to

ST-15, "Exploded View"

.

Removal and Installation

INFOID:0000000000964618

REMOVAL

Refer to

ST-15, "Removal and Installation"

.

INSTALLATION

Installation is the reverse order of removal.

AV-122

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

AUXILIARY INPUT JACKS

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000000964619

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964620

REMOVAL

1.

Remove center console. (M/T models) Refer to

INT-20, "Exploded View"

.

Remove center console cup. (A/T models) Refer to

INT-20, "Exploded View"

.

2.

Remove auxiliary input jacks from center console. (M/T models)
Remove auxiliary input jacks from center console cup. (A/T models)

INSTALLATION

Installation is the reverse order of removal.

JSNIA0131ZZ

1.

Auxiliary input jacks

AV

ANTENNA FEEDER (RADIO)

AV-123

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

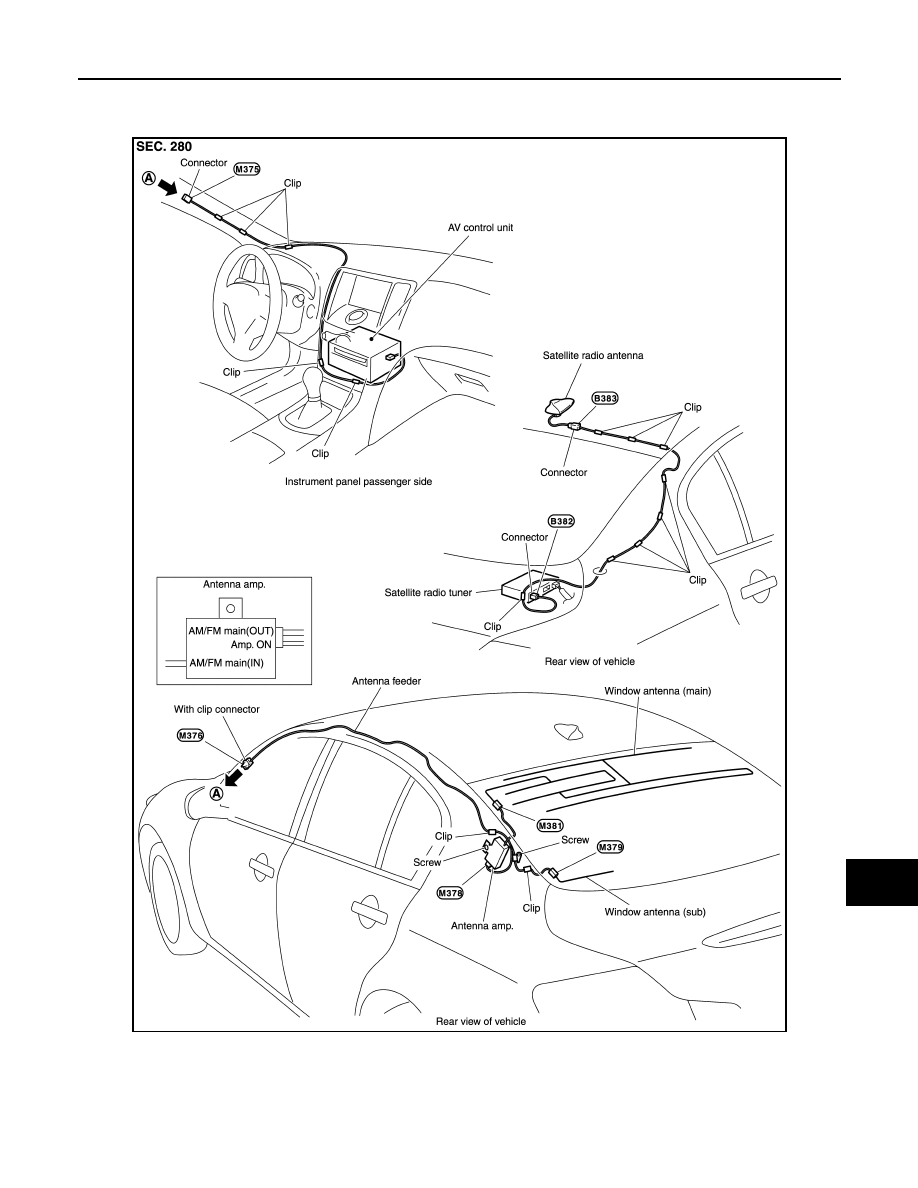

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000000964621

JSNIA0161GB
